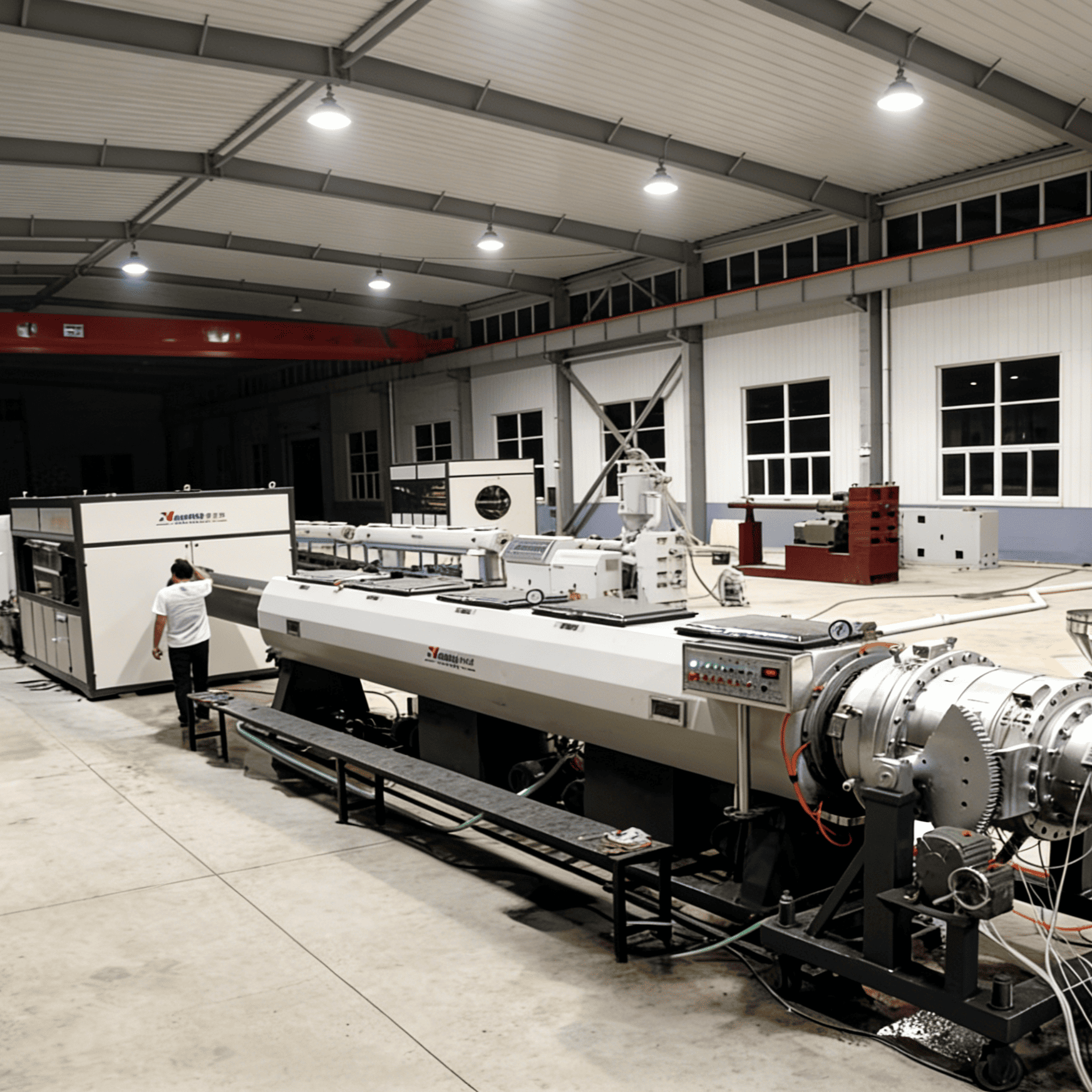

High Output HDPE PE100 Pipe Extrusion Line for Municipal Water Gas Supply

The High Output HDPE PE100 Pipe Extrusion Line by Huashida is a professional-grade solution engineered for high-speed, large-volume production of PE80 and PE100 grade municipal water and gas supply pipes - covering a full diameter range from Ø16mm to Ø1600mm with peak output reaching 2000-2500kg/h on the largest configuration.

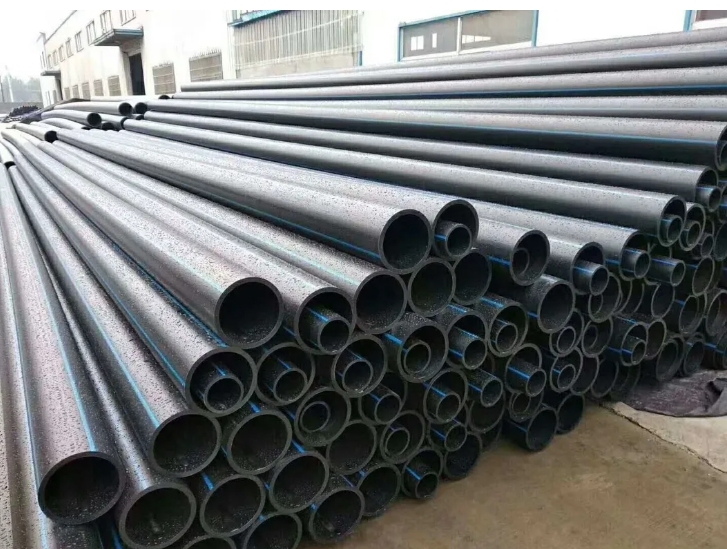

• Municipal Water & Gas Networks: Municipal water distribution pipeline and urban natural gas pipeline manufacturing for city-scale infrastructure
• Energy & Mining: Landfill leachate collection, industrial chemical transport, and high-pressure energy conduit pipelines
• Renewables & Geothermal: Geothermal heating systems and high-pressure energy conduits requiring long-service-life HDPE PE100 pipe
• Agriculture: High-efficiency agricultural irrigation pipe production and drainage systems

• Feeding & Drying: Automated vacuum loader feeding and moisture removal via hopper dryer
• High-Torque Extrusion Molding: 38CrMoAlA nitrided screw plasticizes PE80 and PE100 raw material granules

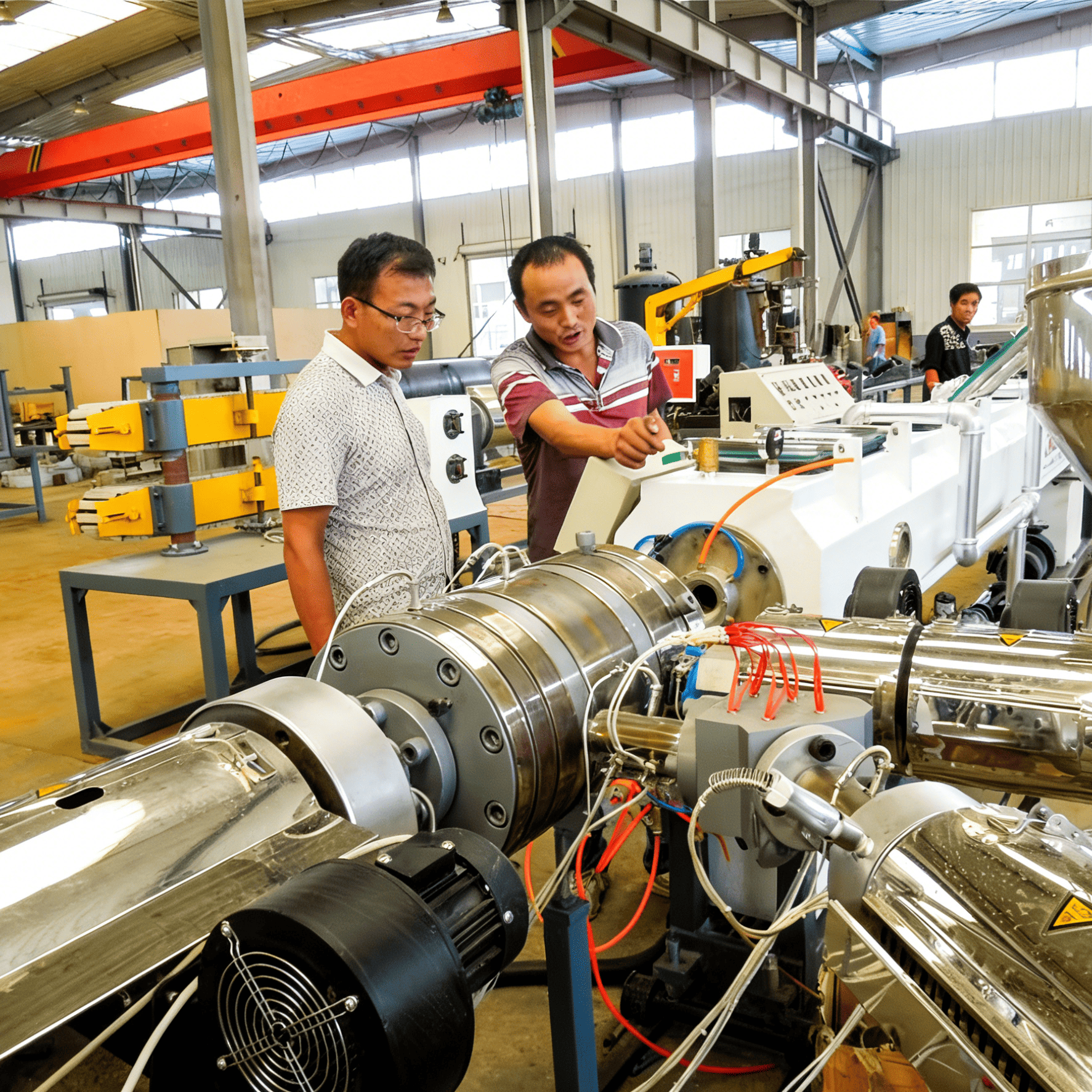

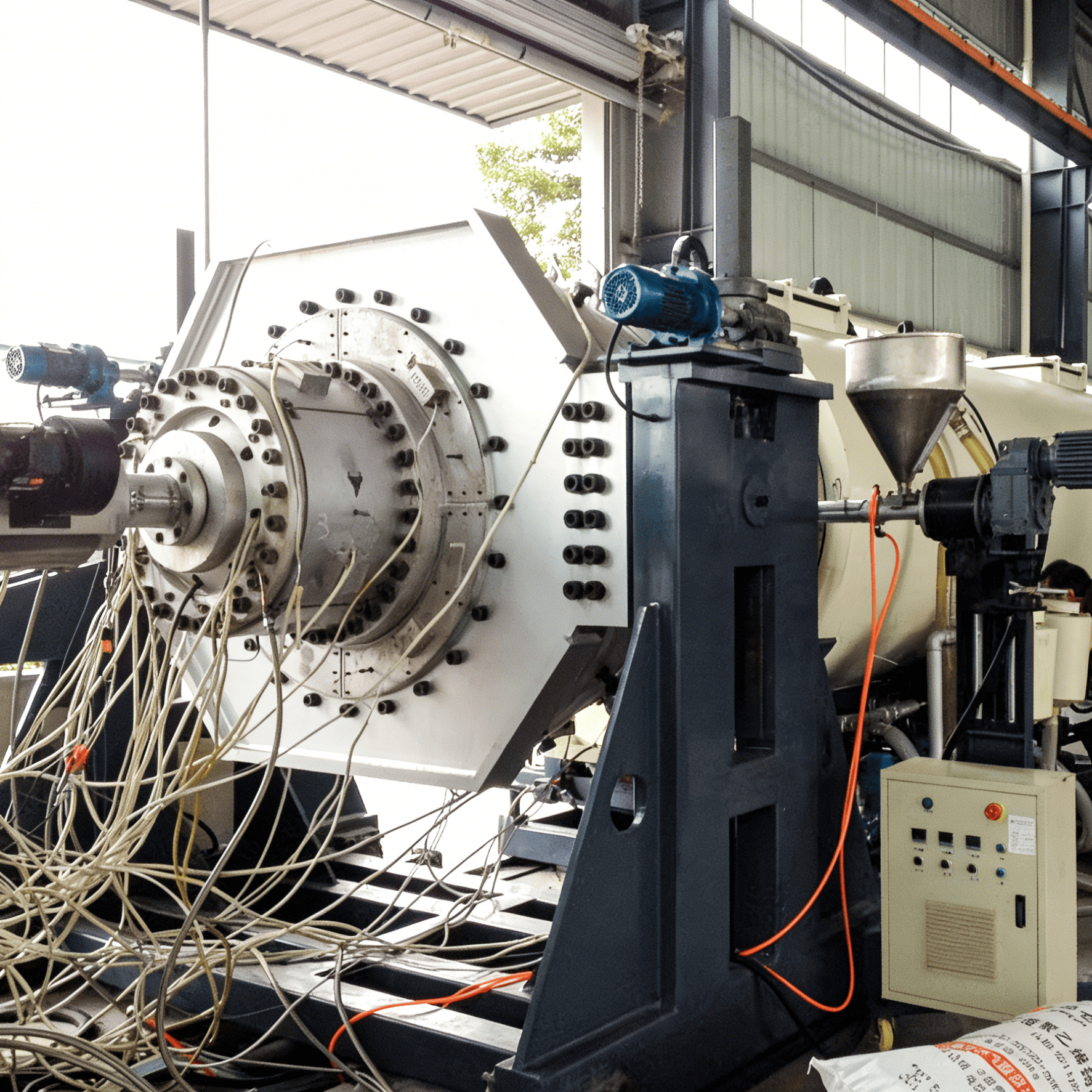

• Helical Basket Die Head Forming: Advanced helical basket co-extrusion die head provides low-melt temperature processing
• Vacuum Calibration: Precision shaping in stainless steel vacuum calibration tank

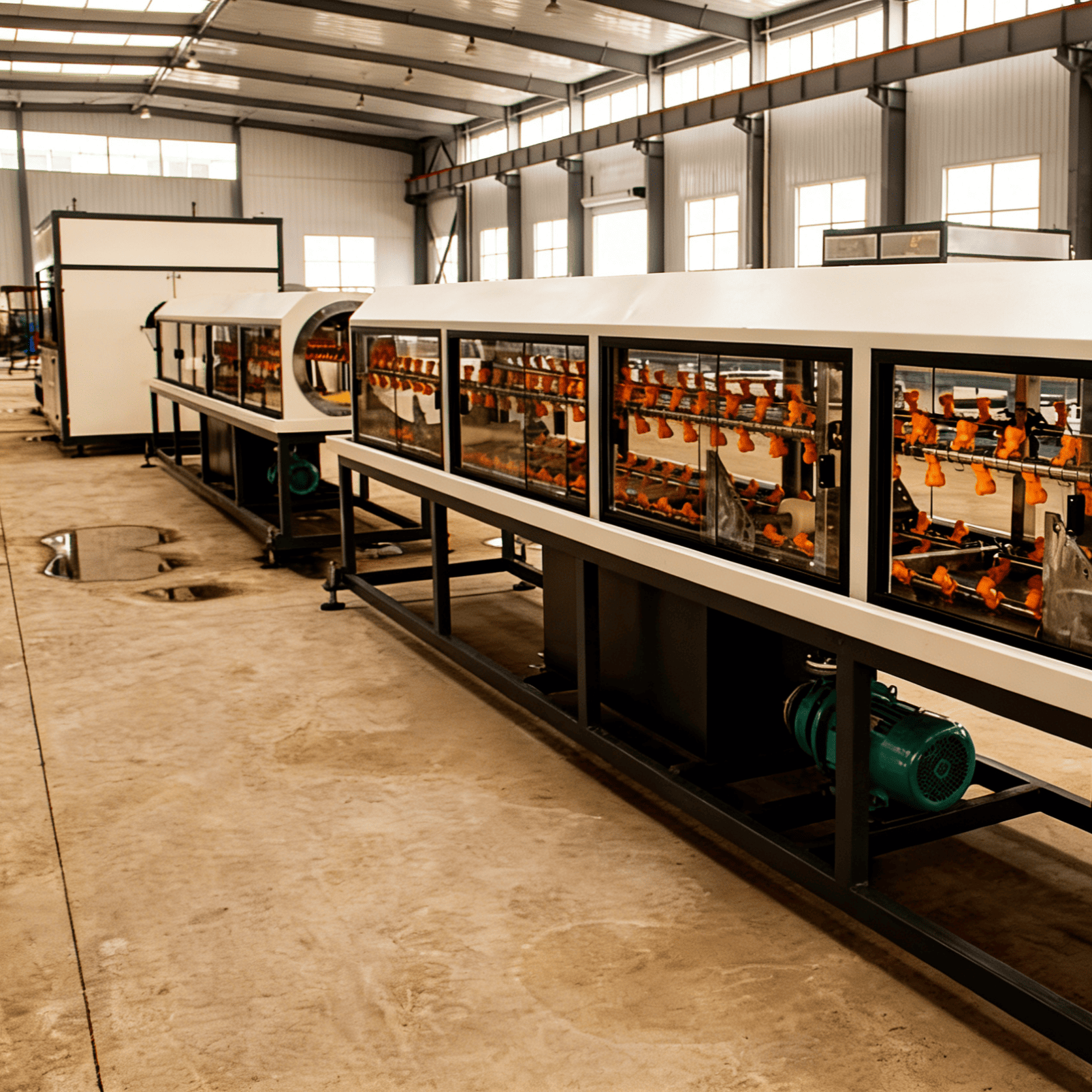

• Spray Cooling: Multi-stage water spraying cooling tanks for structural integrity
• Hauling & Chipless Cutting: Synchronized heavy-duty haul-off traction and chipless planetary cutting
• Co-Extrusion Marking & Stacking: Automatic 25/25 co-extrusion marking line and final discharge

• Vacuum loader - automated PE80/PE100 granule feeding
• Hopper dryer - moisture removal for consistent resin quality
• High-torque 38CrMoAlA nitrided single screw extruder
• 25/25 marking line co-extruder - color-coded PE pipe marking
• Stainless steel vacuum calibration table
• 2/4 sets Water spraying cooling tank
• Heavy duty haul-off machine (Traction unit)

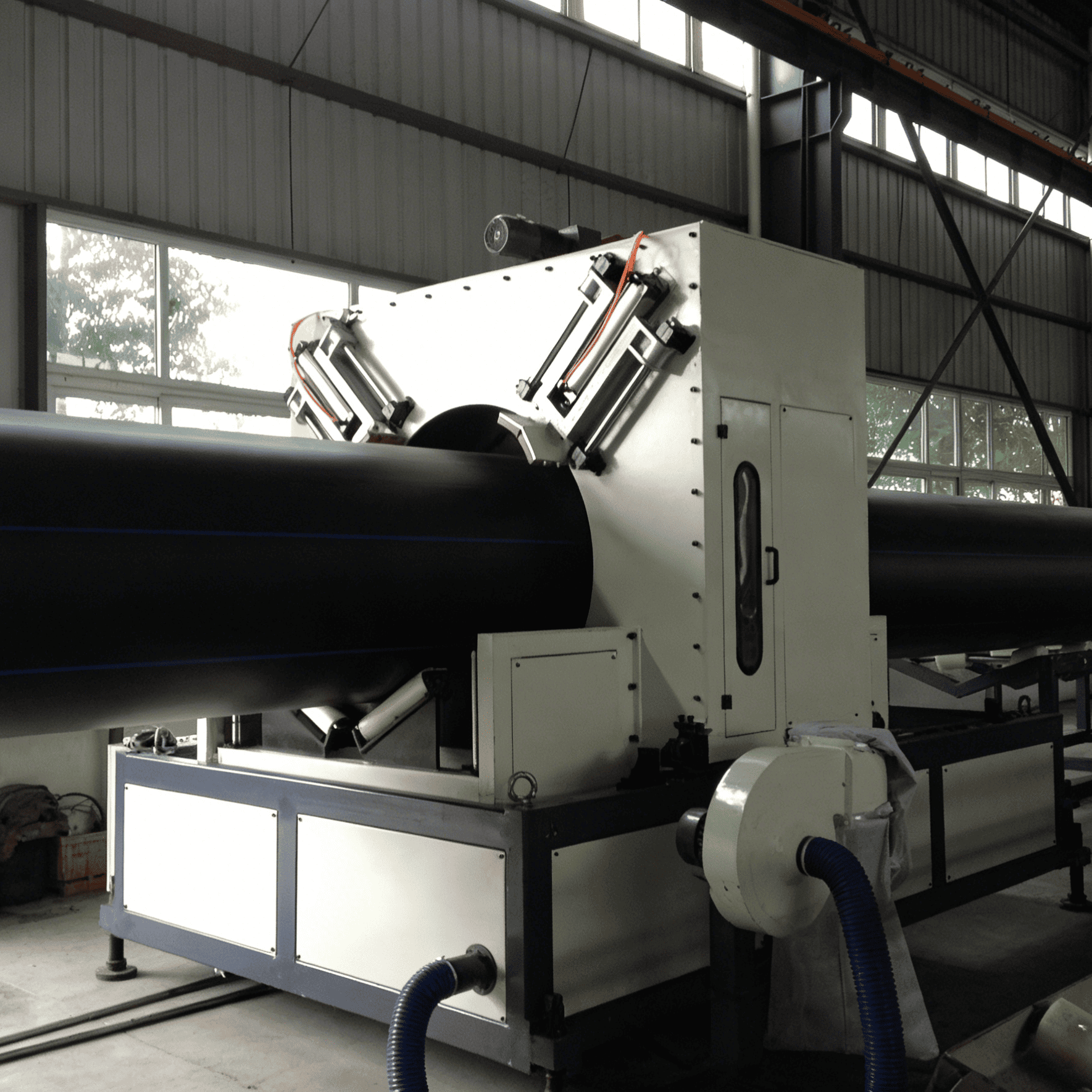

• Chipless planetary cutting machine - dust-free, clean production
• Automatic pipe stacker / tipping table

• High-Torque Extrusion - 2000-2500kg/h Peak Output: Powerful 38CrMoAlA nitrided screw with high-torque drive ensures material stability
• Helical Basket Co-Extrusion Die Head: Advanced design provides low-melt temperature processing and excellent mixing
• PLC Intelligent Control: Fully integrated PLC touch-screen control system for real-time parameter monitoring
• Intelligent Vacuum Calibration: Advanced water film lubrication and sizing ring cooling system ensures perfect pipe roundness
• Chipless Planetary Cutting: Dust-free pipe cutting eliminates airborne plastic particles
• Cost-Efficient Co-Extrusion & Recycled Material Compatible: Multi-layer co-extrusion technology supports recycled material cores

• Turnkey Municipal Infrastructure Solutions: End-to-end services including complete production line plant design and installation
• Global Municipal Project Authority: Over 389 successful PE pipe extrusion line projects deployed worldwide
• Engineering Depth: 23 years of manufacturing expertise backed by premier Plastic Machinery R&D Center
• Triple Certified Quality: CE ISO9001:2015 SGS certified - meeting strictest municipal infrastructure project requirements
