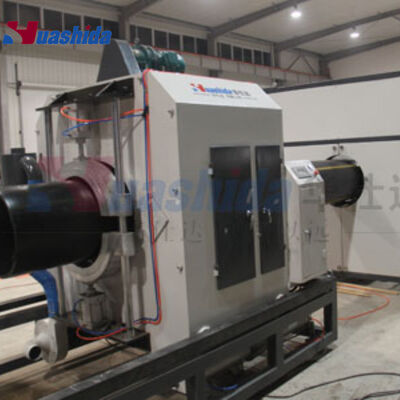

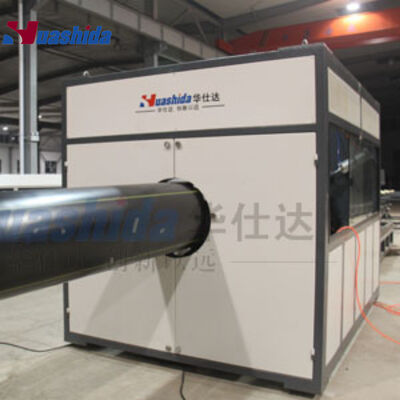

HDPE Pipe Extrusion Line for 20-2000mm Water/Gas Supply with Computerized Control

HDPE Solid Wall Pipe Extrusion Machine Tube Extruder developed by Qingdao Huashida Machinery Co. Ltd. This extrusion line is designed for producing PE, PP, PB, PERT, ABS pipes and more.

Plastic pipes produced by this line feature excellent stiffness, flexibility, high mechanical strength, resistance to environmental stress cracks, resistance to creep deformation, and heat linkage properties.

This system is the preferred choice for various applications including city gas pipes, water supply pipes, foundation pipes, landfill collection pipes, water mains, and geothermal heating systems.

• Auto feeder and vacuum drier
• Single screw extruder with AC motor, hard-toothed surface reduction gearbox, extruding system, heating and cooling system, and electrical control components
• Molds including mandril, neck mold, spiral body, cover, die-head body, bolts, and heating rings
• Vacuum calibrating water tank with frame, stainless steel tank, vacuum system, spray cooling system, and mobile device
• Spray water cooling tank
• Cutting machine and discharge bracket

The AC motor connects directly to the reduction gearbox, rotating the screw at precise speeds to accommodate different plastic materials.

Internal surfaces are polished and chrome-plated to ensure smooth material flow and prevent rusting. Pipe wall thickness uniformity is adjustable via bolts. Bronze calibrating sleeves cool and calibrate pipe outer diameter.

Vacuum pump exhausts air from sealed tank to pressurize fresh pipe against calibrating copper sleeve for precise outer diameter calibration. Spray nozzles provide multi-directional cooling.

The entire water supply pipe extrusion machine production line is controlled by PLC computer system for easy and convenient operation.

Qingdao HuaShiDa Machinery Co., Ltd. (HSD) was established in 2003 in Qingdao High & New Technology Industrial Development Zone, China. The company's factory covers an area of 34,000 square meters located in Jinling Industrial Park, Chengyang District, Qingdao.

• EU CE Certification - ensuring product safety and compliance with international standards
• ISO Management System Certifications - including Quality Management System, Environmental Management System, and Occupational Health and Safety Management System
• Core Technology Patents - multiple patented technologies in mechanical equipment innovation
• First (Set) Major Technical Equipment Certification - recognition of advanced manufacturing capabilities
• Industry Awards & Innovation Honors - acknowledged for technological development and research achievements

These certifications and honors demonstrate HSD's commitment to quality, innovation, safety, and sustainable development, providing a strong foundation for serving customers worldwide and building long-term partnerships in the global market.
