Home /Products/Heat Shrinkable Sleeve/Anticorrosion Heat Shrinkable Sleeve for 3LPE 3PE Pipeline Field Joints with Cross Linked Coating

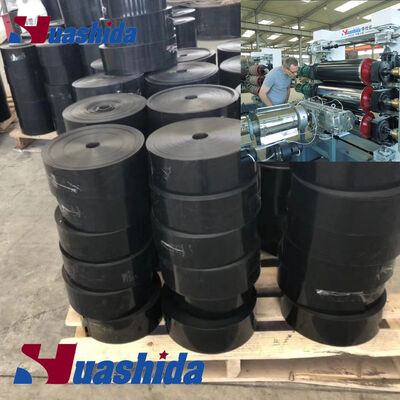

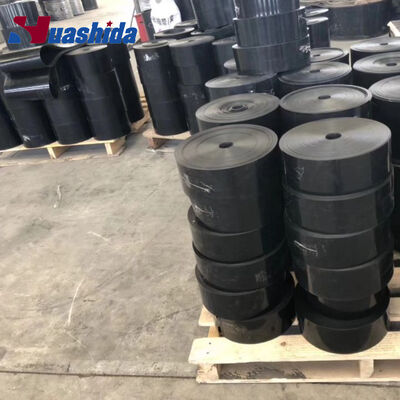

Anticorrosion Heat Shrinkable Sleeve for 3LPE 3PE Pipeline Field Joints with Cross Linked Coating

100
MOQ
huashida
Price
Anticorrosion Heat Shrinkable Sleeve for 3LPE 3PE Pipeline Field Joints with Cross Linked Coating
Features Gallery Product Description Request A Quote
Features
Specifications
Waterproof: Waterproof
Adhesive: Epoxy Resin
Type: Anticorrosion Heat Shrink Sleeve
MPa Classfication: Low Pressure Piping
Diameter: >720mm
Connection Type: Welding
Medium: Oil/Gas/Water
Width: Per Customer Request
Thickness: 1.2-3.5mm
Transport Package: Film And Carton
Heat Resistance: High Temperature
Application: Plastic, Metal, 3lpe Pipeline Joint
Base Material: PE/PP
Temperature Classification: High Temperature Piping
Standard: ASTM, GB, API, DIN
Cross-Section Shape: Round
Character: Fast In Shrinkage, Easy To Use
Work Temperature: 60-80°c
Vicat Softening Point: >=90°c
Specification: EN253-2003, ISO1183-2004, ISO6964-1986, EN728-1997
Origin: Qingdao China
Highlight:

Anticorrosion heat shrinkable sleeve

,

3LPE pipeline field joint sleeve

,

Cross linked coating heat sleeve
Basic Infomation
Place of Origin: china
Brand Name: huashida
Certification: CE, ISO9001:2008, QS, GMP
Payment & Shipping Terms
Packaging Details: Standard packaging
Delivery Time: 60 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 100set a year
Product Description
3LPE 3PE Coating Pipeline Field Joints 60/80°C Cross-Linked Anticorrosion Heat Shrink Sleeve
Product Overview

3LPE Coating Pipeline Field Joints 60/80°C Cross-Linked Heat Shrink Sleeve

Heat shrinkable sleeve - HSSC-1

HSSC-1 Heat shrinkable sleeve (2 layers) is developed and manufactured by Qingdao Huashida Machinery Co., Ltd for anti-corrosion of pipelines. Featuring radiation cross-linked polyethylene backing and high shearing strength melt adhesive with shape memory function, this system creates a perfectly sealed surface when heated as the hot melt adhesive is squeezed into the joint by shrink power.

HSSC-1 is compatible with standard pipe coatings and can be used for coating bare pipes, replacement pipe sections, and large radius bends. The system is designed for application with minimum preheating and is ideal for different diameter oil, gas, and water pipelines.

3LPE Coating Pipeline Field Joints Cross-Linked Anticorrosion Heat Shrink Sleeve product view 3LPE Coating Pipeline Field Joints Cross-Linked Anticorrosion Heat Shrink Sleeve application example
Key Features
  • Fast shrinkage speed
  • Excellent waterproof performance
  • Superior anti-corrosive performance
  • Long service life
  • Convenient transportation
  • Fast construction
  • Ideal material for corrosion prevention and insulation
Application Scope

Primarily used for heat pipe networks, steel pipe corrosion resistance and insulation, chemical pipes, and sewage pipes.

Technical Parameters
ITEM Parameter Standard Unit Data
Adhesive Softening Point ASTM E 28 °C 92
Shear Strength DIN 30 672 N/cm ≥100
Basic Specific Density ASTM D792 r/cm³ 0.935-0.96
Tensile Strength ASTM D638 Mpa 15-20
Elongation at Break ASTM D792 % 350
Hardness ASTM D2240 Ball 48
Peel Strength ASTM D1000 N/cm >150
Heat Shrinkable Sleeve Water-intake Rate ASTM D570 % 0.05
3LPE Coating Pipeline Field Joints technical specifications 3LPE Coating Pipeline Field Joints installation process 3LPE Coating Pipeline Field Joints close-up view 3LPE Coating Pipeline Field Joints application example
Company Profile

Qingdao Huashida Machinery Co., LTD is a manufacturer with 21 years of production experience specializing in plastic pipe machines, municipal pipe machines, pipe insulation & anticorrosion machines, and pipe jointing & anticorrosion materials.

Our Product Range
  1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
  2. Rigid pre-insulated pipe Production Line
  3. Flexible pre-insulated pipe (PERT) production line
  4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
  5. Steel pipe derusting line
  6. PE pressure pipe/Water Gas supply pipe production line
  7. PP/PE plastic board/sheet/geomembrane production line
  8. NBR PVC Thermal insulation tube/plate production line
  9. Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE PP welding rod

We have established partnerships with over 400 overseas customers and export our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria, and other countries worldwide.

Qingdao Huashida Machinery Facility
Our Team
Huashida Machinery Professional Team
Product Delivery
Huashida Machinery Product Delivery Process
Industry Exhibitions
Huashida Machinery Exhibition Participation
Quality Certifications
Huashida Machinery Quality Certifications Huashida Machinery Additional Certifications
