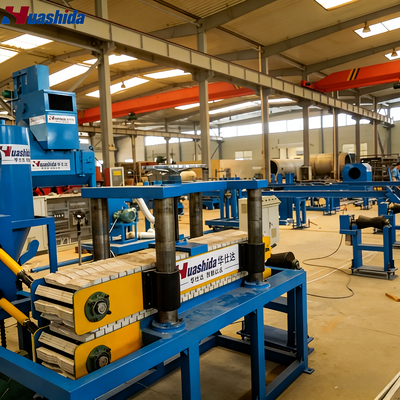

Automatic 76-325mm O-Type 3LPE FBE Steel Pipe Coating Line for Municipal Pipelines

This Automatic O-Type 3LPE FBE Steel Pipe Coating Line is purpose-built for small diameter municipal pipeline coating across a 76-325mm diameter range. Unlike spiral-conveyor large-diameter coating lines, this automatic O-Type round-die co-extrusion coating line delivers uniform, continuous 3LPE coating thickness around the full pipe circumference without manual adjustment between pipe sizes.

The line includes fully integrated systems for steel pipe transmission, external shot blasting to Sa2.5 international surface cleanliness, dust collection, medium-frequency induction preheating, electrostatic FBE epoxy powder spraying, hot melt adhesive extrusion, 3LPE/2LPE polyethylene outer layer co-extrusion, water spray cooling, automated pipe end grinding/beveling, hydraulic/pneumatic operation, inspection, and full PLC automatic control - all managed by one operator.

• Automatic O-Type Extrusion: Ensures uniform 3LPE coating thickness across all 76-325mm pipe sizes
• 76-325mm Full Small-Bore Coverage: Complete municipal pipeline coating spectrum in one line
• ≥150m²/h High Throughput: Significantly higher output than standard small-diameter coating lines
• Failure Rate Below 0.5%: All-weather stable automatic operation with full PLC control

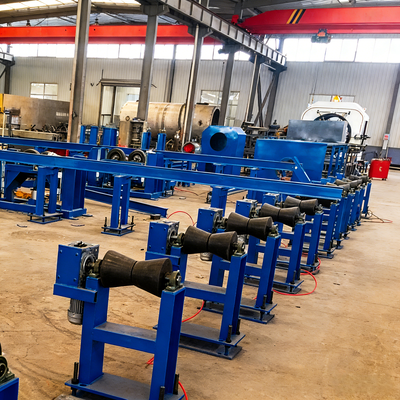

1. Pipe Loading: Automated upload via screw conveyor

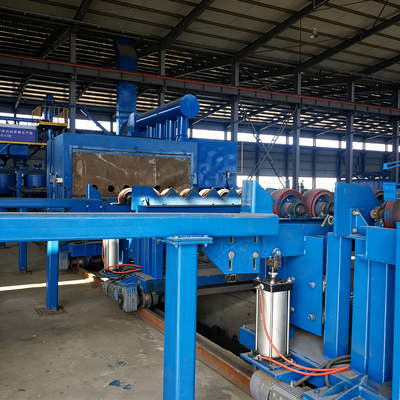

2. Surface Treatment: External shot blasting rust removal to ≥Sa2.5 international cleanliness standard
3. Induction Heating: Precision medium-frequency induction heating for optimal coating adhesion
4. FBE Base Coating: Electrostatic epoxy powder spraying forming chemical-resistant base layer

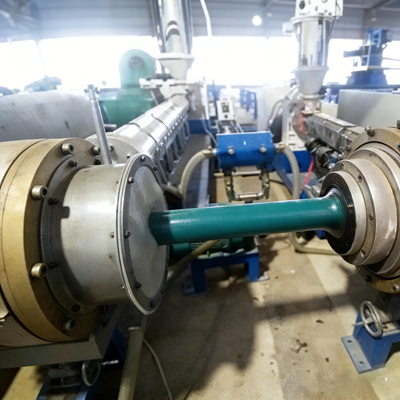

5. 3LPE/2LPE O-Type Application: Continuous O-Type round-die co-extrusion of adhesive and polyethylene layers
6. Cooling & Finishing: Water spray cooling with automated pipe end grinding/beveling to DIN 30670 / BS EN 10329 standard
7. Unloading: Systematic discharge for storage and transport

• Right-Sized for Municipal Pipeline Coating: Purpose-built automatic O-Type co-extrusion technology calibrated for 76-325mm pipe
• ≥150m²/h High Throughput: Sustained output keeping large-volume contracts on schedule
• 40% Labor Cost Reduction: Full automatic PLC production with single-operator capability
• Failure Rate Below 0.5%: All-weather stable operation with automated PLC control
• Internationally Certified: CE and ISO9001 certified, meeting DIN 30670 and BS EN 10329 standards
• One-Stop Lifecycle Service: Complete support from design to after-sales technical assistance

Qingdao Huashida Machinery Co., Ltd. is a leading manufacturer of automatic O-Type 3LPE FBE steel pipe coating lines, municipal pipe machines, and pipeline anti-corrosion materials, with 21 years of production experience.

• Automatic O-Type 3LPE FBE Small Diameter Coating Lines (76-325mm)
• HDPE jacket pipe for pre-insulated pipe production line (110-2000mm)
• Rigid and flexible pre-insulated pipe (PERT) production lines
• Steel pipe FBE/2LPE/3LPE anti-corrosion coating lines - large diameter configurations (325-4200mm)
• Steel pipe external shot blasting derusting line
• PE pressure pipe/water gas supply pipe production line
• PP/PE plastic board/sheet/geomembrane production line
• NBR PVC thermal insulation tube/plate production line
• Pipeline anti-corrosion materials and welding equipment

We have worked with more than 400 overseas customers, exporting to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria, and 60+ countries worldwide.
