Automatic HDPE PE100 Pipe Extrusion Line for Water Gas Supply with PLC systems

1
MOQ
230,000.00-550,000.00
Price
Automatic HDPE PE100 Pipe Extrusion Line for Water Gas Supply with PLC systems
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Max Output Capacity: 800 - 1200 Kg/H
Cooling Method: Water Cooling (Stainless Steel Vacuum Tank)
Installed Power: 160kw - 450kw (Depends On Line Size)
Pipe Diameter Range: 16-1600mm
Screw Material: 38crmoala (Nitrided For Wear Resistance)
Screw No.: Single-screw
Highlight:

Automatic HDPE pipe extrusion line

,

PE100 pipe extrusion line with PLC

,

HDPE water gas pipe extrusion
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: Huashida
Certification: CE, ISO
Model Number: 16-1600 mm
Payment & Shipping Terms
Packaging Details: 800.00cm * 220.00cm * 200.00cm
Delivery Time: 30-60 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 30 Sets/Year
Product Description
Automatic HDPE PE100 Pipe Extrusion Line for Water Gas Supply with PLC Systems
The Automatic HDPE PE100 Pipe Extrusion Line by Huashida is a professional-grade solution engineered for high-speed production of PE80 and PE100 grade pipes for municipal water and gas supply networks. Covering a full diameter range from Ø16mm to Ø1600mm, this PE pipe production line is the industry standard for municipal water supply pipe manufacturing, urban natural gas pipeline transmission, and industrial energy pipeline networks.
By integrating advanced single screw extruder technology with an intelligent PLC touch-screen control system, this HDPE pipe extrusion line ensures high-precision wall thickness, excellent durability, and consistent output for high-pressure underground solid wall PE100 pipe applications - making it the preferred water gas supply pipe production machine for infrastructure contractors and pipe manufacturers worldwide.

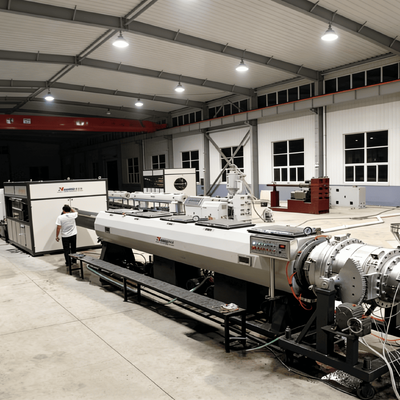

HDPE PE100 Pipe Extrusion Line overview Pipe extrusion line close-up Pipe production process
Technical Specifications
Our PE Pipe Production Machinery comes in various configurations to meet diverse output requirements.
Model Pipe Diameter (mm) Main Extruder Power (kW) Output (kg/h)
SPEG-110 16 - 63 SJ75 X 33 180 350
SPEG-250 75 - 250 SJ90 X 33 280 500 - 1000
SPEG-630 160-315 SJ120 X 33 522 1000 - 1200
SPEG-630 160-355 SJ120 X 33 522 1000 - 1200
SPEG-630 200-450 SJ120 X 33 522 1000 - 1200
SPEG-630 160-630 SJ120 X 33 522 1000 - 1200
SPEG-630 355-630 SJ120 X 33 522 1000 - 1200
SPEG-1200 710 - 1200 SJ150 X 33 680 1000 - 1600
SPEG-2200 1000 - 1600 SJ150 X 33 1200 2000 - 2500
Applications
This versatile HDPE pipe manufacturing equipment serves critical infrastructure sectors across the globe:
  • Municipal Water & Gas Networks: Municipal water distribution pipeline and urban natural gas pipeline manufacturing for city-scale infrastructure projects
  • Energy & Mining: Landfill leachate collection, industrial chemical transport, and high-pressure energy conduit pipelines
  • Renewables & Geothermal: Geothermal heating systems and high-pressure energy conduits requiring durable PE100 polyethylene pipe
  • Agriculture: High-efficiency agricultural irrigation pipe production and drainage systems requiring long-service-life HDPE pressure pipe
Production Line Process
Our automated plastic pipe extrusion workflow is designed for maximum uptime and minimal waste:
  • Feeding & Drying: Automated vacuum loader feeding and moisture removal via hopper dryer - ensuring clean, dry PE80/PE100 resin input for consistent extrusion quality
  • Extrusion Molding: High-efficiency plasticizing of PE raw material granules by the main single screw extruder, optimized for both PE80 and PE100 grade resins
  • Vacuum Calibration: Precision shaping and sizing in the stainless steel vacuum calibration tank, ensuring perfect pipe roundness and diameter accuracy across the full 16-1600mm range

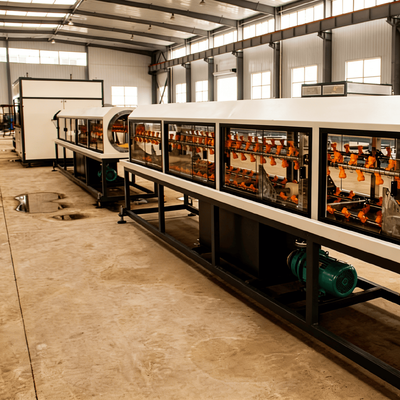

  • Spray Cooling: Multi-stage water spraying cooling tanks for structural integrity of finished HDPE water gas supply pipe

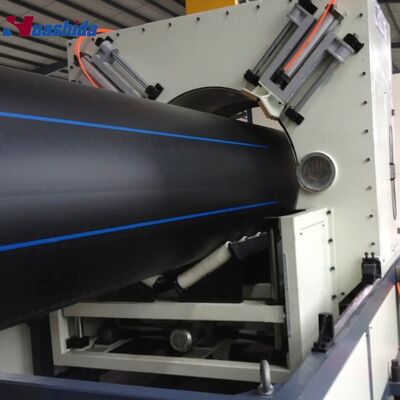

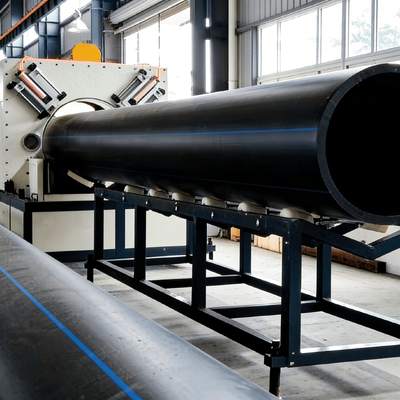

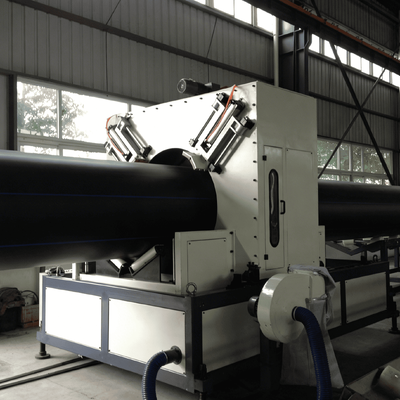

  • Hauling & Chipless Cutting: Synchronized traction by the heavy-duty haul-off machine and high-precision dust-free chipless planetary cutting - keeping the production environment clean without secondary cleanup
  • Marking & Stacking: Automatic co-extrusion line marking and final discharge on the automatic pipe stacker
Main Equipment List
  • 1 set Vacuum loader
  • 1 set Hopper dryer
  • 1 set High-efficiency single screw extruder (Main Extruder)
  • 1 set 25/25 marking line co-extruder
  • 1 set Stainless steel vacuum calibration table
  • 2/4 set Water spraying cooling tank
  • 1 set Heavy duty haul-off machine (Traction unit)
  • 1 set Chipless planetary cutting machine
  • 1 set Automatic pipe stacker / tipping table
Pipe extrusion line detailed view Pipe extrusion line components
Key Features
  • High-Torque Extrusion: Powerful plasticizing capacity ensures material stability for premium PE100 pipe extrusion resins, maintaining consistent melt pressure across the full 16-1600mm diameter range

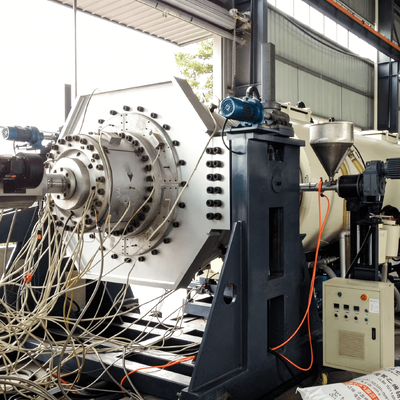

  • Precision Die Head: Advanced helical basket co-extrusion die head design provides low-melt temperature processing and excellent mixing for superior PE pipe hoop strength - critical for high-pressure water and gas supply applications
  • PLC Intelligent Control: Fully integrated PLC touch-screen control system for real-time parameter monitoring and synchronized line operation - the industry-trusted control platform for automatic HDPE pipe extrusion lines globally
  • Intelligent Calibration: Advanced water film lubrication and sizing ring cooling systems ensure perfect pipe roundness and diameter accuracy for PE100 pressure pipe applications
  • Chipless Planetary Cutting: Dust-free pipe cutting eliminates airborne plastic particles - keeping the production environment clean for operators and neighboring equipment
  • Cost-Efficient Co-extrusion: Multi-layer co-extrusion technology allows for recycled material cores or color-coded PE water gas supply pipe marking lines to reduce raw material costs
Our Advantages
  • Turnkey Solutions: End-to-end services including complete HDPE pipe production line plant design, installation, commissioning, and factory staff training
  • Global Authority: Over 389 successful PE pipe extrusion line projects deployed worldwide across Russia, Turkey, UAE, India, Iran, and Kazakhstan
  • Engineering Depth: 23 years of manufacturing expertise backed by a premier Plastic Machinery R&D Center in China - one of the top 3 plastic pipe extrusion machine manufacturers in the Chinese industry
  • Certified Quality: CE, ISO9001:2015, and SGS certified - meeting international standards for high-pressure gas and water supply pipe manufacturing and supporting global project bidding requirements
Company Profile
Founded in 2003, Huashida is a leading manufacturer specializing in HDPE PE100 pipe extrusion lines, anti-corrosion steel pipe coating lines, and plastic pipe extrusion technology. Our 23-year legacy is built on providing patented, high-performance equipment for the world's most demanding infrastructure projects.
Core Product Range:
  • Automatic HDPE PE100 Pipe Extrusion Lines (16-1600mm, Water & Gas Supply)
  • 3LPE/FBE Steel Pipe Anti-Corrosion Coating Lines
  • Pre-insulated Heat Pipe Production Systems (Rigid & Flexible Polyurethane)
  • Large Diameter HDPE Jacket Pipe Lines (up to 2000mm)
  • Geomembrane and Plastic Sheet Extrusion Equipment
Factory Overview
Huashida factory overview
Delivery
Equipment delivery and installation
Certifications
Quality certifications including CE, ISO9001:2015, and SGS
CE, ISO9001:2015, and SGS certified
