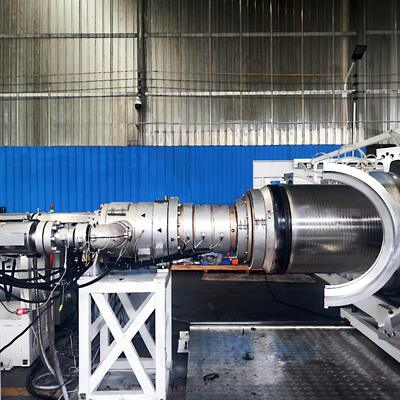

HDPE PP Double Wall Corrugated Pipe Production Line With Plastic Extruder
Double Wall Corrugated Pipe Production Line is a new type of high-speed water-cooled corrugated pipe production line developed and designed by ourselves based on advanced foreign technology. Mainly using polypropylene (PP) or high-density polyethylene (HDPE) as raw materials. Production of single and double wall corrugated pipes. Due to its unique structure, this pipe has the advantages of light weight, good impact resistance, strong corrosion resistance, and cold and heat resistance. It is widely used in urban drainage (water supply), geographical infiltration, construction water supply and drainage, PE F, wire and cable laying, bridge steel cable sheath, agricultural irrigation, and other fields.
Innovation in Action: Huashida's Horizontal Large-Diameter Corrugated Pipe Line
Breaking Industry Barriers
While vertical production lines dominate the market, Huashida's horizontal large-diameter corrugated pipe technology eliminates traditional drawbacks:
Enhanced Stability: Vacuum-assisted molding ensures uniform wall thickness.
Energy Efficiency: Closed-loop water cooling reduces consumption by 30%.
Superior Pipe Quality: Smooth interior + trapezoidal corrugated exterior for 40% higher ring stiffness.

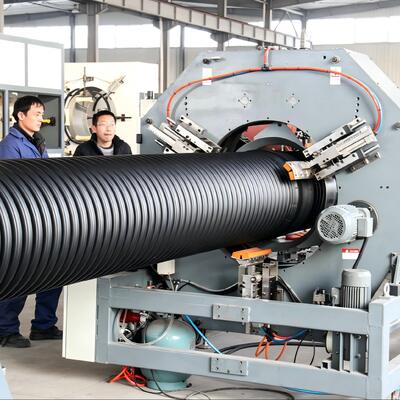

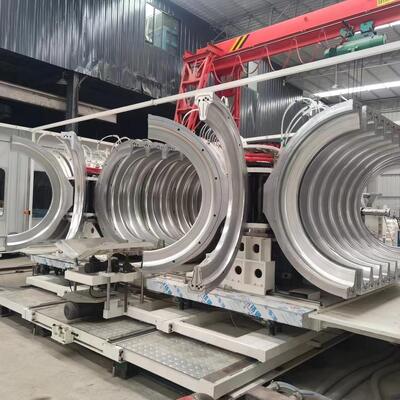

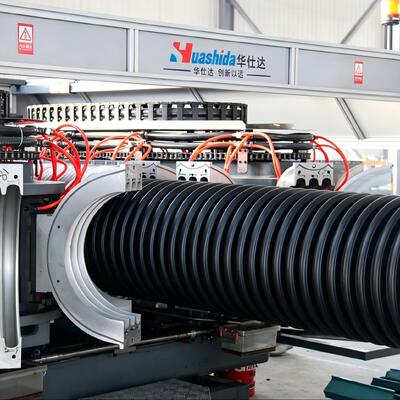

The DWCP series high-speed corrugated pipe forming machine adopts a closed water-cooled structure, and the mold base drives the left and right modules to move within the closed curve. The mold base adopts a gear dynamic structure, which has the advantages of automatic compensation for mechanical wear, smooth operation, low noise, long service life, and high synchronization. The unique design of the circulating water circuit has high reliability, good cooling effect, and low water impact in the pipeline, which improves the reliability of continuous production of pipes and ensures the surface forming quality of pipes.
| Pipe |
|
Extruder |
|
Corrugator |
|
Maximum speed |
| style |
DN |
Model |
Capacity |
series |
mold block qty |
m/min |
| PP/PE double wall corrugated pipe |
ID-200-600 |
SJ-90*36/SJ-75*36 |
600kg/h |
DWCP-600 |
36 |
6 |
| ID 600-1000 |
SJ-120*36/Sj-90*36 |
1000kg/h |
DWCP-1000 |
39 |
12 |
Qingdao Huashida Machinery Co., Ltd., founded in 2003, is a leading Chinese high-tech enterprise specializing in intelligent equipment for pipeline anti-corrosion and pre-insulation systems. Headquartered in the Huashida Industrial Park (33,000 m²) in Chengyang District, Qingdao, Shandong Province, the company integrates R&D, manufacturing, marketing, and global service.
Business Structure
Huashida operates through two core entities:
· Qingdao Huashida Machinery Co., Ltd.: Focuses on designing and manufacturing advanced pipeline coating and insulation production systems.
· Qingdao Huashida Plastic Co., Ltd.: Supplies field joint materials and installation tools, ensuring end-to-end solution support.
Core Product Systems
A. Steel Pipe Anti-Corrosion Systems
· Steel Pipe 3-Layer Polyethylene (3LPE) Anti-Corrosion Coating System
· Steel Pipe Internal & External FBE Coating System
· Steel Pipe External 3LPE & Internal Epoxy Coating System
· Steel Pipe External 3LPE & Internal Liquid Paint Coating System
B. Pre-Insulated Pipe Production Systems
· Vacuum Calibrating Method Pre-Insulated Pipe Outside Casing Extrusion System
· PUR Spray PE Wrap Pre-Insulated Pipe Production System
· Continuous PERT Flexible Pre-Insulated Pipe Production System
· Continuous PU Foam Pre-Insulated Pipe Production System
· PERT Rigid Pre-Insulated Pipe Production System
· Rubber Foam Insulation Tube / Plate Production System
C. Field Joint Material& Tools (by Huashida Plastic)
· Heat Shrinkable Sleeve
· Electro-Fusion Sleeve
· Seamless Heat Shrinkable Sleeve
· Electro-Fusion Welding Machine
· Hot Air Welding Gun
· Plastic Welding Rod
· PE Pipe Elbow
Our Advantages
To supply highest cost-effective products and the most suitable solutions to our clients, as well as intimate help and service, on this basis we reach a win-win situation. For over 14years We have exported to many foreign countries, such as Russia, Iran, Turkey, U.A.E, Sudan, Ukraine, Uzbekistan, Azerbaijan, South Asia, Poland etc.
Qingdao Huashida Machinery Co., Ltd was established in 2003 and has focused on plastic pipe production line, 3LPE anti-corrosion processing line and joints of plastic pipes & 2PE 3PE pipes for over 15 years, we are private high-tech enterprises integrated by R&D, manufacturing, selling, service and trading. We are always concentrating on research and development of plastic extrusion equipments, tightly cooperating with Tsinghua University, Beijing University of chemical technology, South China university of technology and some other colleges and scientific research institutions. Meanwhile, by absorbing advanced technology home and abroad, we have been one of the top manufacturers of plastic extrusion machines in China, especially of PE insulation jacket pipe extrusion line, 3PE anti-corrosion processing line, and PE hollow wall spiral pipe production line.
