High Output Cold Applied PE HDPE Anti-Corrosion Tape Production Line for Pipelines

1
MOQ
US$250,000.00-500,000.00
Price
High Output Cold Applied PE HDPE Anti-Corrosion Tape Production Line for Pipelines
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity: 160-200kg/H
Basing Tape Thickness: 0.2-1mm
Adhesive Coating Thickness: 0.1-0.5mm
Material For Production: Polyethylene
Basing Tape Max. Width: 1000mm
Screw No.: Single-screw
Highlight:

cold applied PE HDPE anti-corrosion tape

,

high output pipeline tape production line

,

HDPE anti-corrosion tape for pipelines
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: Huashida
Certification: CE, ISO
Model Number: 1000mm
Payment & Shipping Terms
Packaging Details: 260*120*350
Delivery Time: 60-90 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 30 Units/Year
Product Description
High Output Cold Applied PE HDPE Anti-Corrosion Tape Production Line for Pipelines
ISO9001 Certified Cold Applied PE Anti-Corrosion Tape Production Line for Pipe Protection

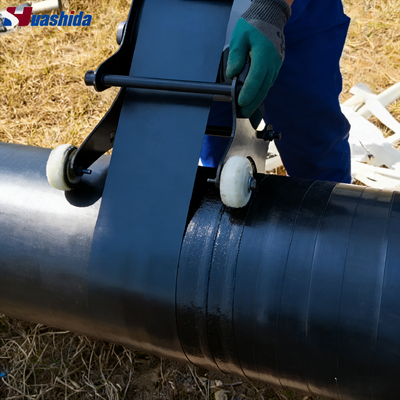

This High Output Cold Applied PE HDPE Anti-Corrosion Tape Production Line is engineered exclusively for manufacturing high-performance cold applied polyethylene anti-corrosion wrapping tape used in buried pipeline protection systems for oil & gas transmission, municipal water supply, natural gas distribution, and industrial pipeline anti-corrosion applications.
Utilizing advanced co-extrusion technology, the system converts raw materials including HDPE, LDPE, and specialized adhesive compounds into a uniform, multi-layered PE anti-corrosion tape that resolves key buyer interest points regarding peel strength, mechanical impact resistance, and long-term chemical durability in harsh underground environments.
Delivering 160-200kg/h high output capacity, this polyethylene tape production line features a heavy-duty single-screw extruder with an optimized L/D ratio and precision temperature control zones, ensuring flawless polymer melting and stable continuous output.
Backed by ISO9001 and CE certification, our factory boasts robust annual production capacity and over two decades of direct export experience servicing B2B wholesalers and industrial distributors across Europe, the Middle East, Central Asia, and the Americas.
Cold Applied PE HDPE Anti-Corrosion Tape Production Line Overview Production Line Equipment Components Tape Production Process Close-up
Production Process
1. PE Base Film Extrusion

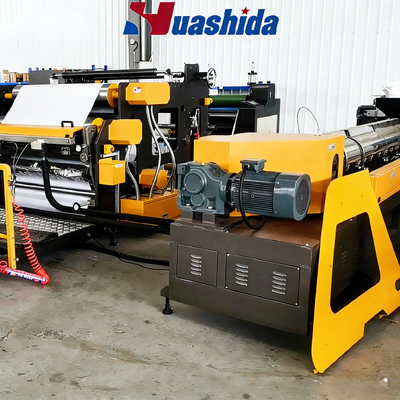

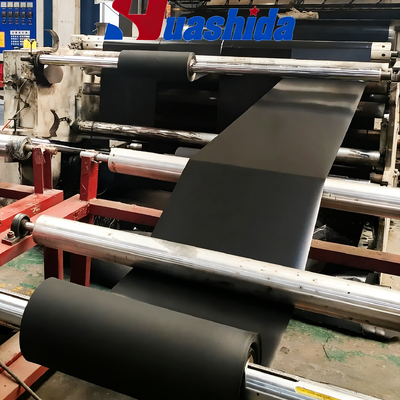

This HDPE anti-corrosion tape production line adopts high-quality HDPE (High-Density Polyethylene) as the primary substrate. The raw polymer material is fully melted and plasticized via a high-efficiency single-screw extruder, uniformly forced through a high-precision extrusion die head, and finalized using multi-roller casting cooling and shaping technology.
2. Adhesive Coating

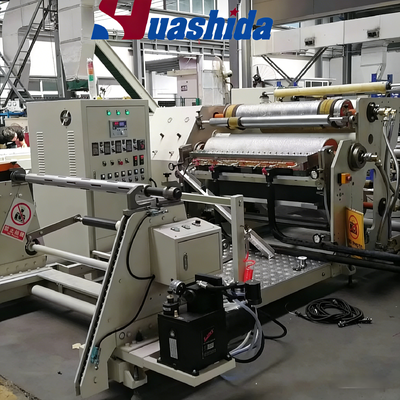

The integrated adhesive tape coating machine unit applies a specially formulated high-performance adhesive compound designed to deliver ultra-strong bonding viscosity and exceptional long-term weathering stability for critical oil & gas pipeline anti-corrosion applications.
3. Slitting & Winding

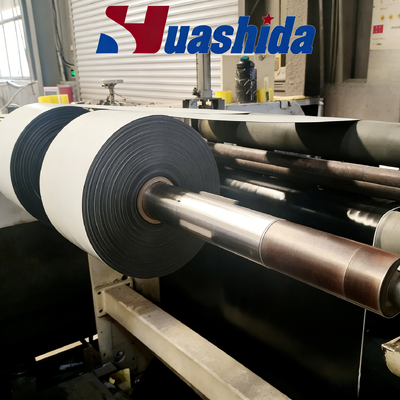

The final phase utilizes an automatic tension-controlled slitting system to process the coated master roll. The material is precisely slit into customized commercial widths based on end-user project parameters, then seamlessly transferred to a high-speed multi-station rewinding unit.
Product Parameters
PE Base Film Extrusion Line Components
No. Equipment Name Quantity
1Vacuum automatic feeder1
2Hopper dryer1
3SJ-75X30 extruder1
4Hydraulic screen changer1
5Die head mold type 10001
6Multi roller tape-casting machine1
7Winding machine1
8PLC computer control system1
Adhesive Coating Machine Components
No. Equipment Name Quantity
1Frame1 unit
2200N·M Magnetic powder brake + Silicone stick 1300mm with corona processor1 unit
3100N·M Magnetic powder brake1 unit
4100N·M magnetic powder clutch2 units
5200N·M magnetic powder clutch1 unit
6Screw1 unit
7Force-feed device1 unit
8Constant pressure system1 unit
9Adhesive delivery pipe1 unit
10Winding machine1 unit
11Unwinding machine2 units
12Coating compound equipment1 unit
13Main engine frequency converter1 unit
14Extruder frequency converter1 unit
15Thermal switch1 unit
16PLC1 unit
This fully automatic production line features 160-200kg/h high output capacity, stable co-extrusion operation, and reliable quality. It greatly reduces labor costs while ensuring consistent PE anti-corrosion tape performance for pipeline protection.

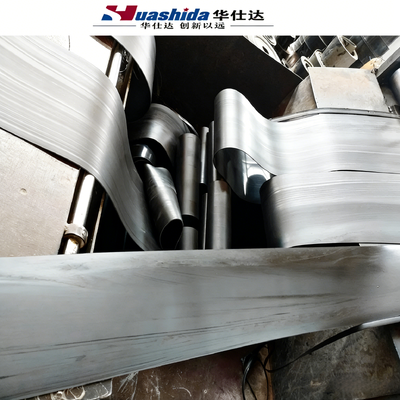

Production Line Quality Control Finished Tape Product Samples
Our Advantages
  • High Output Performance: 160-200kg/h production capacity - significantly higher than standard cold applied PE tape lines
  • ISO9001 & CE Certified: Fully compliant with international pipeline anti-corrosion tape manufacturing standards
  • Turnkey OEM/ODM Service: Complete customization of tape width, thickness, adhesive formulation, and PLC control configuration
  • Co-Extrusion Technology: Ensures uniform multi-layer PE anti-corrosion tape structure with consistent peel strength and bonding performance
  • 21+ Years Export Experience: 400+ overseas customers in Russia, Kazakhstan, Iran, UAE, Turkey, Nigeria, and 60+ countries worldwide
International Exhibition
International Exhibition Display
Certifications
Quality Certifications
Customer Visit
Customer Factory Visit
