Name: Industrial 3PE FBE Steel Pipe Coating Production Line for Oil, Gas and Water Transmission Pipelines
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 50-4200 mm
Price: 1,507,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Coating Structure: FBE Layer,adhesive Layer, PE Layer

Multiple Coating Processes: FBE, 2LPE, 2LPP, 3LPE

Production Capacity: ≥ 250 M²/h

Coating Layer: Internal&External Pipe Wall

Applications: Oil, Natural Gas, And Water Supply Pipelines

Highlight:

3PE steel pipe coating line

FBE pipeline coating equipment

oil gas water transmission pipe machine

Basic Infomation

Place of Origin: Qingdao, China

Brand Name: HUASHIDA

Certification: CE, ISO, RoHS

Model Number: 50-4200 mm

Payment & Shipping Terms

Packaging Details: Wooden/Plastic Film

Delivery Time: 60DAYS

Payment Terms: L/C,D/P,T/T

Supply Ability: 30 Sets/Year

Gallery

Industrial 3PE FBE Steel Pipe Coating Production Line for Oil, Gas and Water Transmission Pipelines

Product Description

Industrial 3PE FBE Steel Pipe Coating Production Line for Oil, Gas and Water Transmission Pipelines

3PE FBE Steel Pipe Coating Production Line

The steel pipe anti-corrosion coating production line is specially designed for applying high-performance protective coatings to steel pipes of different diameters. It is widely used in the production of pipelines for oil and gas transportation, district heating, water supply, petrochemical, and other industrial applications.

Utilizing advanced coating technology, the production line applies a durable 3LPE coating system consisting of an FBE epoxy primer, adhesive layer, and polyethylene outer layer. This multi-layer structure provides superior corrosion resistance, excellent impact and abrasion resistance, outstanding waterproof and electrical insulation properties, and extends the service life of steel pipelines even under harsh operating conditions.

The line supports multiple coating processes, including FBE, 2-layer FBE, 2-layer PE, 2-layer PP, and 3-layer PE anticorrosion coatings.
The 3-layer PE (3LPE) coating structure consists of:

An inner fusion bonded epoxy (FBE) layer
A middle adhesive layer
An outer polyethylene (PE) protective layer

This multilayer structure ensures strong adhesion, reliable sealing, and superior long-term corrosion resistance.

Pipe External Insulation Coating Production Line for Fbe Internal/External 3lpe

Technical Parameters:

Pipe diameter range: 50-4200 mm
Production capacity: ≥ 250 m²/h
Surface cleaning grade: ≥ Sa2.5
Coating materials: epoxy powder, adhesive, polyethylen

The Anticorrosion coating processing line includes:
-steel pipe transmission system
-surface treatment system
-pipe dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system
-bevelling system

Pipe External Insulation Coating Production Line for Fbe Internal/External 3lpe

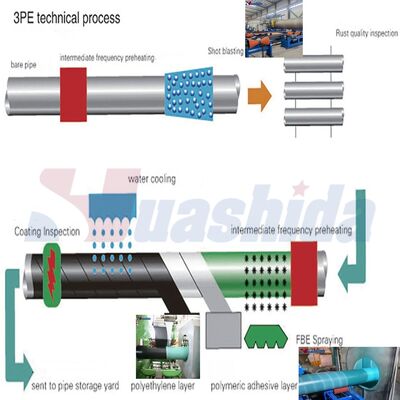

Upload pipes→pipes screw conveyor→rust removal → intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes
Pipe External Insulation Coating Production Line for Fbe Internal/External 3lpe

Advanced Technology & Stable Performance: Ensuring highly efficient and reliable operation.
High Automation: Significantly reduces labor costs and improves production efficiency.
Internationally Certified Quality: Superior anti-corrosion properties that meet global standards.
Turnkey Solutions: Comprehensive service from design and installation to commissioning and training.
Proven Expertise: Backed by 389 successful production lines worldwide and a team of 9 senior engineers.
Award-Winning Innovation: Recognized by a national-level expert workstation in China.

Main Equipment List

No.	Name	Set
A. Derusting Equipment
1	Pipe wheel conveyor	1

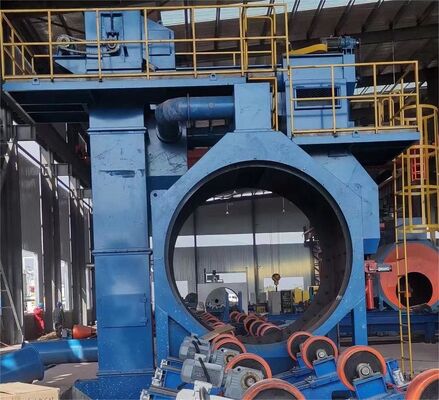

2	Shot Blasting Machine	1
3	Cyclone Dust Collector	1
4	Pulse dust collector	1
5	Centrifugal exhaust fan	1
6	Rust removal equipment PLC	1
B. Coating equipment
1	Pipe wheel conveyor	1

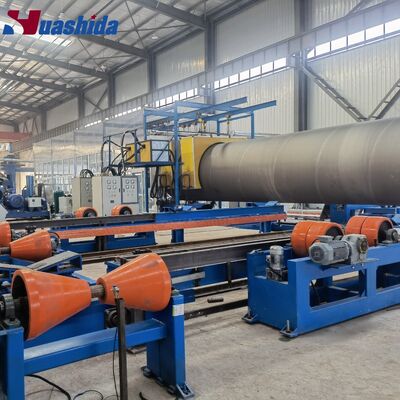

2	Induction heating device	1
3	Powder spraying device	1
4	Automatic loading dryer	2

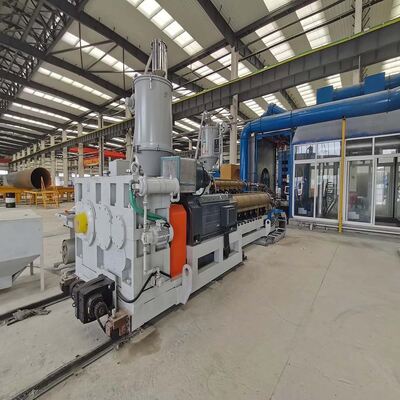

5	SJ-65/30 Extruder	1
6	SJ-120/30 Extruder	1
7	Hot melt adhesive extruder die	1
8	PE sheet extruder head mold	1

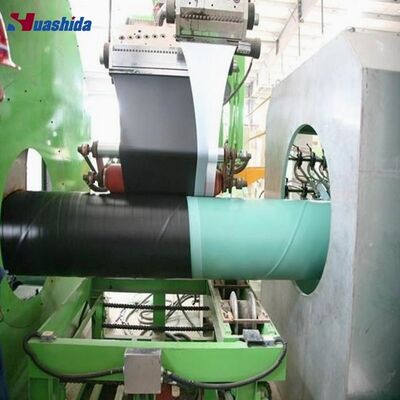

9	Hot melt adhesive/PE sheet coating device	1
10	Environmental Protection Ventilation equipment	1
11	Cooling Spray equipment	1
C.Platform Equipment
1	Steel pipe uploading platform	1
2	Downloading platform	1
3	Pipe storage platform	1
4	Turnover machanism	3
D.Groove Equipment
1	PE Beveling Machine	2
2	Hydraulic Lifting and Turning Machinery	1
3	Hydraulic Equipment	1
4	PLC automatic control system	1

Industrial 3PE FBE Steel Pipe Coating Production Line for Oil, Gas and Water Transmission Pipelines 3

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
Pipe External Insulation Coating Production Line for Fbe Internal/External 3lpe
