Home /Products/Pre-Insulated Pipe Production Line/HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe

HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe

1set
MOQ
120000-600000$
Price
HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Highlight:

HDPE jacket pipe casing extrusion line

,

Pre-insulated pipe production line with dust-free cutting

,

HDPE pipe casing extrusion line for pre-insulated pipes
Basic Infomation
Place of Origin: China
Brand Name: huashida
Certification: iso ce
Model Number: 110-2000mm
Payment & Shipping Terms
Packaging Details: According to customer requirements
Delivery Time: 60-90days
Payment Terms: T/T
Supply Ability: 5sets /per month
Product Description
Product Description
HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe
This HDPE Jacket Pipe Casing Extrusion Line is a high-performance system engineered to produce durable protective casings for PUR (Polyurethane) foam pre-insulated pipe systems. Featuring dust-free planetary cutting technology alongside state-of-the-art vacuum calibration, this production line eliminates plastic dust and debris during the cutting stage - keeping the production environment clean while ensuring casing pipes meet rigorous international standards for thermal insulation and mechanical protection.
By integrating seamlessly into the (HDPE casing + PU foam) manufacturing workflow, our HDPE casing extrusion line delivers high-speed output while maintaining energy efficiency. The resulting pre-insulated pipe casing features superior anti-corrosion properties and high-precision diameter accuracy across a 110-2200mm pipe diameter range, essential for long-term underground and industrial service.



This plastic pipe production line is mainly composed of 9 parts:

1.1set   Auto Vacuum feeder :
2.1set   Hopper dryer
3.1set   Efficient single screw extruder
4.1set   Mould

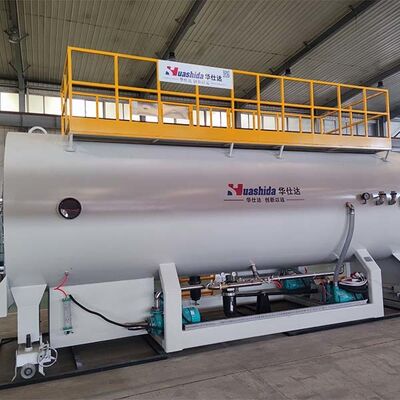

5.1set   Vacuum calibration tank

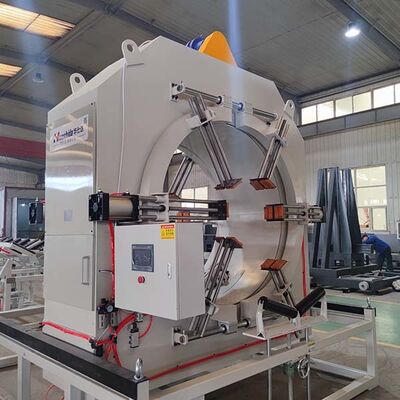

6.1set   Hauling machine
7.1set   Cutting machine
8.1set   Stacker
9.1set   PLC central control system

The machines inclued in the production line can also be customed as your specific requirements.



Main Specifiction:



Style

PE-110/600

PE-365/760

PE-655/1380

PE960-1680

Main extruder

SJ-75/33

SJ-90/33

SJ-120/33

SJ-150/33

Pipe diameter

Φ110-600mm

Φ 365-Φ 760 mm

Φ 655-Φ 1380 mm

Φ 960-Φ1680mm

Capacity

250-300kg/h

400~500 kg/h

850~950 kg/h

900-1100KG/H

Installed power

160kw

420 kw

480 kw

580KW

Length

35m

36 m

40 m

48m






HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe 0

Six Major Features of Vacuum Sizing Thermal Insulation Pipe Production Line


1. Advanced German Extrusion Technology Adopted

Developed by our company based on imported German pipe extrusion technology after technical digestion and optimization, stable extrusion performance, uniform plasticization of PE raw materials, and consistent pipe wall thickness.

2. Integrated All-in-One Compact Structure

The whole line integrates extrusion, vacuum sizing, water cooling, haul-off traction, fixed-length cutting and automatic unloading. Simplified layout, small floor space, easy operation and centralized control.

3. High-Precision Vacuum Sizing System

Independent vacuum sizing tank with adjustable negative pressure, stable pipe shaping, roundness error strictly controlled, effectively avoiding pipe deformation, applicable for high-standard thermal insulation jacket pipes.

4. Efficient Multi-Stage Cooling Design

Segmented circulating water cooling system with temperature separate regulation. Rapid cooling and forming of extruded pipes, greatly improving production speed without surface wrinkling or shrinkage.

5. Stable Constant-Speed Haul-off & Accurate Cutting

Rubber crawler haul-off with large clamping force, no slipping during high-speed operation; servo cutting unit realizes fixed-length precision cutting, neat pipe end without burrs, low material loss.

6. Intelligent Central PLC Control System

Equipped with  PLC and touch screen operation panel. Real-time display of temperature, speed, vacuum pressure and cutting parameters. Automatic fault alarm, easy parameter adjustment, low labor dependence.



HDPE Jacket Production Process Flow
The production process is fully automated, simple to operate, and efficient, with the following steps:
  • Vacuum feeding of PE granules
  • Hot air drying of material
  • Extrusion plasticizing
  • Mold shaping
  • Vacuum sizing/calibration
  • Water cooling
  • Pulling out
  • Dust-free cutting
  • Carrier laying-off pipe
The one-time forming process eliminates the need for edge trimming, reducing raw material waste and further improving production efficiency for this HDPE casing extrusion line.

Our facotry

HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe 1


Our team

HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe 2


Certificate:

HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe 3

HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe 4
