HDPE Jacket Pipe Casing Extrusion Line with Dust-Free Cutting for Pre-Insulated Pipe

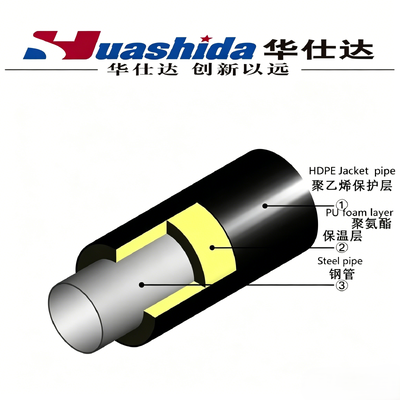

This HDPE Jacket Pipe Casing Extrusion Line is a high-performance system engineered to produce durable protective casings for PUR (Polyurethane) foam pre-insulated pipe systems. Featuring dust-free planetary cutting technology alongside state-of-the-art vacuum calibration, this production line eliminates plastic dust and debris during the cutting stage - keeping the production environment clean while ensuring casing pipes meet rigorous international standards for thermal insulation and mechanical protection.

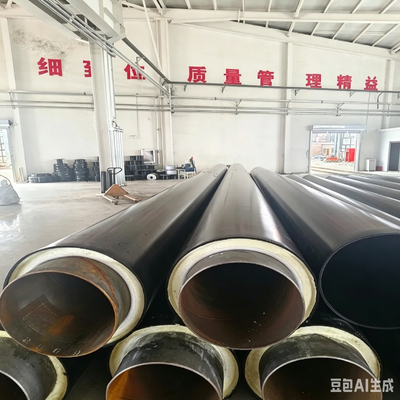

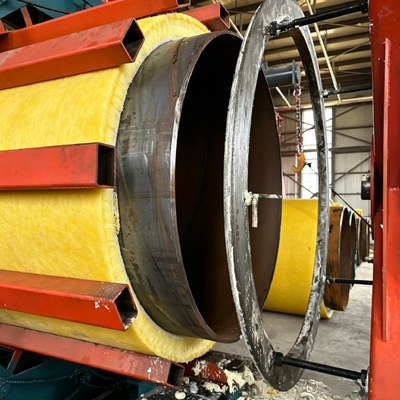

By integrating seamlessly into the (HDPE casing + PU foam) manufacturing workflow, our HDPE casing extrusion line delivers high-speed output while maintaining energy efficiency. The resulting pre-insulated pipe casing features superior anti-corrosion properties and high-precision diameter accuracy across a 110-2200mm pipe diameter range, essential for long-term underground and industrial service.
Product Parameters
| Model |
Main Extruder Model |
Pipe Diameter Range (mm) |
Capacity (kg/h) |
Installed Power (kw) |
Length (m) |
| PE-110/500 |
SJ-75/33 |
110-560 |
250-350 |
160 |
26 |
| PE-655/1380 |
SJ-120/33 |
600-1200 |
700-900 |
480 |
36 |
| PE-960/1860 |
SJ-150/33 |
960-1680 |
1000-1200 |
580 |
45 |
| PE-1155/2200 |
SJ-150/33 |
1155-2000 |
1350 |
650 |
45 |
| PE-315/760 |
SJ-90/33 |
315-760 |
400-600 |
280 |
30 |
| PE-450/960 |
SJ-100/33 |
450-960 |
550-800 |
380 |
33 |
| PE-500/1155 |
SJ-110/33 |
500-1155 |
600-900 |
420 |
35 |
Note: All parameters are for reference only. They can be selected, matched, or modified according to customer-specific requirements to meet diverse production needs.

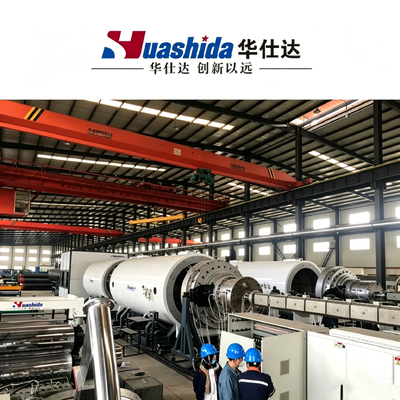

Production Line Composition & Process Flow
Key Equipment Configuration
As a core part of the (HDPE casing + PU foam) pre-insulated pipe production line, this HDPE extrusion line consists of the following key equipment (configurations can be customized):
- 1 set of Vacuum Loader
- 1 set of Hopper Dryer
- 1 set of High-efficiency Single Screw Extruder
- 1 set of Vacuum Calibration Table
- 1 set of Water Spraying Tank
- 1 set of Hauling Machine

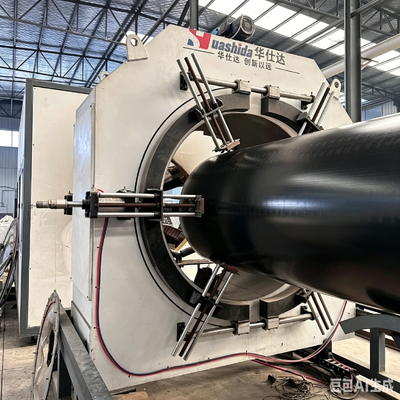

- 1 set of Dust-Free Planetary Cutting Machine
- 1 set of Discharging Frame
All equipment operates in perfect coordination to ensure stable, efficient production of high-quality HDPE jacket pipe, matching the overall operation efficiency of the (HDPE casing + PU foam) pre-insulated pipe production system.
HDPE Jacket Production Process Flow
The production process is fully automated, simple to operate, and efficient, with the following steps:
- Vacuum feeding of PE granules
- Hot air drying of material
- Extrusion plasticizing
- Mold shaping
- Vacuum sizing/calibration
- Water cooling
- Pulling out
- Dust-free cutting
- Carrier laying-off pipe
The one-time forming process eliminates the need for edge trimming, reducing raw material waste and further improving production efficiency for this HDPE casing extrusion line.
Core Advantages (Equipment & Service)
Equipment Advantages
- Dust-Free Cutting Technology: Eliminates plastic dust and debris during pipe cutting, reducing operator exposure and keeping the workshop environment clean.
- Compact Size: Flexible deployment, suitable for various workshop venues, saving space.
- High Automation Degree: Operable by a single person, significantly reducing labor costs and improving production efficiency.
- Long Service Life: High-quality components and a well-designed system ensure low maintenance costs and long-term, stable operation.
- High-Efficiency Extruder: Provides sufficient output and stable performance across the full 110-2200mm diameter range, perfectly matching the efficiency of the entire (HDPE casing + PU foam) pre-insulated pipe production line.
- Superior Pipe Quality: Uniform wall thickness, smooth internal and external surfaces from vacuum calibration forming, precise diameter accuracy, and strong pressure resistance.
- Cost-Saving: High raw material utilization rate, no waste, and one-time forming without additional trimming, reducing production costs.
Service & Technical Advantages
- One-Stop Solution: Full-process services including design, installation, commissioning, and training for the (HDPE casing + PU foam) pre-insulated pipe production line.
- Mature Experience: Extensive experience from 389 sets of HDPE jacket pipe production lines installed worldwide, with mature technology and strong implementability.
- Professional Technical Team: 9 professional senior engineers specializing in dust-free HDPE casing extrusion and (HDPE casing + PU foam) pre-insulated pipe production technology.
- Strong Technical Support: A high-end plastic machinery expert workstation in China, providing professional technical guidance and solutions.
Company Profile
Introduction
Founded in 2003, Qingdao Huashida Machinery Co., Ltd. is a leading manufacturer with 21 years of professional experience in pipeline anti-corrosion equipment and HDPE pre-insulated pipe production lines. We focus on delivering high-quality, patented equipment and one-stop solutions for global customers.
Core Strengths: We hold independent design patents and multiple international certifications (ISO9001, ISO14001, ISO45001, CE, ENC). Our main products cover HDPE jacket pipe casing extrusion lines (110-2200mm) with dust-free cutting capability, pre-insulated pipe production lines, and pipeline anti-corrosion materials & instruments.
Global Reach: Over 500 sets of our production lines have been exported to Russia, Kazakhstan, Iran, Nigeria, and other countries, earning wide global recognition.
Customer Support: We provide customized solutions and a professional after-sales team offering on-site guidance and online training to ensure stable equipment operation.
