High Speed Automatic Pre-Insulated HDPE Pipe Production Line

High Speed Automatic Pre-Insulated HDPE Pipe Production Line

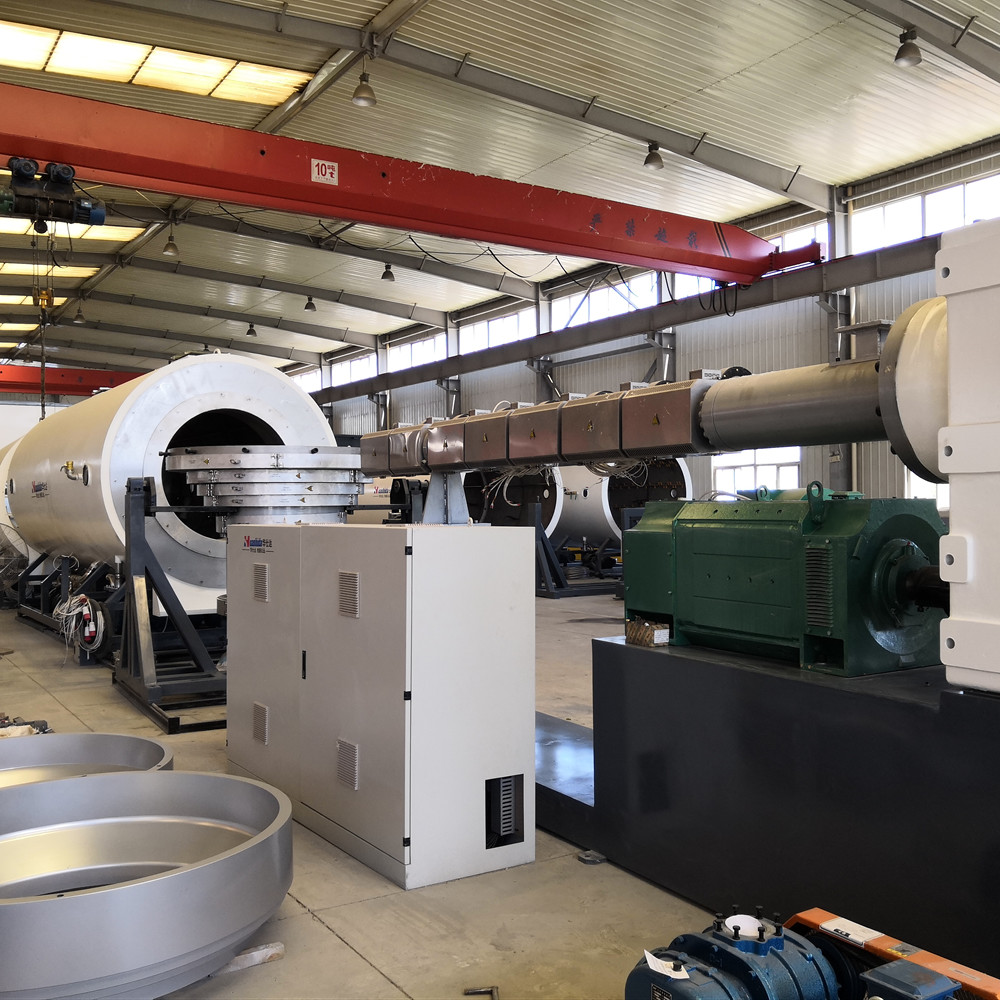

High speed automatic pre-insulated HDPE pipe production line is high-efficiency equipment with high speed and energy saving, designed for producing HDPE pipe used as protective cover of PU foam thermal pre-insulated pipe according to international standard.

The HDPE pipe is manufactured using the vacuum calibration method, resulting in smooth internal and external surfaces. It boasts a long lifespan, excellent corrosion resistance, effective insulation, and strong mechanical properties.

​

Style	PE-110/500	PE-655/1380	PE-960/1860	PE-1155/2200
Main Extruder	SJ-75/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ655-1380mm	Φ960-1860mm	Φ1155-2200mm
Capacity	250-350kg/h	700-900kg/h	1000-1200kg/h	1350kg/h
Installed power	160kw	480kw	580kw	650kw
Length	26m	36m	45m	45m

​

No	Name	Qua.
1	Automatic vacuum feeder	1unit
2	High efficiency hopper dryer	1unit
3	High efficiency single screw extruder	1unit

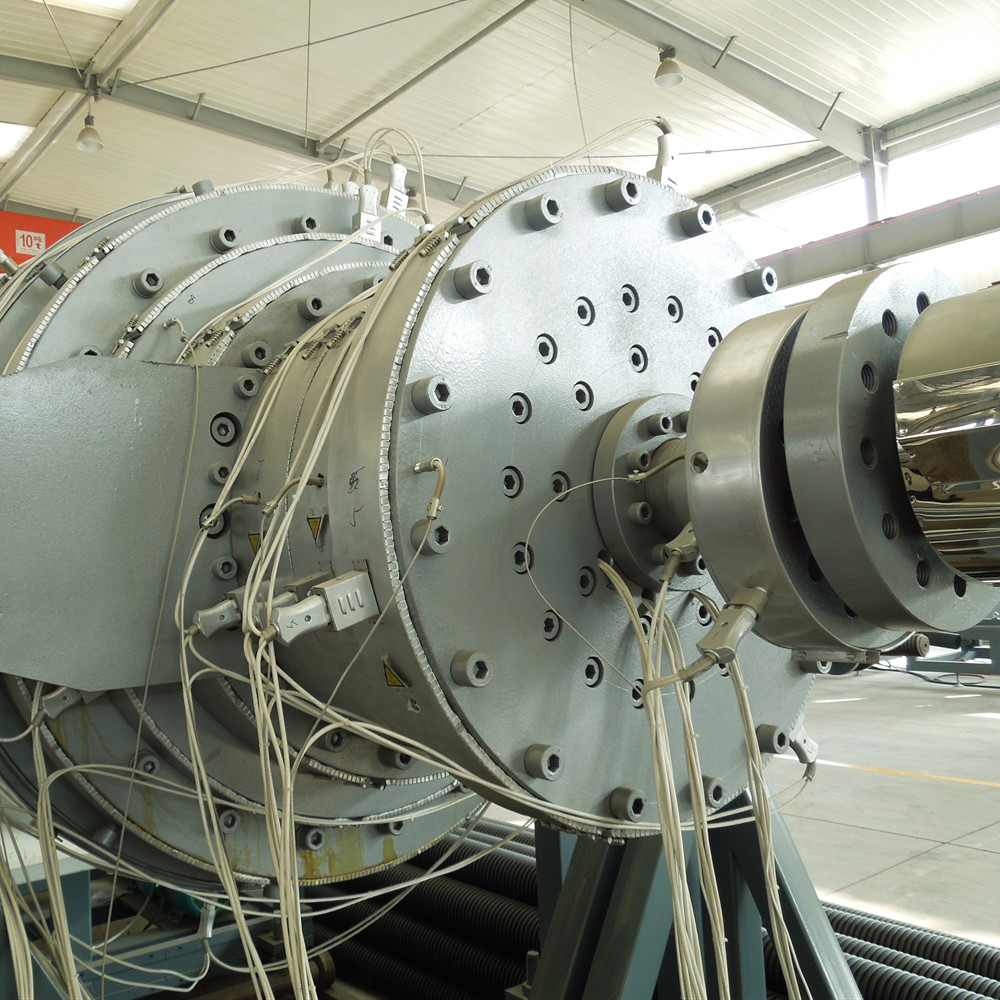

4	Mold 110-2200mm	1set
5	Vacuum calibration box	1unit
6	Cooling calibration box	1unit

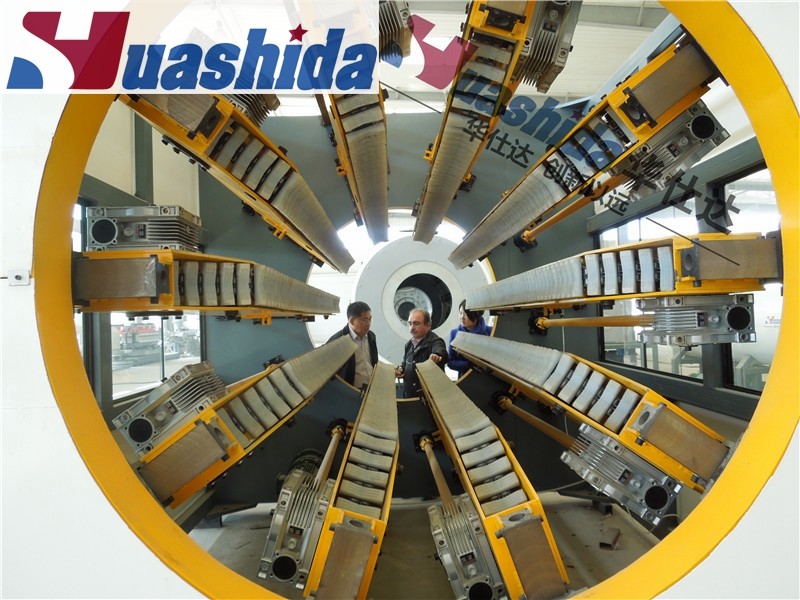

6	Hauling machine	1unit

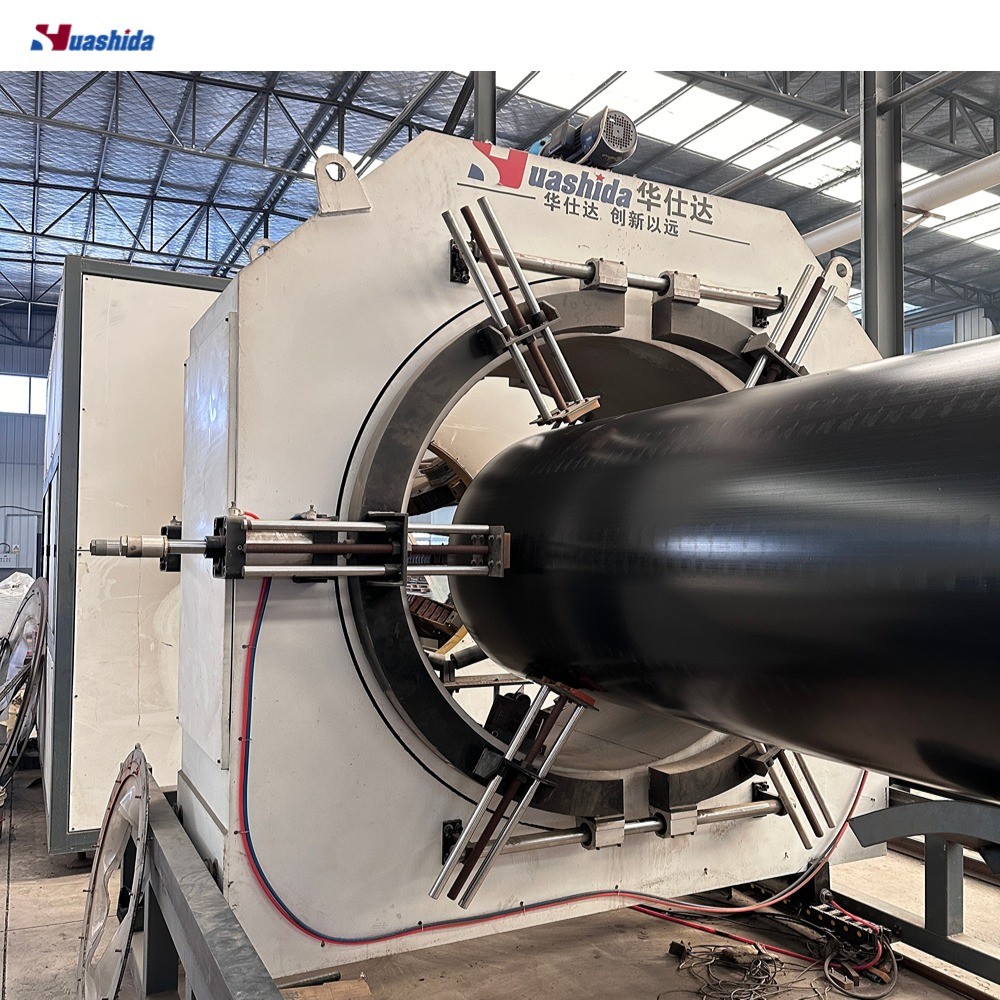

7	Planetary cutter	1unit
8	PLC Computer control system	1set
9	Pipe bracket	1set

Features of High Speed Automatic Pre-Insulated HDPE Pipe Production Line

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.

• High efficiency single spiral screw with innovative structural design - increases productivity by 30% and saves 20% energy

• Precise feeding control - no material waste, raw material moves forward fast

• Dual pump system - one working, one on standby, no sudden downtime, production never stops

• Planetary cutter - gets the job done in one go, no extra manual touch-ups needed

• Stable extrusion with smooth pipe surface - passes all inspections easily

• High level of automation - can be operated by just one person, lowering labor costs

• Compact footprint - small dimension design

• Long service life

• Once forming process - no edge trimming required

• Full completed production solution: design, installation, commissioning, training

• 389 sets of production experience shared from all over the world

• 9 professional senior engineers

• High-end plastic machinery equipment expert workstation in China
