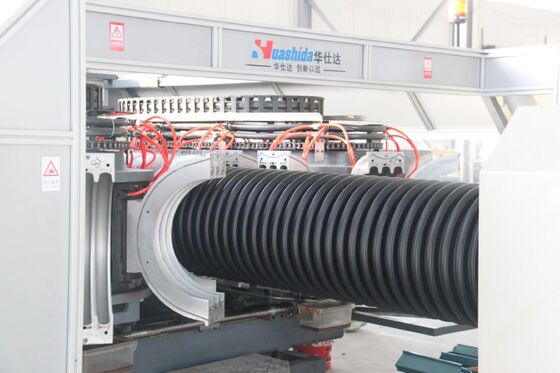

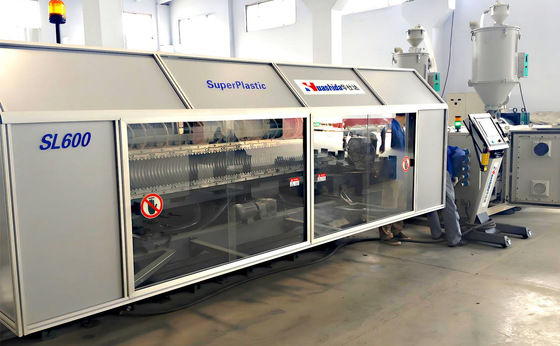

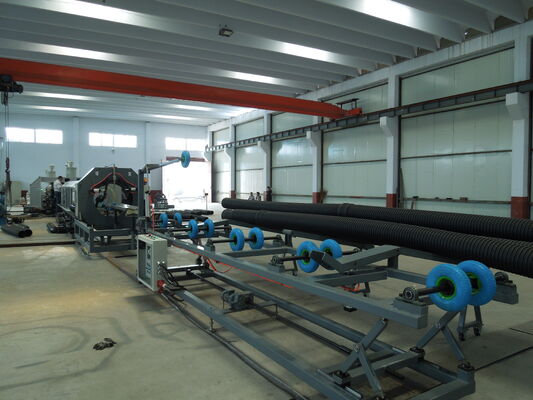

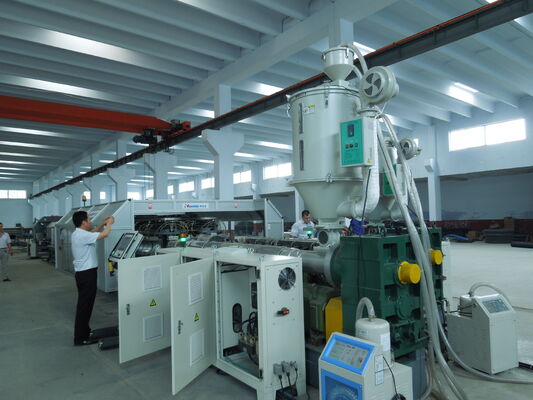

Automatic Double Wall Corrugated Pipe Production Line for HDPE Drainage Pipe Manufacturing

                 Automatic Double Wall Corrugated Pipe Production Line for HDPE Drainage Pipe Manufacturing

Features of HDPE Double Wall Corrugated Pipe Production Line

1).High Ring Stiffness
2).High Brunt Intensity and low weight
3).Good creep deformation resistance.
4).Outer pressure resistance.
5).Erosion resistance ( such as acid ,alkali and salt etc.)
6).Long life of approximate 50 years. No pollution and so on.

Production Process

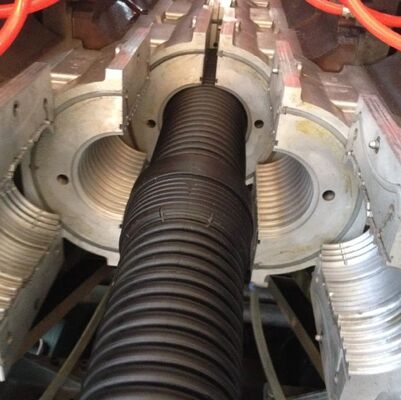

Raw Material Feeding → Extrusion → Corrugation Forming → Cooling → Cutting → Finished Pipe Collection

Why Choose Huashida

Qingdao Huashida Machinery has over 20 years of experience in plastic pipe extrusion equipment manufacturing. We provide complete turnkey solutions, including equipment design, installation, commissioning, operator training, and after-sales technical support, helping customers achieve efficient and stable production.

Product Parameters

Core Process Advantages

• Composite Reinforced Structure: First extrudes a high-strength square single-wall pipe as the structural core, then synchronously spirally winds molten PE adhesive material around it, forming a composite pipe with both high ring stiffness and flexibility.

• Energy-Efficient Plastication: The extruders employ a unique variable-pitch, barrier-type screw design and a high-efficiency mixing system. This achieves low-temperature, low-energy consumption plastication tailored for high molecular weight materials, significantly increasing extrusion capacity while ensuring plastication quality.

• Intelligent Synchronous Control: The entire line is centrally managed by an advanced PLC computer control system. Through touch-screen interfaces, it enables synchronized automatic control over the square pipe extrusion, adhesive extrusion, spiral winding, and cutting processes, ensuring process coordination and operational reliability.

Qingdao Huashida Machinery Co., Ltd. was established in 2003 and is a manufacturer specializing in thermal insulation and anti-corrosion equipment.
We offer one-stop pipeline solutions.
Focus on the global international market.
The insulation pipe production lines and 3lpe Anti-Corrosion Coating line developed and manufactured by Huashida are widely used in the construction of municipal heating, sewage, water supply, natural gas and communication pipe networks, crude oil pipeline transportation, communication and agricultural irrigation and other fields.
