Features

Specifications

Highlight:

3LPE steel pipe anti-corrosion coating

industrial 3LPE coating pipe

3LPE pipe production line

Basic Infomation

Place of Origin: Qingdao，China

Brand Name: Huashida

Certification: CE，ISO：9001

Model Number: 300mm-4200

Payment & Shipping Terms

Packaging Details: By Оrder

Delivery Time: 45-60 days

Payment Terms: L/C,T/T

Supply Ability: 30 Set/Year

Gallery

Reliable 3lpe Steel Pipe Anti-Corrosion Coating for Industrial Applications

Product Description

Reliable 3lpe Steel Pipe Anti-Corrosion Coating for Industrial Applications

The three-layer polyethylene anti-corrosion coating combines the excellent properties of epoxy coating and extruded polyethylene layer: the interface characteristics and chemical resistance of the epoxy coating and the mechanical protection characteristics of extruded polyethylene layer. Therefore, it is very superior as the outer protective layer of buried pipelines. After rigorous scientific testing, the three-layer PE coating can make the life of the buried pipeline reach 50 years. At present, it is recognized as an efficient external pipeline anti-corrosion technology in the world.

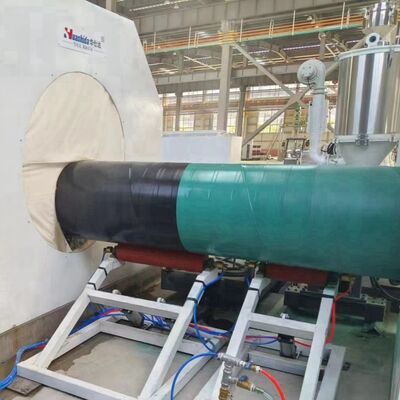

Coating Structure:
First Layer: Fusion-bonded epoxy powder (FBE > 100µm)
Second Layer: Adhesive (AD) 170 ~ 250µm
Third Layer: Polyethylene (PE) 2.5 ~ 3.7mm

Application	Steel pipe anti-corrosion coating
Applying coating type	3PE, 3LPE, 2PE, 2LPE, 3PP, 2PP, FBE
Type of steel pipe	Seamless steel pipe, spiral steel pipe, straight seam steel pipe
Diameter range	57-1400mm
Main equipment	Pipe conveyor, Shot blasting machine, Electrostatic spraying machine, PE&Adhesive extruder, Water cooling room, Pipe end beveling machine, Dust removal machine, Control system
Available for coating standards	DIN30670-1991, CAN/CSA Z245,21-2010, ISO21809-1-2009 SY/T 0413-2002, GB/T23257-2009, SY/T 0315-2002, AWWA C213-2001, CAN/CSAZ245.20-2010, ISO218909-2-2007, API RP5L9-2001, ГОСТ Р 51164-98

Technological Process
Pipe Input: Upload pipes
Conveying: Pipe screw conveyor
Rust Removal: Intermediate frequency heating
Coating: Epoxy powder coating, adhesive, and polyethylene
Cooling: Spray cooling system
Finishing: Grinding and unloading pipes

Specifications
Pipe Diameter Range: Φ159 ~ Φ4200
Coating Thickness: 80 ~ 800µm
Production Output:
Max. 3-8 km/day
Annual processing capacity: 2 million square meters (Φ508mm)
Coating Standards: Meets SY/T0413-2002, GB/T23257-2009, German DIN 30670, American Corrosion Association, and other international standards.

Main Equipment of 3PE anticorrosion processing
Configuration List

No.	Name	Set
A. Derusting Equipment
1	Pipe-converying Equipment	1
2	Shot Blast Cleaning Machine	1
3	Cyclone Dust Collector	1
4	Pulse dust collector	1
5	Centrifugal exhaust fan	1
6	Rust removal equipment PLC	1
B. Coating equipment
1	Coating transfer equipment	1
2	IF heating device	1
3	Powder spraying device	1
4	Automatic loading dryer	2
5	AD Extruder	1
6	PE sheet Extruder	1
7	Hot melt adhesive extruder die	1
8	PE sheet extruder head mold	1
9	Hot melt adhesive/PE sheet coating device	1
10	Environmental Protection Ventilation equipment	1
11	Cooling Spray equipment	1
C.Platform Equipment
1	Steel pipe platform	1
2	Post-rust removal transition platform	1
3	Product tube storage platform	1
4	Hydraulic Equipment	3
D.Groove Equipment
1	PE Beveling Machine	2
2	Hydraulic Lifting and Turning Machinery	1
3	Hydraulic Equipment	1
4	PLC	1
E.Compressed air Equipment
1	Screw Air Compressor	1
2	Cold dry machine	1
3	Precision filters	3
4	Gas tanks	1

Frequently Asked Questions

What is the pipe diameter range the equipment can produce?

-48-219mm, 219-1220mm, 800-1600mm, 1000-2400mm

What is the sandblasting grade?

-SA2.5

What is the anti-corrosion coating standard?

-Meets multiple international standards, including SY/T0413-2002 and DIN 30670.

What is the delivery time?

-2-3 months after deposit.

What is the production output?

-Max. 3-8 km/day, annual capacity of 2 million square meters (Φ508mm).

What is the coating thickness?

-80 ~ 800µm.

Where has the 3PE equipment been sold?

-Countries including Russia, Iran, UAE, India, Belarus, Kazakhstan, etc.

What after-sales services are offered?

-Warranty: 12 months for mechanical parts, 6 months for electrical parts.
Support: Technical services, training, and guidance for operators.
