508-1620mm PUR Spray PE Wrapping Pre-Insulated Pipe Production Line for District Heating

Huashida's independently developed pre-insulated pipe production line uses a PUR spray and PE wrapping process to manufacture large-diameter insulated steel pipes (508-1620mm) for district heating, chilled water, and oil & gas pipeline networks. The system integrates three core production sections into one turnkey line: an external pipe shot blasting and derusting line, a polyurethane spray foaming line, and a PE wrap winding production line.

This advanced polyurethane foam pipe insulation system is supported by multiple national utility patents, has obtained a third-party certified Level 5 technology rating, meets domestic leading industrial standards, and has been honored as Shandong Province First Set of Technical Equipment.

Equipped with a continuous PUR spraying process, this fully automated production line delivers high production efficiency, reduced raw material consumption, and optimized energy savings. It ensures excellent polyurethane foaming quality, a high closed-cell ratio, low water absorption, and a stable trinity molding structure (steel pipe - PU foam - PE casing). The eco-friendly, low-carbon insulated pipes produced feature stable thermal performance and outstanding economic and social value for large infrastructure projects.

Pipes produced on this pre-insulated pipe production line are used for:

• District heating and chilled water distribution networks
• Oil and crude oil pipeline insulation
• Municipal and industrial hot/cold medium transport (≤120°C, peak ≤140°C; medium pressure ≤2.5MPa)
• Direct burial, trench, or overhead pipeline installation

• Built for Large-Diameter Projects: Engineered specifically for 508-1620mm pipe production, handling the scale district heating networks and major oil pipelines demand - where smaller equipment falls short.
• Patented, Third-Party Verified Technology: Backed by national utility patents and a certified Level 5 technology rating most competing lines in this category can't claim.
• 3-4 Units/Hour Output: Processes large-diameter insulated pipes faster than standard single-station foaming lines, keeping major pipeline projects on schedule.

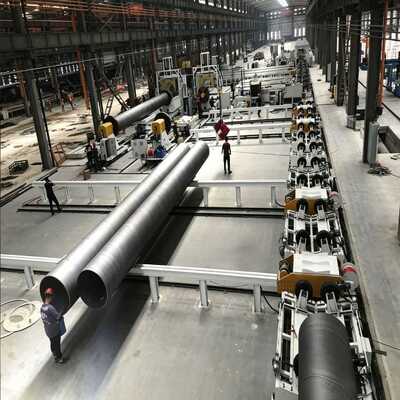

• Fully Integrated Turnkey Line: One matched system - shot blasting, foaming, and PE wrapping - engineered to run together from day one.

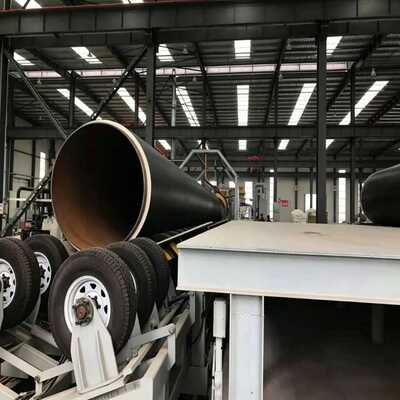

• Steel pipe surface shot blasting and de-rusting
• Medium-frequency induction preheating

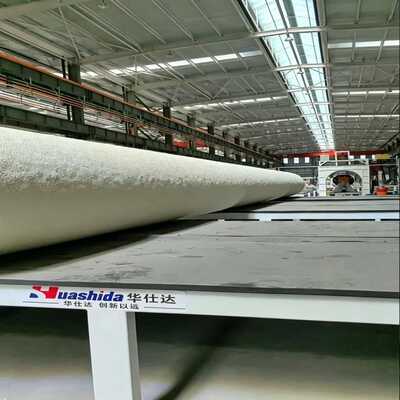

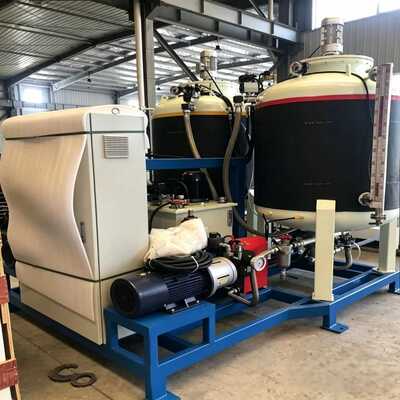

• Uniform polyurethane spray foaming

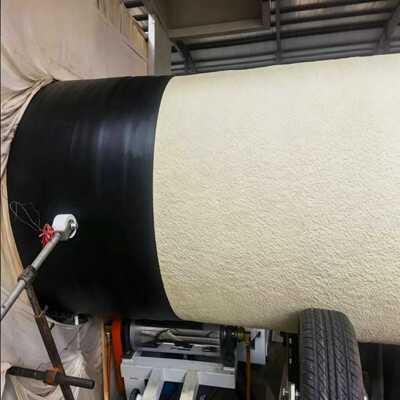

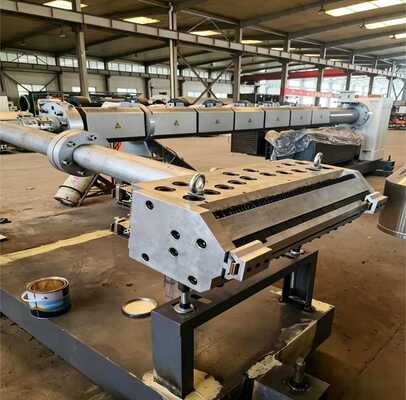

• HDPE strip wrapping over PU foam layer
• Finished pipe end trimming

Founded in 2003, Qingdao Huashida Machinery Co., Ltd. has over 20 years of professional manufacturing experience in pre-insulated pipe production lines, PUR spray PE wrap insulated pipe equipment, polyurethane insulated pipe making machines, 3PE anti-corrosion pipe production lines, large-diameter underground pipeline equipment, and plastic pipe fitting production machinery.

We maintain long-term technical cooperation with Beijing University of Chemical Technology, Qingdao University of Technology, and other national research institutions. By integrating advanced global technologies and standards, Huashida Machinery has grown to become one of the top 3 manufacturers in China's pipeline equipment industry.

Our high-quality pipeline production machines are trusted by global customers and exported to Saudi Arabia, Kazakhstan, Uzbekistan, the UAE, Turkey, Russia, and 60+ countries and regions worldwide.
