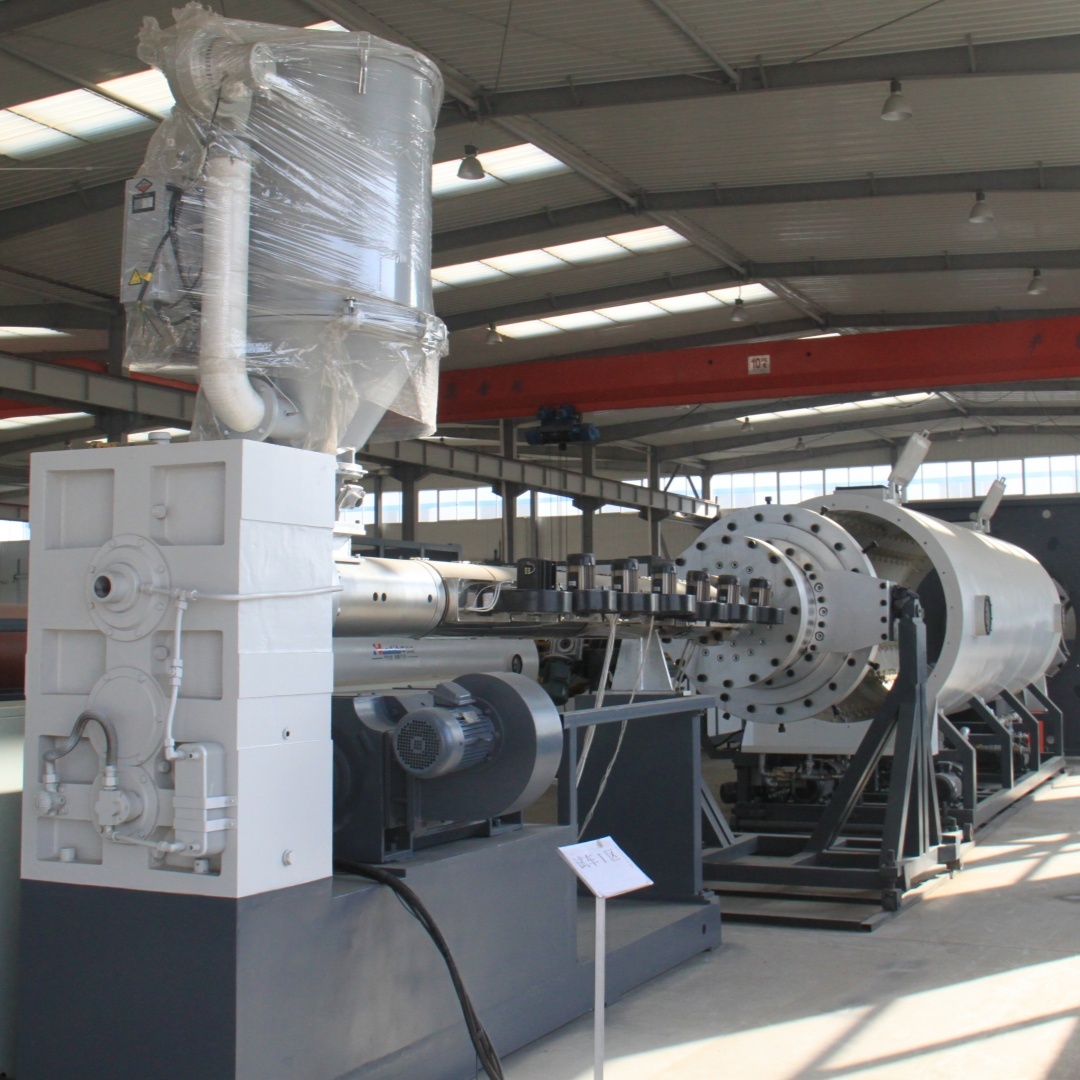

PE Pre-Insulated Pipe Production Line with Vacuum Calibrating Technology

This plastic pipe production line is mainly composed of 9 parts:
1.1set   Auto Vacuum feeder :
2.1set   Hopper dryer

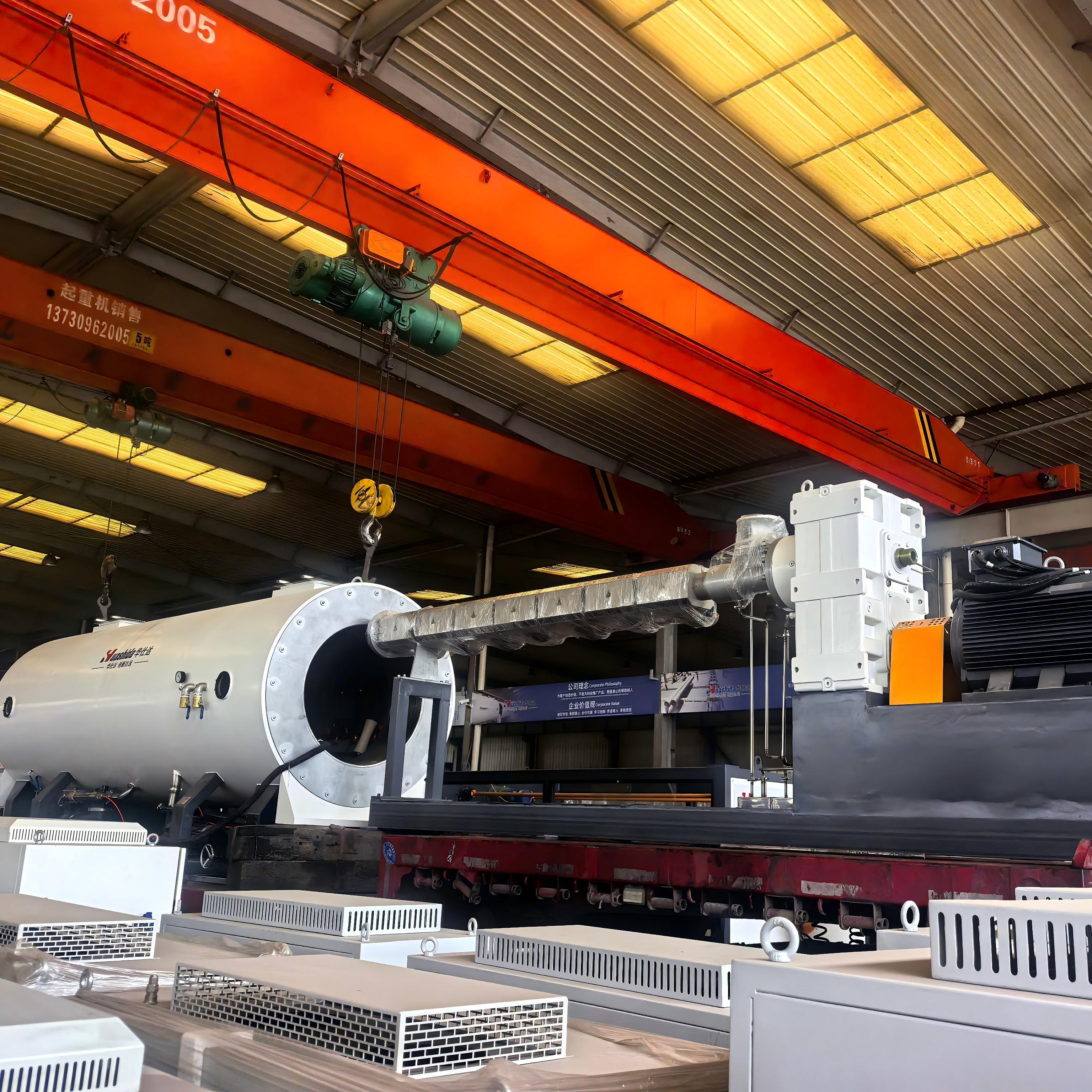

3.1set   Efficient single screw extruder

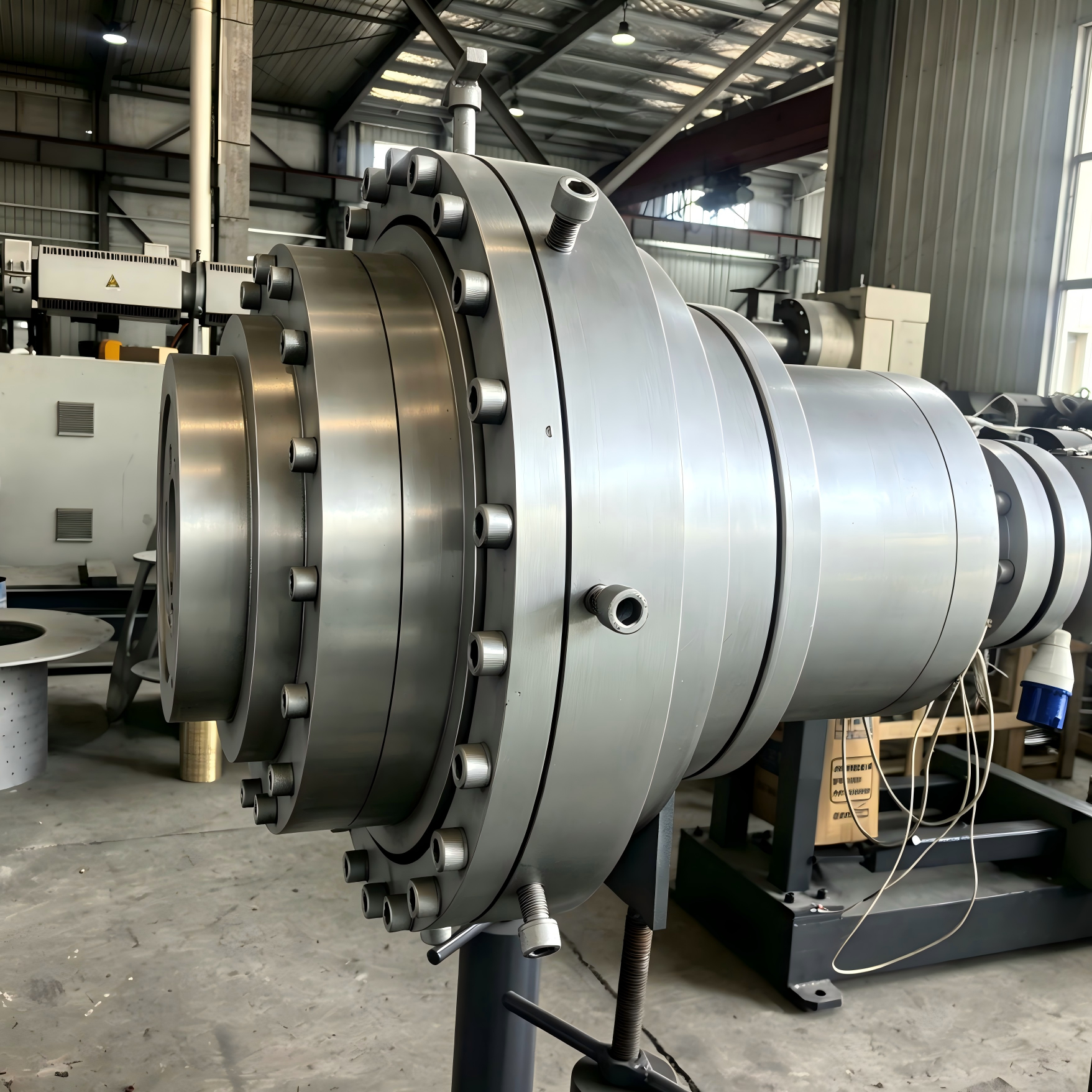

4.1set   Mould

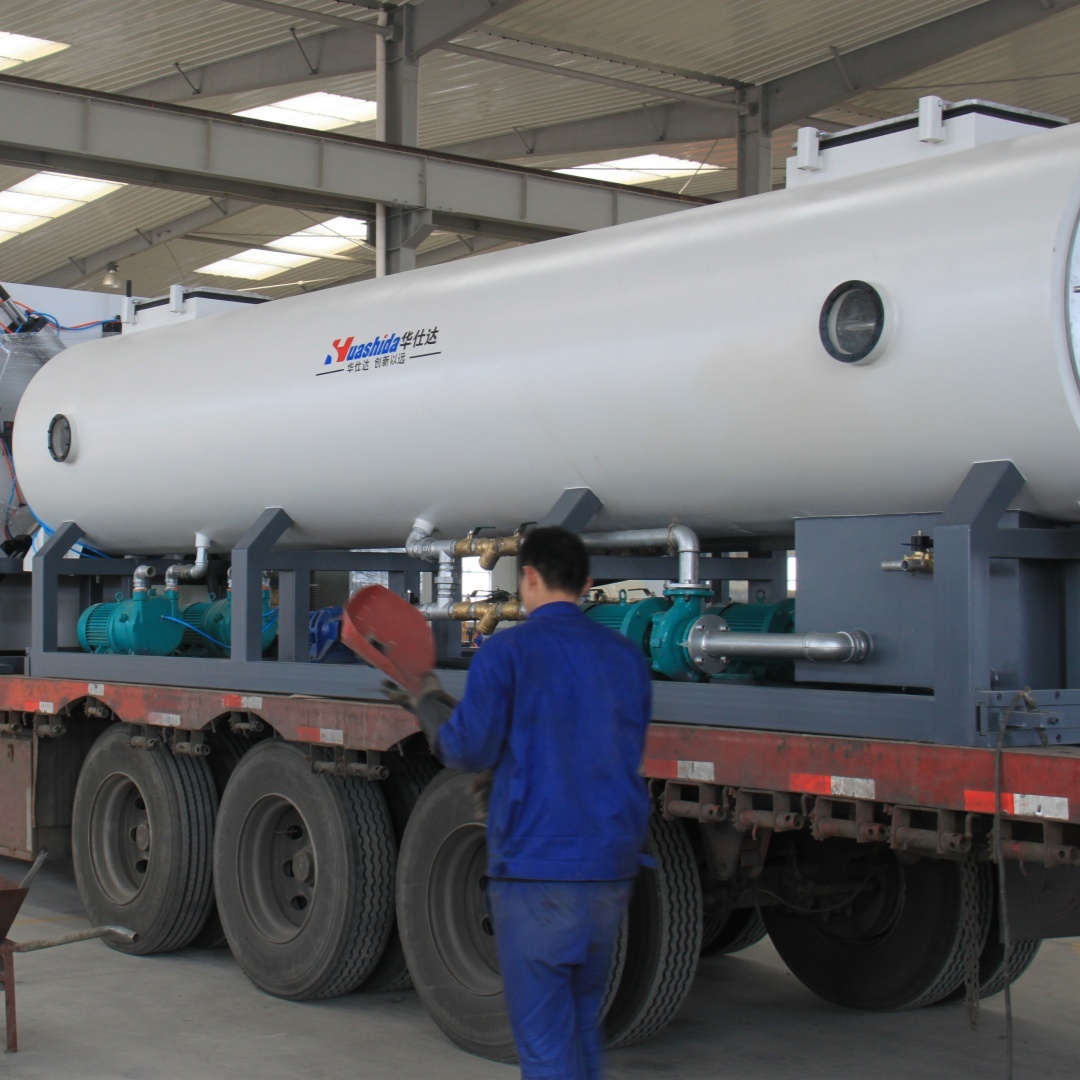

5.1set   Vacuum calibration tank

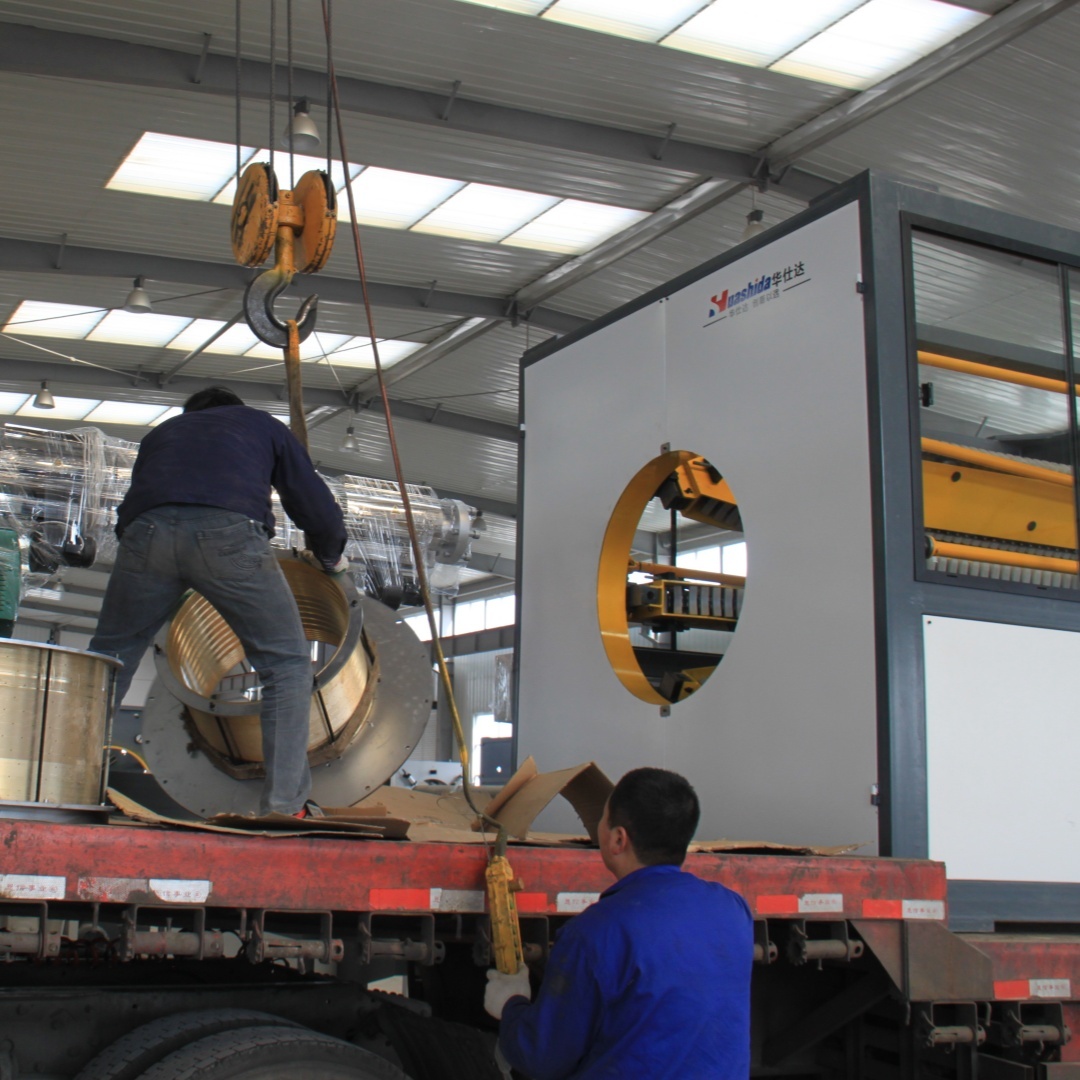

6.1set   Hauling machine

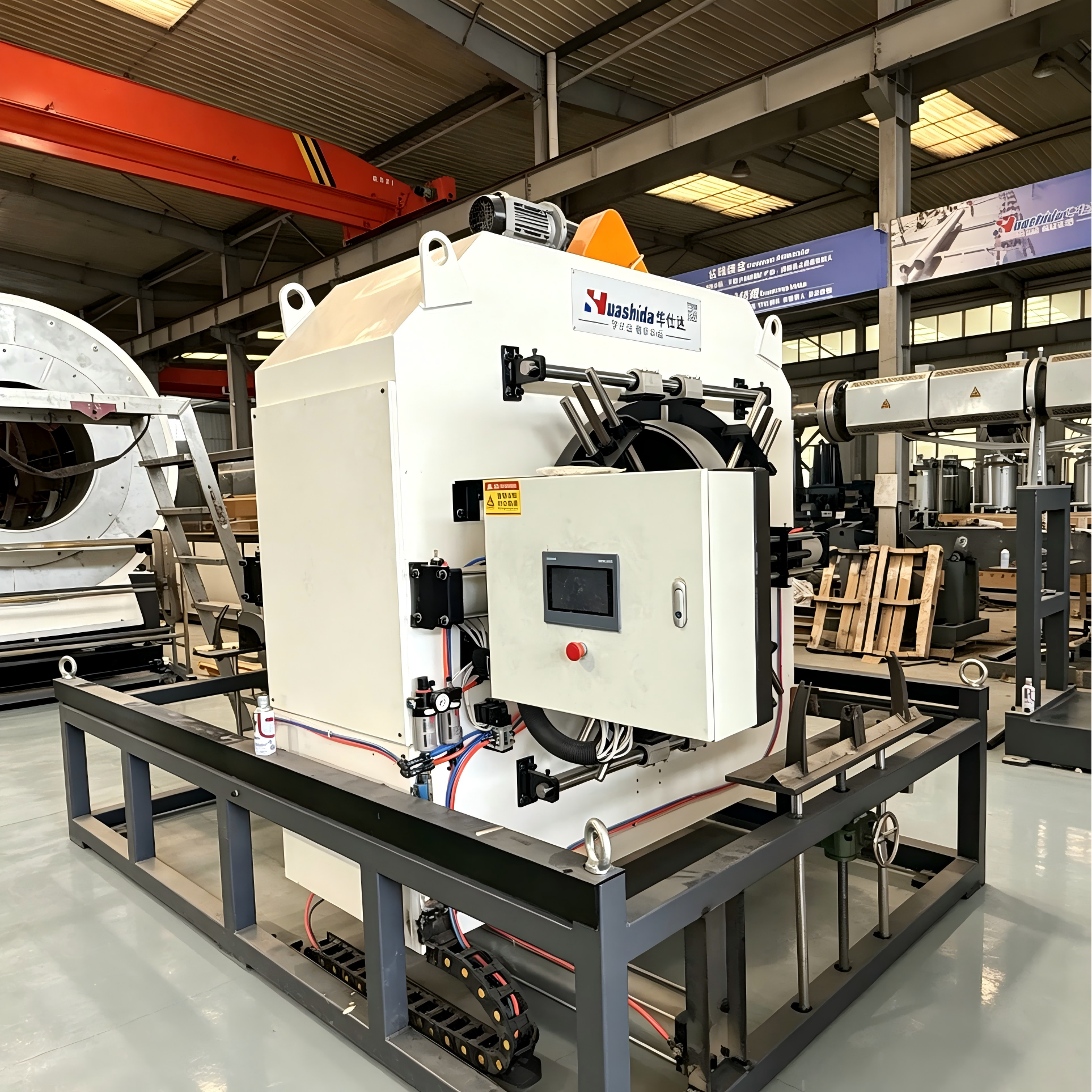

7.1set   Cutting machine
8.1set   Stacker
9.1set   PLC central control system

The machines inclued in the pro

duction line can also be customed

as your specific requirements.

Main Specifiction:

Pipe Usage: out case of thermal insulating pipe, which is widely used in central heating, oil, nature gas and other industrial area.
---Pipe/jacket diameter range: 110-2000mm

Machine Advantages
---High-efficiency extruder gives larger output, stable performance.
---Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
---No need trim edge, once forming.
---High degree of automation, can be operated by one person, saving labor costs.

Working Conditions


Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
