Automatic HDPE Pipe Extrusion Line for PE100 Water Gas Supply Pipes with 16-1600mm Diameter Range

1
MOQ
232500$-552000$
Price
Automatic HDPE Pipe Extrusion Line for PE100 Water Gas Supply Pipes with 16-1600mm Diameter Range
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Installed Power: 160kW - 450kW (Depends On Line Size)
Pipe Diameter Range: 16-1600mm
Max Output Capacity: 800 - 1200 Kg/h
Cooling Method: Water Cooling (Stainless Steel Vacuum Tank)
Screw Material: 38CrMoAlA (Nitride For Wear Resistance)
Dimensions: 800.00cm * 220.00cm * 200.00cm
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: Huashida
Certification: CE, ISO 9001:2008
Model Number: 16-1600 mm
Payment & Shipping Terms
Packaging Details: 800*220*200
Delivery Time: 30-45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 30 Sets/Year
Product Description
Automatic HDPE Pipe Extrusion Line PE100 Water Gas Supply Pipe Production Machine

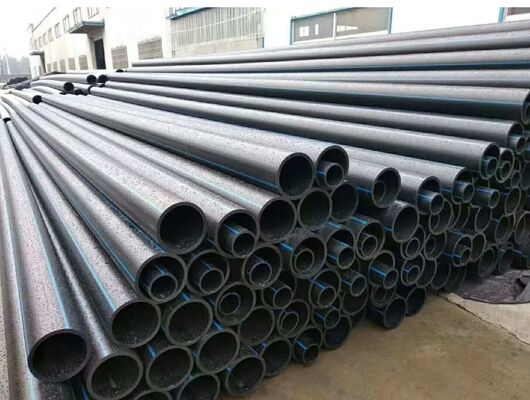

The HDPE Pipe Manufacturing Line by Huashida is a professional-grade solution engineered for the high-speed production of PE80 and PE100 grade pipes. Covering a wide diameter range from Ø16mm to Ø1600mm, this PE pipe production line is the industry standard for municipal water supply pipe manufacturing, urban natural gas pipeline transmission, and industrial energy pipeline networks.
By integrating advanced single screw extruder technology with intelligent PLC automation, this plastic pipe making machine ensures high-precision wall thickness, excellent durability, and consistent output for high-pressure underground solid wall PE pipe applications.

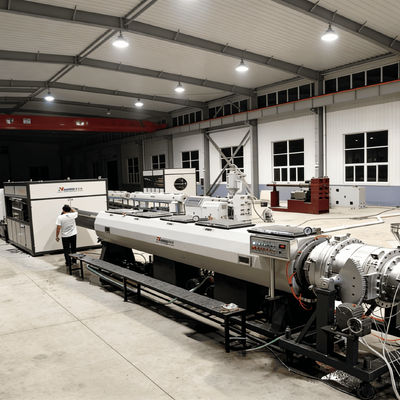

HDPE Pipe Extrusion Line OverviewPipe Production Process DetailExtrusion Line Components
Technical Specifications
ModelPipe Diameter (mm)Main ExtruderPower (kW)Output (kg/h)
SPEG-11016 - 63SJ75 X 33180350
SPEG-25075 - 250SJ90 X 33280500 - 1000
SPEG-630160-315SJ120 X 335221000 - 1200
SPEG-630160-355SJ120 X 335221000 - 1200
SPEG-630200-450SJ120 X 335221000 - 1200
SPEG-630160-630SJ120 X 335221000 - 1200
SPEG-630355-630SJ120 X 335221000 - 1200
SPEG-1200710 - 1200SJ150 X 336801000 - 1600
SPEG-22001000 - 1600SJ150 X 3312002000 - 2500
Applications
  • Utility Networks: Municipal water distribution pipeline and urban gas pipeline manufacturing
  • Energy & Mining: Landfill leachate collection and industrial chemical transport pipelines
  • Renewables: Geothermal heating systems and high-pressure energy conduits
  • Agriculture: High-efficiency agricultural irrigation pipe production and drainage systems
Production Process
Our automated plastic pipe extrusion workflow is designed for maximum uptime and minimal waste:
  1. Feeding & Drying: Automated vacuum loader feeding and moisture removal via hopper dryer

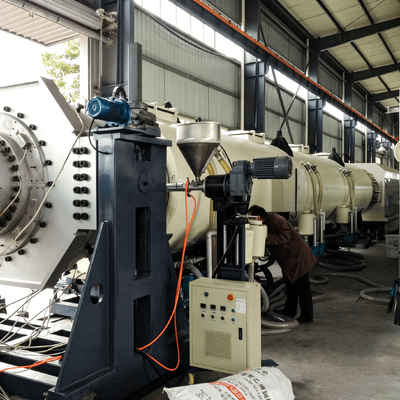

  2. Extrusion Molding: High-efficiency plasticizing of PE raw material granules by the main single screw extruder
  3. Vacuum Calibration: Precision shaping and sizing in the vacuum calibration tank

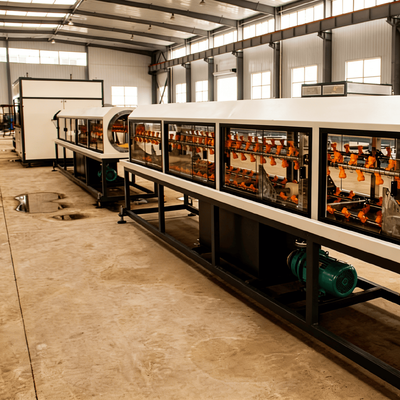

  4. Spray Cooling: Multi-stage water spraying cooling tank for structural integrity

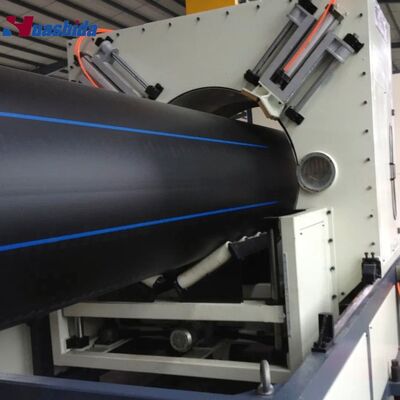

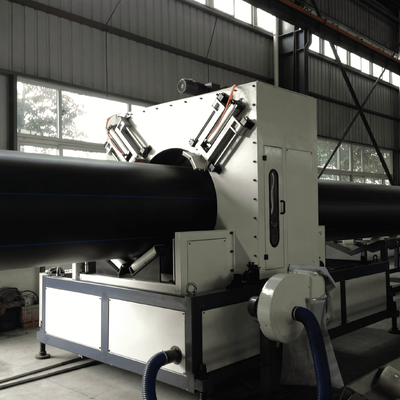

  5. Hauling & Cutting: Synchronized traction by the pipe haul-off machine and high-precision, dust-free cutting by the planetary cutter
  6. Marking & Stacking: Automatic co-extrusion line marking and final discharge on the pipe stacker
Main Equipment List
  • 1 set Vacuum loader
  • 1 set Hopper dryer
  • 1 set High-efficiency single screw extruder (Main Extruder)
  • 1 set 25/25 marking line co-extruder
  • 1 set Stainless steel vacuum calibration table
  • 2/4 set Water spraying cooling tank
  • 1 set Heavy duty haul-off machine (Traction unit)
  • 1 set Chipless planetary cutting machine

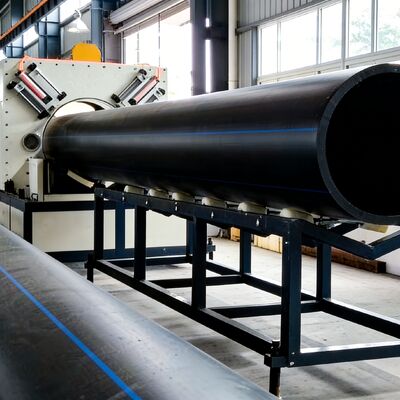

  • 1 set Automatic pipe stacker / tipping table
Detail Photos
Detailed View of Pipe Extrusion ComponentsClose-up of Production Line Operation
Key Features
  • High-Torque Extrusion: Powerful plasticizing capacity ensures material stability for premium PE100 pipe extrusion resins
  • Precision Die Head: Advanced helical basket co-extrusion die head design provides low-melt temperature processing and excellent mixing for superior pipe hoop strength
  • Intelligent Calibration: Advanced water film lubrication and sizing ring cooling systems ensure perfect pipe roundness and diameter accuracy
  • Smart Automation: Fully integrated PLC touch-screen control system for real-time parameter monitoring and synchronized line operation
  • Cost-Efficient Co-extrusion: Multi-layer co-extrusion technology options allow for recycled material cores or color-coded marking lines to reduce raw material costs
Our Advantages
  • Turnkey Solutions: We provide end-to-end services including complete plastic machine plant design, installation, commissioning, and factory staff training
  • Global Authority: Over 389 successful production line projects deployed worldwide across Russia, Turkey, UAE, India, Iran, and Kazakhstan
  • Engineering Depth: Backed by 23 years of manufacturing expertise and a premier Plastic Machinery R&D Center in China
  • Certified Quality: Heavy industrial equipment manufactured to international standard certifications (CE, ISO9001:2015, SGS) for high-pressure gas and water applications
Company Profile
Founded in 2003, Huashida is a leading manufacturer specializing in anti-corrosion steel pipe coating lines and plastic pipe extrusion technology. Our 23-year legacy is built on providing patented, high-performance equipment for the world's most demanding infrastructure projects.
Core Product Range
  • 3LPE/FBE Steel Pipe Anti-Corrosion Coating Lines
  • Pre-insulated Heat Pipe Production Systems (Rigid & Flexible Polyurethane)
  • Large Diameter HDPE Jacket Pipe Lines (up to 2000mm)
  • Geomembrane and Plastic Sheet Extrusion Equipment
Factory Overview
Huashida Manufacturing Facility ExteriorProduction Floor and Equipment Layout
Certifications
International Quality Certifications including CE, ISO9001:2015, and SGS
