HDPE Gas/ Water / Oil Supply Pre-Insulated Jacket Pipe Extrusion Casing Production Line

1
MOQ
US$200,000.00-1,000,000.00
Price
HDPE Gas/ Water / Oil Supply Pre-Insulated Jacket Pipe Extrusion Casing Production Line
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Type: PE Pipe
Pipe Diameter: 110-2200mm
Pipe Style: Thin Wall Pipe
Calibration Method: Vacuum And Water Spraying Cooling
Highlight:

HDPE pre-insulated pipe production line

,

gas water oil supply pipe extrusion

,

pre-insulated jacket pipe casing line
Basic Infomation
Place of Origin: QINGDAO,CHINA
Brand Name: HUASHIDA
Certification: CE
Model Number: Pipe Extrusion Line
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 60days
Payment Terms: L/C,D/P,T/T
Supply Ability: 30 Sets/Year
Product Description
HDPE Gas/ Water / Oil Supply Pre-Insulated jacket Pipe Extrusion Casing Production Line



Product Description
Huashida HDPE Jacket Pipe Extrusion Line is a high-performance solution for producing HDPE casing pipes for PU pre-insulated pipe systems. Featuring high output, low energy consumption, and reliable operation, the line can manufacture HDPE jacket pipes with diameters from Ø110 mm to Ø2200 mm, widely used in district heating, oil & gas transportation, hot water supply, and industrial pipeline insulation projects.
The produced HDPE jacket pipes provide excellent mechanical strength, corrosion resistance, moisture protection, and long service life, ensuring reliable protection for the polyurethane insulation layer and carrier pipe.
Product Parameters
Style PE-110/500 PE-655/1380 PE-960/1860 PE-1155/2200
Main Extruder SJ-75/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ655-1380mm Φ960-1860mm Φ1155-2200mm
Capacity 250-350kg/h 700-900kg/h 1000-1200kg/h 1350kg/h
Installed power 160kw 480kw 580kw 650kw
Length 26m 36m 45m 45m

Production line composition:
-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame
-1set   PLC

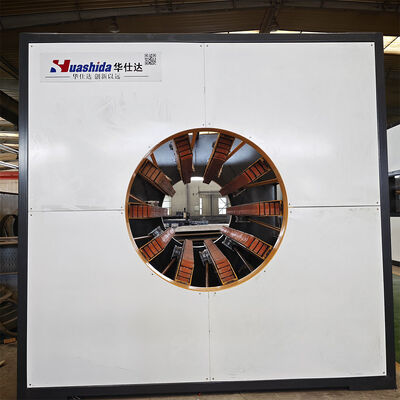

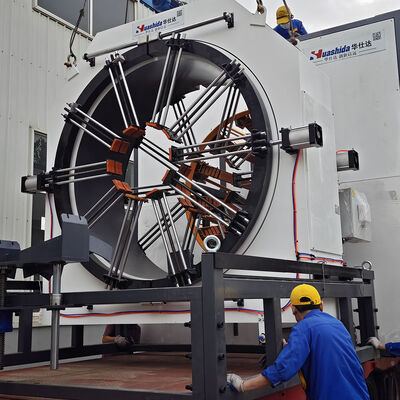

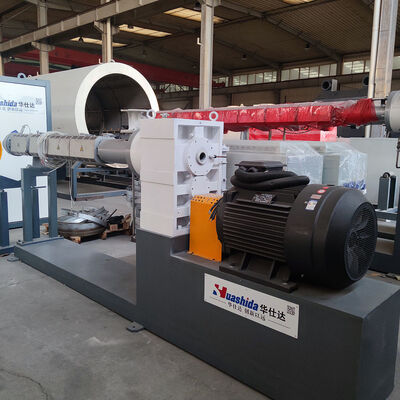

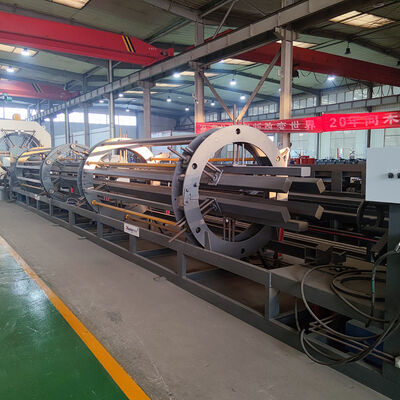

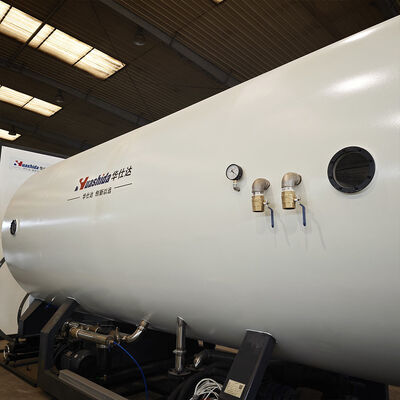

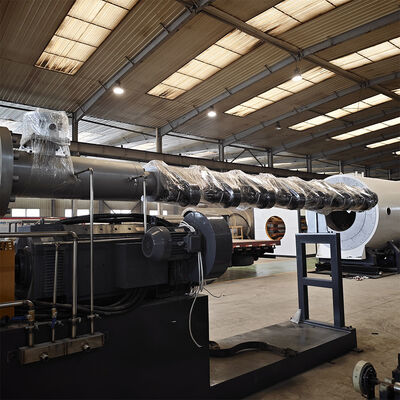

Detailed Photos

HDPE Gas/ Water / Oil Supply Pre-Insulated Jacket Pipe Extrusion Casing Production Line



Our Advantages

Features of the HDPE sleeve production line:
1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.once forming.  No need trim edge

The advantages of our company:
-Supply full completed production solution: design, installation, commissioning,and training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China

Packing and Shipping:
The Pre-Insulated Pipe Production Line is carefully packaged to ensure safe transportation and delivery. Each component of the production line is securely wrapped and placed in a sturdy wooden crate to prevent any damage during shipping.Once your order is confirmed, the Pre-Insulated Pipe Production Line will be shipped within 60 business days.

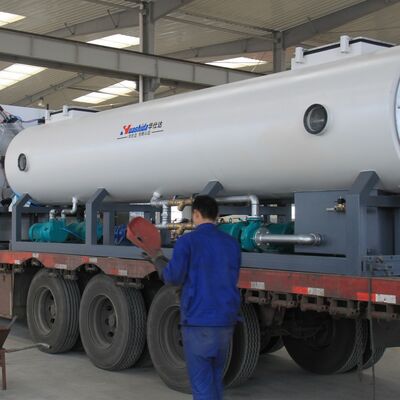

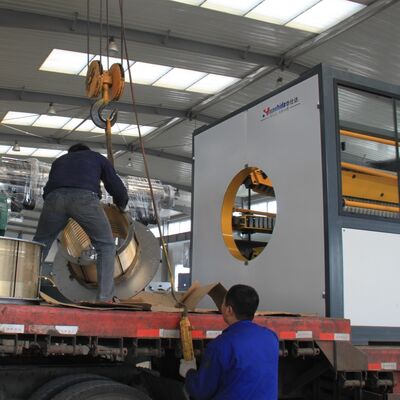

Delivery
HDPE Gas/ Water / Oil Supply Pre-Insulated Jacket Pipe Extrusion Casing Production Line
Exhibition
HDPE Gas/ Water / Oil Supply Pre-Insulated Jacket Pipe Extrusion Casing Production Line

Certifications

HDPE Gas/ Water / Oil Supply Pre-Insulated Jacket Pipe Extrusion Casing Production Line

HDPE Gas/ Water / Oil Supply Pre-Insulated Jacket Pipe Extrusion Casing Production Line
