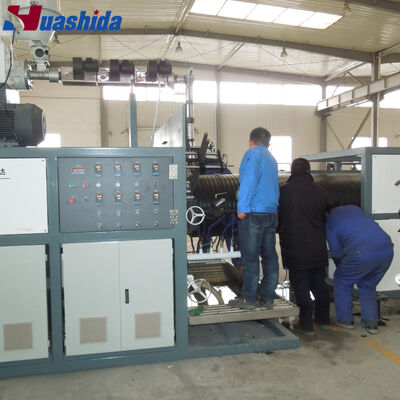

HDPE Hollow Wall Spiral Pipe Extruding Machine with 200-3000mm Pipe Range and High Ring Stiffness for Automatic Operation

1
MOQ
huashida
Price
HDPE Hollow Wall Spiral Pipe Extruding Machine with 200-3000mm Pipe Range and High Ring Stiffness for Automatic Operation
Features Gallery Product Description Request A Quote
Features
Specifications
Feeding Mode: One Feed
Screw: Single-Screw
Screw Channel Structure: Deep Screw
Automation: Automatic
Extruder: Single Screw Extruder
Inverter: ABB, Danfos, Eurotherm
Wall Style: Hollow Wall Structured
Specification: CE, ISO9001: 2008, SGS
Assembly Structure: Integral Type Extruder
Engagement System: Full Intermeshing
Exhaust: Exhaust
Computerized: Computerized
Motor: AC Or DC
Converter: Eurotherm
Pipe Range: 200-3000mm
Transport Package: Wooden Cases And Pallets
Highlight:

HDPE hollow wall spiral pipe extruding machine

,

corrugated pipe production line with high ring stiffness

,

automatic HDPE pipe extruder 200-3000mm range
Basic Infomation
Place of Origin: china
Brand Name: huashida
Certification: CE, ISO9001:2008, QS, GMP
Payment & Shipping Terms
Packaging Details: Standard packaging
Delivery Time: 60 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 100set a year
Product Description
HDPE Hollow Wall Spiral Pipe Extruding Machine with 200-3000mm Pipe Range Single-Screw Extruder for High Ring Stiffness
Product Overview

Huashida manufactures advanced large-diameter hollow wall winding pipe production lines with extrusion capacities up to 4000mm, designed for:

  • HDPE Hollow Wall Winding Pipes
  • Anti-Static Mine Ventilation Pipes

Featuring specialized connectors (electrofusion belts/heat-shrink sleeves) for rapid, cost-effective installation.

HDPE Hollow Wall Pipe Extrusion Equipment for sewer, irrigation, and infrastructure construction projects
Key Advantages
Structural Superiority
  • High ring stiffness (SN4-SN16) and impact resistance
  • Lightweight (30% lighter than concrete pipes) with 50-year service life
Performance Excellence
  • Resists creep deformation, external pressure, and chemical corrosion (acids/alkalis/salts)
  • Smooth inner wall (Manning coefficient n=0.009) for optimal flow
Economic Benefits
  • 40% lower installation cost vs. traditional concrete/ductile iron pipes
  • No heavy machinery required for deployment
Applications
Sector Use Case
Municipal Sewage/drainage systems, stormwater management
Industrial Chemical wastewater, mining ventilation
Infrastructure Road drainage, sports field subsurface systems
Utilities Telecommunication conduit, power cable protection
Process Flow
HDPE Hollow Wall Pipe Extrusion Equipment process flow diagram
  1. Material drying (dew point -40°C)
  2. Square profile extrusion
  3. Water spray cooling (4-zone temp control)
  4. Adhesive extrusion (EVA/PP hot melt)
  5. Spiral winding (0-12 RPM)
  6. Laser-guided cutting (±1mm accuracy)
  7. Automated stacking
Technical Differentiators
  • Patented Mold Design: Ensures uniform wall thickness (3-25mm adjustable)
  • Energy-Efficient: 15% lower power consumption vs. industry average
  • Modular Design: Supports quick changeover for pipe diameters 600-4000mm
Why Partner With Huashida?
  • 18 years of extrusion line OEM/ODM experience
  • In-house R&D center with 23 patented technologies
  • 24/7 remote monitoring and after-sales support
Huashida manufacturing facility and equipment
Product Parameters
Style Diameter (mm) Extruder Extrusion Speed Meter Capacity (Kg/h) Dimension (m) Total Power (KW)
SKRG1200 300-1200 SJ90×30 1-12 320 26×18×5.0 230
SKRG2200 1000-2200 SJ90×30 0.5-5 650 28×19×5.0 380
SKRG3000 1600-3000 SJ120×30 0.3-3 800 48×26×6.0 600
Company Profile

Qingdao Huashida Machinery Co., Ltd. is a specialized manufacturer engaged in the development and production of plastic pipe machinery, municipal pipe equipment, pipe insulation and anti-corrosion systems, as well as pipe jointing and anti-corrosion materials.

Our Main Product Lines Include:
  • HDPE Jacket Pipe Production Line for Pre-insulated Pipes (Diameter: 110-2000mm)
  • Rigid Pre-insulated Pipe Production Line
  • Flexible PERT Pre-insulated Pipe Production Line
  • Steel Pipe Anti-corrosion Coating Line for FBE, 2LPE, and 3LPE coatings
  • Steel Pipe Surface Derusting (Shot Blasting) Line
  • PE Pressure Pipe / Water and Gas Supply Pipe Extrusion Line
  • PP/PE Plastic Sheet, Board, and Geomembrane Production Line
  • NBR/PVC Thermal Insulation Tube and Sheet Production Line
Pipeline Anti-corrosion Materials & Tools:
  • Heat Shrink Joint Coating Sleeves
  • Electrofusion Weldable Joint Sleeves
  • Portable Plastic Welding Guns (Extruders)
  • PE/PP Welding Rods
Huashida pipe manufacturing equipment Huashida industrial machinery
Certifications
Huashida quality certification Huashida industry certification Huashida manufacturing certification
Detailed Photos
Huashida client project demonstration Huashida equipment packaging and shipping
