ISO9001 Certified Cold Applied PE Anti-Corrosion Tape Production Line for Pipe Protection

1
MOQ
250000$-500000$
Price
ISO9001 Certified Cold Applied PE Anti-Corrosion Tape Production Line for Pipe Protection
Features Gallery Product Description Request A Quote
Features
Specifications
Basing Tape Thickness: 0.2-1mm
Material For Production: Polyethylene
Basing Tape Width: 1000mm
Adhesive Coating Thickness: 0.1-0.5mm
Production Capacity: 160-200kg/H
Screw No.: Single-screw
Highlight:

ISO9001 certified PE anti-corrosion tape line

,

cold applied pipe protection tape machine

,

PE sheet extrusion line with warranty
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: Huashida
Certification: CE, ISO900
Model Number: 1000mm
Payment & Shipping Terms
Packaging Details: 250*120*350
Delivery Time: 30-45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 30 Units/Year
Product Description
ISO9001 Certified Cold Applied PE Anti-Corrosion Tape Production Line for Pipe Protection

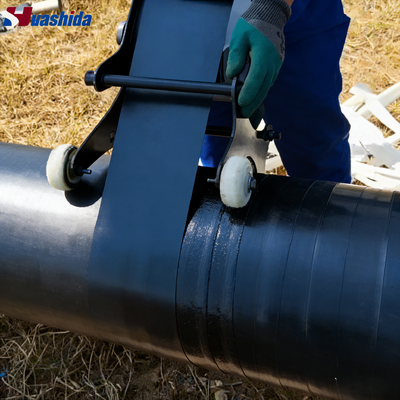

Our Cold Applied HDPE Anti-Corrosion Wrapping Tape Production Line is professionally engineered to manufacture high-performance polyethylene anti-corrosion wrapping tapes. These cold-applied PE adhesive tapes are widely used for corrosion protection of underground and overhead steel pipelines in oil, gas, petrochemical and wastewater treatment industries.
This fully automatic production line integrates three core functional units: PE base film extrusion system, butyl rubber adhesive coating unit, and precision slitting & rewinding equipment, achieving one-stop integrated manufacturing of standard HDPE pipe anti-corrosion wrapping tapes.
Production Process Overview
PE Base Film Extrusion
This production line adopts high-quality HDPE (High-Density Polyethylene) as the base film raw material for manufacturing anti-corrosion wrapping tape. The HDPE material is fully melted and plasticized via a high-efficiency single-screw extruder, uniformly extruded through precision die head molding, and finalized with multi-roller casting cooling and shaping technology. The whole process effectively guarantees consistent film thickness, stable physical performance and excellent surface flatness for finished HDPE anti-corrosion wrapping tapes.
Adhesive Coating
High-performance butyl rubber adhesive is specially formulated to deliver ultra-strong bonding viscosity and exceptional long-term weathering stability for pipeline anti-corrosion applications. The premium butyl adhesive is uniformly coated on single or double sides of the HDPE base film, forming a tight, durable anti-corrosion bonding layer. This professional coating process ensures the cold applied HDPE wrapping tape features excellent adhesion, firm fitting performance and lasting pipeline corrosion protection effect in various harsh environments.
Slitting & Winding
The coated master roll is adjusted and precisely slit into the required width. Finished cold-applied anti-corrosion wrapping tape is then rewound, packaged, and ready for delivery.

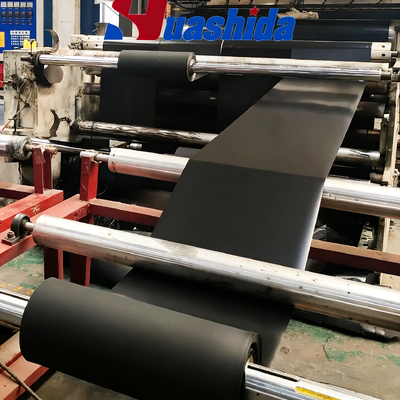

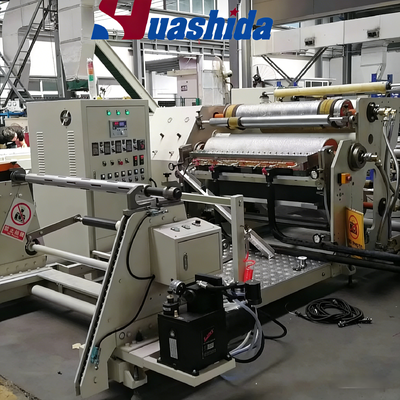

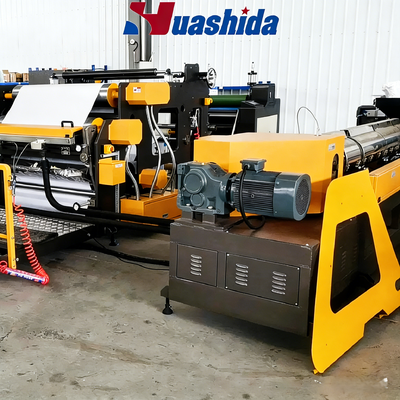

Cold Applied PE Anti-Corrosion Tape Production Line Overview PE Base Film Extrusion Process Adhesive Coating Unit Operation
Technical Specifications
PE Base Film Extrusion Line Components
No. Equipment Name Quantity
1Vacuum automatic feeder1
2Hopper dryer1
3SJ-75X30 extruder1
4Hydraulic screen changer1
5Die head mold type 10001
6Multi roller tape-casting machine1
7Winding machine1
8PLC computer control system1
Adhesive Coating Machine Components
No. Equipment Name Quantity
1Frame1 unit
2200N·M Magnetic powder brake + Silicone stick 1300mm with corona processor1 unit
3100N·M Magnetic powder brake1 unit
4100N·M magnetic powder clutch2 units
5200N·M magnetic powder clutch1 unit
6Screw1 unit
7Force-feed device1 unit
8Constant pressure system1 unit
9Adhesive delivery pipe1 unit
10Winding machine1 unit
11Unwinding machine2 units
12Coating compound equipment1 unit
13Main engine frequency converter1 unit
14Extruder frequency converter1 unit
15Thermal switch1 unit
16PLC1 unit
This fully automatic Cold Applied HDPE Anti-Corrosion Wrapping Tape Production Line features high efficiency, stable operation, and reliable quality. It greatly reduces labor costs while ensuring consistent product performance. It is the ideal industrial solution for pipeline corrosion protection, anti-corrosion tape manufacturers, and global export-oriented factories.

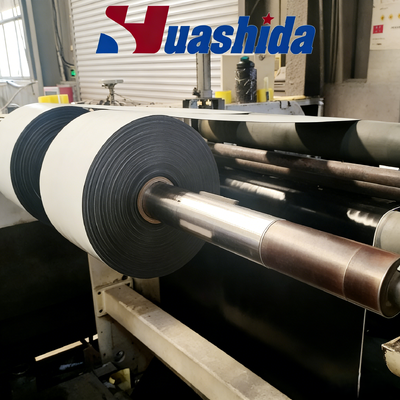

Production Line Control System Finished Product Winding Process
