High Reliable PU Foaming Injection Pipe HDPE Jacket Extrusion Line
Product Description
HDPE jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-insulated Pipe according to international standard.
The HDPE jacket pipe is produced by vacuum calibrating method with smooth internal and external wall, long service life, good anti-corrosion insulation and mechanical performance.
HDPE Jacket Process Flow: A Seamless Journey from Raw Material to Final Product
The seamless process begins with vacuum feeding PE granules, followed by hot air drying to ensure material purity. Next, the extrusion plasticizing stage transforms the material, which is then expertly mold-shaped. Vacuum sizing ensures precision, water cooling solidifies, and the product is carefully pulled out. Finally, it is skillfully cut into pipes, ready for carrier laying-off.
|
Style
|
PE-110/500
|
PE-655/1380
|
PE-960/1860
|
PE-1155/2200
|
|
Main Extruder
|
SJ-75/33
|
SJ-120/33
|
SJ-150/33
|
SJ-150/33
|
|
Pipe diameter
|
Φ110-600mm
|
Φ655-1380mm
|
Φ960-1860mm
|
Φ1155-2200mm
|
|
Capacity
|
250-350kg/h
|
700-900kg/h
|
1000-1200kg/h
|
1350kg/h
|
|
Installed power
|
160kw
|
480kw
|
580kw
|
650kw
|
|
Length
|
26m
|
36m
|
45m
|
45m
|
Production line composition:-1set Vacuum loader
-1set Hopper dryer
-1set High-efficiency single screw extruder
-1set Vacuum calibration table
-1set Water spraying tank

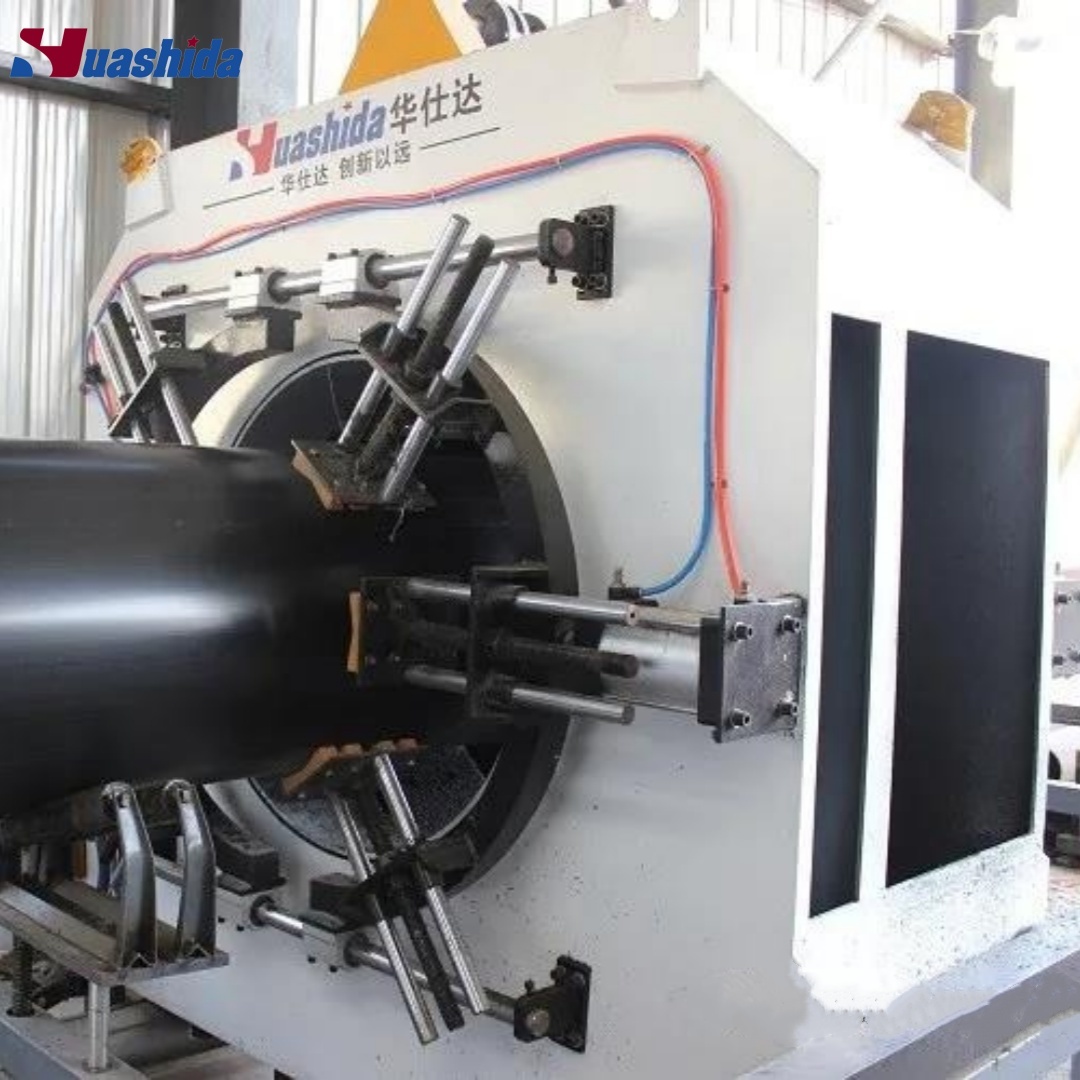

-1set Hauling machine
-1set Cutting machine
-1set Discharging Frame
-1set PLC Technical Highlights:
| Single-screw extruder |
Precision temperature control system ensures consistent material fusion
Proprietary single-screw extruder optimized for polyethylene (PE) materials |

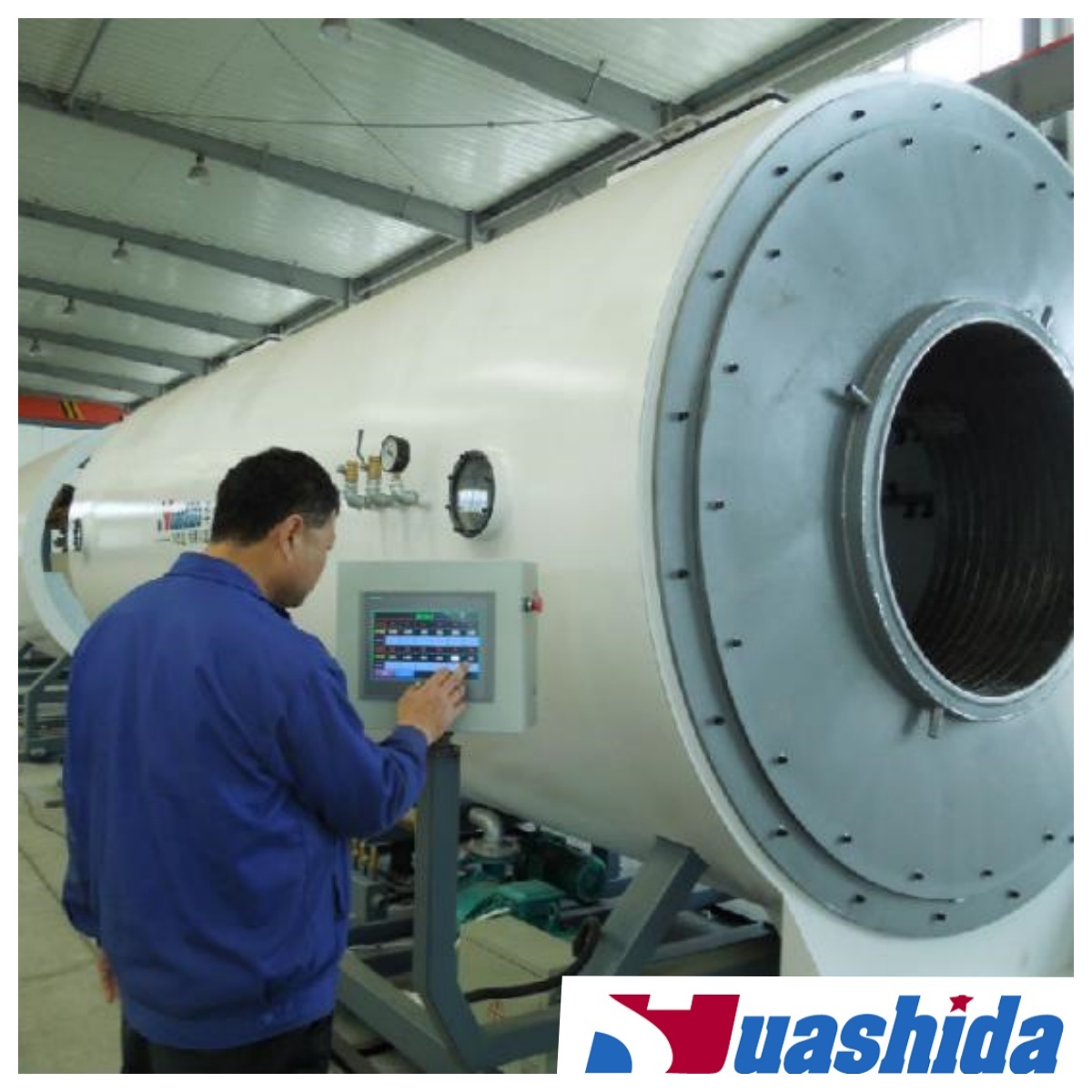

| Vacuum Calibration |
Patented vacuum calibration system replaces traditional internal pressure methods |
| Smart Automation |
Fully integrated PLC control system
Real-time process monitoring |
| Production Capabilities |
Diameter range: 110mm - 2200mm (customizable)
Output capacity: 250-1600 kg/h (material-dependent) |
Products Feathers
Adopting the world's advanced vacuum calibrating method (outperforming the internal pressure method), the production line ensures the HDPE jacket of pre-insulated pipes has excellent stiffness, strong pressure resistance, and a smooth surface. Absorbing and upgrading mature HDPE pipe extrusion technology, it guarantees stable and reliable product quality that meets global industry standards.
Featuring an integrated structure integrating extrusion, vacuum calibration, cooling, pulling, cutting, and stacking, the line realizes full-process automatic operation. It excels in extrusion capacity, operational stability, and long service life, significantly reducing manual intervention, improving production efficiency, and lowering labor costs for enterprises.
Widely used in manufacturing insulation pipelines for petroleum, hot water, chilled water, and chemical media, the production line caters to diverse industrial insulation needs. Its professional design for PU foaming injection pre-insulated pipes with HDPE jackets makes it a popular and advanced equipment in the global market, perfectly adapting to the demands of different industrial pipeline insulation projects.

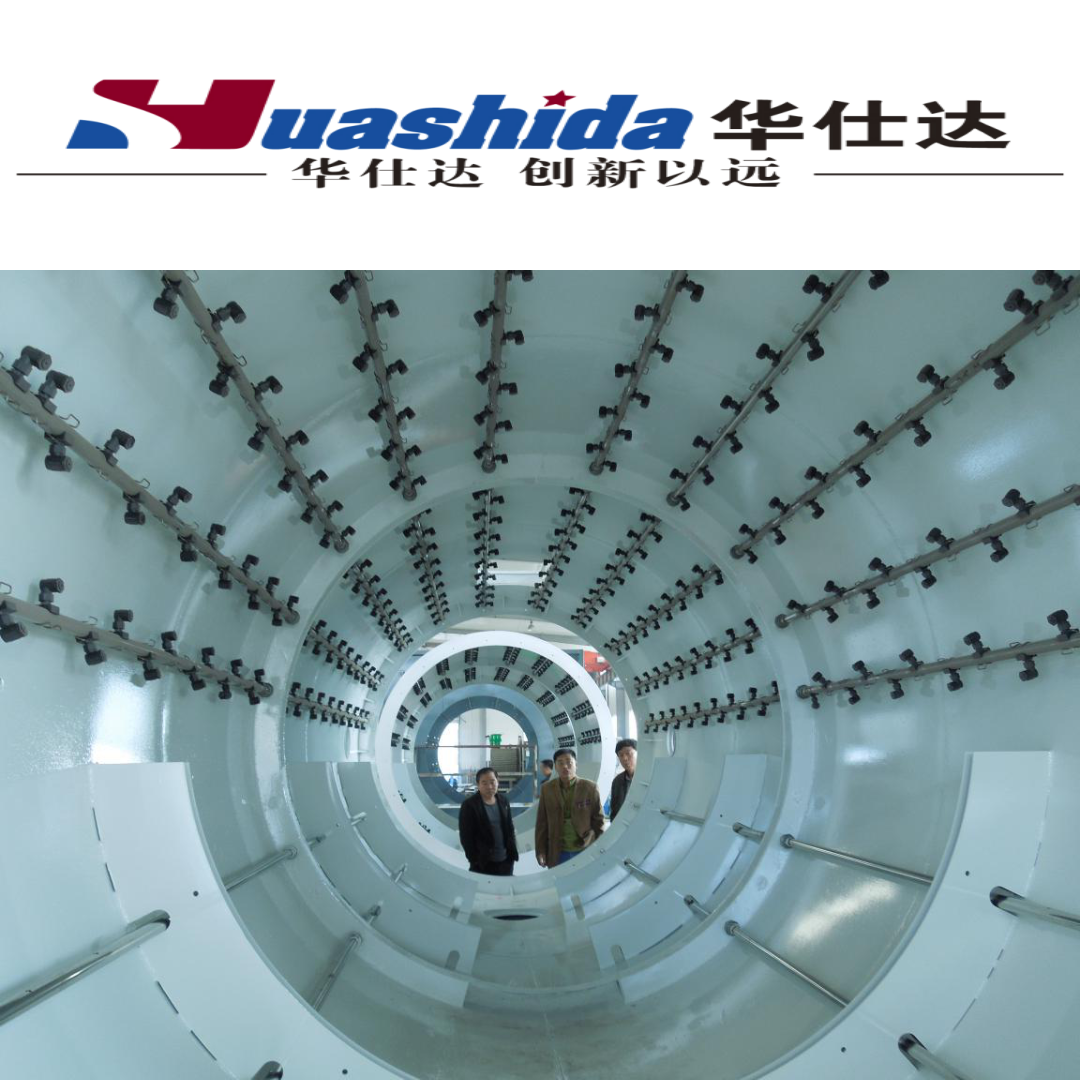

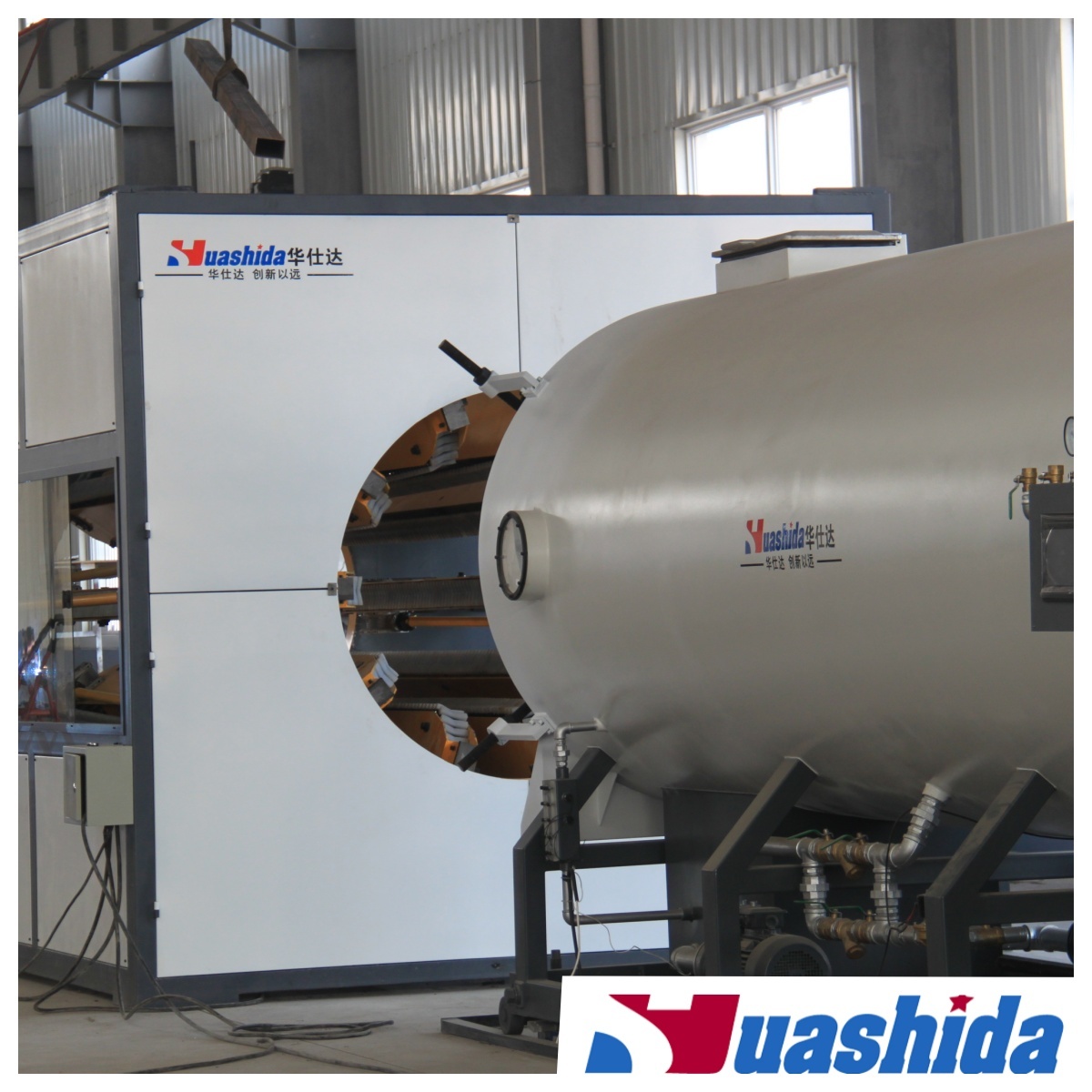

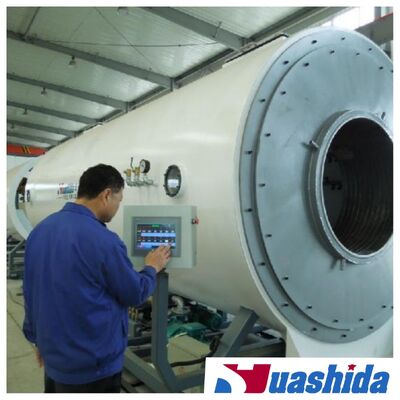

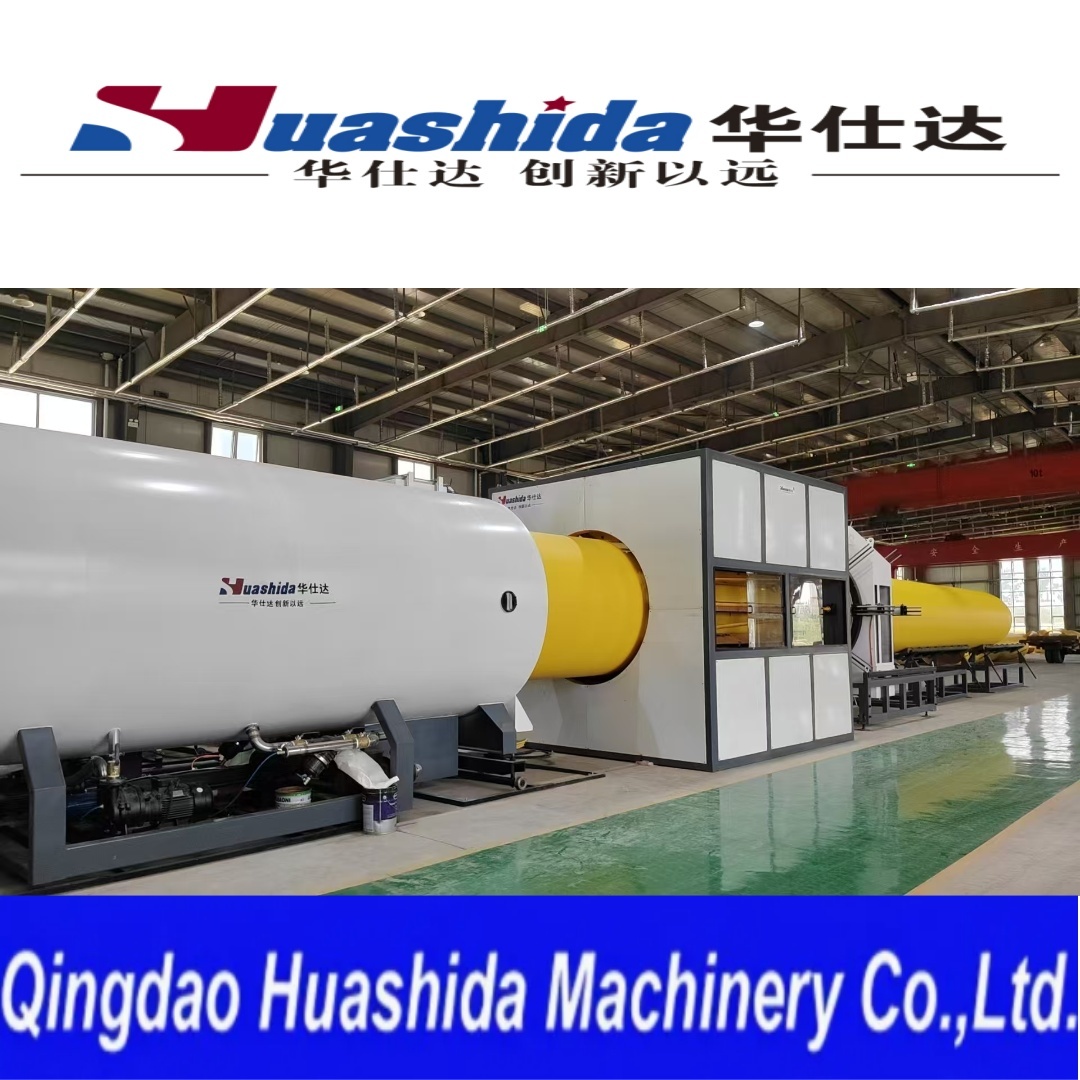

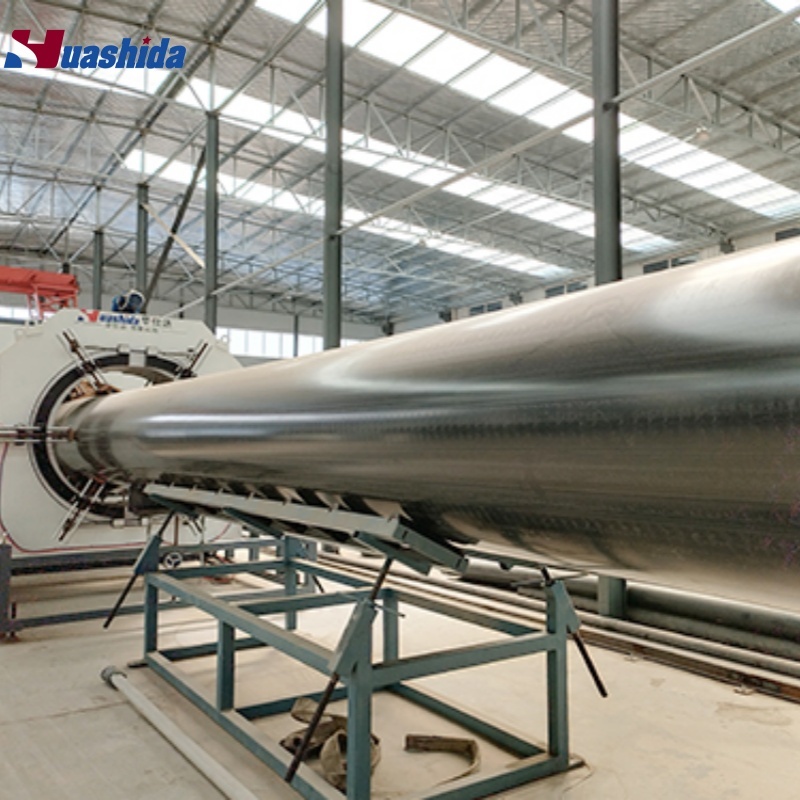

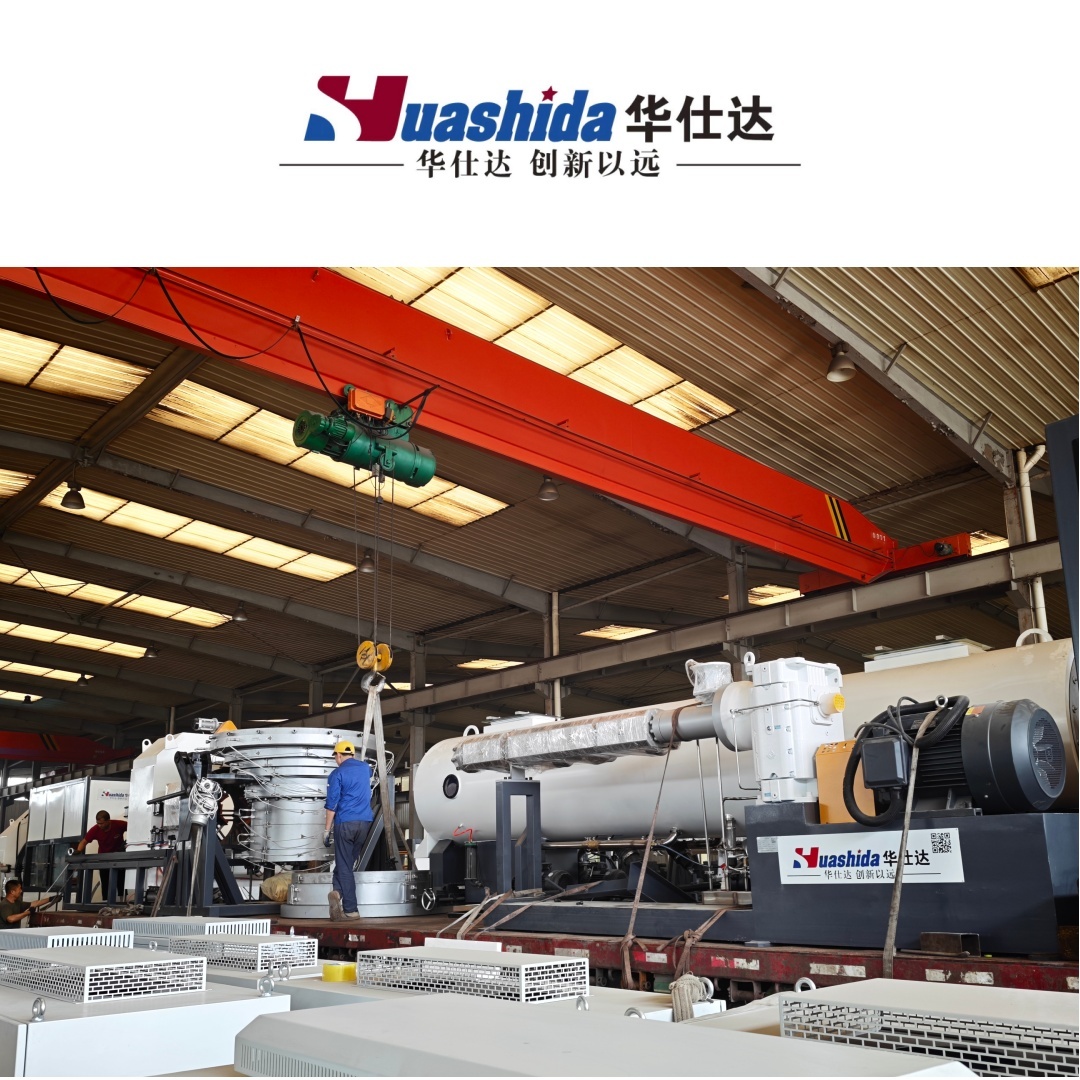

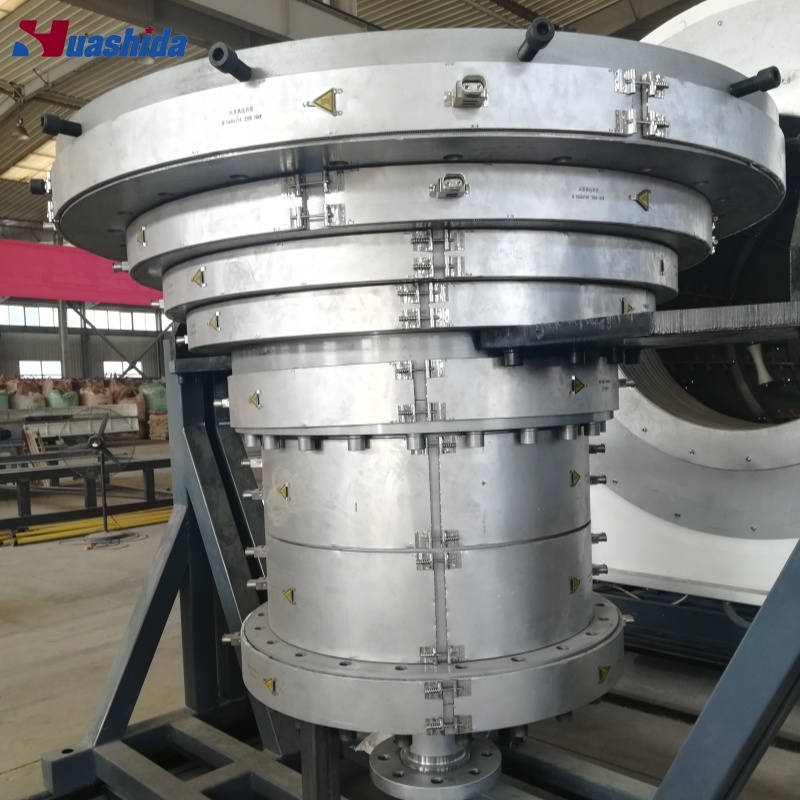

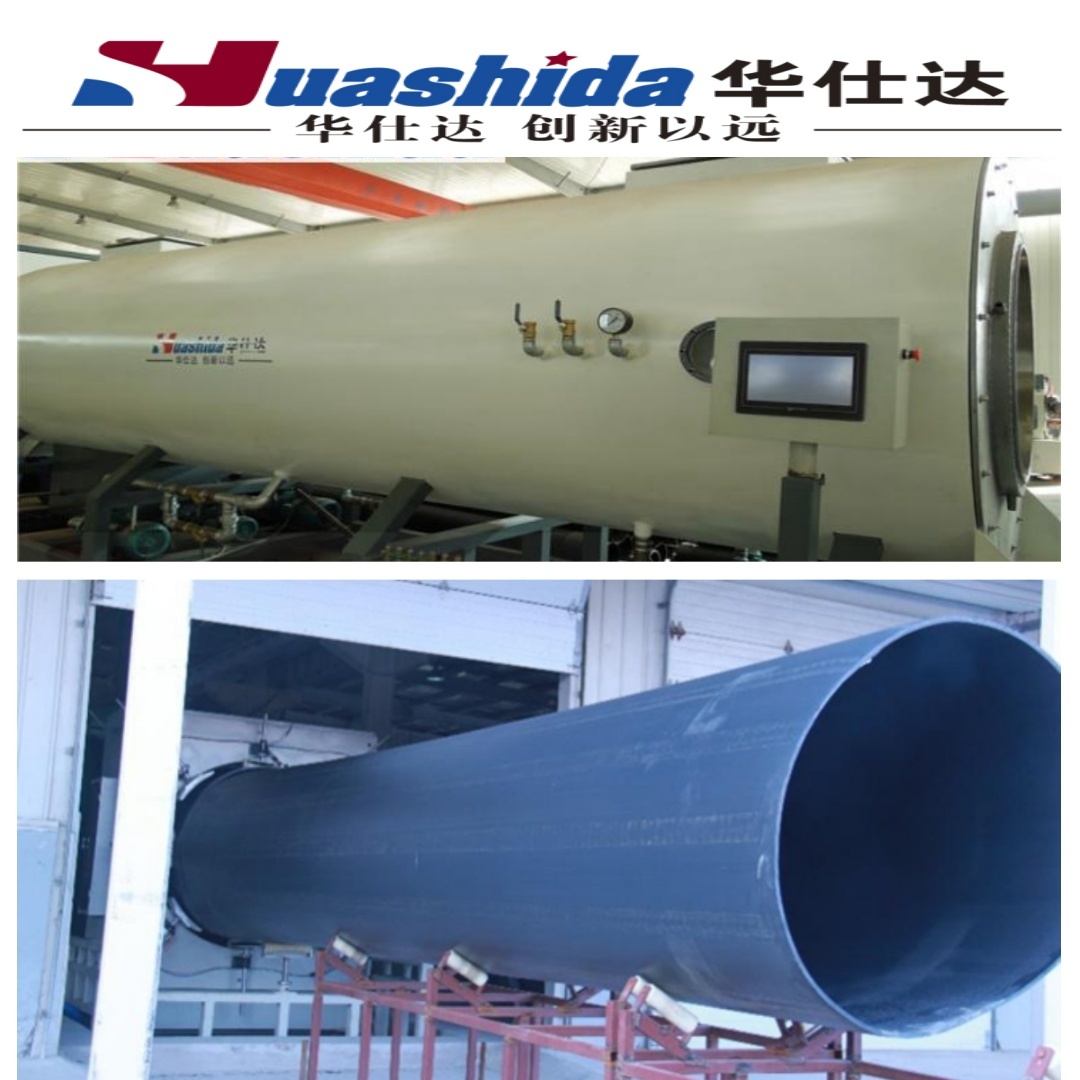

Detailed Photos
PE-110/500
PE-650/1380
PE-960/1860
Company Profile
Our History. Qingdao Huashida Machinery Co., Ltd was established in 2003 and has focused on plastic pipe extruder production line and joints of plastic pipes and 2PE 3PE pipes machinery for over 16 years, we are a private high-tech enterprises integrated by R&D, manufacturing, selling, service and trading. We are always concentrating on research and development of plastic extrusion equipments, tightly cooperating with Tsinghua University, Beijing University of chemical technology, South China university of technology and some other colleges and scientific research institutions. Meanwhile, by absorbing advanced technology home and abroad, we have been one of the top manufacturers of plastic extrusion machines in China, especially of PE insulation jacket pipe extrusion line, PE PP sheet extrusion line, and PE hollow wall spiral pipe production line. 2. Our Factory Qingdao Huashida Machinery Co., Ltd. is located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have tens of years experience in plastic pipe, sheet, and board extrusion lines, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc. 3. Our main products Our main products include as following, HDPE PU pre-insulation Jacket Pipe extrusion line 3PE
steel pipe anticorrosion&coating machinery Rubber&plastic foam flexible insulation tube/sheet production line HDPE water supplying pipe extrusion line PE PP sheet board extrusion line Heat shrinkable sleeve production line Hollow wall spiral pipe production line Plastic welding rod extrusion line Radiation cross-linked PE heat shrinkable sleeve Electro fusion tube Portable extrusion welder 4. Our products Application. Our machines make products what are widely used as jacket pipe of PU foam insulation pipe in municipal heating pipe system; Municipal water supplying and drainage pipeline; Oil and gas pipeline; Pipe joints of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines; Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines; 5. Our certificates and Patents 6. Our Purpose and Market Our purpose is to supply highest cost-effective products and the most suitable solutions to our clients, as well as intimate help and service, on this basis we reach a win-win situation. For over 14years We have exported to many foreign countries, such as Russia, Iran, Turkey, U. A. E, Sudan, Ukraine, Uzbekistan, Azerbaijan, South Asia, Poland etc. 7. Guarantee and after service The guarantee period is 12 months from the date of installing, but no more than 14 months from the date of delivery. After this period we are obliged to provide with lifelong service at the expense of Buyer. During the warranty period we are responsible to provide trouble shootings and help the customer to solve the problems, provide spare parts which are broken, except breakings caused by the Buyer. We will provide the technical service train the workers from the buyers for free. We can also send technicians to the buyer's companies abroad for help installation and testing the lines. But the buyer shall pay for the round trip tickets, accommodation, transportation, medicine treatment and insurance of the technicians in foreign countries and some salary accordingly.
