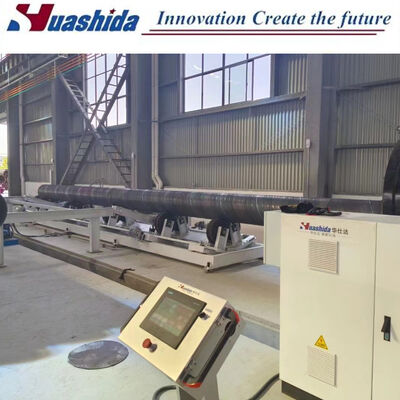

3LPE Coating Pipe Production Line Delivering Three Layer Polyethylene Coating Process For Corrosion Resistant Steel Pipes

The 3LPE (Three-Layer Polyethylene) system is a multi-layered coating designed to provide industry-leading corrosion resistance and mechanical durability for buried steel pipelines.

• First Layer (Inner): Fusion-Bonded Epoxy (FBE). Provides a strong chemical bond to the steel and serves as the primary defense against corrosion.
• Second Layer (Middle): Copolymer Adhesive. Acts as the "glue" that chemically bonds the epoxy layer to the outer polyethylene.
• Third Layer (Outer): High-Density Polyethylene (HDPE). Provides rugged mechanical protection against impact, moisture, and environmental stress.

• Extended Service Life: Designed to last 30-50 years, even in harsh environments.
• Superior Durability: High resistance to low-temperature impacts and mechanical damage.
• Exceptional Adhesion: Combines the high strength of epoxy with the low water absorption of PE.
• Efficiency: Minimizes energy loss and maintenance costs due to its excellent sealing performance.

The 3LPE coating line is essential for infrastructure projects, including:

• Energy: Long-distance oil and gas transportation and urban gas networks.
• Utilities: Municipal water supply systems.
• Industrial: Specialized fluid pipelines for chemical and manufacturing sectors.

The manufacturing process is divided into four critical stages:

Essential for preparing the steel surface to ensure maximum adhesion.

• Pipe wheel conveyors and Shot Blasting Machines.
• Environmental controls (Cyclone & Pulse dust collectors).

The core of the application process.

• Induction heating devices for pipe preparation.
• Powder spraying for the FBE layer.
• SJ-Series Extruders and molds for the adhesive and PE sheet application.

• Loading, downloading, and storage platforms.
• Cooling Spray equipment to set the coating.

• PE Beveling Machines for pipe-end finishing.
• Integrated PLC automatic control systems for the entire line.

With 23 years of experience, Qingdao Huashida Machinery is a global leader in plastic pipe and anti-corrosion technology. We have served over 400 overseas customers across regions like Central Asia, the Middle East, and Africa.

1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe (PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
7. PP/PE plastic board/sheet/geomembrane production line
8. NBR PVC Thermal insulation tube/plate production line
9. Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE PP welding rod.
