High-efficiency PE Pre-Insulated Pipe Extruder Line with Adjustable Pipe Thickness for Automated Thermal Insulation Solutions

1
MOQ
150000-600000 ＄
Price
High-efficiency PE Pre-Insulated Pipe Extruder Line with Adjustable Pipe Thickness for Automated Thermal Insulation Solutions
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Highlight:

PE pre-insulated pipe extruder line

,

adjustable thickness pipe extruder

,

automated thermal insulation production line
Basic Infomation
Place of Origin: CHINA
Brand Name: Huashida
Certification: CE, ISO9001:2008
Model Number: 110-2000mm
Payment & Shipping Terms
Packaging Details: according to customer's requirement
Delivery Time: 2 months
Payment Terms: T/T
Supply Ability: 20 Sets/Year
Product Description
PE Pre-Insulated Pipe Extruder Line for Thermal Insulation Solutions
HDPE pipe extruding line composed of single screw extruder and corresponding auxiliaries, can produce all kinds of small diameter HDPE plastic pipes continuously. It also can be used to produce PS, PP, HDPE plastic pipes after replacing the screw. HDPE plastic pipe is widely used for liquid conveying in agricultural, chemical industry, construction industry, etc.
Pipe Usage
Outer case of thermal insulating pipe, which is widely used in central heating, oil, natural gas and other industrial areas.
  • Pipe/jacket diameter range: 110-2000mm
Machine Advantages
  • High-efficiency extruder gives larger output, stable performance
  • Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable
  • No need trim edge, once forming
  • High degree of automation, can be operated by one person, saving labor costs
Main Specifications
Style PE-110/600 PE-365/760 PE-655/1380 PE960-1680
Main Extruder SJ-75/33 SJ-90/33 SJ-120/33 SJ-150/33
Pipe Diameter Φ110-600mm Φ365-Φ760mm Φ655-Φ1380mm Φ960-Φ1680mm
Capacity 250-300kg/h 400-500kg/h 850-950kg/h 900-1100kg/h
Installed Power 160kw 420kw 480kw 580kw
Length 35m 36m 40m 48m
Production Line Composition
No. Component Description
1 Vacuum Loader Vacuum automatic feeding
2 Hopper Dryer Hot air drying

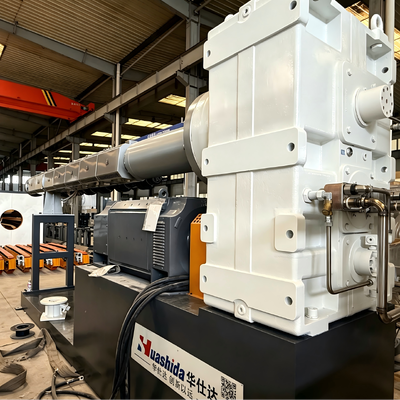

3 High-efficiency Single Screw Extruder Adopt German new-generation barrier screw, with higher efficiency, 10% energy saved

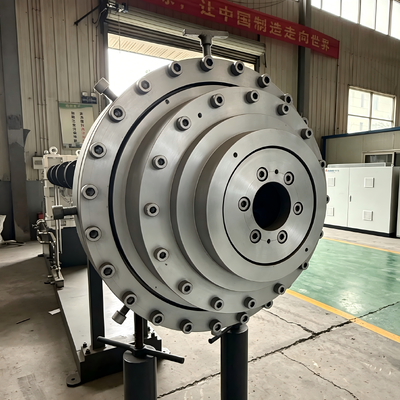

4 Die Head Multi-layer helical distributing pipe dies

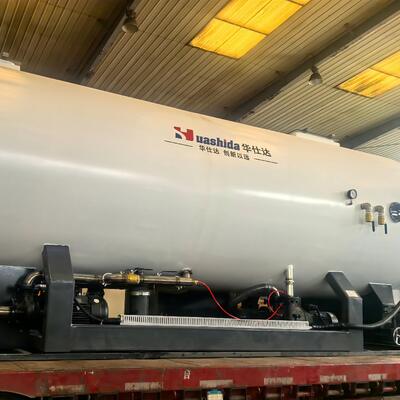

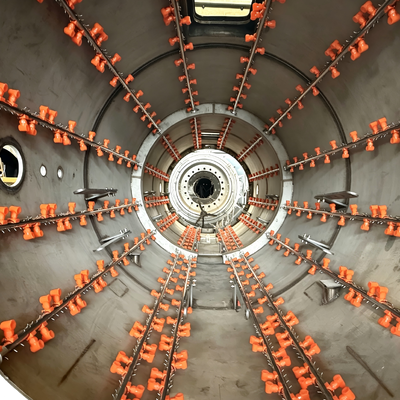

5 Vacuum Calibration Tank Rapid Vacuum calibration, pipe with smooth surface and uniform wall thickness
6 Hauling Machine By tracks, mechanical clamping

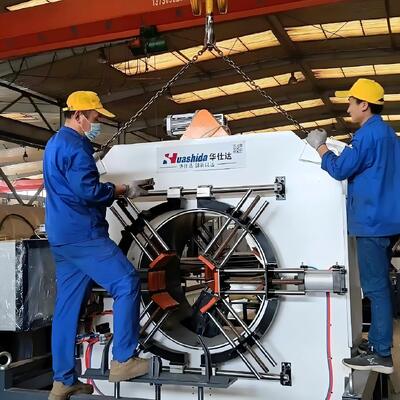

7 Cutting Machine Dust-free planetary cutting
8 Discharging Frame Free to move
9 PLC System Most professional plastic machinery control system in the world
PE Pre-Insulated Pipe Extruder Line manufacturing equipment PE Pre-Insulated Pipe Extruder Line production process
