PLC Controlled Steel pipe Internal and External FBE Coating Line with Shot Blasting machinery

1
MOQ
232500$ - 348800$
Price
PLC Controlled Steel pipe Internal and External FBE Coating Line with Shot Blasting machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Pipe Diameter: 325-4200 Mm
Coating Thickness: 80~800um
Descaling Grade: SA2.5
Production Output: 3 To 8 Km/day
Dimensions: 1200.00cm * 230.00cm * 260.00cm
Coating Type: FBE Powder Coating
Highlight:

PLC controlled FBE coating line

,

steel pipe shot blasting machinery

,

3LPE coating pipe production line
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: Huashida
Certification: CE, ISO, RoHS
Model Number: 325-4200 mm
Payment & Shipping Terms
Packaging Details: 1200*230*260
Delivery Time: 70-90 Days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 30 Sets/Year
Product Description
PLC Controlled Steel Pipe Internal and External FBE Coating Line with Shot Blasting Machinery

The epoxy powder anti-corrosion process for the inner and outer walls of steel pipes is currently an efficient and reliable solution for pipeline anti-corrosion. The treated steel pipe has significant advantages: its coating not only has excellent corrosion resistance, capable of resisting the long-term erosion of various chemical media such as acids, alkalis, and salts, but also has a smooth and dense surface structure, which can effectively reduce the frictional resistance during fluid transportation and improve the transmission efficiency of the pipeline. This type of anti-corrosion steel pipe, with its outstanding comprehensive performance, is widely used in multiple key fields such as long-distance oil and gas pipelines, urban water supply and drainage networks, and industrial fluid transportation.

PLC Controlled FBE Coating Line Equipment
Internal & External FBE Powder Coating

Epoxy powder is a thermosetting, non-toxic coating. After curing, it forms a high-molecular cross-linked structure coating, which has excellent chemical anti-corrosion performance and mechanical strength. Its base layer is bonded and cured on the surface of the steel pipe to form a continuous coating, providing excellent adhesion, chemical corrosion resistance, and cathodic disbondment resistance. Polymer adhesives bond epoxy powder before gelation and connect the top layer of polyethylene, making the three-layer structure closely combined into one.

Main Equipment Process Flow
Item Process Flow
1Upload pipes
2Pipes spiral conveyor
3External blasting

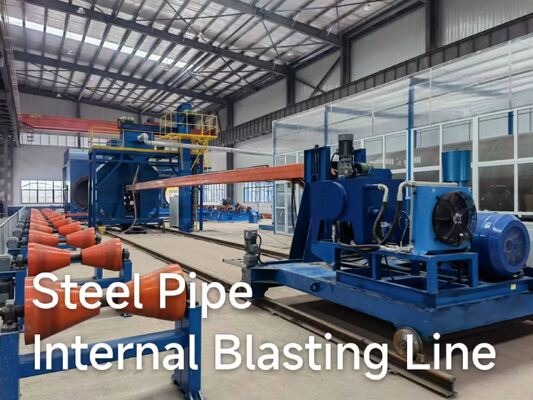

4Internal blasting
5Rust removal
6Intermediate frequency heating
7FBE powder coating
8Powder recycling system
9Load down pipe rack
Detailed Photos

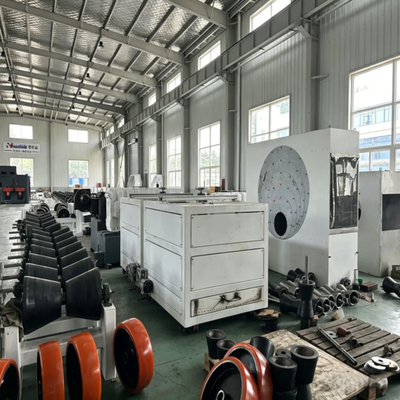

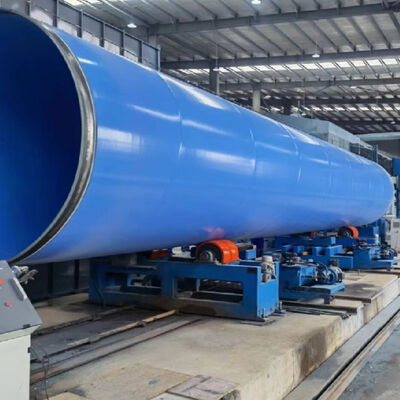

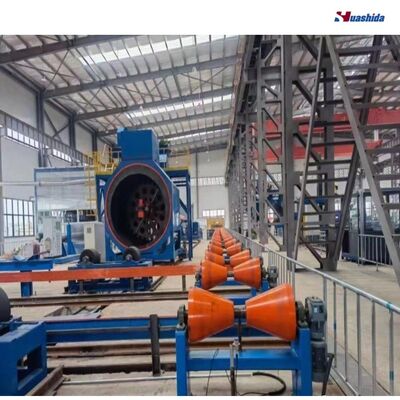

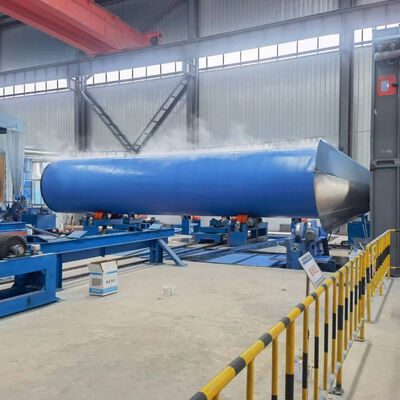

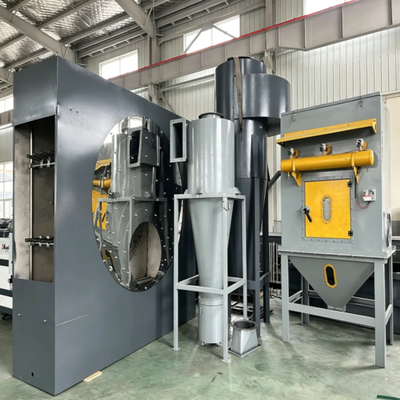

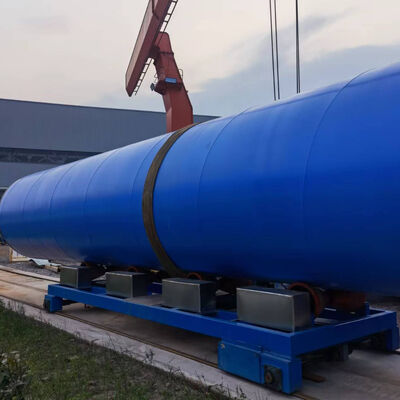

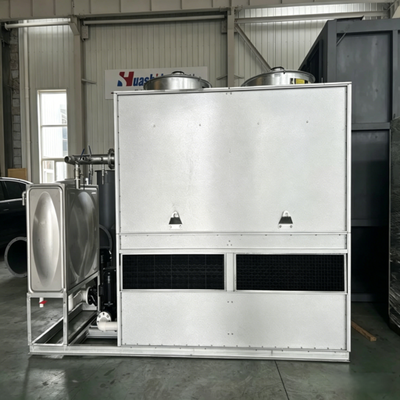

Detailed view of FBE coating equipment components
Our Advantages
  • Set up a domestic high-end plastic machinery expert workstation, with more than 10 patented technologies
  • 9 senior engineer team, refined FBE powder curing parameters, and 3LPE interlayer bonding process
  • 4000 m² intelligent factory, strict implementation of the ISO9001 quality control system
  • 100% test run before the equipment leaves the factory, the operation stability reaches 99.8%
  • Set research and development, production in one, to ensure the technology and equipment performance
Frequently Asked Questions
Q1. What is the size of the pipe diameter? Can your equipment produce?
A: We can produce four main models:
Diameter of steel Pipe:
1. 325-1820 mm
2. 508-2540 mm
3. 508-1620 mm
4. 1000-3600 mm
5. 508-4200 mm
Q2. What is the Descaling grade?
A: SA2.5
Q3. What is your anticorrosion coating standard?
A: It can meet SY/T0413-2002, GB/T23257-2009, German DIN 30670, DIN 30678, and coating specification requirements from American Corrosion Association, and DNV. The product pipe fully complies with SY/T0315-2005, CNPC38-2002 "Technical specifications for double-layer fusion-bonded epoxy powder coating on buried steel pipe and the Canadian American Corrosion Association standards.
Q4. What is the Delivery Time?
A: 2-3 months after deposit.
Q5. Production output:
A: It is different output capability as different pipe diameters; the Max is 3 to 8 km/day, and the annual processing capacity is 2 million square meters (Φ508 mm).
Q6. Coating thickness:
A: 80~800um
Q7. Which country did you sell your 3PE equipment to?
A: We have produced nearly 50 sets of 3PE processing lines at home and abroad. Such as Russia, Iran, UAE, Iran, India, Belarus, Kazakhstan, and so on.
Q8. After-sales service:
A: Warranty period:
Before delivery, all the equipment must be trial-operated to confirm the quantity perfectly.
The warranty period is 12 months from the date of pick-up for the mechanical part, and 6 months for the electrical part. The seller provides free technical services and provides training and guidance to buyer operators.
International Trading Show
Our equipment display at international trading show
Client Cases
Client installation case 1
Client installation case 2
Certifications
Quality management and product certifications
