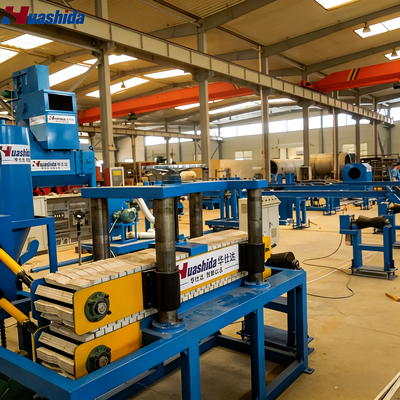

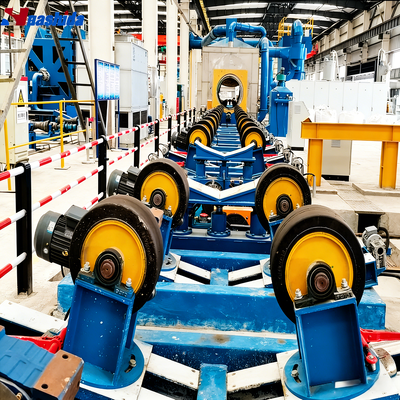

Small Diameter Continuous O-Type Extrusion 3LPE FBE Steel Pipe Coating Line

This automatic O-type extrusion 3LPE steel pipe anti-corrosion coating line, featuring core FBE 3LPE coating equipment for small-bore pipelines, integrates full-process shot blasting derusting, intermediate-frequency induction heating, electrostatic FBE epoxy powder spraying and patented O-type co-extrusion to finish complete 2LPE & 3LPE anti-corrosion coating in one continuous production flow.

Finished pipes gain robust acid, alkali and salt corrosion resistance thanks to standard three-layer anti-corrosion structure, making this steel pipe coating machine ideal processing equipment for oil & gas transmission, municipal water supply and industrial fluid buried pipeline engineering.

Standardized automatic workflow guarantees consistent coating thickness and tight bonding for reliable anti-corrosion performance:

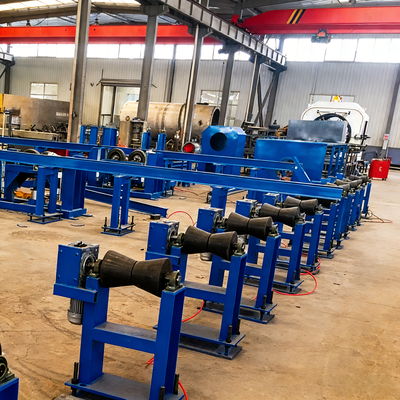

1. Pipe Loading: Automated screw conveyor pipe feeding

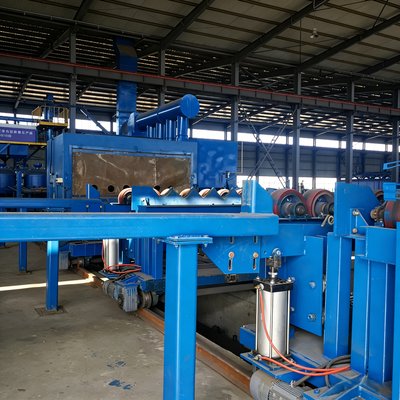

2. Surface Treatment: Shot blasting rust removal up to Sa2.5 standard
3. Induction Heating: Precise intermediate frequency heating for enhanced FBE adhesion
4. FBE Coating: Electrostatic epoxy powder spraying for base anti-corrosion layer

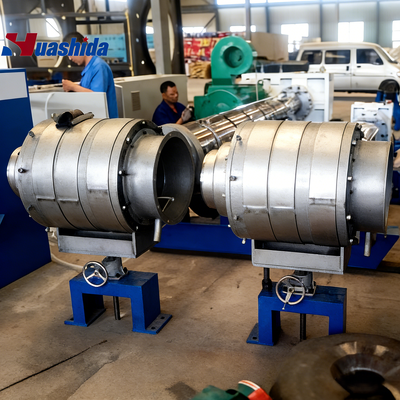

5. 3LPE/2LPE Application: O-type co-extrusion for adhesive and outer PE protective layers

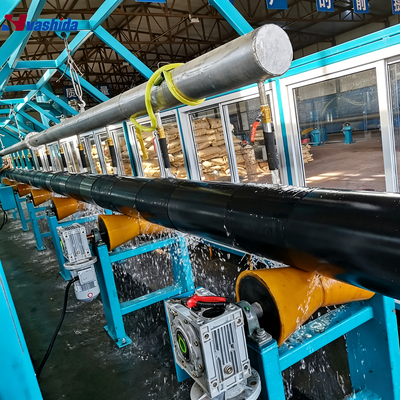

6. Cooling & Finishing: Water spray cooling plus automatic pipe end beveling
7. Unloading: Orderly finished pipe discharging and storage

• Adopts mature O-type co-extrusion craft to form compact, even 3LPE & 2LPE anti-corrosion coating layer
• Stable round-the-clock running design keeps equipment failure rate below 0.5% for continuous coating production
• Fully automated production lowers manual expense by over 40% for operators of anti-corrosion pipe factories
• Machine manufactured in line with ISO and CE international certification standards for global pipeline projects
• Complete turnkey service covering project design, factory setup, on-site commissioning and professional operator training
• In-house R&D team supports personalized customization of dedicated steel pipe anti-corrosion coating equipment

Qingdao Huashida Machinery Co., LTD is an experienced manufacturer with 21 years specializing in 3LPE FBE steel pipe coating line, plastic extrusion machinery and various pipeline anti-corrosion production equipment.

• HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
• Rigid pre-insulated pipe Production Line
• Flexible pre-insulated pipe (PERT) production line
• Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
• Steel pipe derusting line
• PE pressure pipe/Water Gas supply pipe production line
• PP/PE plastic board/sheet/geomembrane production line
• NBR PVC Thermal insulation tube/plate production line
• Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE PP welding rod

We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria, and other countries.
