High-Efficiency PE Insulated Pipe Manufacturing Line with Vacuum Calibration for 110-2000mm Pipe Range

1
MOQ
300000-1800000 ＄
Price
High-Efficiency PE Insulated Pipe Manufacturing Line with Vacuum Calibration for 110-2000mm Pipe Range
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Type: Pipe Extruder
Pipe Surface Treatment: No Less Than SA2.5
Product Color: Black
Origin: Qingdao, China
Foamingmethod: High-pressure Foaming
Voltage: 380V 50Hz
Outer Sheath: HDPE
Pipe Layers: PERT Inner, PU Foam, HDPE Outer
Usage: Pre-Insulated Pipeline Joints
Pipe Range: 110-2000mm
Pipe Length: 6-12m
Turnkey Project: Yes
Highlight:

PE insulated pipe production line

,

vacuum calibration pipe manufacturing line

,

pre-insulated pipe line 110-2000mm
Basic Infomation
Place of Origin: china
Brand Name: Huashida
Certification: CE, ISO9001:2008
Model Number: 110-2000mm
Payment & Shipping Terms
Packaging Details: according to customer's requirement
Delivery Time: 2 months
Payment Terms: T/T,Western Union
Supply Ability: 20 Sets/Year
Product Description
High-Efficiency PE Insulated Pipe Manufacturing Line with Vacuum Calibration

The High-Efficiency PE Insulated Pipe Manufacturing Line with Vacuum Calibration produces rigid "pipe-in-pipe" structures consisting of steel or galvanized steel carrier pipes, polyurethane foam insulation layers, and protective outer jacket pipes made of high-density polyethylene for underground installation or galvanized steel sheets for above-ground applications.

Structural rigidity is achieved through strong bonds between the steel pipe, polyurethane insulation layer, and jacket pipe. The process includes pre-shot blast or blast cleaning of steel pipe surfaces, optimal polyurethane insulation performance, and corona treatment of polyethylene pipe surfaces.

Application
This equipment is designed for extrusion of HDPE casing pipe (jacket pipe), which serves as a protective cover for rigid pre-insulated pipes in district heating, hot water, or chilled water piping systems. Suitable for diameter range: 110-2000mm.
Key Advantages
  • Vacuum calibration improves pipe stiffness, flexibility, and mechanical strength
  • High degree of intelligence enhances production efficiency and reduces labor costs
  • Fast production speed - 30% faster than similar equipment
  • High-quality hardware and software minimize maintenance costs
System Structure
This pipe extrusion production line includes: single screw extruder, molds, vacuum calibrating & water cooling tank, spray water cooling tank, haul-off machine, cutting machine, and bracket.
Multi-Layer PE Insulated Pipe Extrusion Line equipment overview
Working Conditions
Electric Source 3 380V(-10%,+5%) 50Hz
Total Power ~160kW
Cooling Water ≤20ºC, ≥0.3Mpa, 26~30 m³/h
Compressed Air 0.4m³/min, >0.5MPa
Dimension 24×3×3m
Material HDPE Granules
Technical Specifications
Style PE-110/600 PE-365/760 PE-655/1380 PE-960/1680 PE-1054/1860
Main Extruder SJ-75/33 SJ-90/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe Diameter Φ110-600mm Φ365-760mm Φ655-1380mm Φ960-1680mm Φ1054-1860mm
Capacity 250-350kg/h 400-500kg/h 700-900kg/h 1000-1200kg/h 1000-1250kg/h
Installed Power 160kw 240kw 480kw 580kw 580kw
Length 30m 32m 36m 40m 45m
Production Line Components
Component Description
Vacuum Loader Vacuum automatic feeding
Hopper Dryer Hot air drying

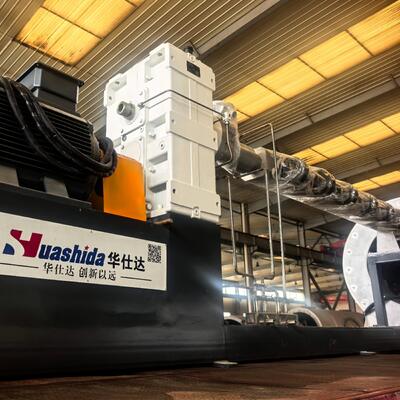

High-Efficiency Single Screw Extruder Adopts German new-generation barrier screw, with higher efficiency and 20% energy savings

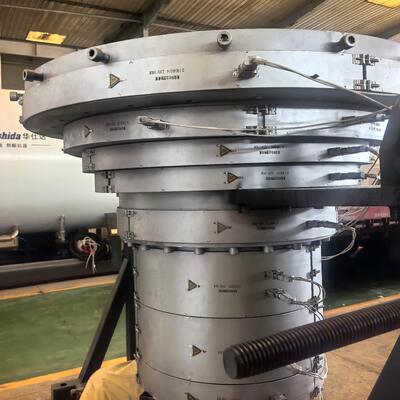

Die Head Multi-layer helical distributing pipe dies
Vacuum Calibration Tank Rapid vacuum calibration for pipes with smooth surface and uniform wall thickness

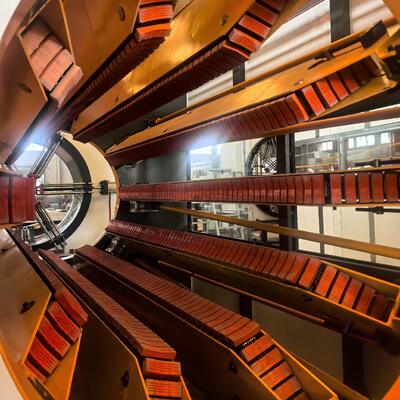

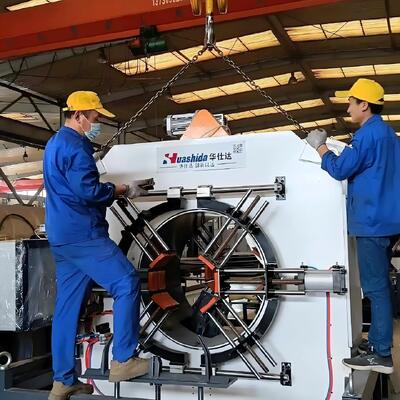

Hauling Machine Track-based mechanical clamping
Cutting Machine Dust-free planetary cutting
Discharging Frame Free to move
PLC System Most professional plastic machinery control system in the world
Our Exhibition
HUASHIDA equipment exhibition display

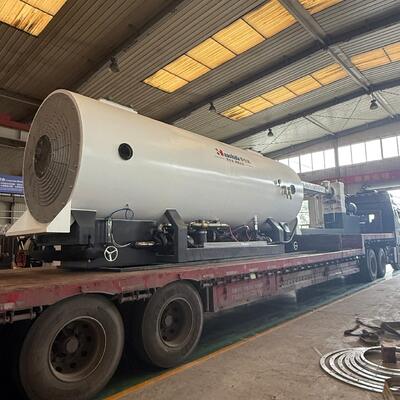

Delivery and Packaging
Professional packaging and delivery process for industrial equipment
