Multi-Layer PE Insulated Pipe Extrusion Line with Vacuum Calibration for 110-2000mm Pre-Insulated Pipe Production

1
MOQ
300000-1800000 ＄
Price
Multi-Layer PE Insulated Pipe Extrusion Line with Vacuum Calibration for 110-2000mm Pre-Insulated Pipe Production
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Type: Pipe Extruder
Pipe Surface Treatment: No Less Than SA2.5
Product Color: Black
Origin: Qingdao, China
Foamingmethod: High-pressure Foaming
Voltage: 380V 50Hz
Outer Sheath: HDPE
Pipe Layers: PERT Inner, PU Foam, HDPE Outer
Usage: Pre-Insulated Pipeline Joints
Pipe Range: 110-2000mm
Pipe Length: 6-12m
Turnkey Project: Yes
Highlight:

PE insulated pipe extrusion line

,

vacuum calibration pre-insulated pipe machine

,

110-2000mm pre-insulated pipe production line
Basic Infomation
Place of Origin: china
Brand Name: Huashida
Certification: CE, ISO9001:2008
Model Number: 110-2000mm
Payment & Shipping Terms
Packaging Details: according to customer's requirement
Delivery Time: 2 months
Payment Terms: T/T,Western Union
Supply Ability: 20 Sets/Year
Product Description
Multi-Layer PE Insulated Pipe Extrusion Line for High-Performance Pipes
The Vacuum Calibration Plastic HDPE pipe machine is a complete high-speed, high-efficiency, automatic and intelligent plastic pipe production line developed by HUASHIDA through technological innovation.
Application
This equipment is designed for extrusion of HDPE casing pipe (jacket pipe), which serves as a protective cover for rigid pre-insulated pipes in district heating, hot water, or chilled water piping systems. Suitable for diameter range: 110-2000mm.
Key Advantages
  • Vacuum calibration improves pipe stiffness, flexibility, and mechanical strength
  • High degree of intelligence enhances production efficiency and reduces labor costs
  • Fast production speed - 30% faster than similar equipment
  • High-quality hardware and software minimize maintenance costs
System Structure
This pipe extrusion production line includes: single screw extruder, molds, vacuum calibrating & water cooling tank, spray water cooling tank, haul-off machine, cutting machine, and bracket.
Multi-Layer PE Insulated Pipe Extrusion Line equipment overview
Working Conditions
Electric Source 3 380V(-10%,+5%) 50Hz
Total Power ~160kW
Cooling Water ≤20ºC, ≥0.3Mpa, 26~30 m³/h
Compressed Air 0.4m³/min, >0.5MPa
Dimension 24×3×3m
Material HDPE Granules
Technical Specifications
Style PE-110/600 PE-365/760 PE-655/1380 PE-960/1680 PE-1054/1860
Main Extruder SJ-75/33 SJ-90/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe Diameter Φ110-600mm Φ365-760mm Φ655-1380mm Φ960-1680mm Φ1054-1860mm
Capacity 250-350kg/h 400-500kg/h 700-900kg/h 1000-1200kg/h 1000-1250kg/h
Installed Power 160kw 240kw 480kw 580kw 580kw
Length 30m 32m 36m 40m 45m
Production Line Components
1 Vacuum Loader Vacuum automatic feeding
2 Hopper Dryer Hot air drying

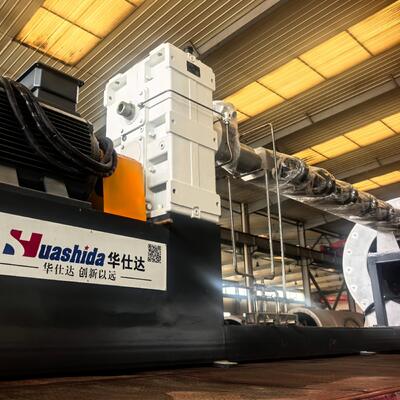

3 High-Efficiency Single Screw Extruder Adopts German new-generation barrier screw, with higher efficiency and 20% energy savings

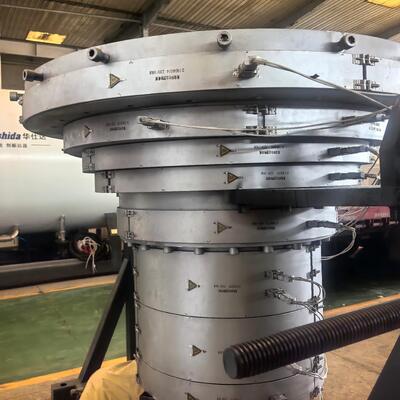

4 Die Head Multi-layer helical distributing pipe dies

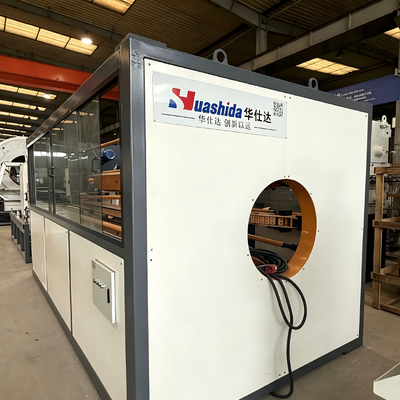

5 Vacuum Calibration Tank Rapid vacuum calibration for pipes with smooth surface and uniform wall thickness

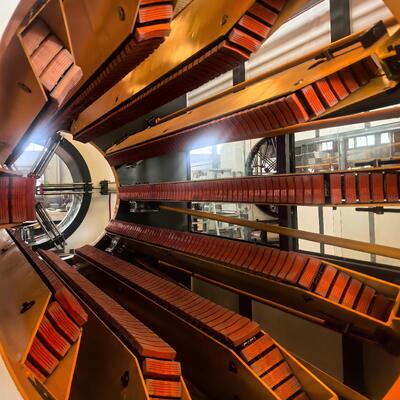

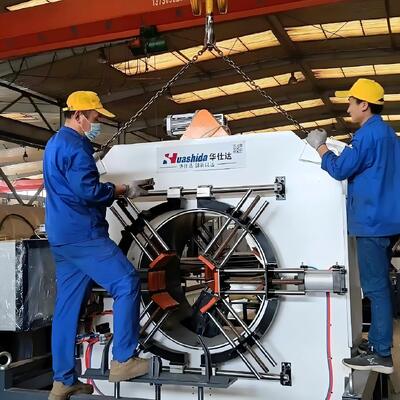

6 Hauling Machine Track-based mechanical clamping
7 Cutting Machine Dust-free planetary cutting
8 Discharging Frame Free to move
9 PLC System Most professional plastic machinery control system in the world
Our Exhibition
HUASHIDA equipment exhibition display
Delivery and Packaging
Professional packaging and delivery process for industrial equipment
