Fiber Reinforced 3-Layer PE Cross-Linked Heat Shrinkable Sleeve Backing Film Production Line

1
MOQ
1000000-1300000
Price
Fiber Reinforced 3-Layer PE Cross-Linked Heat Shrinkable Sleeve Backing Film Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Main Material: PVC, PE, PP, PPR
Line Length: 60m
Transport Package: Plastic Film And Wooden Pallet
Raw Material: PE
Foaming Machine: High-Pressure Foaming Machine
Overall Dimension: 25m*5m*3m
Automatic Production Line: Comprehensive
Applications: Gas Supply Pipe/Heating Supply Pipe
Place: Indoor
Highlight:

Fiber reinforced PE heat shrink film

,

3-layer cross-linked PE backing film

,

PE PP sheet extrusion line
Basic Infomation
Place of Origin: china
Brand Name: Huashida
Certification: CE, ISO9001:2008
Model Number: HSD
Payment & Shipping Terms
Packaging Details: according to customer's requirement
Delivery Time: 2 months
Payment Terms: T/T,Western Union
Supply Ability: 20 Sets/Year
Product Description
Fiber Reinforced 3-Layer PE Cross-Linked Heat Shrinkable Sleeve Backing Film Production Line
Product Overview

The fiber reinforced 3-layer heat shrinkable sleeve backing film production line is designed for manufacturing on-site joint PE heat-shrinkable sleeves used in buried pipeline applications. Constructed from PE/PP materials, this system is specifically engineered for anti-corrosion joints in oil, natural gas, and water pipelines. It is suitable for 3LPE/PP pipelines, pre-insulated pipe end sealing, and HDPE corrugated pipes.

Production Line Configuration

This comprehensive production line integrates multiple advanced components including fiber uncoiler machine, fiber net pre-heaters device, fiber net finisher, two sets of single screw extruder, multi-layer extrusion die melt, rollers calendering, cooling frame, haul-off, color net, and PLC control system.

Overall Dimensions 24,000mm length × 6,000mm width × 2,500mm height
Total Installed Power Approximately 150Kw
Technical Status Most advanced heat shrinkable sleeve production line in China
Key Components
  • Fiber uncoiler machine
  • Fiber net pre-heaters device
  • Fiber net finisher
  • Two sets of single screw extruder
  • Multi-layer extrusion die melt
  • Rollers calendering
  • Cooling frame
  • Haul-off system
  • Color net
  • PLC control system
Production Line Images

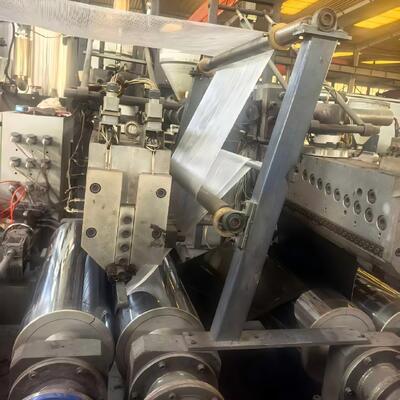

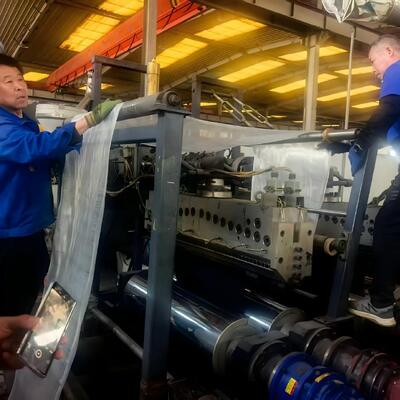

Fiber Reinforced 3-Layer PE Cross-Linked Heat Shrinkable Sleeve Backing Film Production Line overview Close-up view of production line components
Product Advantages
High Tensile Strength

The new three-layer composite heat-shrinkable tape incorporates a high-strength glass fiber cloth layer within the 1.2mm PE substrate, delivering twice the tensile strength of ordinary heat-shrinkable tapes, reaching up to 38MPa/m².

Enhanced Shrinkage Rate

While general heat-shrinkable tapes offer 30-40% shrinkage, our optimized formula and process increases shrinkage by 2.5 times to over 70%, ensuring tighter joint wrapping and superior sealing.

Superior Adhesion Performance

Utilizing special sealing hot-melt adhesive and polyethylene substrate with high radiation-cross-linked polyolefin, our product provides excellent adhesion to steel pipe surfaces and solid epoxy coatings, resulting in high mechanical strength, superior anti-aging properties, and exceptional environmental stress resistance.

Wide Application Range

Suitable for pipe diameters from DN200 to 3000mm. We also offer customized electric-fusion sleeve pipe fittings for various anti-corrosion applications in petroleum, natural gas, heating, and tap water pipelines.

Product Gallery

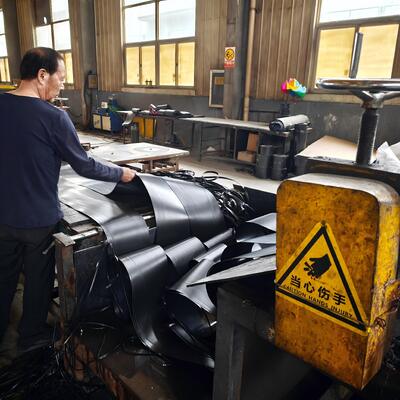

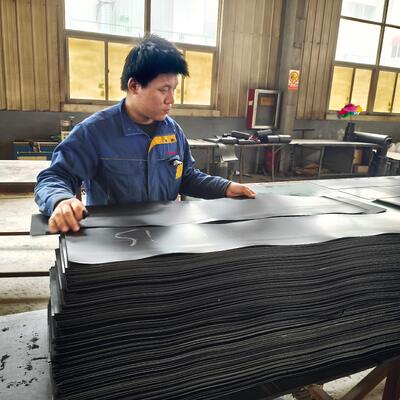

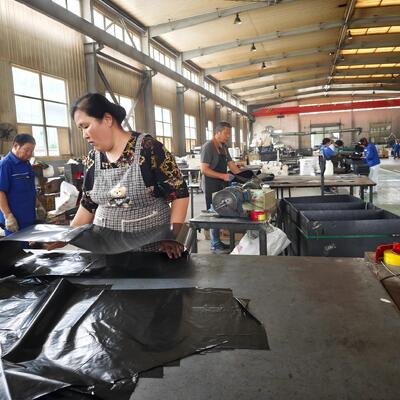

Fiber reinforced heat shrinkable sleeve application Production line operational view Manufacturing process detail Quality control inspection Finished product examples Production line automation
After-Sales Service
Standard Warranty: 12 months
Global Support: 24/7 technical assistance and spare parts supply
Training: On-site or remote operation/maintenance training
Company Profile
Qingdao Huashida Machinery facility

Qingdao Huashida Machinery Co., Ltd

Founded in 2003, Qingdao Huashida Machinery Co., Ltd. is a leading Chinese high-tech enterprise specializing in intelligent equipment for pipeline anti-corrosion and pre-insulation systems. Headquartered in the Huashida Industrial Park (33,000 m²) in Chengyang District, Qingdao, Shandong Province, the company integrates R&D, manufacturing, marketing, and global service capabilities.

Huashida manufacturing facility Huashida technology center
Why Choose Huashida?
Competitive Pricing & Value

Competitive pricing with bulk discounts available, fast shipping, and comprehensive customs clearance support with turnkey project solutions.

Strong Innovation Capability

Huashida holds 58 invention patents, 38 utility model patents, and 38 software copyrights, demonstrating substantial innovation capacity.

Expert Technical Support

On-site installation and debugging support available. Current workforce includes over 100 employees with 3 senior technical consultants, 4 senior engineers, 15 mechanical engineering technicians, and 12 installation and commissioning specialists.

Extensive Export Experience

Comprehensive international trade experience with global customer support.

Core Product Systems
  • Steel Pipe Anti-Corrosion Systems
    • Steel Pipe 3-Layer Polyethylene (3LPE) Anti-Corrosion Coating System
    • Steel Pipe Internal & External FBE Coating System
    • Steel Pipe External 3LPE & Internal Epoxy Coating System
    • Steel Pipe External 3LPE & Internal Liquid Paint Coating System
  • Pre-Insulated Pipe Production Systems
    • Vacuum Calibrating Method Pre-Insulated Pipe Outside Casing Extrusion System
    • PUR Spray PE Wrap Pre-Insulated Pipe Production System
    • Continuous PERT Flexible Pre-Insulated Pipe Production System
    • Continuous PU Foam Pre-Insulated Pipe Production System
    • PERT Rigid Pre-Insulated Pipe Production System
    • Rubber Foam Insulation Tube/Plate Production System
  • Field Joint Materials & Tools
    • Heat Shrinkable Sleeve
    • Electro-Fusion Sleeve
    • Seamless Heat Shrinkable Sleeve
    • Electro-Fusion Welding Machine
    • Hot Air Welding Gun
    • Plastic Welding Rod
    • PE Pipe Elbow
International Exhibitions
Huashida exhibition participation International trade show presence
Frequently Asked Questions
Q: What's the lead time for orders?
A: Standard models ship in 15-30 days; customized units require 30-45 days.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments to meet specific requirements.
Q: What documents do you provide for export?
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, Certificate of Conformity, and all necessary documentation.
Q: How do I place an order?
A: Contact us via email or phone for a detailed quote, then confirm your order with a Purchase Order.
Product Video

Video content is available for this product. Please contact us for access to detailed operational videos and demonstrations.
