Vacuum Calibrating HDPE PE Insulated Pipe Extrusion Line with Single-Screw Extruder for Industrial Use

1
MOQ
1000000-1300000
Price
Vacuum Calibrating HDPE PE Insulated Pipe Extrusion Line with Single-Screw Extruder for Industrial Use
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Pipe Color: Black + Yellow Or Blue
Origin: Qingdao China
Feeding Mode: One Feed
Shaft Material: 40Cr
Product Material: HDPE
Model No: 3pe
Board Layers: Single Layer, Double Layer, Multi-Layer
Cooling Method: Water Cooling
Frequency Range: Intermediate Frequency
Labor: 1-2person
Screw No: Single-screw
Production Line Length: 30-50m
Highlight:

HDPE PE insulated pipe extrusion line

,

single-screw extruder pre-insulated pipe

,

industrial vacuum calibrating extrusion line
Basic Infomation
Place of Origin: china
Brand Name: Huashida
Certification: CE, ISO9001:2008
Model Number: 110-2000mm
Payment & Shipping Terms
Delivery Time: 2 months
Payment Terms: T/T,Western Union
Supply Ability: 20 Sets/Year
Product Description
Vacuum Calibrating PE Insulated Pipe Extrusion Line for Industrial Use
This advanced production line is among the most sophisticated and widely used machinery globally, specifically designed for manufacturing energy-efficient, trenchless laying pipelines with superior thermal insulation. The resulting pipes feature a steel or galvanized steel carrier pipe, a polyurethane foam insulation layer, and an outer protective shell of HDPE or galvanized steel, delivering exceptional rigidity and insulation properties.
Key Advantages
  • Improved Pipe Properties: Vacuum calibration enhances pipe stiffness, flexibility, and mechanical strength
  • High Intelligence: Advanced automation reduces labor costs and improves production efficiency
  • Fast Production Speed: 30% faster than similar equipment, significantly increasing throughput
  • Durability: High-quality hardware and software minimize maintenance costs
Working Conditions
  • Electric Source: 3-phase, 380V (±10%, +5%), 50Hz
  • Total Power: ~160kW
  • Cooling Water: ≤20ºC, ≥0.3Mpa, 26-30 m³/h
  • Compressed Air: 0.4m³/min, >0.5MPa
  • Dimension: 24m x 3m x 3m
  • Material: HDPE Granules
Applications
The HDPE pre-insulated pipe extrusion line is extensively used for producing protective jackets for thermal insulated pipes in district heating systems, hot and chilled water piping, gas pipelines, water mains, geothermal heating applications, and more.
Production Process Flow
Vacuum feeding PE granule → hot air dry material → extrusion plasticizing → mold shaping → vacuum sizing → water cooling → pulling out → cutting pipe → carrier laying-off pipe
Advanced Vacuum Calibrating PE Insulated Pipe Extrusion Production Line PE Insulated Pipe Extrusion Line Components Extrusion Line Diagram
Key Configurations
This high-efficiency plastic pipe production line comprises nine essential components:
  1. 1 Set Auto Vacuum Feeder
  2. 1 Set Hopper Dryer
  3. 1 Set Efficient Single Screw Extruder
  4. 1 Set Mold
  5. 1 Set Vacuum Calibration Tank
  6. 1 Set Hauling Machine
  7. 1 Set Cutting Machine
  8. 1 Set Stacker
  9. 1 Set PLC Central Control System
All machines in the production line can be customized according to specific requirements.
Production Line Overview Extrusion Line Operation Pipe Production Process
Component Details

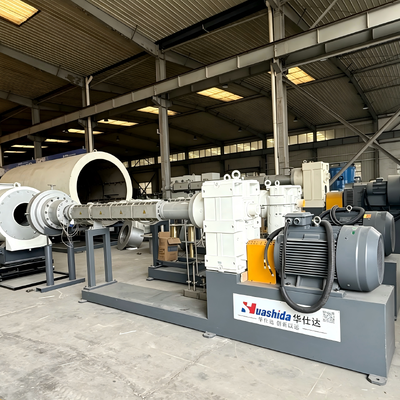

High-efficiency Single Screw Extruder: Features a barrier & mixing head and new model barrel with slotting (channel), ensuring excellent gelation, large output, and stable performance.

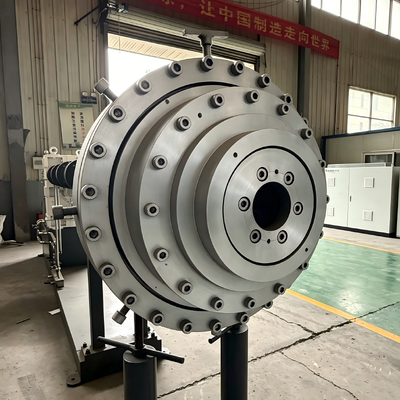

Die-Head: The inner surface contacting plastic materials is polished and chrome-plated to ensure smooth material flow and prevent rust. Pipe wall thickness uniformity is adjustable by bolts. The copper calibrating sleeve cools the freshly formed pipe and calibrates its outer diameter.

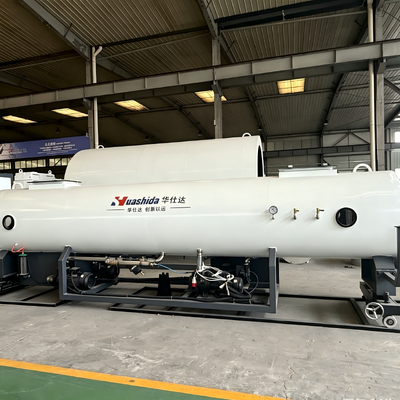

Vacuum Calibration Tank: Consists of frame, stainless steel tank, vacuum system, spray cooling system, and position adjustment device. The vacuum pump exhausts air from the sealed tank to pressurize the pipe, which clings to the calibrating copper sleeve, ensuring proper diameter. Spray nozzles cool the pipe surface from all directions.

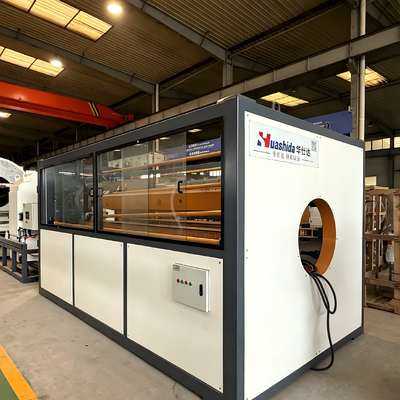

Hauling Machine: Comprises driving device, clamping structure, adjusting system, side plate, and foundation bed. Driven by AC motor with frequency conversion control for adaptation to different extrusion speeds.

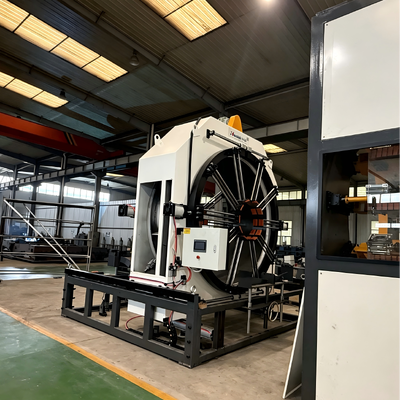

Cutting Machine: Utilizes blade punching principle for dust-free cutting. Includes cutting, clamping, and synchronous movement devices for efficiency.
Control System: Entire production line controlled by advanced PLC system with user-friendly interface. All technical parameters can be set and monitored via touch screen. Customizable control systems available based on requirements.
Vacuum Calibration System Extrusion Line Components Production Line Operation
Technical Specifications
(Custom configurations available upon request)
Model PE-110/600 PE-365/760 PE-655-1380 PE-960/1680 PE-1155/2000
Main Extruder SJ-75/33 SJ-90/33 SJ-120/33 SJ-150/33 SJ-120/33
Pipe diameter Φ110-600mm Φ365-760mm Φ655-1380mm Φ960-1680mm Φ1155-2000mm
Capacity 250-350kg/h 400-500kg/h 700-900kg/h 800-1200kg/h 1000-1500kg/h
Installed power 160kw 240kw 480kw 580kw 630kw
Length 30m 32m 36m 48m 48m
After Sales Service
  • Standard Warranty: 12 months
  • Global Support: 24/7 technical assistance and spare parts supply
  • Training: On-site or remote operation/maintenance training
Company Profile
Qingdao Huashida Machinery Facility
Qingdao Huashida Machinery Co., Ltd
Founded in 2003, Qingdao Huashida Machinery Co., Ltd. is a leading Chinese high-tech enterprise specializing in intelligent equipment for pipeline anti-corrosion and pre-insulation systems. The company holds 58 invention patents, 38 utility model patents, and 38 software copyrights, demonstrating strong innovation capabilities. Main application areas include thermal pre-insulated pipelines, municipal sewage pipelines, inspection wells, and 3LPE oil and gas pipelines.
Huashida Machinery Products Manufacturing Facility
Why Choose Us?
  • OEM/ODM capabilities
  • Competitive pricing & bulk discounts
  • Fast shipping & customs clearance support
  • Turnkey project solutions
  • Strong innovation capability with 58 invention patents, 38 utility model patents, and 38 software copyrights
Other Products
A. Steel Pipe Anti-Corrosion Systems
  • Steel Pipe 3-Layer Polyethylene (3LPE) Anti-Corrosion Coating System
  • Steel Pipe Internal & External FBE Coating System
  • Steel Pipe External 3LPE & Internal Epoxy Coating System
  • Steel Pipe External 3LPE & Internal Liquid Paint Coating System
B. Pre-Insulated Pipe Production Systems
  • Vacuum Calibrating Method Pre-Insulated Pipe Outside Casing Extrusion System
  • PUR Spray PE Wrap Pre-Insulated Pipe Production System
  • Continuous PERT Flexible Pre-Insulated Pipe Production System
  • Continuous PU Foam Pre-Insulated Pipe Production System
  • PERT Rigid Pre-Insulated Pipe Production System
  • Rubber Foam Insulation Tube / Plate Production System
C. Field Joint Materials & Tools (by Huashida Plastic)
  • Heat Shrinkable Sleeve
  • Electro-Fusion Sleeve
  • Seamless Heat Shrinkable Sleeve
  • Electro-Fusion Welding Machine
  • Hot Air Welding Gun
  • Plastic Welding Rod
  • PE Pipe Elbow
Frequently Asked Questions
Q: What's the lead time for orders?
A: Standard models ship in 60-90 days; customized units require 30-45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we provide free technical services and offer training and guidance to the buyer's operators.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
