HDPE Insulated Pipe Production Line Vacuum Calibration Technology

1
MOQ
US$200,000.00-1,000,000.00
Price
HDPE Insulated Pipe Production Line Vacuum Calibration Technology
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Pipe Uasge: Pre-insualte
Size: Customizable
Trademark: Huashida
Method: Vaccum
Condition: New
Highlight:

HDPE insulated pipe production line

,

pre-insulated pipe vacuum calibration

,

HDPE pipe production with warranty
Basic Infomation
Place of Origin: Qingdao ，China
Brand Name: Huashida
Certification: ISO9001:2008, QS
Model Number: HSD
Payment & Shipping Terms
Packaging Details: Container loading，sea transportation
Delivery Time: 50days
Payment Terms: L/C,T/T
Supply Ability: 100 Unit/Year
Product Description
HDPE Insulated Pipe Production Line - Vacuum Calibration Technology
Product Description

HDPE Vacuum Calibration Insulation Pipe Making Machine is a complete production line designed for manufacturing pre-insulated PE jacket pipes with precise dimensions and high quality. It is widely used in modern pipeline production, particularly where energy efficiency and long service life are required.

These machines produce HDPE jacket pipes for pre insulated pipeline systems. The typical three-layer structure of a pre-insulated pipe consists of:

  • Inner carrier pipe: Steel or other metal that carries the fluid (hot water, steam, oil, etc.)

  • Middle insulation layer: Rigid polyurethane foam (PUF) for thermal insulation

  • Outer PE jacket pipe: High-density polyethylene protective shell

The result is a pipe with high durability, excellent thermal insulation, corrosion resistance, and reliable performance - suitable for both trenchless and direct burial applications.

Qingdao Huashida Machinery Co., Ltd.

HDPE Insulated Pipe Production Line Vacuum Calibration Technology 0

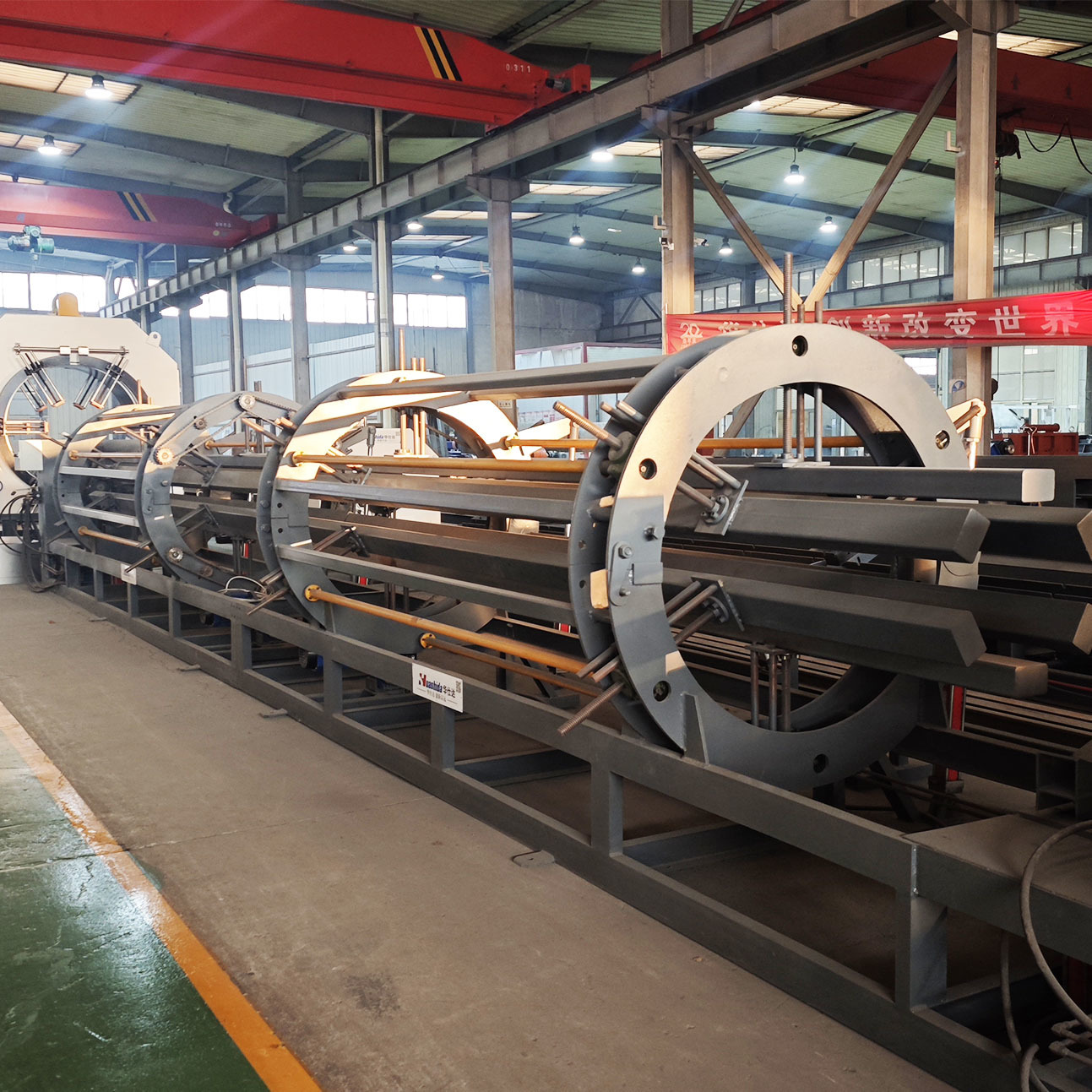

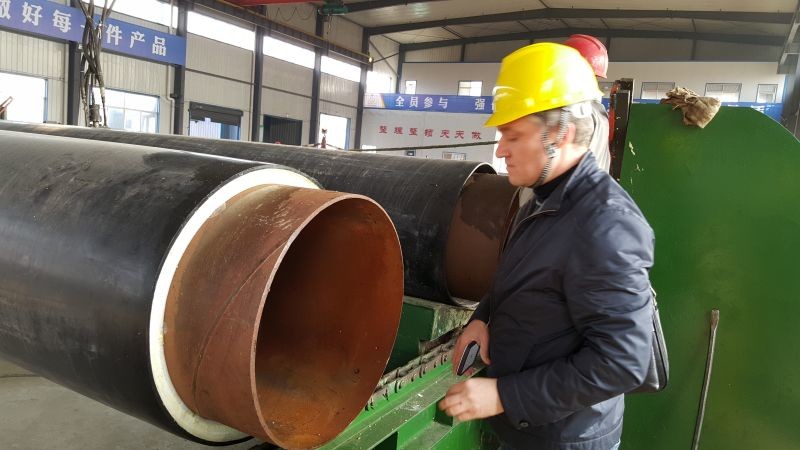

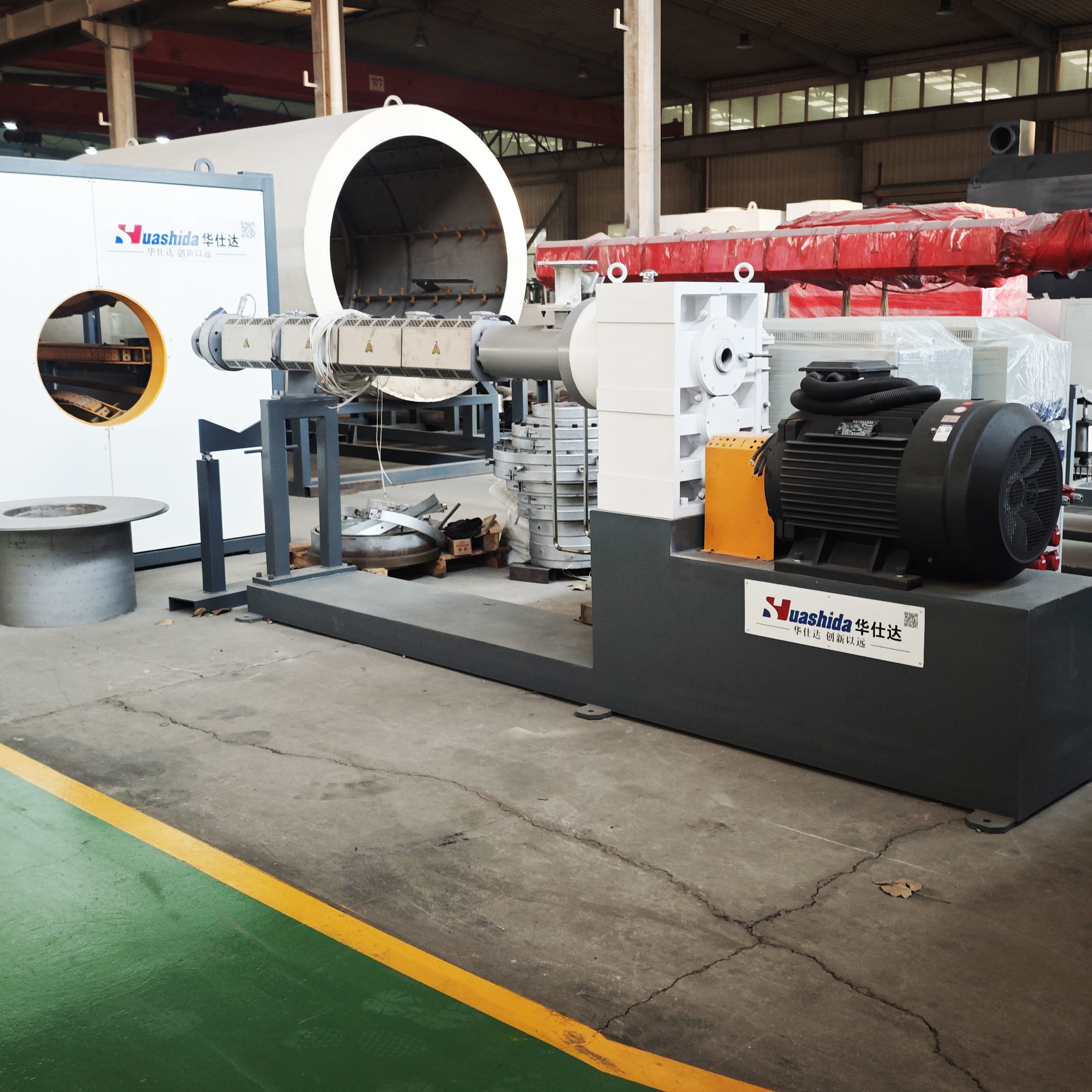

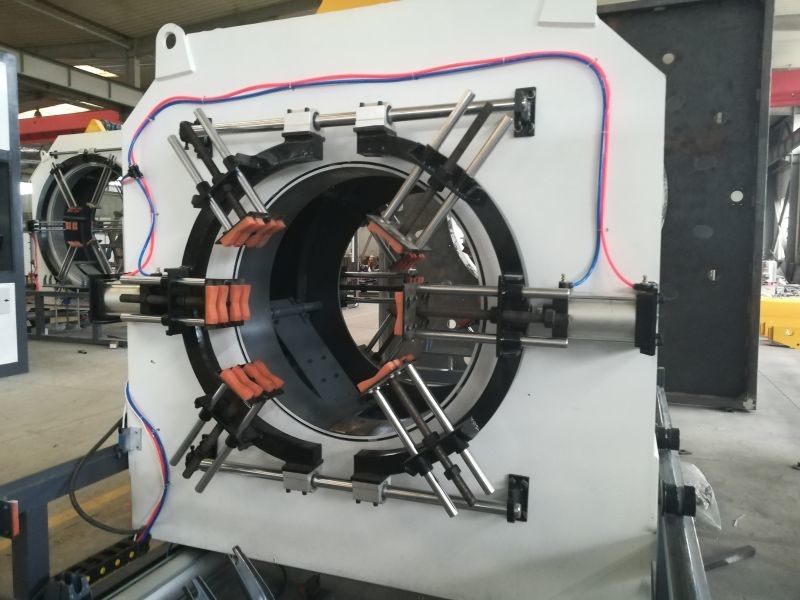

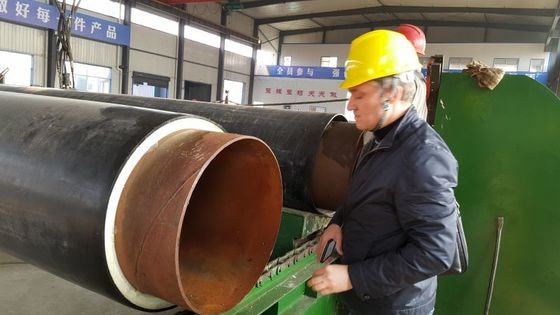

Detailed Photos

HDPE Insulated Pipe Production Line Vacuum Calibration Technology 1

HDPE Insulated Pipe Production Line Vacuum Calibration Technology 2

HDPE Insulated Pipe Production Line Vacuum Calibration Technology 3


Product Parameters

 PE-365/760 PE-420/960 PE-850/1372 PE-960/1680
Main extruder SJ-90/33 SJ-90/33 SJ-120/33 SJ-150/33
Pipe diameter (mm) Φ365-960 Φ420-960 Φ850-1372 Φ960-1680
capacity (kg/h) 550-700 550-700 700-900 800-1200
Installed power (kw) 360 380 440 580
Length (m) 35 36 40 48
Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3PE anti-corrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development, collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. By absorbing advanced technology home and abroad, after 20 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.
Qingdao Huashida Machinery Company facility
Certifications
Huashida Machinery quality certifications Huashida Machinery industry certifications
