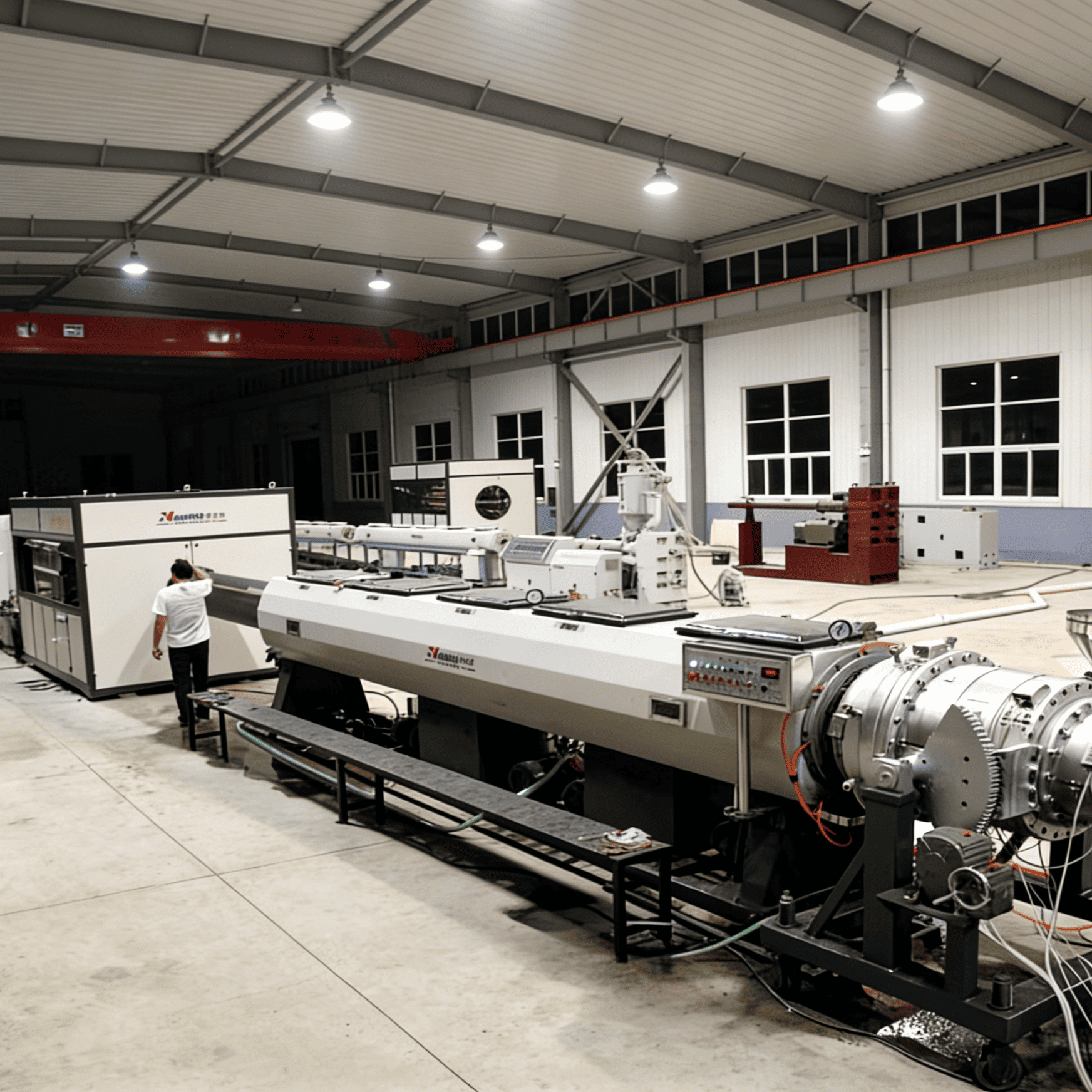

Automatic Solid Wall Underground PE HDPE Water Gas Supply Pipe Extrusion Line

The HDPE Pipe Manufacturing Line by Huashida is a professional-grade solution engineered for the high-speed production of PE80 and PE100 grade pipes. Covering a wide diameter range from Ø16mm to Ø1600mm, this system is the industry standard for municipal water supply, urban natural gas transmission, and industrial energy pipeline networks.

By integrating advanced single-screw extrusion technology with intelligent PLC automation, this line ensures high-precision wall thickness, excellent durability, and consistent output for high-pressure applications.

This versatile HDPE manufacturing equipment caters to critical infrastructure sectors:

• Utility Networks: Municipal water distribution and urban gas transmission
• Energy & Mining: Landfill leachate collection and industrial chemical transport
• Renewables: Geothermal heating systems and high-pressure energy conduits
• Agriculture: High-efficiency agricultural irrigation and drainage systems

Our automated workflow is designed for maximum uptime and minimal waste:

1. Feeding & Drying: Automated vacuum loading and moisture removal
2. Extrusion Molding: High-efficiency plasticizing of PE granules
3. Vacuum Calibration: Precision shaping and sizing
4. Spray Cooling: Multi-stage cooling for structural integrity
5. Hauling & Cutting: Synchronized traction and high-precision dust-free cutting
6. Marking & Stacking: Automatic line marking and final discharge

• Vacuum loader
• Hopper dryer

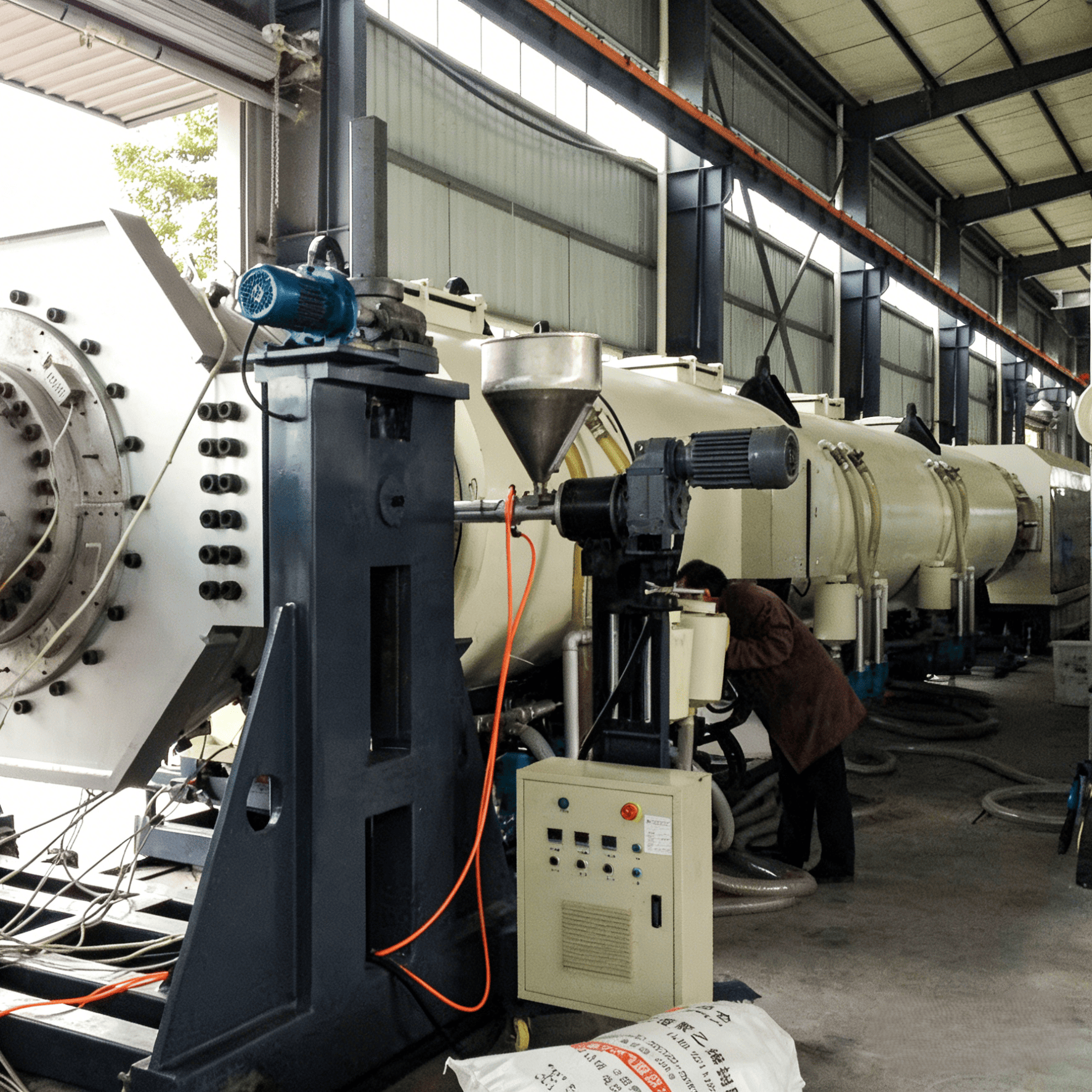

• High-efficiency single screw extruder
• 25/25 single screw extruder for mark line
• Vacuum calibration table

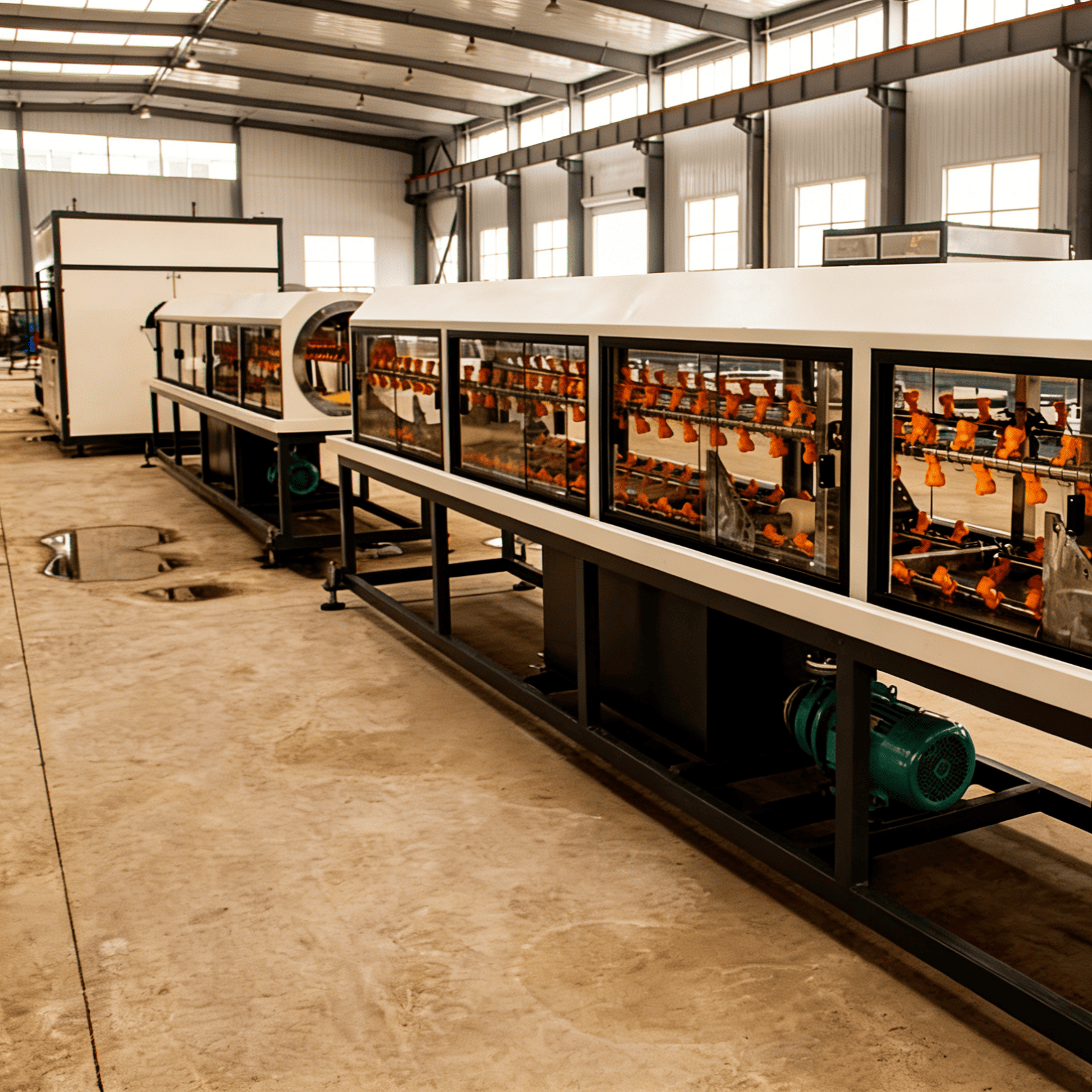

• 2/4 set Water spraying tank

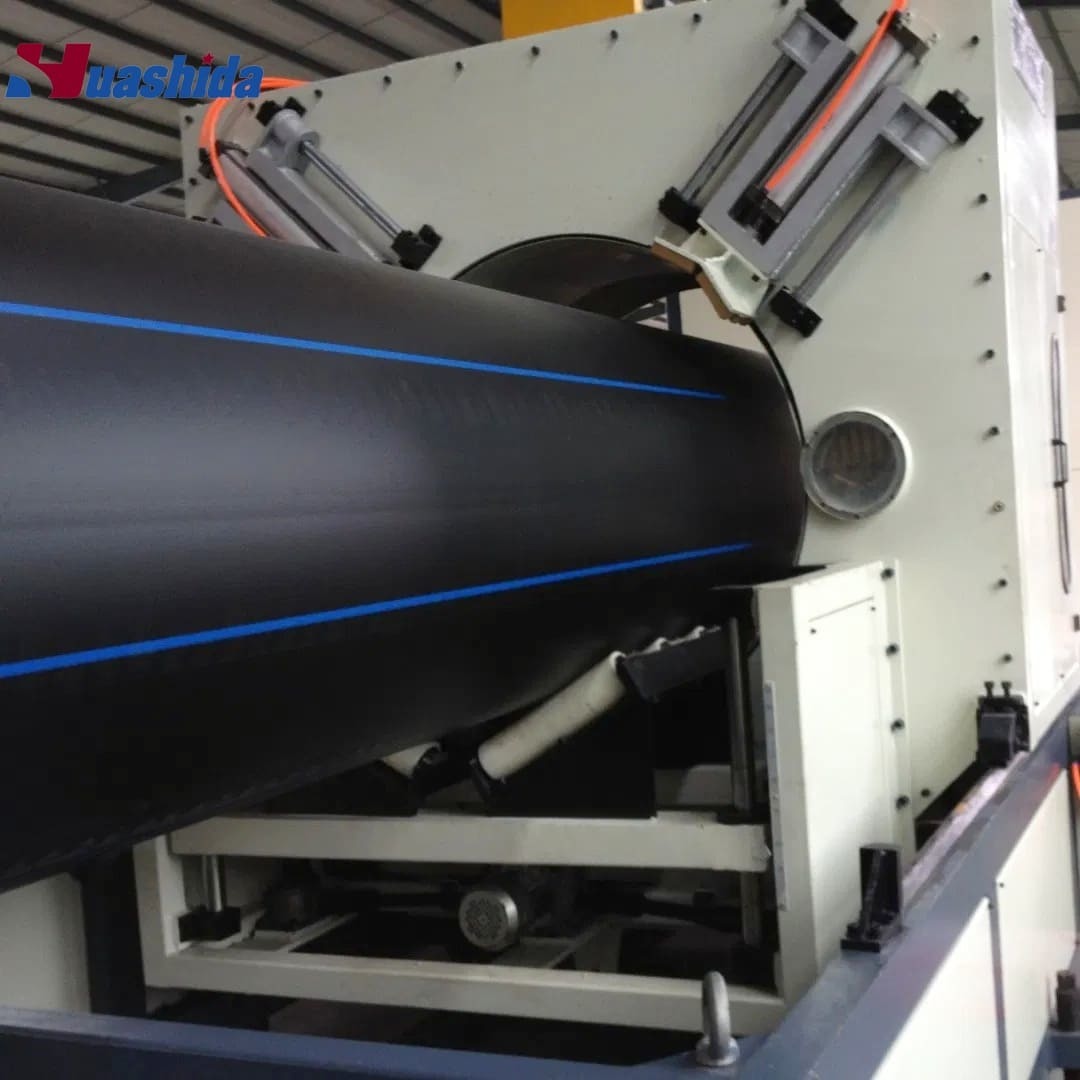

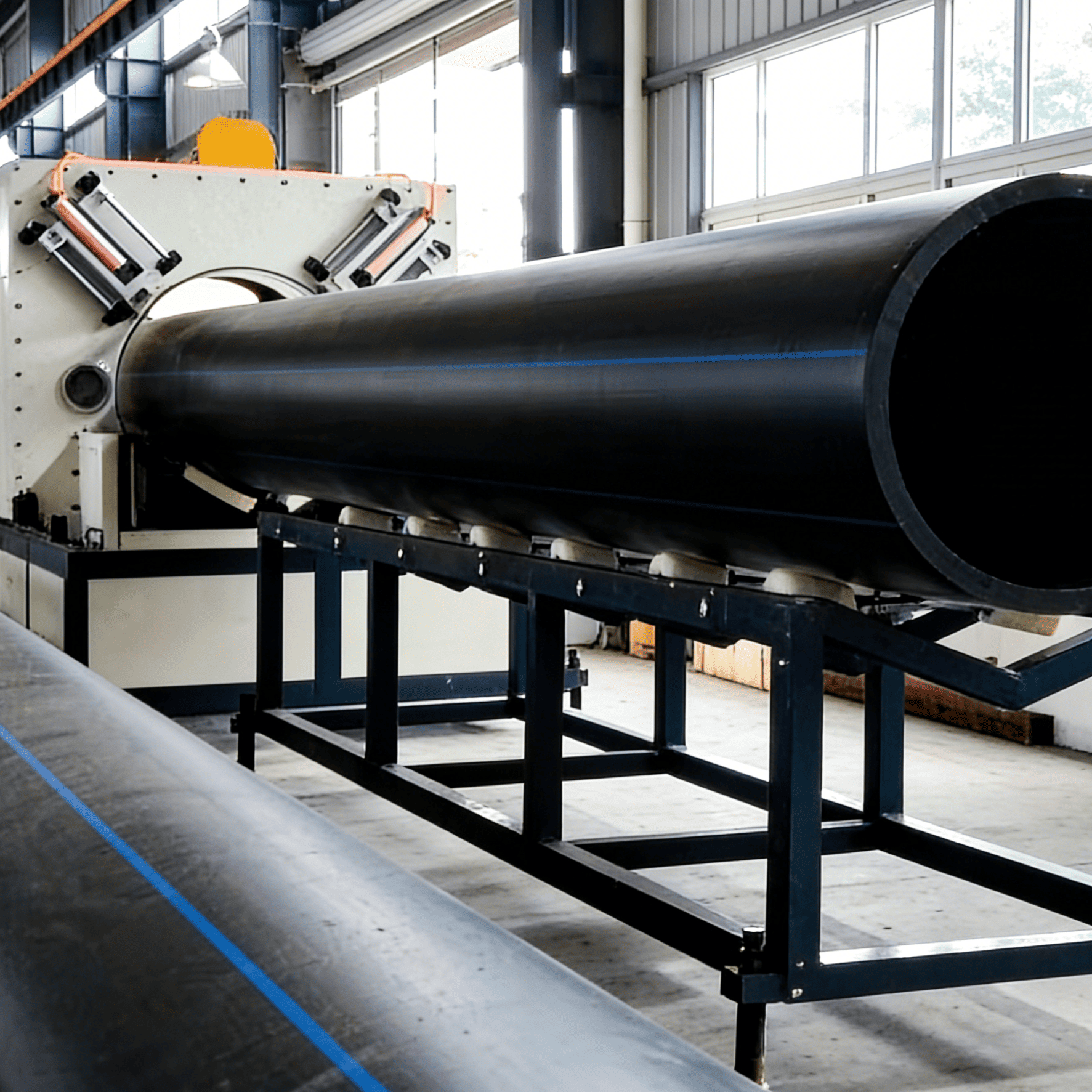

• Hauling machine

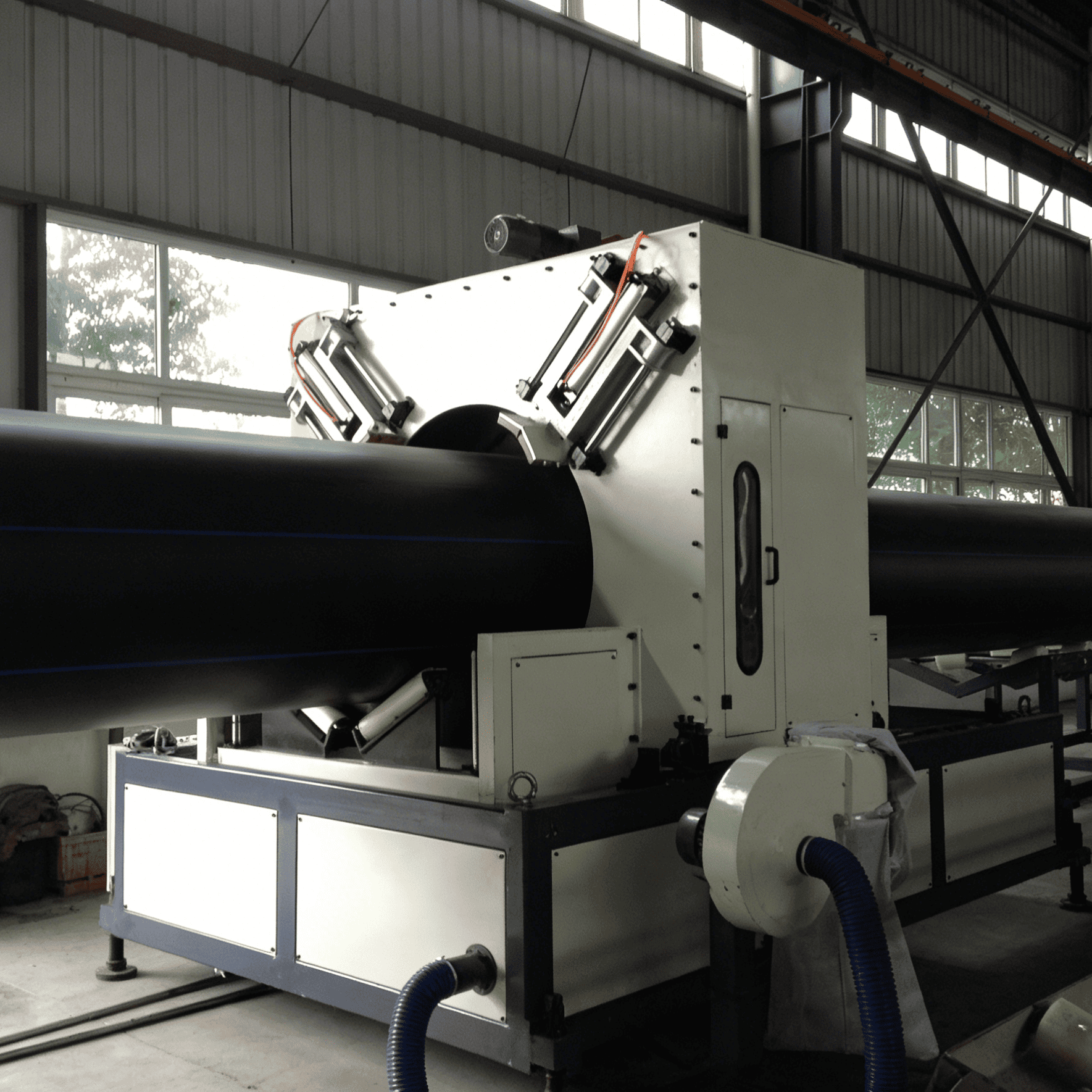

• Cutting machine
• Stacker

• High-Torque Extrusion: Powerful plasticizing capacity ensures material stability for PE100 resins

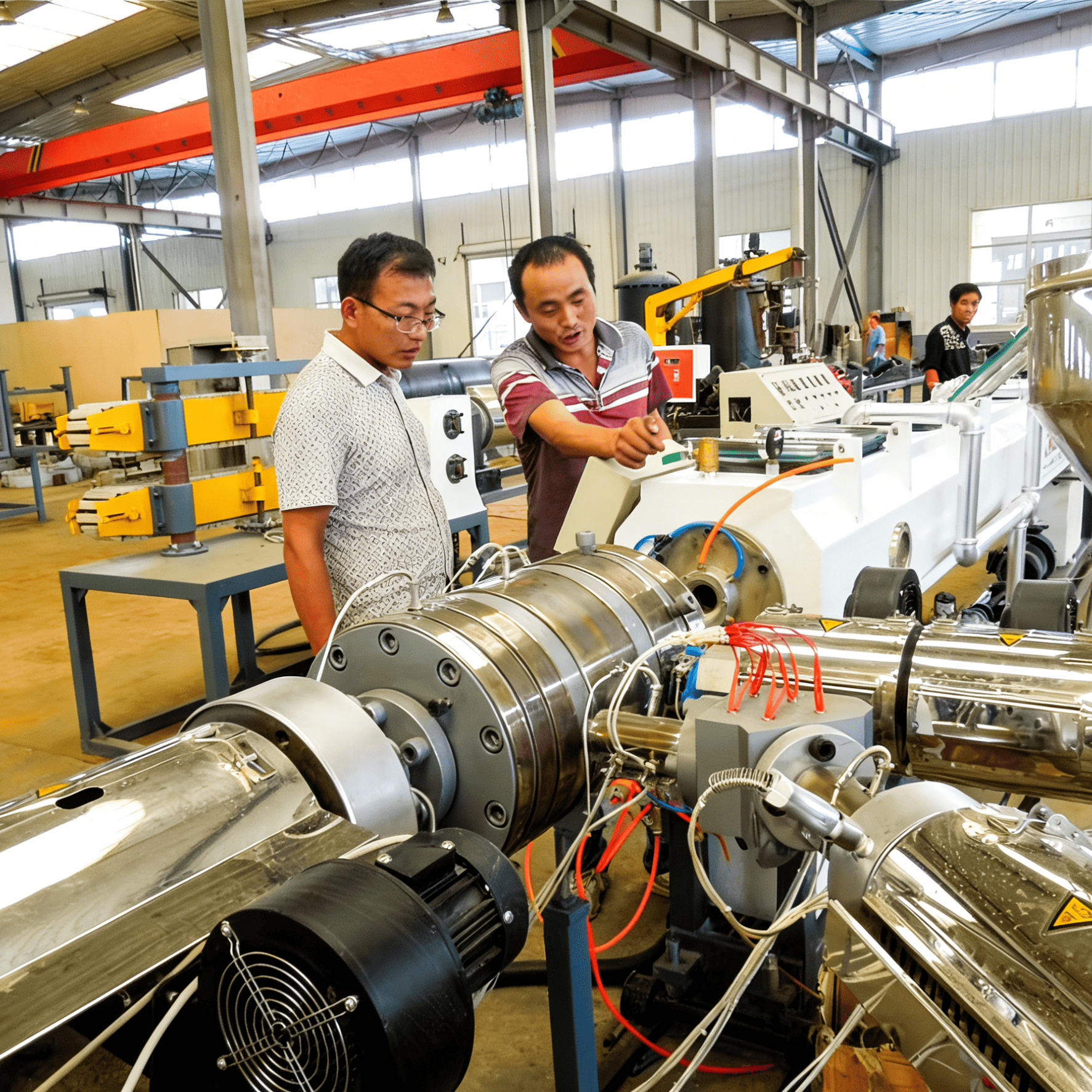

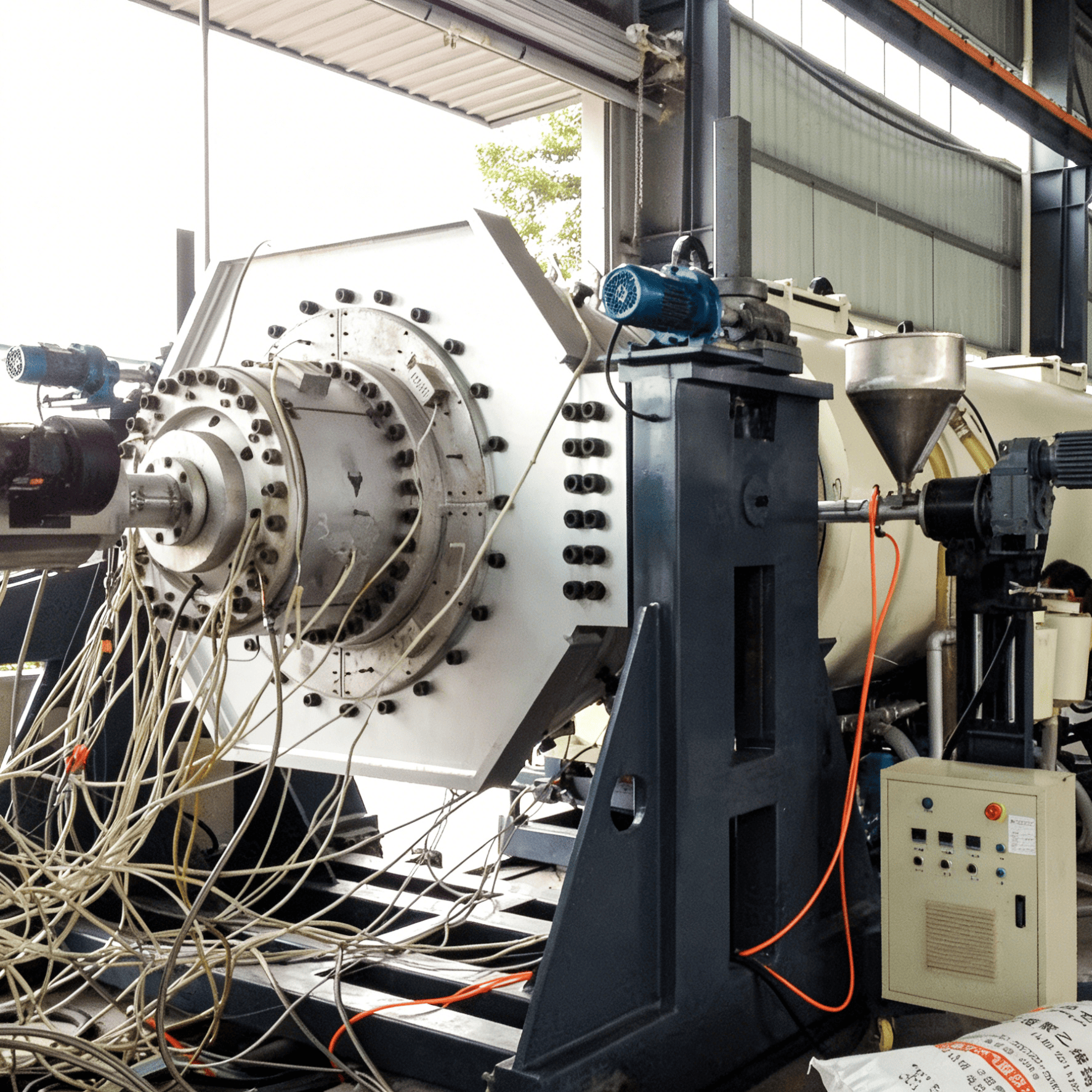

• Precision Die Head: Helical design provides low-melt temperature processing and excellent mixing for superior pipe strength
• Intelligent Calibration: Advanced water film lubrication and ring cooling systems ensure perfect pipe roundness and diameter accuracy
• Smart Automation: Fully integrated PLC touch-screen control for real-time parameter monitoring and synchronized line operation
• Cost-Efficient Co-extrusion: Multi-layer technology options allow for recycled material cores or color-coded marking lines to reduce production costs

• Turnkey Solutions: We provide end-to-end services including plant design, installation, commissioning, and staff training
• Global Authority: Over 389 successful projects deployed worldwide across Russia, Turkey, Iran, and Kazakhstan
• Engineering Depth: Backed by 21 years of expertise and a premier Plastic Machinery R&D Center in China
• Certified Quality: Equipment manufactured to international standards for high-pressure gas and water applications

Founded in 2003, Huashida is a leading manufacturer specializing in anti-corrosion coating lines and plastic pipe extrusion technology. Our 21-year legacy is built on providing patented, high-performance equipment for the world's most demanding infrastructure projects.

• 3LPE/FBE Steel Pipe Coating Lines
• Pre-insulated Pipe Production Systems (Rigid & Flexible)
• Large Diameter HDPE Jacket Pipe Lines (up to 2000mm)
• Geomembrane and Plastic Sheet Production Equipment
