Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint

1
MOQ
8$-15$
Price
Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint
Features Gallery Product Description Request A Quote
Features
Specifications
Customized: Customized
Application: Plastic, Metal, HDPE Pipeline Joint
Material: LDPE
Feature: Insulation
Corrosion Rate: 0.01-0.1
Transport Package: Standard Package
Specification: EN253-2003, ISO1183-2004, ISO6964-1986, EN728-1997
Structure: Polyethylene + Adhesive
Operating Temperature: 60C-110C
Warranty Period: 6 Months
Peeling Strength: 70N
Thickness: 1.2mm.1.6mm.1.8mm.2.0mm, 2.5mm
Package: 30m/50m Rolls
Width: 100/200/300/500/600/900
Type: Pressure-Sensitive Tape
Adhesive: Epoxy Resin
Highlight:

PE anti-corrosion heat shrink sleeve

,

pipe joint heat shrink sleeve

,

heat shrinkable sleeve for pipelines
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: Huashida
Certification: CE, ISO
Model Number: HSD
Payment & Shipping Terms
Packaging Details: 2000*220*150
Delivery Time: 7 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000 PCS/Day
Product Description
Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint

Our professional PE Heat Shrinkable Sleeve is a high-performance pipeline anti-corrosion material specially designed for steel pipe field joint coating. Featuring a premium two-layer composite structure, this heat shrink sleeve is composed of radiation cross-linked polyethylene backing and high-performance special hot melt adhesive. To achieve perfect long-term anti-corrosion protection for steel pipelines, it is matched with non-solvent two-component epoxy primer for integrated construction.

Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 0 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 1 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 2
Key Characteristics
  • Strong Overall Adhesion: The high-quality hot melt adhesive delivers ultra-strong bonding force, achieving tight and stable adhesion with PE backing layer, steel pipe surface and epoxy primer, avoiding peeling and gaps.
  • Efficient On-Site Construction: With simple heating operation, the outer radiation cross-linked PE backing shrinks rapidly, while the inner adhesive layer melts evenly, enabling the shrink sleeve to closely fit and wrap pipeline joints of all specifications.
  • Factory-Level Anti-Corrosion Protection: The combination of PE shrink sleeve and epoxy primer forms a solid, seamless and continuous anti-corrosion barrier, whose protective performance is fully equivalent to standard factory 3LPE pipeline anti-corrosion coating.
Core Product Benefits
  • Superior Corrosion Resistance: Effectively resists erosion from various harsh environmental factors and chemical media, solving pipeline joint corrosion problems fundamentally.
  • Excellent Comprehensive Durability: The finished coating features outstanding wear resistance, impact resistance, UV resistance and aging resistance, adapting to long-term outdoor and underground pipeline service.
  • Simple & Flexible Field Application: User-friendly design supports fast on-site construction, perfectly suitable for various pipeline field joint coating and repair projects.

As a reliable pipeline anti-corrosion solution, this PE heat shrinkable sleeve greatly improves the structural integrity and service life of pipeline joints, maintaining stable and reliable protective performance in complex and harsh working conditions.

Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 3 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 4
Application

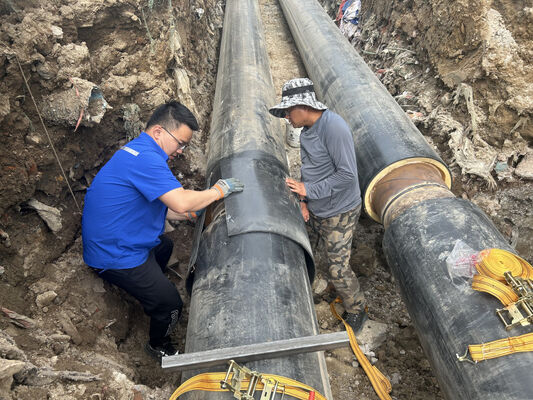

It is mainly used for pipe connection, field joint coating, wrapping around pipes, anti-corrosion of kinds of pipe joints, and repairing pipes.

For example: Oil and gas pipe, PU insulation pipe, 3LPE/2LPE steel pipe, corrugated pipe.

Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 5 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 6 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 7

Field joint coating of steel pipe with 3LPE coating

Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 8

Sealing pre-insulated pipe

Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 9

Connecting and sealing drain pipes

Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 10
Product Parameters
Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 11 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 12 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 13

Features of heat shrinkable sleeve manufactured by HUASHIDA:

  • Fast shrinkage speed
  • Good waterproof performance
  • Good anti-corrosive performance
  • Long service life
  • Using pure PE material and imported adhesive for ensuring the quality

TECHNICAL PARAMETERS

NO Test Item Unit Performance Test Result Test Method
Back Material
1 Tensile Strength MPa ≥17 19.47 ASTM D638
2 Elongation % ≥400 626 ASTM D638
3 Vicat Softening Point ºC ≥90 92 ASTM D1525
4 Brittleness Temperature ºC <-65 <-65 ASTM D2671C
5 Dielectric Strength MV/m ≥25 33.13 ASTM D149
6 Volume Resistivity Ω.m ≥1*10¹³ 1.1*10¹³ ASTM D257
7 Environment Stress Crack h ≥1000 >1000 GB/T1842
8 Chemical resistance (7d)
10% HCI - Tensile strength MPa ≥85 104.9 ASTM D638
10% HCI - Elongation % ≥85 96.3 ASTM D638
10% Naah - Tensile strength MPa ≥85 102.1 ASTM D638
10% Naah - Elongation % ≥85 95.6 ASTM D638
10% NaCl - Tensile strength MPa ≥85 108.3 ASTM D638
10% NaCl - Elongation % ≥85 94.1 ASTM D638
9 Thermal aging (150ºC,168h) - Tensile strength MPa ≥14 20.7 ASTM D638
Thermal aging (150ºC,168h) - Elongation % ≥300 630 ASTM D638
Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 14 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 15 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 16 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 17
NO. Test Item Unit Performance Test Result Test Method
Adhesive
1 Softening Point ºC ≥90 90.1 ASTM E28
2 Brittleness Temperature ºC <-15 <-15 ASTM D2671C
3 Lap Shear MPa ≥1.0 1.5 ASTM D1002
4 Peel Strength (23±2ºC)
Steel N/cm ≥70 145.6 ASTM D1000
Primer N/cm ≥70 205.9 ASTM D1000
PE layer N/cm ≥70 190.0 ASTM D1000
Non-solvent Epoxy Primer
5 Shear of cured primer MPa ≥5.0 12 SY/T0041
Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 18 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 19 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 20 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 21

Ordering information for clients:

Heat shrink sleeve is available:

  • Pre-cut sleeve and separate closure patch
  • Pre-cut sleeve with pre-attached closure patch
  • Tape in roll (closure patch to be ordered separately)

Heat shrink sleeve equipment

The heat shrink sleeve equipment is designed and manufactured independently by our company and we also sell the equipment.

Please click the link for more information.

Customer Cases
Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 22 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 23 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 24 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 25
Company Profile
Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 26 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 27 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 28

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation & anticorrosion machines, and pipe jointing & anticorrosion materials, with 21 years of production experience.

Our main products are:

  • HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
  • Rigid pre-insulated pipe Production Line
  • Flexible pre-insulated pipe(PERT) production line
  • Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
  • Steel pipe derusting line
  • PE pressure pipe/Water Gas supply pipe production line
  • PP/PE plastic board/sheet/geomembrane production line
  • NBR PVC Thermal insulation tube/plate production line
  • Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.

We have successfully collaborated with over 400 international customers, exporting our products to countries such as Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria, and many others.

Our team

Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 29

Delivery

Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 30

Certifications

Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 31 Pipeline PE Anti-Corrosion Heat Shrink Sleeve for Pipe Joint 32
