PE Vacuum Calibrating Extrusion Line for Pre-Insulated Pipe Production with High Output and Automated Operation

Qingdao Huashida Machinery Co., Ltd. has independently optimized and upgraded this PE series pre-insulated pipe extrusion production line based on absorbing advanced German pipe extrusion technology.

The production line adopts an integrated design, consisting of extrusion unit, vacuum calibration system, cooling unit, traction device, cutting equipment and stacking machine.

It performs excellently in key indicators such as automated operation, extrusion capacity, operational stability, and service life. Particularly compared with traditional internal pressure production lines, the vacuum sizing process has significant advantages in core performance aspects such as pipe ring stiffness, pressure resistance and surface smoothness.

The vacuum calibration pre-insulated pipe shell extrusion production line is the most advanced and widely recognized mainstream model in the global market.

• 1 set of automatic vacuum feeder
• 1 set of hopper dryer

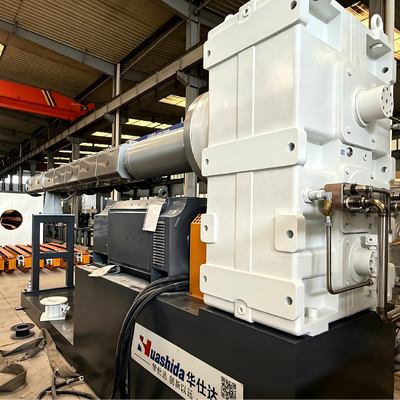

• 1 set of high-efficiency single screw extruder

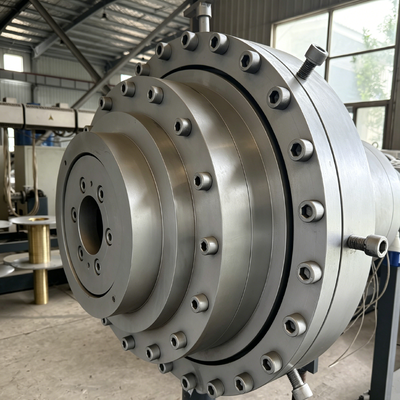

• 1 set of mold

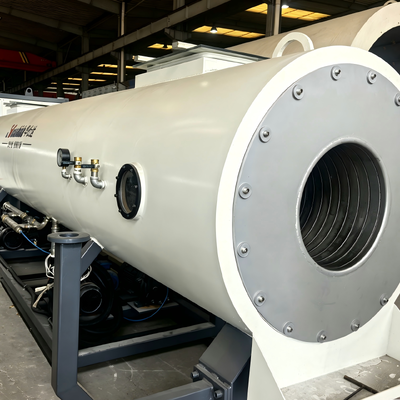

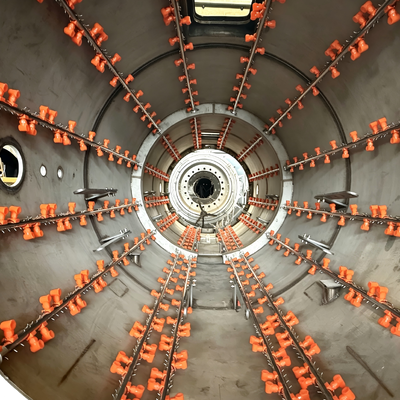

• 1 set of vacuum calibration tank

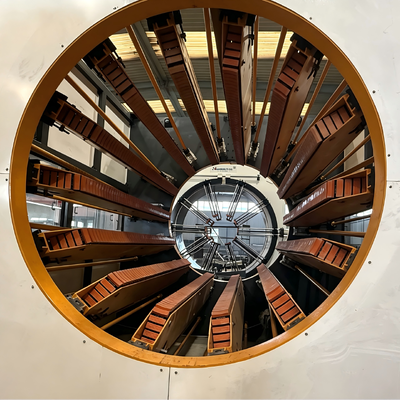

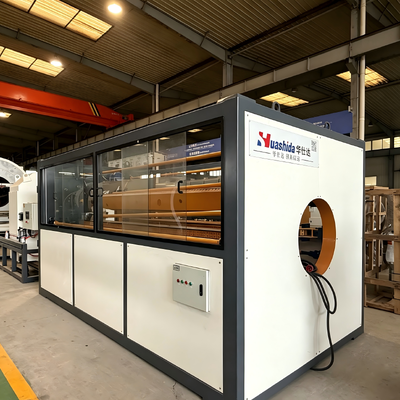

• 1 set of conveyor

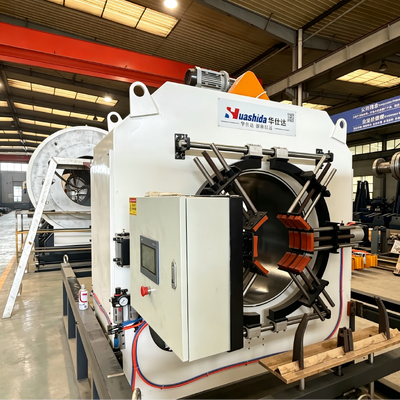

• 1 set of cutting machine
• 1 set of stacker
• 1 set of PLC central control system

Machines on the production line can be customized according to your specific requirements.

Vacuum feeding PE particles → Hot air drying material → Extrusion plasticization → Mold forming → Vacuum sizing → Water cooling → Pulling out → Cutting pipes → Conveyor discharging

Qingdao Huashida Machinery Co., Ltd. is a manufacturer of plastic pipe machinery, municipal pipe machinery, pipe insulation and anti-corrosion machinery, as well as pipe joints and anti-corrosion materials with 21 years of production experience.

• HDPE pre-insulated pipe casing production line (110-2000mm)
• Rigid pre-insulated pipe production line
• Flexible pre-insulated pipe (PERT) production line
• Steel pipe FBE/2LPE/3LPE anti-corrosion coating production line
• Steel pipe derusting production line
• PE pressure pipe/water gas supply pipe production line
• PP/PE plastic plate/sheet/geomembrane production line
• NBR/PVC insulation pipe/plate production line
• Pipe anti-corrosion materials and equipment: heat-shrink joint coating sleeve, electrofusion welding joint sleeve, portable welding gun (extruder), PE/PP welding rod

We have cooperated with over 400 overseas customers and exported our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
