110mm-2000mm HDPE Pipe Extrusion Machinery with PLC Automatic Control System and Vacuum Calibrating Method for Pre-insulated Pipe Production

1
MOQ
US$200,000.00-1,000,000.00
Price
110mm-2000mm HDPE Pipe Extrusion Machinery with PLC Automatic Control System and Vacuum Calibrating Method for Pre-insulated Pipe Production
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Producing Method: Vacuum Calibrating Method
Drying Machine: HSD-1200
Application: District Heating, Oil And Gas Transportation, Water Supply
Computerized: Computerized
Controlsystem: PLC Automatic Control System
Principle: High-Pressure Air Type
Main Machine: Extruder
Highlight:

HDPE pipe extrusion machinery with PLC control

,

pre-insulated pipe production line with vacuum calibrating

,

automatic HDPE pipe extrusion machine for insulation
Basic Infomation
Place of Origin: Qingdao ，China
Brand Name: Huashida
Certification: CE, Rohs，TUV
Payment & Shipping Terms
Packaging Details: Container loading，sea transportation
Delivery Time: 60days
Payment Terms: L/C,T/T
Supply Ability: 50 Sets/Year
Product Description
110mm-2000mm HDPE Pipe Extrusion Machinery Plastic Extruder for Supplying Hot Water/Oil Pipeline

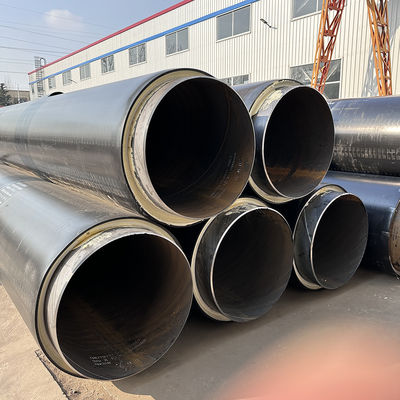

This HDPE pipe extrusion line is specifically designed to produce high-quality jacket casing pipes for pre-insulated pipe systems. The finished casing pipe serves as the outer protective layer for district heating, hot water transmission, and oil pipeline insulation applications.
The line can be combined with polyurethane foam injection equipment to form a complete pre-insulated pipe (pipe-in-pipe) production solution.
110mm-2000mm HDPE Pipe Extrusion Machinery with PLC Automatic Control System and Vacuum Calibrating Method for Pre-insulated Pipe Production 0
Standard Line Composition
  • Auto vacuum feeder – 1 set
  • Hopper dryer – 1 set
  • High-efficiency single screw extruder – 1 set
  • Mould – 1 set
  • Vacuum calibration tank – 1 set
  • Hauling machine – 1 set
  • Cutting machine – 1 set
  • Stacker – 1 set
  • PLC central control system – 1 set
Product Parameters
Style PE-110/600 PE-365/760 PE-655/1380 PE-960/1680
Main Extruder SJ-75/33 SJ-90/33 SJ-120/33 SJ-150/33
Pipe Diameter (mm) Φ110-600 Φ365-760 Φ655-1380 Φ960-1680
Capacity (kg/h) 250-300 400-500 850-950 900-1100
Installed Power (kW) 160 420 480 580
Length (m) 35 36 40 48
All components can be customized according to your specific requirements.
110mm-2000mm HDPE Pipe Extrusion Machinery with PLC Automatic Control System and Vacuum Calibrating Method for Pre-insulated Pipe Production 1 110mm-2000mm HDPE Pipe Extrusion Machinery with PLC Automatic Control System and Vacuum Calibrating Method for Pre-insulated Pipe Production 2
Jacket Production Process
Vacuum feeding PE granule → hot air dry material → extrusion plasticizing → mold shaping → Vacuum sizing → water cooling → Pulling out → cutting pipe → carrier laying - off pipe
110mm-2000mm HDPE Pipe Extrusion Machinery with PLC Automatic Control System and Vacuum Calibrating Method for Pre-insulated Pipe Production 3
Company Profile
Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development, collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. By absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.
Shipment
110mm-2000mm HDPE Pipe Extrusion Machinery with PLC Automatic Control System and Vacuum Calibrating Method for Pre-insulated Pipe Production 4 110mm-2000mm HDPE Pipe Extrusion Machinery with PLC Automatic Control System and Vacuum Calibrating Method for Pre-insulated Pipe Production 5
