Fully Automated Pipeline Coating Protection Wrap with 1000mm Max Width and 160-200kg/H Capacity for Cold Applied Anti-corrosion Tape

100 meters
MOQ
10 - 15 USD$
Price
Fully Automated Pipeline Coating Protection Wrap with 1000mm Max Width and 160-200kg/H Capacity for Cold Applied Anti-corrosion Tape
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity: 160 - 200kg/H
Adhesive Thickness: 0.1 - 0.5 Mm
Specification: 1000 Mm
Tape Thickness: 0.2 - 1 Mm
Highlight:

fully automated pipeline coating wrap

,

cold applied anti-corrosion tape

,

PE PP sheet extrusion line
Basic Infomation
Place of Origin: China - Shandong - Qingdao
Brand Name: Huashida
Certification: CE, ISO9001:2008
Model Number: HSD
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 80 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000PCS/Day
Product Description
Pipeline Coating Protection Wrap of Cold Tape
Product Overview

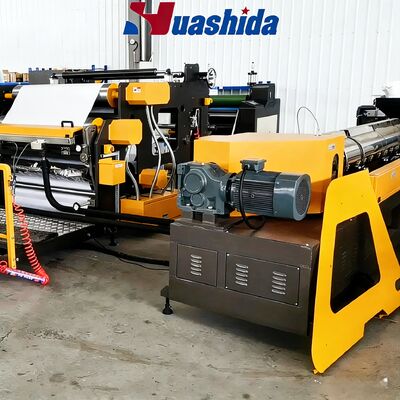

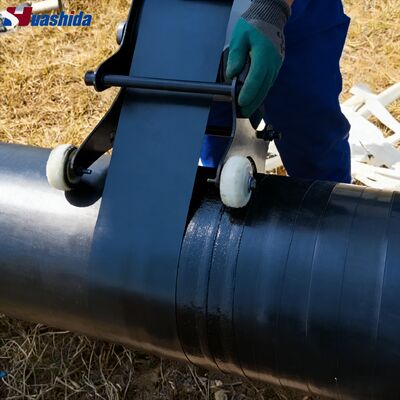

Cold applied anti-corrosion tape making machine is designed for producing PE tape for protection of underground or overhead pipelines in oil, gas, petrochemical, and wastewater industries. The system is fully automated, reducing labor costs while maintaining high standards of quality and consistency.

Key Features

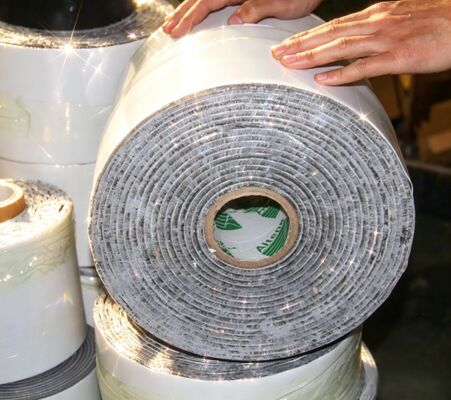

  • Product Type: HDPE and PE Cold Applied Anti-corrosion Wrap Tape
  • Material: High-Quality Polyethylene (PE)
  • Basing Tape Thickness: 0.2 - 1.0mm (adjustable)
  • Adhesive Coating Thickness: 0.1 - 0.5mm (adjustable)
  • Max. Basing Tape Width: 1000mm
  • Production Capacity: 160 - 200 kg/H
  • Automation: Fully Automatic & Computerized Control
Manufacturing Process
  1. Base Film Extrusion
    • Raw Material Preparation: Polyethylene (PE) prepared as base film material
    • Extrusion Molding: Material heated, melted, and molded through die

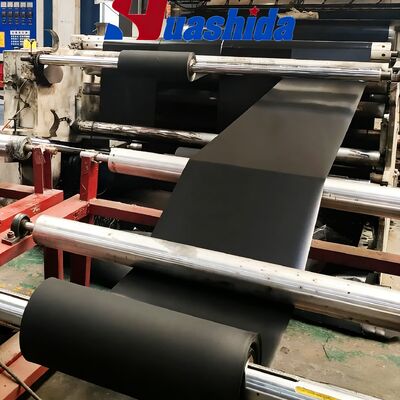

    • Cooling and Shaping: Extruded film cooled using rollers for uniform thickness
  2. Adhesive Coating
    • Adhesive Preparation: Butyl rubber prepared for proper viscosity
    • Coating Process: Adhesive evenly applied using coating equipment
  3. Slitting
    • Slitting Preparation: Parameters adjusted for required width
    • Slitting Operation: Wide roll slit into cold-applied tapes
    • Winding and Packaging: Tapes wound into rolls and prepared for shipment

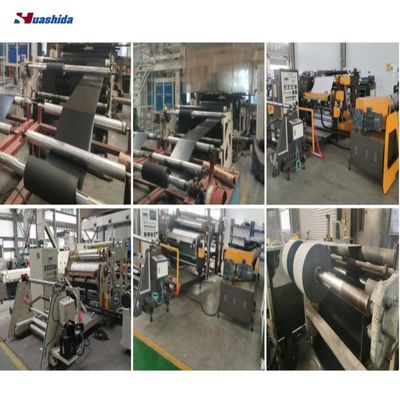

PE Basing Film Extrusion Line Equipment
No. Equipment Name Quantity
1Vacuum automatic feeder1
2Hopper dryer1
3SJ-75X30 extruder1
4Hydraulic screen changer1
5Die head mold type 10001
6Multi-roller tape-casting machine1
7Winding machine1
8PLC computer control system1
Adhesive Coating Machine Equipment
No. Equipment Name Quantity
1Frame1 unit
2200N·M Magnetic powder brake + Silicone stick 1300mm with corona processor1 unit
3100N·M Magnetic powder brake1 unit
4100N·M magnetic powder clutch2 unit
5200N·M magnetic powder clutch1 unit
6Screw1 unit
7Force-feed device1 unit
8Constant pressure system1 unit
9Adhesive delivery pipe1 unit
10Winding machine1 unit
11Unwinding machine2 unit
12Coating compound equipment1 unit
13Main engine frequency converter1 unit
14Extruder frequency converter1 unit
15Thermal switch1 unit
16PLC1 unit
Company Profile

Qingdao Huashida Machinery Co., LTD is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation & anticorrosion machines, and pipe jointing & anticorrosion materials, with more than 20 years of production experience.

We prioritize research and development, collaborating with Tsinghua University, Beijing University of Chemical Technology, South China University of Technology and other scientific research institutions. By absorbing advanced technology, we rank among the top 3 manufacturers in the industry in China.

We serve over 400 overseas customers and export to Kazakhstan, Uzbekistan, Middle East, Russia, Nigeria and more countries.

Our Main Products Include:
  • HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
  • Rigid pre-insulated pipe Production Line
  • Flexible pre-insulated pipe (PERT) production line
  • Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
  • Steel pipe derusting line
  • PE pressure pipe/Water Gas supply pipe production line
  • PP/PE plastic board/sheet/geomembrane production line
  • NBR PVC Thermal insulation tube/plate production line
  • Pipeline anti-corrosion materials and instruments

Thank you for your interest in Qingdao Huashida Machinery Co., Ltd. equipment.

For further details, please feel free to contact us at any time. Our team will respond promptly and provide a fully customized solution tailored to your specific requirements and project needs.
