Innovative Direct Insulation Method for PERT Pipe Manufacturing Line
Product Description
The Direct Insulation Method for PERT Pipe Manufacturing Line is an advanced, fully integrated manufacturing system designed for the continuous production of high-performance insulated pipelines used in district heating, oil & gas transportation, and underground thermal networks. This system adopts one-step continuous forming technology, where the carrier pipe, polyurethane foam insulation, and outer HDPE jacket are combined in a single synchronized process. Compared to traditional multi-step production, this technology significantly improves efficiency, reduces labor, and ensures superior bonding quality between layers. The production line is suitable for manufacturing pre-insulated pipes with diameters ranging from 30mm to 500mm (or customized), meeting international standards for thermal insulation and pipeline protection.

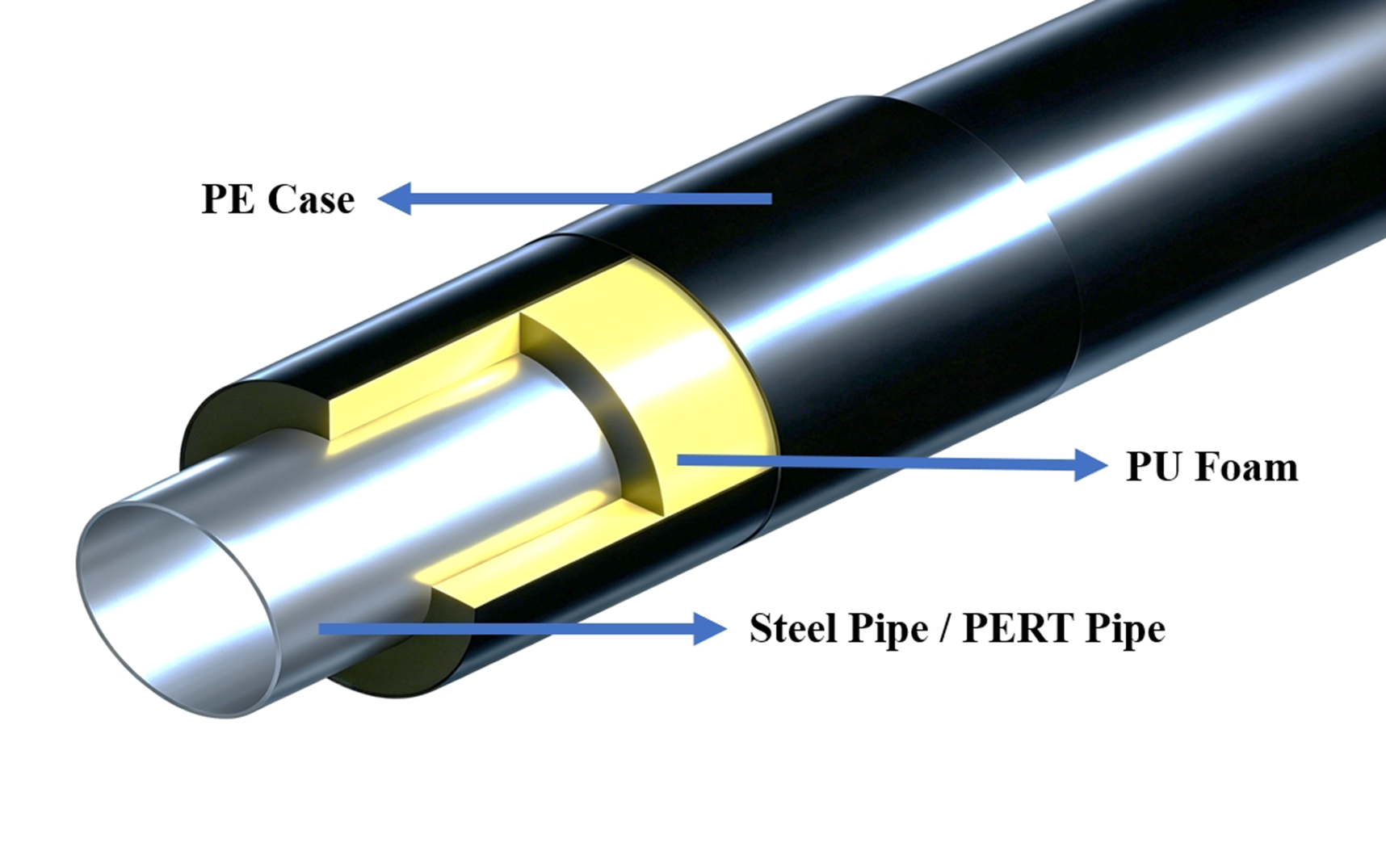

This production line is engineered to produce three-layer insulated pipe structures, consisting of:
1- First Layer (Steel or PERT Pipe)
Responsible for fluid transportation (hot water, oil, gas, etc.)
2- Second Layer (Polyurethane Foam)
Provides excellent thermal insulation with low thermal conductivity and high compressive strength.
3- Third Layer (HDPE Jacket Pipe)
Protects the pipeline from moisture, corrosion, and mechanical damage, especially in underground environments.
| Layer |
PERT Pipe |
PU Foam |
HDPE Casing Jacket |
Applications
- District heating and cooling systems
- Oil & gas pipeline insulation
- Chemical fluid transportation
- Underground thermal pipeline networks
- Industrial energy-saving systems
Product Parameters
- One-Step Continuous Production - Fully integrated process from feeding to finished pipe
- High Automation System - PLC control with synchronized operation
- Precise PU Injection - Accurate mixing ratio and uniform foam distribution
- Strong Layer Bonding - Ensures long service life and durability
- Wide Diameter Range - 48-630mm or customized
- Energy Efficient Design - Reduced material waste and power consumption
- Flexible Configuration - Suitable for heating, cooling, oil & gas pipeline
Technical Parameters
1- Corrosion resistance: Compatible with fusion-bond epoxy powder and various coatings.
2- Thermal insulation: Options include high-temperature polyurethane foam or black pitch foam.
3- Outer jacket: Black, UV-resistant, and anti-aging, ensuring durability.
4- Robust Layer Integration:The jacket, foam, and anti-corrosion layers adhere firmly, providing superior protection.
5- Damage-free Rotation System:Rubber wheels prevent damage to the anti-corrosion layer during operation.
6- Advanced Alignment Technology: The Automatic Hydraulic Deviation-correcting Machine ensures stable performance and precise rectification.
Our Advantages
- Higher production efficiency (continuous operation)
- Reduced labor and handling costs
- Improved insulation quality and consistency
- Better adhesion between layers
- Lower defect rates
