PUF spray PE winding preinsulated pipe production line consists of the following parts:
1) Steel pipe outwall shot blasting line
2) Polyurethane spray molding line
3) Polyethylene sheet extruding winding line
4) Water cooling line
5) End-cutting equipmentMain line Composition of the polyurethane coating steel preinsulated pipe equipment:
| No. |
name |
| 1 |
External wall Shot blasting rust removel machine |
| 2 |
Medium-frequency induction heating furnace |
| 3 |
Polyurethane spray foaming unit |
| 4 |
pipe rotator trolley |
| 5 |
Single screw extruder and diehead mould |
| 6 |
Finished pipe ends trimming machine |
| 7 |
pipe Conveyers and racks |
| 8 |
Electrical system and PLC |

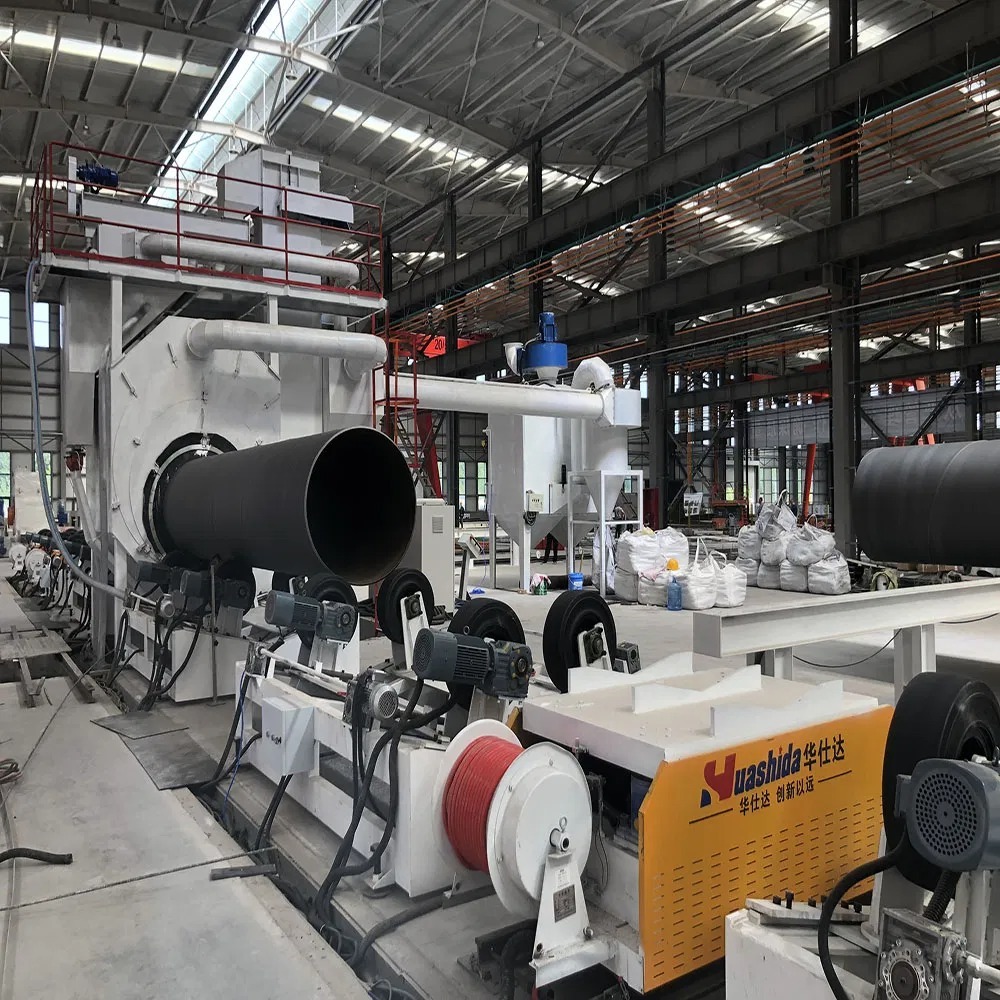

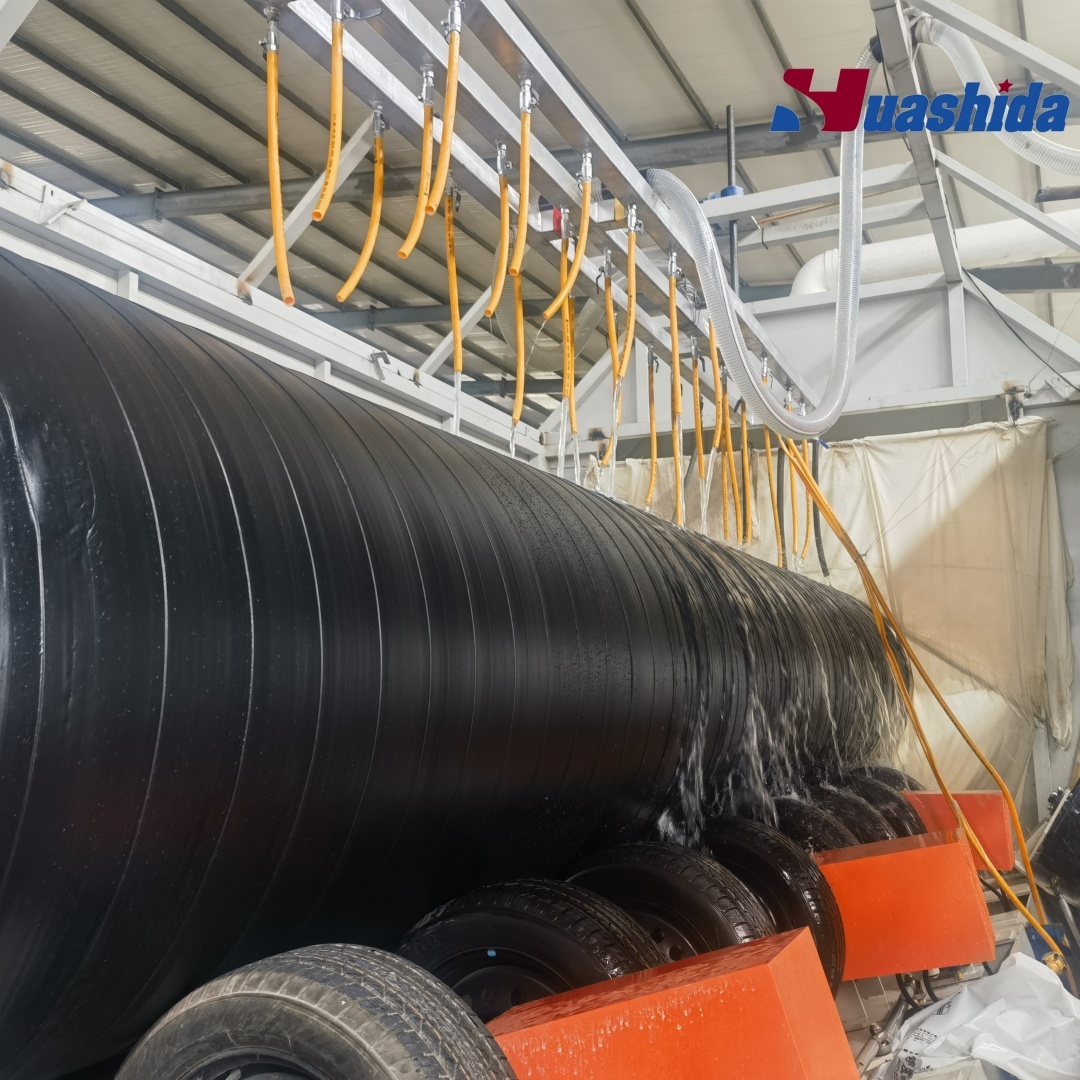

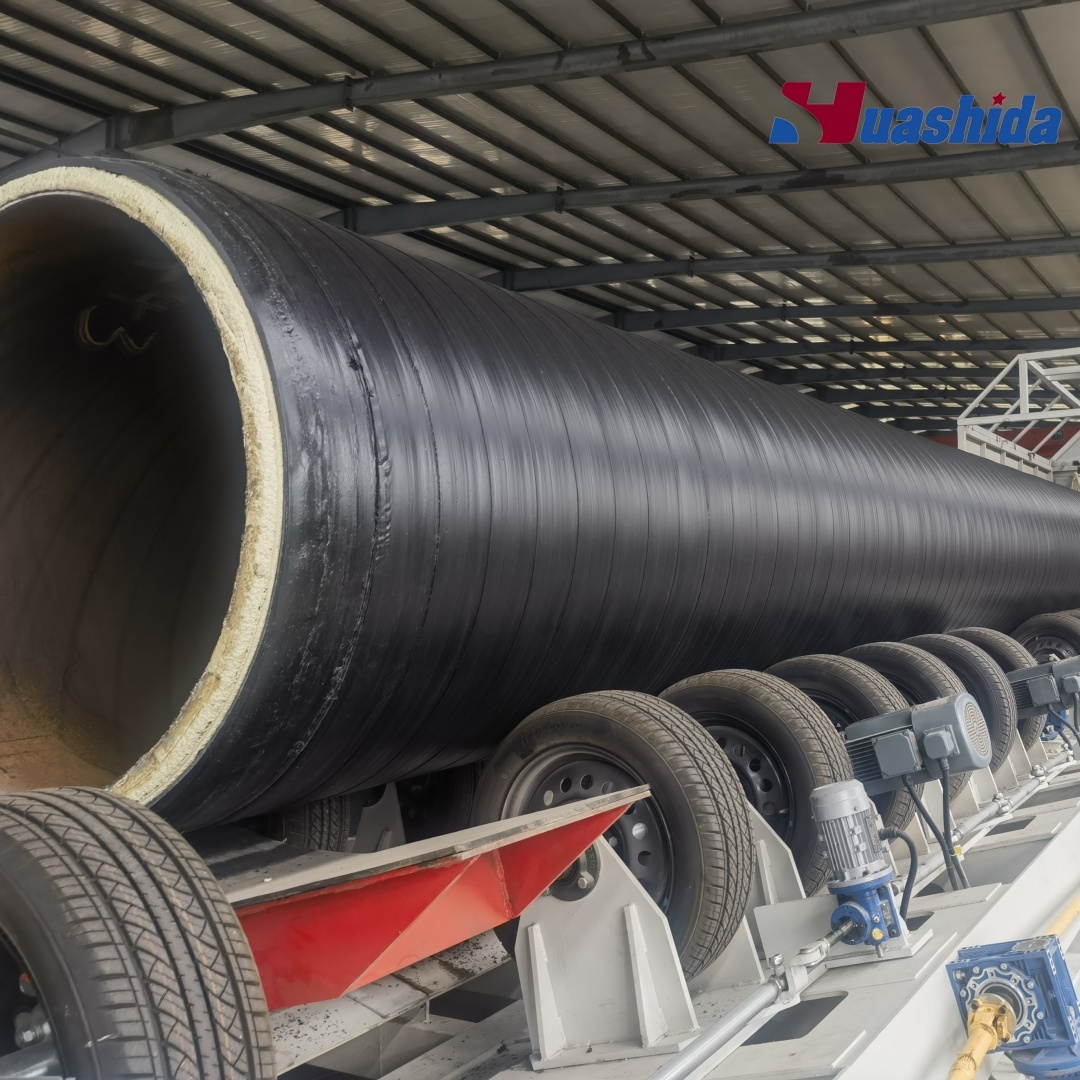

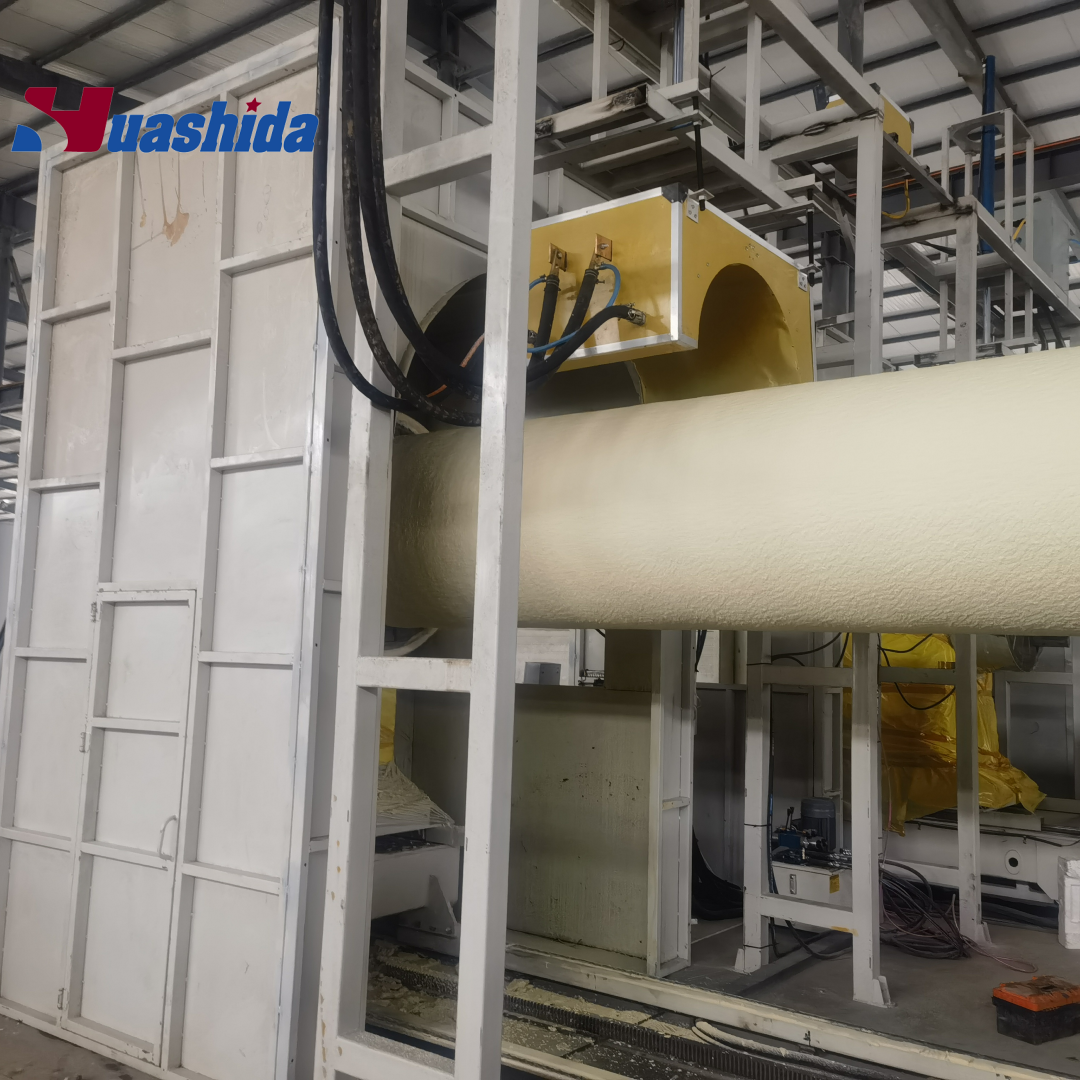

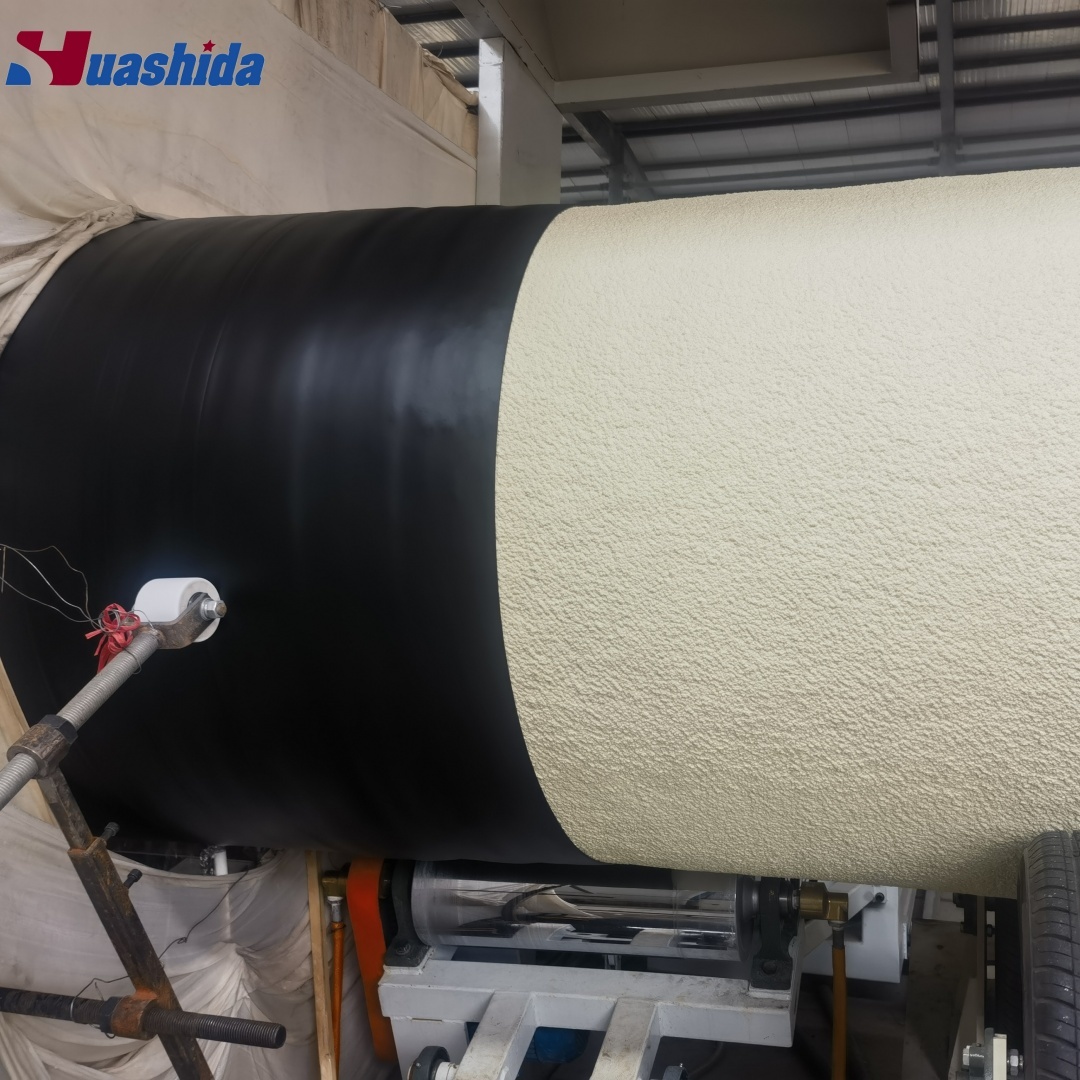

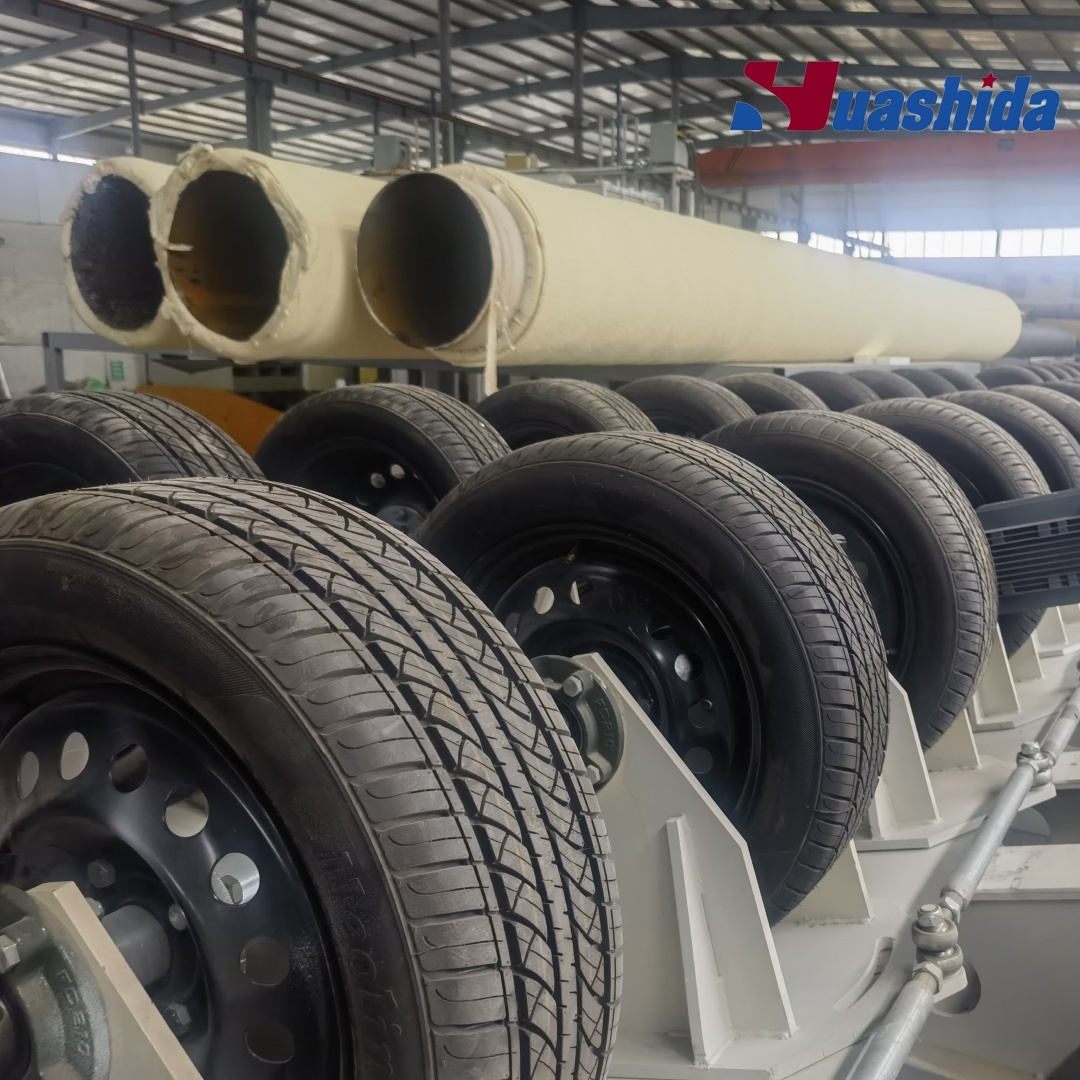

Production line equipment Photos show
Features
1. Dust removal meets environmental standards
By adopting an intelligent shot blasting and rust removal scheme, the equipment can be opened sequentially and self locked, the shot blasting motor can save energy through frequency conversion, the sand volume can be set according to the pipe diameter, the air washing system can clean the shot sand, and the plug type can quickly change specifications. The three-level dust removal meets environmental protection standards.
2. Suitable for the production of large-diameter insulation pipes
By adopting a high load-bearing spiral conveyor line, the polyurethane foam spraying and polyethylene winding processes are continuously carried out, which has the advantages of high efficiency, energy saving, speed, and stability. It is suitable for the continuous production of large-diameter insulation pipes and saves investment in transportation equipment.
3. Automated operation of production lines
Realize automatic processing of upper and lower pipes. The conveyor line is equipped with upper pipe sensors, automatic acceleration tracking sensors, automatic acceleration detachment sensors, detachment confirmation sensors, and automatic descent sensors to ensure the automated operation of the production line.
4. Spraying saves materials
The online spraying speed of pipelines is fast; Constant intermediate frequency power, infrequent on/off, minimal impact on the power grid, balanced temperature, and energy conservation; Continuous spraying saves raw materials, and the head and tail of the steel pipe are automatically connected to ensure consistent surface thickness during spraying.
5. Efficient extrusion of pipelines
Using efficient and energy-saving extruders for extrusion, and using mechanical clamping devices for winding and compacting; Automatic cutting, triple cutting of anti-corrosion coating, automatic pipe removal during offline production, accelerating detachment.
6. Automated precision machining of pipeline interfaces
Centralize multiple processing steps on a single device for automated processing, achieving precise control over the size, angle, and blunt edge dimensions of the pipe opening.
Wrapped finished pipe
Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.
