Advanced PERT Rigid Insulated Pipe Production Line (Dia.Range75-315MM)

1
MOQ
US$70,000.00-300,000.00
Price
Advanced PERT Rigid Insulated Pipe Production Line (Dia.Range75-315MM)
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Dia.Range: 75-315MM
Inner Pipe Material: PERT, Plastic Pipe
Apply To: Rigid PERT Insulated Pipes
Foaming Layer: Soft Polyurethane Foam Rigid Polyurethane Foam
Application: Used For Sewerage And Drainage In City
Highlight:

PERT rigid insulated pipe production line

,

Pre-insulated pipe production line 75-315mm

,

Insulated pipe production line with warranty
Basic Infomation
Place of Origin: QINGDAO,CHINA
Brand Name: HUASHIDA
Certification: CE
Model Number: Pipe Extruder
Payment & Shipping Terms
Packaging Details: Standard Packing
Delivery Time: 60days
Payment Terms: L/C,D/P,T/T
Supply Ability: 30 Unit/Year
Product Description
Advanced PERT Rigid Insulated Pipe Production Line (Dia.Range75-315MM)
Product Description
The production line adopts international advanced technology, combining modern automation with efficient production processes, which can significantly improve production efficiency and reduce production costs. Has good sealing performance, no chemical corrosion or oxidation in the inner tube.

Widely used in fields such as building water supply and refrigeration systems.
Equipment composition: feeding machine, extruder, vacuum sizing, cooling, traction, cutting, unloading and other integrated components.
Advanced PERT Rigid Insulated Pipe Production Line (Dia.Range75-315MM) 0


Production line composition
The flexible pre-insulated pipes production line consists of the following components:

1) Production line for inner pressure pipe (PERT, PEX)
2) Inner pipe unwinding device
3) Pipe feeding device
4) Conveyor
5) Pipe centering device
6) Preheating and temperature control
7) Film feeding device
8) High-precision foaming machine
9) Forming machine with temperature control
6) Extruder for casing pipe and water cooling
7) Pull-off device
8) Winding machine

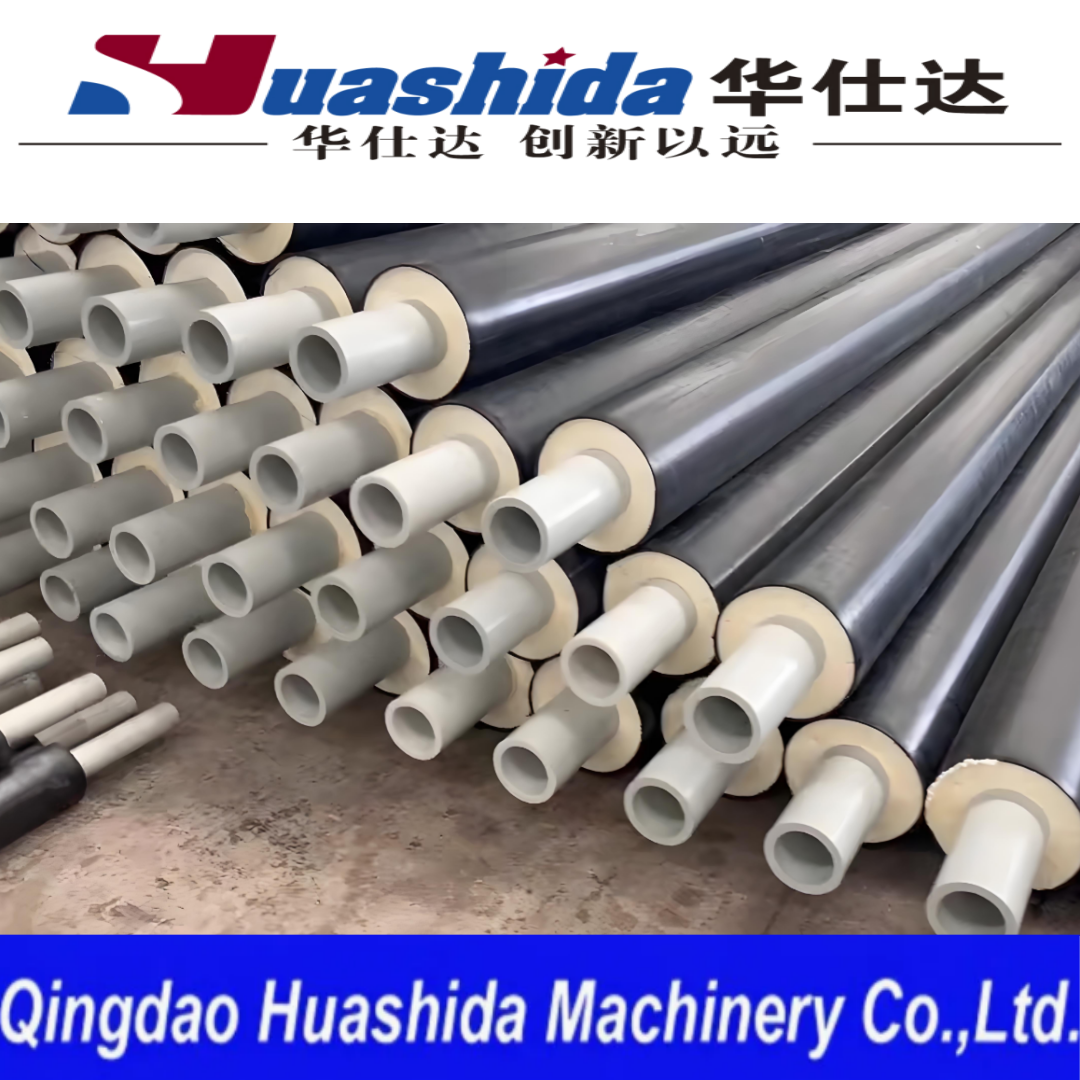

The system consists of three integrated layers:
Inner service pipe (PE-Xa or PE-RT II material)
Polyurethane foam insulation layer
HDPE outer protective casing

Mode Dia. Range Extruder Power Capacity
PERT-110 20-110 60/33 150KW 180KG
PERT-250 75-250 75/35 200KW 250KG
PERT-350 160-350 90/33 260KW 500KG


Features

High Heat Resistance: Can withstand continuous operating temperatures of up to 110°C.
Clean and Safe: Smooth inner wall, free from impurities or contaminants.
Smart Heating Applications: Enables automated and unattended operation for heating systems.
Energy Efficiency: Ideal for low-temperature systems using 60°C supply water and 45°C return water, meeting modern energy-saving demands.
Cost-Effective Construction: Reduces excavation work by 40%, significantly cutting civil construction costs.
Material Saving:
Up to 15% less material use compared to PE-RT I
Up to 30% less material use compared to PP-R
Thinner wall thickness at the same pressure rating, without compromising strength

Advanced PERT Rigid Insulated Pipe Production Line (Dia.Range75-315MM) 1

Advanced PERT Rigid Insulated Pipe Production Line (Dia.Range75-315MM) 2

 Advanced PERT Rigid Insulated Pipe Production Line (Dia.Range75-315MM) 3

 Advanced PERT Rigid Insulated Pipe Production Line (Dia.Range75-315MM) 4

 Advanced PERT Rigid Insulated Pipe Production Line (Dia.Range75-315MM) 5

International Trading show

Advanced PERT Rigid Insulated Pipe Production Line (Dia.Range75-315MM) 6



Certifications

Advanced PERT Rigid Insulated Pipe Production Line (Dia.Range75-315MM) 7



Clients case


Advanced PERT Rigid Insulated Pipe Production Line (Dia.Range75-315MM) 8
