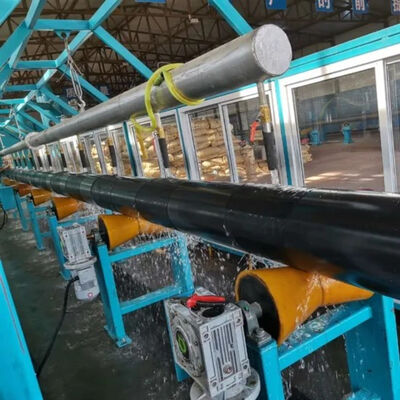

O-Type Extrusion Equipment for 3lpe/2lpe/Fbe Coated Steel Pipe Manufacturing

The Steel Pipe PE O-Type Extrusion Anti-Corrosion Coating Machine is a complete production system designed for 3LPE, 2LPE, and FBE anti-corrosion coating applications on steel pipes. The line integrates steel pipe conveying, shot blasting and derusting, dust collection, intermediate frequency heating, electrostatic epoxy powder spraying, PE and adhesive extrusion coating, water cooling, pipe end trimming, hydraulic and pneumatic systems, detection systems, and PLC intelligent control.

The O-Type extrusion coating process provides excellent resistance to chemical media such as acids, alkalis, salts, and oxidizing agents. This significantly improves pipeline service life and ensures stable operation in harsh environments. The coated steel pipes are widely used in oil and gas transmission pipelines, municipal water supply systems, drainage systems, and industrial pipeline engineering.

• Oil and Gas Transport: Used for long-distance transportation of oil and natural gas, ensuring safe and stable delivery.
• Municipal Water Supply: Applied in urban water supply systems to ensure clean and reliable water transportation.
• Drainage Systems: Used in sewage and drainage pipelines to prevent corrosion and leakage.
• Agricultural Irrigation: Used in irrigation systems to ensure efficient water distribution.
• Cable Protection: Used as protective conduits for optical fibers and power cables to prevent external damage.
• Construction Applications: Used in building water supply and drainage pipeline systems.

These pipes are widely favored for their strong corrosion resistance, high durability, and stable performance in different environments.

1. Pipe Loading
2. Pipe Screw Conveying
3. Shot Blasting and Rust Removal
4. Intermediate Frequency Heating
5. Epoxy Powder Coating
6. Adhesive and PE Extrusion Coating
7. Water Cooling
8. Pipe Screw Conveying
9. Pipe End Grinding
10. Pipe Unloading

• Pipe Diameter Range: 50mm-426mm
• Processing Capacity: ≥150 m²/h
• Surface Cleaning Standard: Sa2.5
• Coating Materials: Epoxy powder, adhesive, polyethylene

• Advanced Technology: The system adopts advanced O-Type extrusion coating technology with stable performance and mature process design.
• Stable Operation: The production line runs smoothly with reliable performance and low failure rate.
• High Automation Level: PLC intelligent control system reduces manual operation and lowers labor cost.
• Excellent Anti-Corrosion Quality: The coating meets international standards and ensures long-term pipeline protection.
• Complete Turnkey Service: We provide full-process services including process design, equipment manufacturing, installation, commissioning, and technical training.
• Rich Global Experience: We have delivered more than 389 production lines worldwide with stable performance feedback.
• Strong Technical Team: We have 9 senior engineers providing full technical support and customized solutions.
• High-End R&D Platform: We have a domestic high-end expert workstation for plastic machinery and equipment development.

Qingdao Huashida Machinery Co., Ltd. is a professional manufacturer of plastic extrusion machinery and steel pipe anti-corrosion equipment in China. The company focuses on steel pipe anti-corrosion and insulation technology, coating process research and development, equipment design and manufacturing, and plastic extrusion machinery development.

Main products include 3LPE / 2LPE / FBE steel pipe coating production lines, PE insulation jacket pipe extrusion lines, PE hollow wall spiral pipe production lines, PE/PP sheet extrusion lines, as well as pipe jointing and welding tools such as heat shrink sleeves, electro-fusion sleeves, and welding accessories.

Welcome to visit our factory and explore long-term cooperation opportunities.
