Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine

1
MOQ
232500$ - 348800$
Price
Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine
Features Gallery Product Description Request A Quote
Features
Specifications
After-sales Service: Installation And Training
Warranty: 12 Months
Type: Coating Production Line
Coating: Vacuum Coating
Substrate: Steel
Condition: New
Transport Package: Plastic Film And Wooden Pallet
Specification: 76/89-273mm, 76/89-305mm
Application: 3PE 2PE FBE Anticorrosion Coating
PE Thickness: 2-3mm
Pipe Surface Treatment: ≥ SA 2.5
FBE Thickness: 200-800 Um
Highlight:

3LPE steel pipe coating machine

,

FBE steel pipe extrusion machine

,

round extrusion pipe coating line
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: Huashida
Certification: CE, ISO, RoHS
Model Number: 76/89-273mm
Payment & Shipping Terms
Packaging Details: 1000*1000*1000
Delivery Time: 45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 30 Sets/Year
Product Description
Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine
This O-Type 3LPE steel pipe anti-corrosion coating line is a fully automatic integrated system professionally designed for high-performance protective coating on steel pipes. It combines shot blasting derusting, intermediate-frequency induction heating, electrostatic FBE powder spraying and O-type co-extrusion technology to complete full-process 3LPE and 2LPE anti-corrosion coating in one workflow.
The finished 3LPE coated steel pipes feature excellent resistance to acid, alkali and salt corrosion, stable physical performance and long service life. Widely applicable to oil and gas transmission, municipal water supply and drainage, and industrial fluid pipeline projects, it is ideal core equipment for professional steel pipe anti-corrosion engineering.
Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 0 Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 1
Technological Processes
The standardized production workflow ensures uniform coating thickness, stable adhesion and high overall efficiency:
  • Pipe Loading: Automated upload via screw conveyor.
  • Surface Treatment: Professional rust removal (Sa2.5) via shot blasting.
  • Induction Heating: Precision intermediate frequency heating for optimal coating adhesion.
  • FBE Coating: Electrostatic Epoxy powder spraying.
  • 3LPE/2LPE Application: O-Type co-extrusion of adhesive and polyethylene layers.

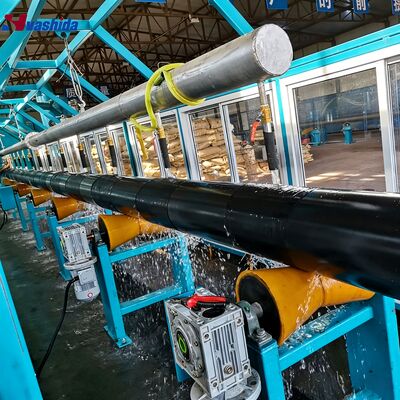

  • Cooling & Finishing: Water spray cooling followed by automated pipe end grinding/beveling.
  • Unloading: Systematic discharge for storage and transport.
Product Parameters
No. Parameter Category Specifications/Details
1 Steel Pipe Processing Range 76mm-273mm, 89mm-273mm, 76mm-305mm, 89mm-305mm
2 Comprehensive Processing Capacity ≥150m²/h
3 Surface Cleaning Standard Sa2.5
4 Production Raw Materials Epoxy powder, adhesive, polyethylene
Our Advantages
  • Adopts mature O-type 3LPE co-extrusion technology, ensuring uniform and compact anti-corrosion coating
  • All-weather stable running design, equipment failure rate lower than 0.5%
  • Full automatic production configuration, effectively reducing labor cost by over 40%
  • Compliant with ISO and CE international anti-corrosion industry certification standards
  • One-stop full lifecycle service: scheme design → factory installation → on-site commissioning → technical training
  • Supported by professional R&D team for high-end plastic and anti-corrosion machinery customization
Production Line Composition
No. Name Set
A. Derusting Equipment
1 Pipe-conveying Equipment 1
2 Shot Blast Cleaning Machine 1
3 Cyclone Dust Collector 1
4 Pulse dust collector 1
5 Centrifugal exhaust fan 1
6 Rust removal equipment PLC control system 1
B. Coating Equipment
1 Coating transfer equipment 1
2 IF heating device 1
3 Powder spraying device 1
4 Automatic loading dryer 2
5 SJ-65/30 Extruder 1
6 SJ-90/30 Extruder 1
7 Hot melt adhesive extruder die 1
8 PE extruder head mold 1
9 Hot melt adhesive/PE coating device 1
10 Cooling Spray equipment 1
C. Platform Equipment
1 Steel pipe platform 1
2 Post-rust removal transition platform 1
3 Product tube storage platform 1
4 Hydraulic Equipment 2
D. Groove Equipment
1 PE Beveling Machine 2
2 Hydraulic Lifting and Turning Machinery 1
3 Hydraulic Equipment 1
Detailed Photos
Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 2 Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 3 Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 4 Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 5 Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 6 Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 7
Customer Cases
Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 8
Company Profile
Qingdao Huashida Machinery Co., LTD is a professional manufacturer with 21 years of experience in plastic extrusion, municipal pipe machinery and steel pipe anti-corrosion equipment.
Main Product Portfolio
  • HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
  • Rigid pre-insulated pipe Production Line
  • Flexible pre-insulated pipe(PERT) production line
  • Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
  • Steel pipe derusting line
  • PE pressure pipe/Water Gas supply pipe production line
  • PP/PE plastic board/sheet/geomembrane production line
  • NBR PVC Thermal insulation tube/plate production line
  • Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria, and other countries.
Factory Overview
Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 9 Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 10
Delivery
Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 11
Certifications
Continuous O-Type Round Extrusion 3LPE 2LPE FBE Steel Pipe Coating Machine 12
