Rubber Foam Pipe Sheet Production Line Designed to Meet Demands of NBR PVC Rubber Foam Insulation Tubes Pipes and Sheets

1
MOQ
450000$ - 550000$
Price
Rubber Foam Pipe Sheet Production Line Designed to Meet Demands of NBR PVC Rubber Foam Insulation Tubes Pipes and Sheets
Features Gallery Product Description Request A Quote
Features
Specifications
After-sales Service: Installation And Training
Warranty: 12 Months
Condition: New
Customized: Customized
Automatic Grade: Automatic
Structure: Horizontal
Transport Package: Standard Package
Specification: 1200.00cm * 230.00cm * 260.00cm
Tube Dia.: 16/20/25/32/40/50/63/75/89/110
Material: EPDM/NBR
Usage: Air Condition Cooper Protector
Package Gross Weight: 1000 Kg
Sheet Width: 1200-1500mm
Tube Thickness: 5-40mm
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: Huashida
Certification: CE, ISO
Model Number: 16/20/25/32/40/50/63/75/89/110
Payment & Shipping Terms
Packaging Details: 1200.00cm * 230.00cm * 260.00cm
Delivery Time: 30-60 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 30 Sets/Year
Product Description
Rubber Foam Pipe Sheet Production Line
Product Overview
The Huashida NBR PVC Flexible Rubber Foam Insulation Tube, Pipe and Sheet Production Line is a high-performance industrial solution engineered for manufacturing flexible thermal insulation. This advanced extrusion line produces high-quality rubber foam pipes (sponge pipes) and insulation sheets utilized globally in HVAC and industrial sectors.
By integrating infrared radiation technology with a precision continuous vulcanization process, this equipment ensures a uniform closed-cell structure, superior thermal resistance, and high-speed output. The line is optimized for NBR (Nitrile-Butadiene Rubber) and PVC (Polyvinyl Chloride) formulations, delivering durable products for air conditioning, fitness equipment, and industrial piping.

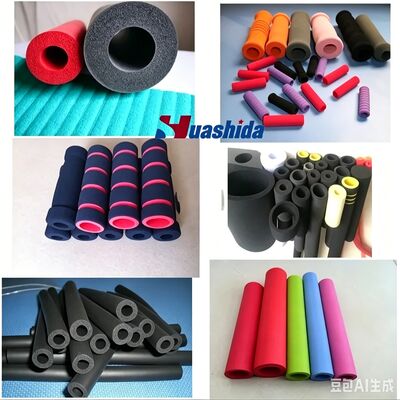

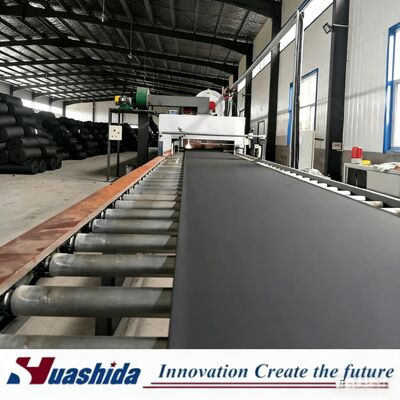

Rubber Foam Pipe Sheet Production Line Designed to Meet Demands of NBR PVC Rubber Foam Insulation Tubes Pipes and Sheets 0 Rubber Foam Pipe Sheet Production Line Designed to Meet Demands of NBR PVC Rubber Foam Insulation Tubes Pipes and Sheets 1
Technical Specifications
Feature Model: XSFP-1200 Model: XSFP-1500
Main Extruder XSJ-120/20 XSJ-150/20
Extruder Power 110 kW 160 kW
Daily Production Capacity 150 - 180 m³/d 200 - 240 m³/d
Product Specifications Max Width: 1200mm Max Width: 1500mm
Tube Diameter Range Ø10mm - Ø114mm Ø10mm - Ø114mm
Foam Thickness 6mm - 25mm 6mm - 25mm
Installed Capacity 750 kW 800 kW
Dimensions (L×W×H) 65m × 4m × 3.5m 80m × 4m × 3.5m
Operator Requirement 6 - 8 Persons 6 - 8 Persons
Equipment Composition & Technical Process
Our thermal insulation manufacturing plant provides a full-cycle production workflow:

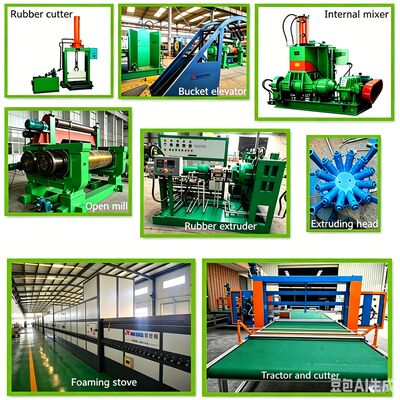

Core Equipment List:
  • Raw Material Prep: Rubber Cutter, Internal Mixer, Bucket Elevator, and Open Mill
  • Extrusion & Foaming: High-precision Rubber Extruder with Infrared Foaming Stove and Hot Air Foaming Oven
  • Finishing: Precision Traction System and Automatic High-Speed Cutting Equipment
Technological Workflow:
  1. Internal Mixing: Homogenizing NBR/PVC materials
  2. Open Rolling: Precision material sheet preparation
  3. Extrusion: High-torque shaping of the insulation profile
  4. Continuous Foaming: Targeted heating to achieve closed-cell density
  5. Cooling & Cutting: Final sizing and automatic length management

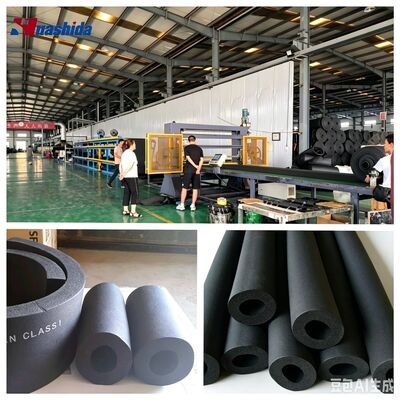

Rubber Foam Pipe Sheet Production Line Designed to Meet Demands of NBR PVC Rubber Foam Insulation Tubes Pipes and Sheets 2
Our Advantages
  • Superior Efficiency: High-speed extrusion combined with low power consumption
  • Intelligent Automation: Advanced PLC control reduces labor requirements by up to 30%
  • Exceptional Quality: Continuous vulcanization ensures smooth surfaces and aging resistance
  • Low Maintenance: Engineered with heavy-duty components for long-term durability
  • Full Support: Lifelong technical assistance, commissioning, and on-site training
Product Applications
The resulting NBR/PVC insulation is characterized by low thermal conductivity, high moisture resistance, and excellent fireproofing. It is widely used for:
  1. HVAC Systems: Thermal insulation for air conditioning pipes and refrigeration units
  2. Industrial Utility: Protection for hot/cold water supply and technological vessels
  3. Acoustic Solutions: Noise and vibration reduction for machine bodies and automotive parts
  4. Fitness & Leisure: High-grade handles and protective sheaths for exercise equipment
Company Profile
Qingdao Huashida Machinery Co., LTD is a premier manufacturer with 21 years of experience in specialized plastic and rubber machinery. We provide turnkey production solutions for over 400 global clients, ensuring compliance with international standards (ISO/CE) and unmatched engineering expertise.

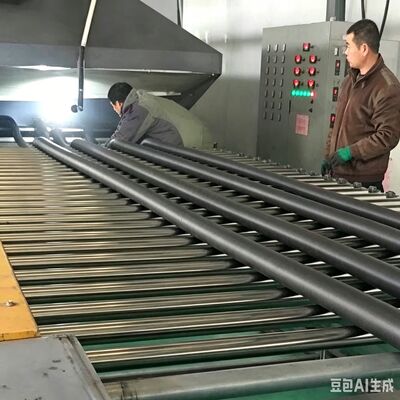

Rubber Foam Pipe Sheet Production Line Designed to Meet Demands of NBR PVC Rubber Foam Insulation Tubes Pipes and Sheets 3 Rubber Foam Pipe Sheet Production Line Designed to Meet Demands of NBR PVC Rubber Foam Insulation Tubes Pipes and Sheets 4
Certifications & Exhibition

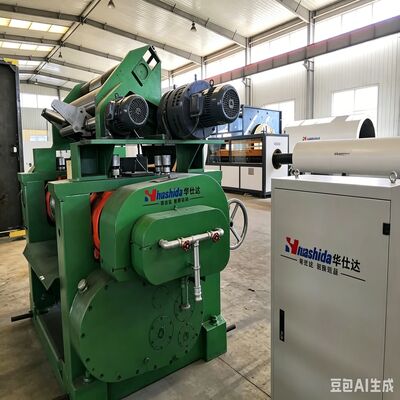

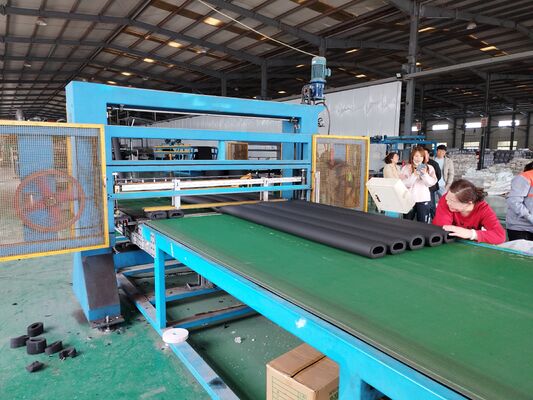

Rubber Foam Pipe Sheet Production Line Designed to Meet Demands of NBR PVC Rubber Foam Insulation Tubes Pipes and Sheets 5 Rubber Foam Pipe Sheet Production Line Designed to Meet Demands of NBR PVC Rubber Foam Insulation Tubes Pipes and Sheets 6
