Steel Pipe 3PE Coating Line with Integrated Shot Blasting and Dual Layer Coating for 200mm-1420mm Diameter Pipes

1
MOQ
US$200,000.00-1,000,000.00
Price
Steel Pipe 3PE Coating Line with Integrated Shot Blasting and Dual Layer Coating for 200mm-1420mm Diameter Pipes
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: China
Brand Name: Huashida
Certification: CE, Rohs，TUV
Payment & Shipping Terms
Packaging Details: Container loading，sea transportation
Delivery Time: 60days
Payment Terms: L/C,T/T
Supply Ability: 50 Sets/Year
Product Description
Steel Pipe FBE 3PE Dual Layer Coating Line with Integrated Shot Blasting
The Steel Pipe FBE 3PE Dual Layer Coating Line with Integrated Shot Blasting features an outer anti-corrosion layer composed of a bottom layer of epoxy powder, an intermediate layer of adhesive, and an outer layer of polyethylene composite. This structure provides high mechanical strength and excellent electrical insulation performance.
The 200mm-1420mm anti-corrosion coating production line is designed for anti-corrosion coating of larger diameter steel pipes, making it widely applicable in various engineering construction projects, particularly in heating, gas, and oil field applications. This line supports FBE, 2 layer FBE, 2 layer PE, 2 layer PP, and 3 layer PE anti-corrosion coating.
Steel Pipe 3PE Coating Line with Integrated Shot Blasting and Dual Layer Coating for 200mm-1420mm Diameter Pipes 0 Steel Pipe 3PE Coating Line with Integrated Shot Blasting and Dual Layer Coating for 200mm-1420mm Diameter Pipes 1
Product Features
  • Excellent Anti-Corrosion Performance: Professional FBE coating technology effectively protects steel pipes from chemical corrosion, aging, and mechanical damage, suitable for long-term use in harsh environments such as oil fields, underground, and coastal areas.
  • Low Resistance Pipeline Performance: Smooth coating surface reduces fluid transport resistance, improves transport efficiency, and saves energy costs for oil, gas, and water supply pipeline systems.
  • Wide Range of Industry Applications: Preferred 3LPE anti-corrosion solution for oil and gas transportation, urban gas supply, municipal water supply and drainage, heating pipeline networks, and large-scale infrastructure buried pipeline projects.
  • High Automation and Cost Savings: Fully automated operation design reduces manual input; stable operation with low failure rate provides cost-effective pipeline coating equipment.
Detailed Photos
Steel Pipe 3PE Coating Line with Integrated Shot Blasting and Dual Layer Coating for 200mm-1420mm Diameter Pipes 2 Steel Pipe 3PE Coating Line with Integrated Shot Blasting and Dual Layer Coating for 200mm-1420mm Diameter Pipes 3 Steel Pipe 3PE Coating Line with Integrated Shot Blasting and Dual Layer Coating for 200mm-1420mm Diameter Pipes 4
Equipment Core Highlights
Main Equipment of 3PE Anti-Corrosion Coating Processing
No. Name Set
A. Derusting Equipment

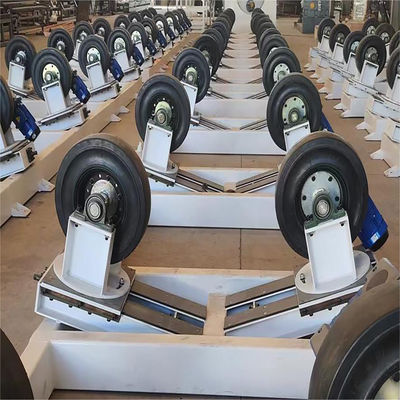

1Pipe-conveying Equipment1
2Shot Blast Cleaning Machine1

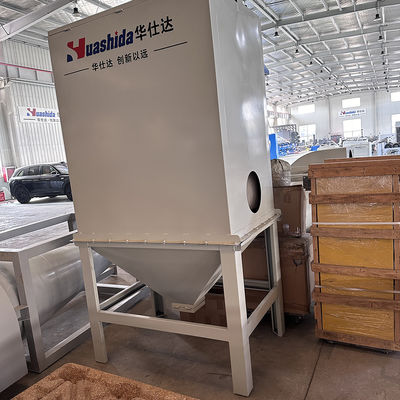

3Cyclone Dust Collector1
4Pulse dust collector1
5Centrifugal exhaust fan1
6Rust removal equipment PLC1
B. Coating Equipment
1Coating transfer equipment1
2IF heating device1
3Powder spraying device1
4Automatic loading dryer2
5SJ-65/30 Extruder1
6SJ-180/30 Extruder1
7Hot melt adhesive extruder die1
8PE sheet extruder head mold1
9Hot melt adhesive/PE sheet coating device1
10Environmental Protection Ventilation equipment1
11Cooling Spray equipment1
C. Platform Equipment
1Steel pipe platform1
2Post-rust removal transition platform1
3Product tube storage platform1
4Hydraulic Equipment3
D. Groove Equipment
1PE Beveling Machine2
2Hydraulic Lifting and Turning Machinery1
3Hydraulic Equipment1
4PLC1
E. Compressed Air Equipment
1Screw Air Compressor1
2Cold dry machine1
3Precision filters3
4Gas tanks1
Steel Pipe 3PE Coating Line with Integrated Shot Blasting and Dual Layer Coating for 200mm-1420mm Diameter Pipes 5
Process Adaptability
Flexible to support single-layer FBE spraying or composite 3LPE coating; compatible with outer 3LPE + internal FBE combined structure, fully adapting to civil water supply, long-distance oil gas transportation, heating pipeline and multiple engineering scenarios.
Efficient and Stable Performance
Precise intermediate frequency heating system reaches ±2°C temperature accuracy, ensuring uniform epoxy powder melting and firm coating adhesion. Adjustable spiral conveyor speed fits different large diameter steel pipes, keeping stable processing capacity and consistent anti-corrosion quality.
Frequently Asked Questions
Q1. What are the production line parameters?
A: (1) Steel pipe coverage: Φ325-1200mm, Φ325-1620mm, Φ325-1820mm, Φ508-1620mm, Φ508-2540mm, Φ508-3600mm; (2) Processing capacity: ≤250m²/h; (3) Cleaning level: Sa2.5; (4) Materials used: dissolved epoxy resin powder.
Q2. What are the main equipment components?
A: (1) Pipe loading equipment; (2) Pipe spiral conveyor; (3) External blasting equipment; (4) Internal blasting equipment; (5) Rust removal equipment; (6) Intermediate frequency heating device; (7) FBE powder coating device; (8) Powder recycling system; (9) Pipe unloading rack.
Q3. What is the delivery time?
A: 2-3 months after the confirmation of the deposit.
Q4. What is the coating thickness?
A: 80-800 μm (customizable according to customer requirements).
Q5. Which countries do you export to?
A: Russia, UAE, India, Iran, Kazakhstan, Belarus, etc. (more than 50 production lines installed globally).
Q6. What is the warranty period?
A: 12-month mechanical warranty / 6-month electrical warranty.
Q7. What is the scope of service?
A: Pre-sale: Provide free workshop planning and capacity measurement schemes; Sale: On-site guidance by engineers, installation and commissioning, and free training; After-sales: 24-hour remote technical support.
Company Profile
Our History: Qingdao Huashida Machinery Co., Ltd. was established in 2003. Since its inception, Huashida has focused on the R&D and production of plastic polyurethane insulation pipe production lines, 3PE anti-corrosion pipe production lines, large-diameter underground pipe production lines, and plastic pipe joints for 20 years. We have always attached great importance to research and development, cooperating closely with Tsinghua University, Beijing University of Chemical Technology, South China University of Technology, and other scientific research institutions. By absorbing advanced technology from home and abroad, we have now become one of the top 3 manufacturers in the Chinese industry.
Steel Pipe 3PE Coating Line with Integrated Shot Blasting and Dual Layer Coating for 200mm-1420mm Diameter Pipes 6 Steel Pipe 3PE Coating Line with Integrated Shot Blasting and Dual Layer Coating for 200mm-1420mm Diameter Pipes 7 Steel Pipe 3PE Coating Line with Integrated Shot Blasting and Dual Layer Coating for 200mm-1420mm Diameter Pipes 8
