Name: High-Pressure Foaming Pre-Insulated Pipe Production Line with 206mm-1820mm Steel Pipe Range and Sa2.5 Rust Removal Quality
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: Polyurethane Foam Machine
Price: 1,507,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Raw Material: HDPE

Pipe Structure: Carrier Steel Pipe-Polyurethane Foam-HDPE Winding

Rust Removal Quality: ≥2.5 Grade

Foaming Machine: High-Pressure Foaming Machine

Highlight:

High-Pressure Foaming Pre-Insulated Pipe Production Line

206mm-1820mm Steel Pipe Range Polyurethane Spray Foam Pipe Machine

Sa2.5 Rust Removal Quality HDPE Winding Insulation Pipe Equipment

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: HUASHIDA

Certification: CE, ISO9001:2008

Model Number: Polyurethane Foam Machine

Payment & Shipping Terms

Packaging Details: Wodden Box

Delivery Time: 60days

Payment Terms: L/C

Supply Ability: 30 Sets/Year

Gallery

High-Pressure Foaming Pre-Insulated Pipe Production Line with 206mm-1820mm Steel Pipe Range and Sa2.5 Rust Removal Quality

Product Description

Prefabricated Directly Buried Insulation Pipe Production Line with PU Spray & HDPE Winding Technology

Recognized as one of the first sets of major technical equipment in Shandong Province, this production line adopts continuous or intermittent spraying processes with high automation and fast production efficiency. It saves raw materials, improves foam closed-cell rate, reduces water absorption, and ensures more reliable product performance with integrated molding technology.

Our company independently develops Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine, which consists of three parts: Steel Pipe Shot Blasting Machine, polyurethane spray production line, and PE winding production line.

Production line parameter:
(1) Steel pipe range: 206mm-1820mm
(2) Processing capacity:≤250㎡/h
(3) Cleaning class: Sa2.5
(4) Used material: ISO (isocyanate), POLY (premixed polyether polyols), PE
(5) Main equipment: Shot blasting and rust removal production line, Polyurethane spray production line, PE winding production line.

The spraying and winding production process ensures the uniformity of the density of the insulation layer, improves product quality, and reduces production costs.

PUF spray PE winding preinsulated pipe production line consists of the following parts:

1) Steel pipe outwall shot blasting line

2) Polyurethane spray molding line
3) Polyethylene sheet extruding winding line
4) Water cooling line
5) End-cutting equipment

Main line Composition of the polyurethane coating steel preinsulated pipe equipment:

No.	name
1	External wall Shot blasting rust removel machine
2	Medium-frequency induction heating furnace
3	Polyurethane spray foaming unit
4	pipe rotator trolley
5	Single screw extruder and diehead mould
6	Finished pipe ends trimming machine
7	pipe Conveyers and racks
8	Electrical system and PLC

Production line equipment Photos show
High-Pressure Foaming Pre-Insulated Pipe Production Line with 206mm-1820mm Steel Pipe Range and Sa2.5 Rust Removal Quality 1

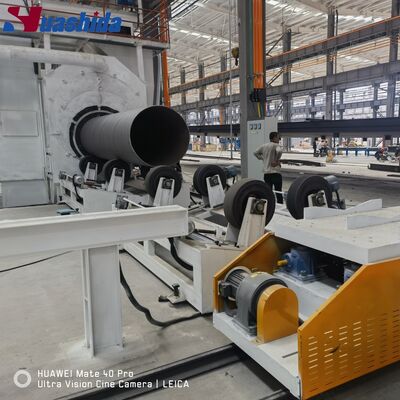

Rust Removal
First, the surface of the steel pipe is derusted, usually by shot blasting or sand blasting, to ensure that the surface is clean and free of rust, oil and other impurities. Preheating: The cleaned steel pipe is preheated so that the subsequent polyurethane foam can better adhere to the steel pipe surface.

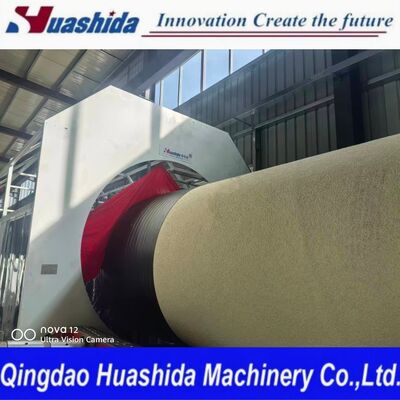

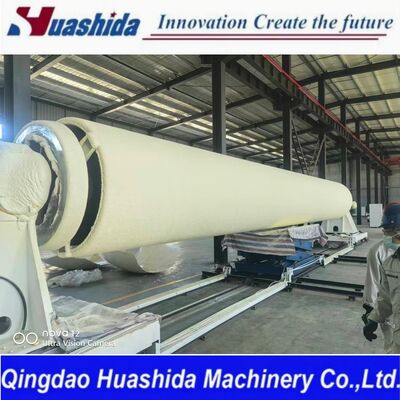

Polyurethane spray molding line

The polyurethane raw materials (isocyanate and polyol) are mixed in a high-pressure foaming machine and evenly sprayed onto the surface of the preheated steel pipe. The polyurethane raw materials rapidly foam on the surface of the steel pipe, forming an insulating layer.

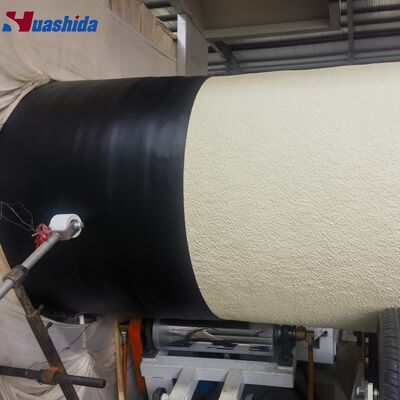

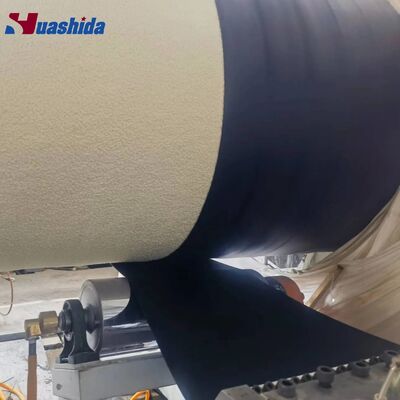

Polyethylene sheet extruding winding line

Polyethylene (PE) is wrapped around the polyurethane insulation layer to form an outer sheath. Cooling and shaping: The wrapped pipe is cooled and shaped to ensure that the outer sheath and insulation layer are tightly bonded to form a stable structure.

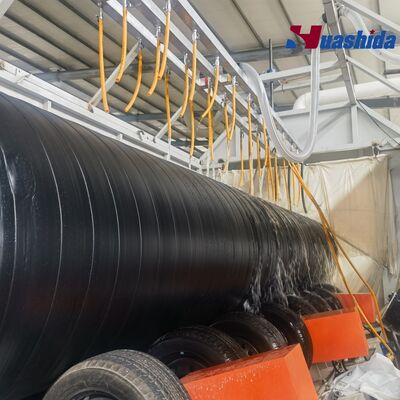

PE Jacket Water quenching

Wrapped finished pipe

Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.

High-Pressure Foaming Pre-Insulated Pipe Production Line with 206mm-1820mm Steel Pipe Range and Sa2.5 Rust Removal Quality 7
