Product Description
The HDPE jacket pipe extrusion line is a high-efficiency, high-speed, and energy-saving production system specially designed for manufacturing HDPE casing pipes used as protective outer jackets for PU foam thermal pre-insulated pipes according to international standards.
The HDPE jacket pipes are produced using advanced vacuum calibration technology, ensuring smooth inner and outer pipe surfaces, uniform wall thickness, excellent mechanical strength, long service life, reliable anti-corrosion performance, and superior heat preservation properties.

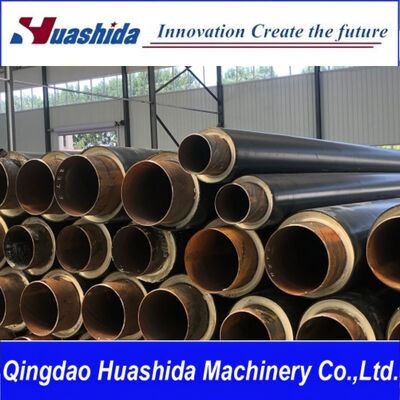

HDPE jacket pipes are widely used in district heating systems, oil transportation pipelines, natural gas pipelines, chemical industries, and other thermal insulation pipeline projects.
Machine Advantages
High-efficiency extruder with stable performance and large output
Energy-saving extrusion technology
Smooth and uniform pipe wall surface
Vacuum calibration ensures precise pipe sizing
High degree of automation with PLC intelligent control
One-person operation saves labor costs
Compact machine structure and small footprint
Long service life and reliable operation
One-time molding process without material waste
|
Extruder
|
Output Capacity
|
|
SJ90/33
|
600-700kg/h
|
|
SJ120/33
|
800-900kg/h
|
|
SJ150/33
|
1000-1200kg/h
|
Product Parameters
|
Model
|
Main Extruder
|
Pipe Diameter
|
Capacity
|
Installed Power
|
Length
|
|
PE-110/500
|
SJ-75/33
|
Φ110-600mm
|
250-350kg/h
|
160kw
|
26m
|
|
PE-655/1380
|
SJ-120/33
|
Φ655-1380mm
|
700-900kg/h
|
480kw
|
36m
|
|
PE-960/1860
|
SJ-150/33
|
Φ960-1860mm
|
1000-1200kg/h
|
580kw
|
45m
|
|
PE-1155/2200
|
SJ-150/33
|
Φ1155-2200mm
|
1350kg/h
|
650kw
|
48m
|
Production Line Composition
1 Set Vacuum Loader
1 Set Hopper Dryer
1 Set High-Efficiency Single Screw Extruder
1 Set Vacuum Calibration Tank
1 Set Water Spray Cooling Tank
1 Set Hauling Machine
1 Set Cutting Machine
1 Set Discharging Frame
1 Set PLC Control System
Technical Highlights
1.High-Efficiency Single Screw Extruder
The production line adopts a proprietary single-screw extruder specially optimized for polyethylene (PE) materials. The precision temperature control system ensures stable plasticizing performance, uniform material fusion, high extrusion efficiency, and stable output capacity.
2.Vacuum Calibration Technology
The patented vacuum calibration system replaces traditional internal pressure forming methods, ensuring accurate pipe dimensions, smooth surfaces, and excellent pipe quality.
3.Intelligent PLC Automation System
The fully integrated PLC control system supports automatic operation, real-time process monitoring, and user-friendly control, greatly improving production efficiency and reducing manual labor.
Production Capabilities
Pipe Diameter Range: 110mm - 2200mm
Output Capacity: 250kg/h - 1600kg/h
Customized solutions available according to customer requirements
Features of HDPE Sleeve Pipe Production Line
Compact machine structure
High automation level with one-person operation
Long service life and stable performance
Large extrusion output and energy saving
Smooth and uniform pipe wall thickness
Reduced raw material waste
One-time extrusion molding process
Application Areas
The HDPE jacket pipe extrusion line is widely used for producing PE outer casing pipes for:
PU foam pre-insulated pipes
District heating pipeline systems
Oil transportation pipelines
Natural gas pipelines
Underground thermal insulation projects
Industrial anti-corrosion pipeline systems
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with over 20 years of production experience.
Our main products:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
Provide complete turnkey production solutions, including design, installation, commissioning and training
Share extensive global production line experience
Supported by a team of senior professional engineers
Equipped with a national-level plastic machinery expert workstation in China
80+ Invention & Utility Model Patents
50+ Exporting Countries & Regions
70% Overseas Customer Share
