Home /Products/Pre-Insulated Pipe Production Line/Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter

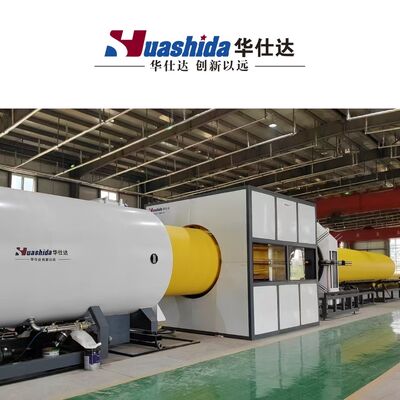

Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter

1
MOQ
US$200,000.00-1,000,000.00
Price
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Raw Material: Pe
Screw No.: Single-screw
Used Material: ISO, POLY ,PE
Cutting Machine: Planetary Cutter
Highlight:

Vacuum Calibration HDPE Insulation Pipe Production Line

,

Single-Screw Extruder Pre-Insulated Pipe Production Line

,

Planetary Cutter HDPE Jacket Pipe Extrusion Line
Basic Infomation
Place of Origin: QINGDAO,CHINA
Brand Name: HUASHIDA
Certification: CE, ISO9001:2008
Model Number: 110-2200mm
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 60days
Payment Terms: L/C,D/P,T/T
Supply Ability: 30 Sets/Year
Product Description
Vacuum Calibrating HDPE insulation pipe production line



Product Description

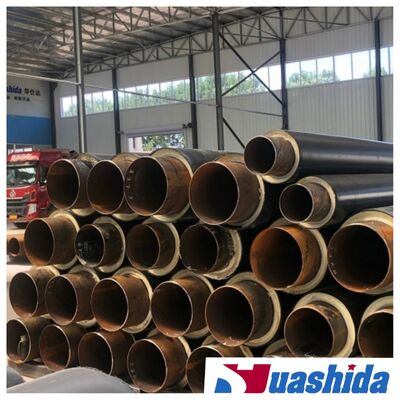

The vacuum calibration polyurethane insulation pipe is a kind of high efficiency pre insulated pipe. It is mainly composed of working steel pipe, PU insulation layer, plastic outer protective pipe and other parts.
HDPE jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of  PU foam thermal Pre-insulated Pipe according to international standard.
HDPE jacket pipe are produced by vacuum calibration method, with smooth inner and outer walls, long service life, good Anticorrosion and heat preservation performance, and excellent mechanical properties.

Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter 0Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter 1

Product Parameters



Style PE-110/500 PE-655/1380 PE-960/1860 PE-1155/2200
Main Extruder SJ-75/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ655-1380mm Φ960-1860mm Φ1155-2200mm
Capacity 250-350kg/h 700-900kg/h 1000-1200kg/h 1350kg/h
Installed power 160kw 480kw 580kw 650kw
Length 26m 36m 45m 45m

Production line composition:

-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame
-1set  PLC (Computer control system)

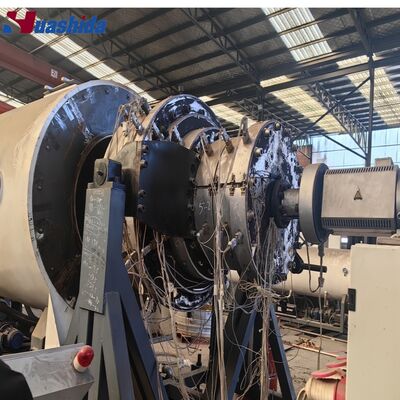

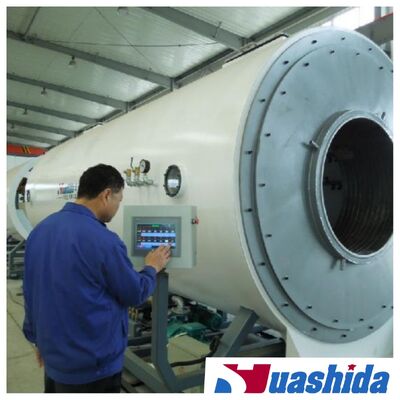

Detailed Photos

Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter 2




Our Advantages

Features of the HDPE pipe production line:

1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.once forming.  No need trim edge.

The advantages of our company:
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China

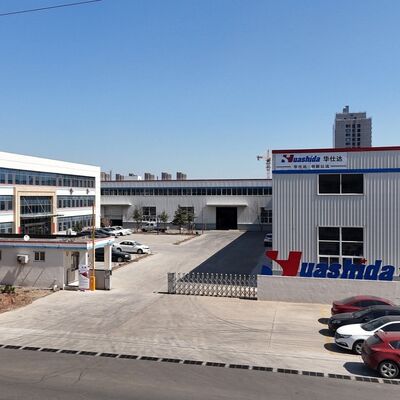

Factory overview
Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter 3
