Customizable HDPE Pre-Insulated Pipe Production Line with Vacuum Calibration and 1400kg/H Output

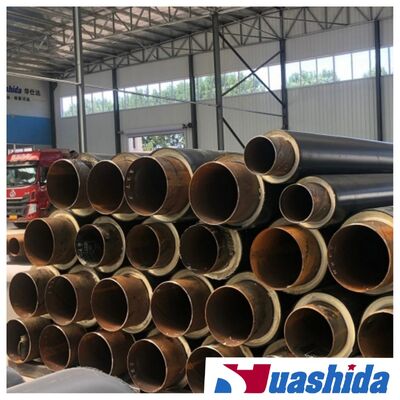

The HDPE jacket pipe extrusion line is high-performance equipment with rapid speed and energy efficiency for manufacturing HDPE pipes used as protective coverings for PU foam thermal pre-insulated pipes in accordance with international standards.
The HDPE jacket pipe is manufactured using the vacuum calibration method, featuring smooth internal and external surfaces, extended service life, excellent corrosion resistance, insulation, and mechanical properties.

Production line parameter:

(1)Steel pipe range:60mm-2000mm

(2)Used material:ISO(isocyanate), POLY(premixed polyether polyols),PE

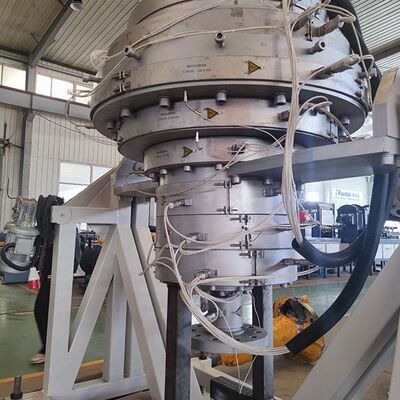

(3)Main equipment:extruding machine,extrusion die model, vacuum calibration tank,Haul off machine,cooling equipment,cutting equipment,polyurethane foaming system,pipe assembly platform, etc.

Production line composition:
-1set   Vacuum loader
-1set   Hopper dryer

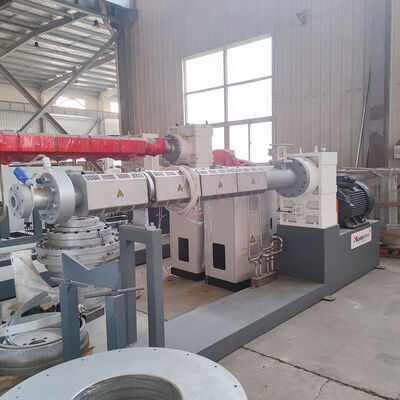

-1set   High-efficiency single screw extruder

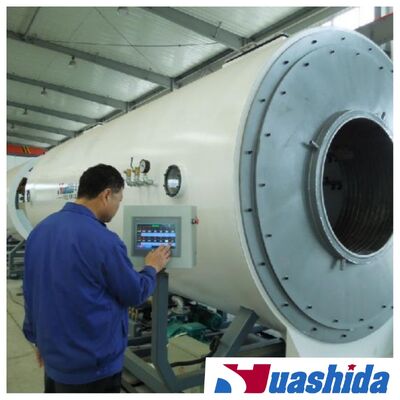

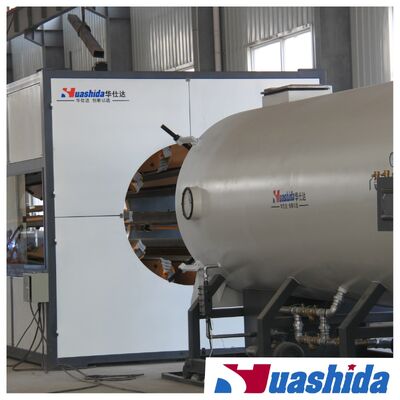

-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame
-1 set    Foaming machine
-1 set  PLC  (Computer control system)


PE-110/500

Features of Production line of HDPE jacket pipe
-high degree of automation, can be operated by one person, saving labor costs
-a long service life.
-high-efficiency extruder gives larger output, stable performance
-pipe wall is average and smooth
-no waste of raw material
-once forming. No need trim edge.

Our strengths
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China

Qingdao Huashida Machinery Co., Ltd. was established in 2003 and is a manufacturer specializing in thermal insulation and anti-corrosion equipment.We offer one-stop pipeline solutions.
The insulation pipe production lines and 3lpe Anti-Corrosion Coating line developed and manufactured by Huashida are widely used in the construction of municipal heating, sewage, water supply, natural gas and communication pipe networks, crude oil pipeline transportation, communication and agricultural irrigation and other fields.
