Oil and Gas Pipeline Girth Weld Protection Heat Shrinkable Sleeve Delivering Durable Insulation and Corrosion Resistance

Developed by Qingdao Huashida Machinery Co., Ltd. with over 20 years of industrial manufacturing experience, this high-efficiency, energy-saving heat shrinkable tape and sleeve production line is an intelligent integrated system dedicated to producing premium pipeline anti-corrosion and joint sealing materials.

Adopting cutting-edge extrusion, irradiation crosslinking, and online lamination technology, the line can manufacture standard two-layer heat shrinkable products and upgraded three-layer fiberglass reinforced heat shrinkable tape/sleeve, widely applied for joint corrosion protection, repair, and sealing of various municipal, oil and gas, and industrial pipelines.

The whole line features low energy consumption, low noise, stepless speed regulation, and a high degree of automation, leading the domestic and international industry in technical performance and product quality.

• Standard Products: 650mm width, Two-layer PE heat shrinkable tape, sleeve-type heat shrinkable sleeves, clip-on heat shrinkable sleeves
• Upgraded Products: Three-layer fiberglass reinforced PE heat shrinkable tape/sleeve

Hollow wall spiral wound pipes, steel-reinforced spiral corrugated pipes, plastic-steel spiral wound pipes, double-flat-wall plastic-steel spiral wound pipes, PVC-U sewage pipes, polyurethane foam insulated pipes (black and yellow jacket pipes), 3PE/2PE steel pipes, seamless steel pipes, large diameter wastewater pipes, and other ordinary steel pipelines.

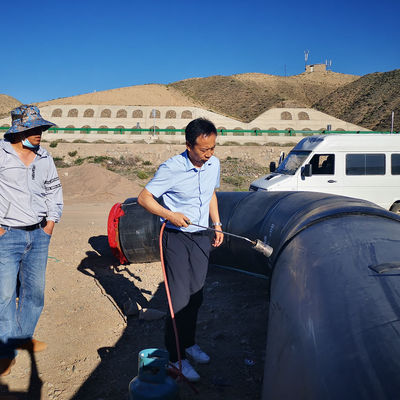

Main Application Fields: Municipal pipeline engineering, oil and gas long-distance transmission pipelines, industrial fluid pipelines, pre-insulated pipeline joint closure, pipeline damage repair, girth weld straight joint field coating

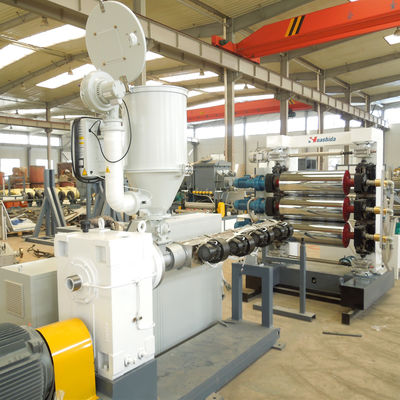

• RS-800 PE Backing Extrusion Line: Output 150-200kg/h, responsible for high-purity LDPE substrate forming
• TJ-700 Adhesive Coating Line: Completes online adhesive coating, stretching, and shaping
• Fiberglass Reinforced Upgrade Configuration: Fiber unwinding, heating, and leveling equipment, 65/30 single-screw extruder, special T-shaped flat-head die
• Auxiliary & Control System: Irradiation crosslinking equipment, cooling system, haul-off unit,  electric control system, ABB main motor

• Working Place: Indoor, no dangerous area
• Power Supply: 380V 50HZ (-10%, +5%)
• Humidity: ≤85%, no condensation
• Circulating Cooling Water: ~0.5m³/min (≤20ºC, 0.3Mpa)
• Compressed Air: ~0.4m³/min, >0.5Mpa

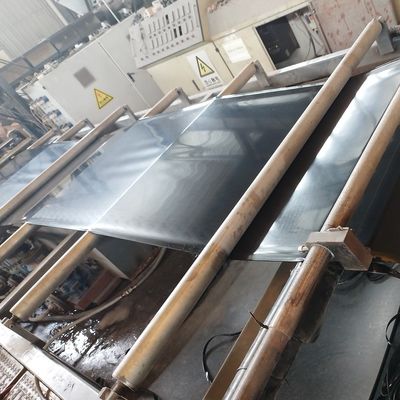

• Substrate Extrusion: LDPE extrusion line produces high-purity PE backing film with uniform thickness
• Irradiation Crosslinking: A professional electron accelerator irradiates the substrate to endow flame retardancy and high tensile strength
• Online Lamination: Secondary stretching shaping, then real-time bonding with imported special hot melt adhesive, ensuring high peel strength and qualified shrinkage rate

Adds fiberglass unwinding, heating, and leveling steps on the standard process, realizes one-pass continuous forming of three-layer fiber-reinforced products, with higher strength and better shrinkage performance.

• High Efficiency & Low Consumption: Innovative single-screw extruder with direct-connection technology, low energy consumption, high output, long service life, maximizes production profit
• Intelligent Control: PLC control system, ABB main motor, controllable production speed, fully automated operation, and reduces labor costs

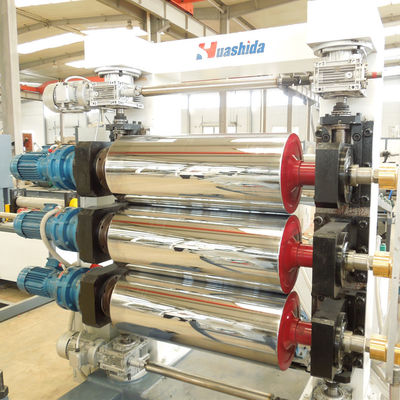

• Stable Product Quality: Advanced T-shaped molds and coat hanger-style flow channels, high-precision mirror rollers, and patented secondary stretching equipment ensure uniform substrate thickness and low scrap rate
• Multifunctional Production: One set of equipment can produce various heat-shrinkable tape and sleeve products, avoiding redundant equipment investment
• Premium Configuration: Adopts top-brand electrical components, imported high-quality adhesive raw materials (DuPont, Sumitomo, Hanwha), stable performance, low failure rate
• Industry Leading Technology: Three-layer one-pass molding technology, reaching world-class level in equipment structure, vulcanization and product performance

Meet ASTM, DIN, GB/T International Standards

• Adhesive Softening Point: 70-80°C (ASTM E 28)
• Shear Strength: ≥100N/cm (DIN 30 672)
• Tensile Strength: 15-20Mpa (ASTM D638)
• Elongation at Break: 350%
• Peel Strength: >150N/cm (ASTM D1000)
• Water-Intake Rate: 0.05% (ASTM D570)

Qingdao Huashida Machinery is a professional manufacturer of heat shrinkable tape production lines, pipe anti-corrosion equipment, and plastic machinery with over 20 years of industrial manufacturing experience.

We have 9 senior engineers, a national high-end plastic machinery expert workstation, and 389 sets of successful global project application cases. Our heat-shrinkable tape and sleeve production lines are exported to dozens of countries and regions worldwide, and we fully support customized production solutions to meet diverse customer requirements across output, product types, and pipeline applications.

• 30% of the contract amount as a deposit within 2 working days after contract signing
• 67% of the contract amount before goods delivery
• 3% of the contract amount within 10 days after finishing installation and commissioning

• Warranty Period: 12 months for mechanical parts, 6 months for electrical parts from the date of equipment receipt
• Free Services: Free technical documents, electrical drawings, and on-site operator training
• Installation & Commissioning: Professional technicians dispatched for on-site guidance; buyer covers round-trip tickets, accommodation, transportation, insurance, and USD 150 per person per day allowance
• Long-term Support: Lifetime technical consultation, spare parts supply, and after-sales troubleshooting

Production and delivery are completed within 90 days after receiving the deposit

Standard packaging with wrap film; wooden pallets or cartons are available at the buyer's cost
