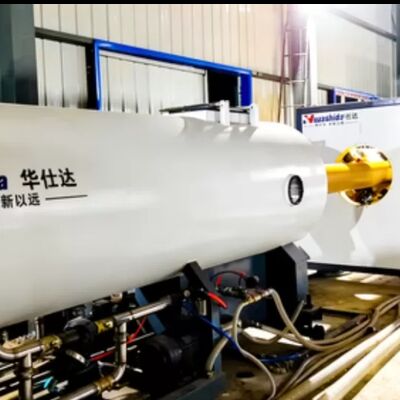

External HDPE Jacket Pipe Extrusion Line for Pre-Insulated Steel Pipeds

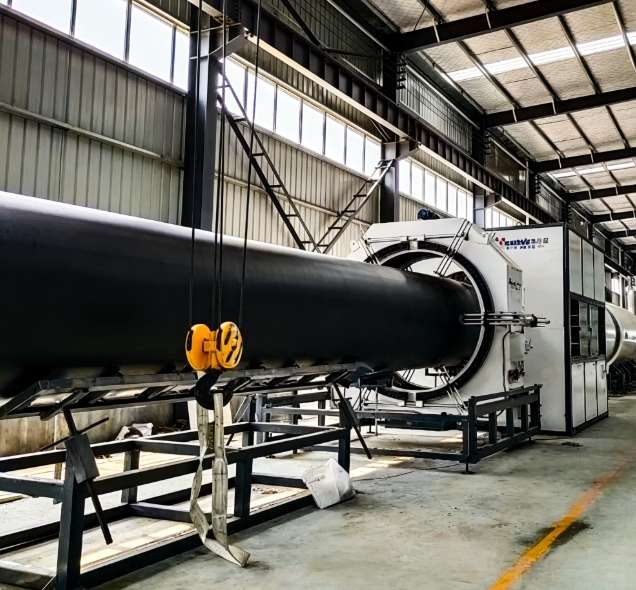

HDPE Jacket pipe extrusion line for pre-insulated pipe is used for extruding thin wall shell to protect the Polyurethane foaming Prefabricated Directly Buried Insulating Pipe. China manufacturer Huashida company adopts vacuum calibration method. The line runs steady. It is easy to operate by PLC. High-speed and efficient production can save costs for customers. It is an environmental protection and energy-saving production line.

HDPE Jacket pipe:   dia. 48-2000mm

Carrier        pipes: steel/stainless steel/plastic/copper

Insulation    layer: polyurethane rigid foam Material

---Pipe diameter range: 110-600mm  655-1372mm 960-1680mm
---The extrusion line comprise equipments and devices as below,
    1set   Vacuum loader
    1set   Hopper dryer
    1set   High-effeciency single screw extruder
    1set   single screw extruder for mark line

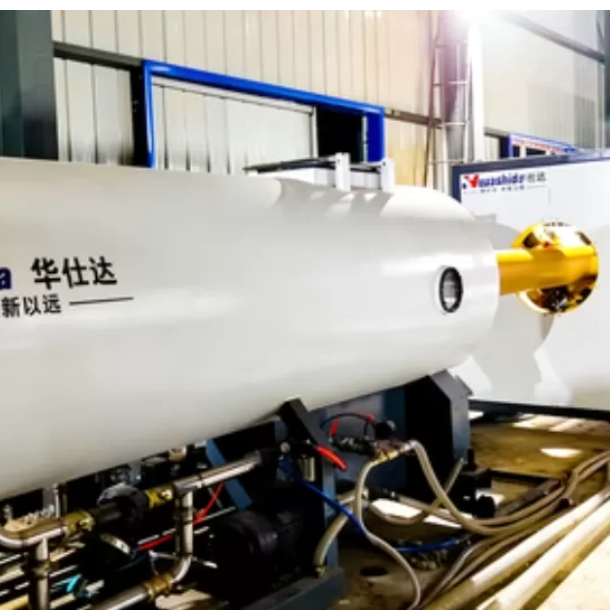

    1set   Vacuum calibration table
    1set   Water spraying tank
    1set   Hauling machine
    1set   Cutting machine
    1set   Stacker



I. Pipe Usage
---HDPE jacket pipe is out case of thermal insulating pipe, which is widely used in central heating, oil, nature gas and other industrial area.
II. Machine Advantages
---High-efficiency extruder gives larger output, stable performance.
For example
SJ-75/33---250-350kg/h
SJ-120/33---700-900kg/h
SJ-150/33---800-1200kg/h
---Compared with inflating method (internal pressure method)
1. For 24 hours working, it reduces 2-3 workers for each shift.
2. There is much waste pipe and material, no need workers to crush waste          material.
3.  High-effeciency. Take Dimater 960mm as an example, Output is approximately 60 pcs of 11.6meters pipe, it is much higher output than that of inflating method.
4. Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
5.  No need trim edge, once forming.



III. Main machine- High-effeciency single screw extruder
---Single screw is with barreir & mixing head; barrel is new model with slotting (channel), Both make security of good jellification, large output and stable performance.
IV. Controlling system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer;s requirement, to be with PLC, or without.
V. Electrical system
---ABB frequency converter or EUROTHERM speed controller
---Japan RKC temperature controller
--- AC contactors
