Features

Specifications

Warranty: 12 Months

Product Type: PE Pipe

Screw No.: Single Screw

Automation: Automatic

Computerized: Computerized

Customized: Customized

After-sales Service: Overseas Installation, Free Technical Supporting

Transport Package: Standard Packing

Specification: 200-1000mm

Max Speed: 6m/Min,1.2m/Min

Field: Drainage/Water Supply/Sewage Discharge/Agricultura

Max Output: 1000kg/H

Material: PP/HDPE

No. Of Layers: Double Layer

Basic Infomation

Place of Origin: Qingdao, China

Brand Name: Huashida

Certification: CE, ISO

Model Number: HSD

Payment & Shipping Terms

Packaging Details: 1000*220*180

Delivery Time: 45-90 Days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 30 Set/Year

Gallery

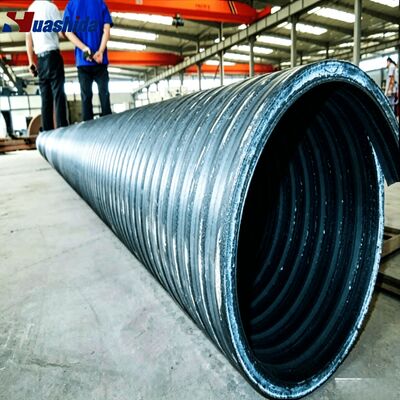

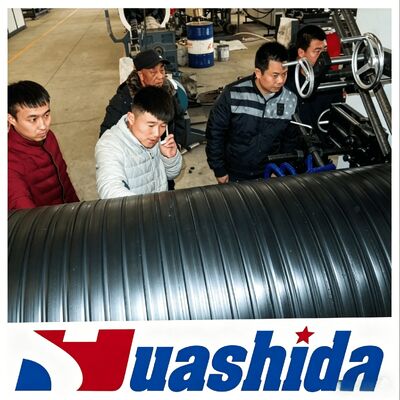

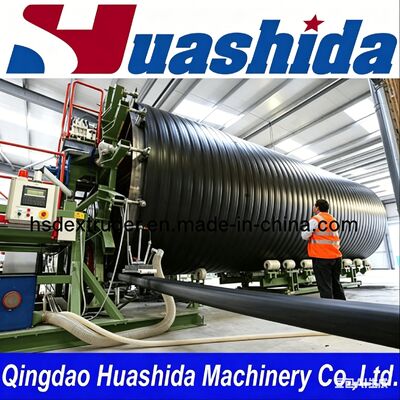

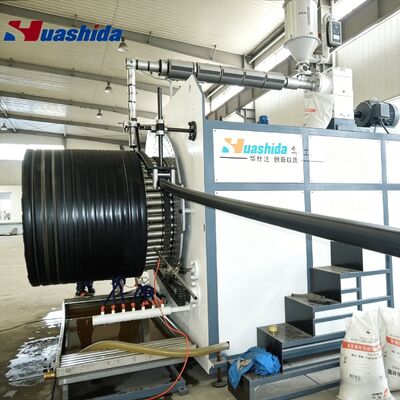

HDPE Structured Wall Spiral Weholite Pipe Production Line for Large Diameter Drainage

Product Description

HDPE Structured Wall Spiral Weholite Pipe Production Line for Large Diameter Drainage

The Huashida HDPE Structured Wall Spiral Pipe Production Line is an advanced engineering solution for manufacturing heavy-duty Weholite and hollow-wall corrugated pipes. Designed for high-density polyethylene (HDPE), this line produces pipes with a unique I-Beam structured wall that offers an exceptional strength-to-weight ratio and high ring stiffness.

As an ideal replacement for traditional cement and cast iron pipes, the resulting structured wall spiral pipes provide up to 50 years of service life. These systems are specifically engineered for municipal sewage, large-scale drainage, and industrial wastewater networks, offering superior resistance to chemical corrosion (acids, alkalis, and salts) and external load pressure.

Key Features & Advantages

Advanced Weholite Technology: Unique hollow-structured wall design ensures high impact resistance and lightweight handling.
Extreme Durability: Excellent creep resistance and chemical stability for underground environments.
Large Diameter Capacity: Capable of producing pipes from Ø200mm up to Ø3000mm.
Economical Construction: Low installation costs and easy connection methods compared to traditional materials.
Smart Automation: Integrated PLC control system for precision manufacturing and high operational safety.

Technological Process

Our hollow-wall extrusion line utilizes a two-part synchronized process to ensure structural integrity:

Profile Extrusion: Raw Material → Vacuum Feeding → Single Screw Extrusion → Vacuum Calibration → Spray Cooling → Traction.
Spiral Winding & Welding: Profile Pipe → Single Screw Glue Extrusion → Spiral Winding & Forming → Water Cooling → Precision Cutting → Inspection & Packing.

Product Parameters

Model	Pipe Diameter (mm)	Main Extruder	Forming Speed	Max Output	Installed Power
SKRG-1200	Ø400 - Ø1200	SJ-65(50)	1-12 m/h	320 kg/h	230 KW
SKRG-1600	Ø800 - Ø1600	SJ-80(50)	1-6 m/h	500 kg/h	310 KW
SKRG-2200	Ø1000 - Ø2200	SJ-90(65)	0.5-5 m/h	650 kg/h	380 KW
SKRG-3000	Ø1600 - Ø3000	SJ-90(65)	0.3-3 m/h	800 kg/h	390 KW

Equipment Composition

This turnkey production plant consists of two specialized units:

Part 1: Profile Extrusion Line: Includes high-torque single screw extruder, square tube die heads, vacuum calibration table, and haul-off unit.
Part 2: Spiral Forming Unit: Includes secondary melt adhesive extruder, Rewinding Forming Machine, and automated PLC-controlled cutting system.
Control System: Full PLC integration for synchronized operation between the profile extruder and winding unit.

Product Applications

The HDPE Structured Wall Spiral Pipe is the gold standard for modern infrastructure:

Municipal Engineering: Urban sewage and stormwater drainage systems.
Infrastructure: Large-diameter culverts and underground utility conduits.
Industrial: Chemical fluid transportation and wastewater management.
Retrofitting: Replacement of aging concrete and cast-iron pipeline networks.

Company Profile

Founded in 2003, Huashida Machinery is a global leader in plastic extrusion technology. With 70% of our production exported to Europe, America, and the Middle East, we provide certified (ISO/CE) solutions for:

Anti-Corrosion Coating Lines (3LPE/FBE)
Pre-Insulated Pipe Lines (HDPE Jacket)
Geomembrane & Sheet Extrusion Systems
Pipeline Joint Materials: Heat shrink sleeves and electro-fusion joints.
