3LPE Anti Corrosion Steel Pipe Production Line Three Layer Protection For Oil Transportation Corrosion Resistant Steel Pipes
Product Description
Our steel pipe anti-corrosion coating line is designed to carry out anti-corrosion coating processing for steel pipes of different diameters within the factory. This equipment has found wide application in various engineering construction projects, particularly in sectors such as heating pipeline construction, natural gas transmission, and oilfield operations.
This production line supports multiple anti-corrosion coating solutions, covering single-layer FBE, double-layer FBE, double-layer PE, double-layer PP, and 3-layer PE anti-corrosion coating systems.
Specifically, the 3-layer PE anti-corrosion coating system is composed of three functional layers: the bottom fusion-bonded epoxy (FBE) primer layer, the intermediate adhesive bonding layer, and the outer polyethylene protective layer.
Application
As an advanced anti-corrosion solution, the three-layer polyethylene (3LPE) coating acts as the reliable outer protective layer for buried steel pipelines. It has been widely adopted in the anti-corrosion treatment for various fluid transmission pipelines, covering oil & gas transmission pipelines, urban gas supply systems, water supply pipelines and other similar pipeline engineering projects.
This 3LPE anti-corrosion coating can effectively enhance the mechanical properties of pipelines, while delivering excellent performance in electrical insulation, water resistance, wear resistance and anti-aging capability.
Steel Pipe 3LPE Anti-corrosion Coating Line
(Applicable pipe diameter: 159-4200mm)
Steel pipe internal external FBE coating line
(Dia. 500-4200mm)
Internal FBE external 3LPE coating line
(Dia. 159-4200mm)
Small size steel pipe O-type extrusion 3LPE coating line
(Dia. 57-426mm)
Steel Bend pipe FBE &3LPE coating Production Line
Main Equipment List
| No. |
Name |
Set |
| A. Derusting Equipment |
| 1 |
Pipe wheel conveyor |
1 |
| 2 |
Shot Blasting Machine |
1 |
| 3 |
Cyclone Dust Collector |
1 |
| 4 |
Pulse dust collector |
1 |
| 5 |
Centrifugal exhaust fan |
1 |
| 6 |
Rust removal equipment PLC |
1 |
| B. Coating equipment |
| 1 |
Pipe wheel conveyor |
1 |
| 2 |
Induction heating device |
1 |
| 3 |
Powder spraying device |
1 |
| 4 |
Automatic loading dryer |
2 |
| 5 |
SJ-65/30 Extruder |
1 |
| 6 |
SJ-120/30 Extruder |
1 |
| 7 |
Hot melt adhesive extruder die |
1 |
| 8 |
PE sheet extruder head mold |
1 |
| 9 |
Hot melt adhesive/PE sheet coating device |
1 |
| 10 |
Environmental Protection Ventilation equipment |
1 |
| 11 |
Cooling Spray equipment |
1 |
| C. Platform Equipment |
| 1 |
Steel pipe uploading platform |
1 |
| 2 |
Downloading platform |
1 |
| 3 |
Pipe storage platform |
1 |
| 4 |
Turnover machanism |
3 |
| D. Groove Equipment |
| 1 |
PE Beveling Machine |
2 |
| 2 |
Hydraulic Lifting and Turning Machinery |
1 |
| 3 |
Hydraulic Equipment |
1 |
| 4 |
PLC automatic control system |
1 |
Detailed Photos

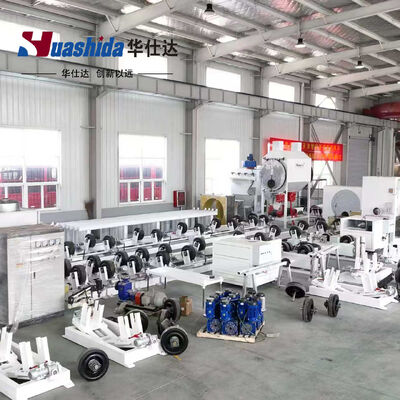

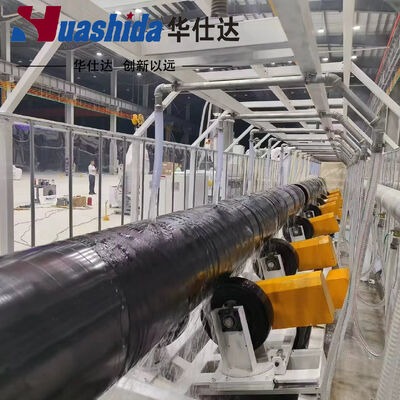

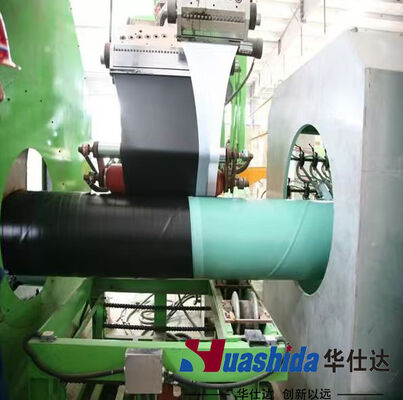

The anti-corrosion coating processing line includes:
- steel pipe transmission system
- surface treatment system
- pipe dust removal system
- pipe heating system
- electrostatic spraying system
- coating system
- water cooling system
- end cutting system
- hydraulic and pneumatic system
- testing system
- electronic control system.
Technological processes
Upload pipes→pipes screw conveyor→rust removal→intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→download pipes
Our Advantages
- Adopt advanced technology
- Stable operation
- High degree of automation, saving labor costs
- Good anti-corrosion quality, meets international standard
- Supply full completed production solution: design, installation, commissioning,training
- Share you 389 sets of production experience from all the world
- Having 9 professional senior engineers
- Having a high-end plastic machinery equipment expert workstation in China
