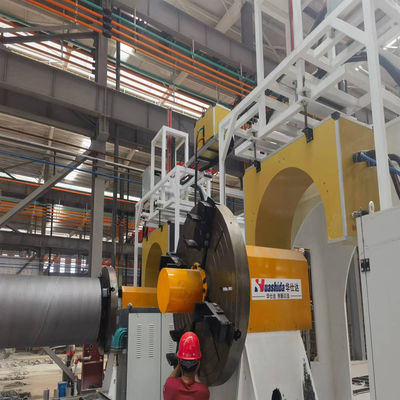

Pre-Insulated Steel Pipe Production Line with 508-1620mm Diameter Range, Continuous PUR Spraying, and PE Wrap Winding

Huashida's independently developed PUR Spray & PE Wrapping Insulated Steel Pipe Production Line (suitable for 508-1620 mm steel pipes) integrates three core sections: an external pipe shot blasting and rust removal line, a polyurethane spray foaming line, and a PE wrap winding line.

This advanced production system is supported by multiple national utility patents and has received a Level 5 technology rating from a third-party evaluation, meeting domestic leading industry standards. It has also been recognized as a "First Set of Technical Equipment" in Shandong Province.

The line adopts a continuous PUR spraying process and is fully automated, delivering high production efficiency, reduced raw material consumption, and optimized energy savings. It ensures excellent polyurethane foaming quality, a high closed-cell rate, low water absorption, and a stable three-in-one (trinity) molded structure.

The resulting insulated pipes are eco-friendly and low-carbon, offering stable performance along with outstanding economic and social benefits.

• Steel pipe surface shot blasting and de-rusting
• Medium-frequency induction preheating
• Uniform polyurethane spray foaming
• HDPE strip wrapping over PU foam layer
• Finished pipe end trimming

External Shot Blasting & PU Foaming
